Tntstar TNT-X01 новый декодер тв цифровой интерфейс кондиционирование телевидение компьютерной приставки к телевизору медиастар 4 ТВ приемник ИИР с
- Категория: TV Receivers & Accessories >>>
- Поставщик: Guangzhou,Tengo,Electronic,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 14.77 $* | 15.36 $* |
| Aug-18-2025 | 14.73 $* | 15.4 $* |
| Jul-18-2025 | 12.4 $* | 13.39 $* |
| Jun-18-2025 | 14.78 $* | 15.9 $* |
| May-18-2025 | 12.94 $* | 13.22 $* |
| Apr-18-2025 | 14.39 $* | 15.70 $* |
| Mar-18-2025 | 14.58 $* | 15.67 $* |
| Feb-18-2025 | 13.0 $* | 14.66 $* |
| Jan-18-2025 | 13.28 $* | 14.71 $* |
Характеристики
Products Description
SECTION | ITEM | DESCRIPTION |
PROCESSOR | CPU | Montage CT6001 |
Flash Memory | 4MB | |
DDR2 | 512MB | |
DVB-S/S2 TUNER | Inpui Frequoncy: | 950 ~2150MHz |
Input level: | -80~-20dBm | |
Inpu impedance | 75Ω | |
DVB-T/T2 Tuner Complian with EN 302 755 DVB-T,EN 300 744 DVB-T2 Standarts | Input Frequency Range | VHF 170~ 230MHZ, UHF 470~862MHz |
IF Bandwidth | 6MHz/7MHz/8MHz | |
Input Signal Level | -85dBm~-20dBm | |
Input impedance | 75Ω | |
RF Input Connector | IEC 61169-2 anteenna female connector | |
DVB-c Tuner complian with EN 300 429 DVB-c Stnadart | Input frequency Range | 48MHz~1GHz |
Guard interal | 1/4,19/128,1/819/256,1/16,1/32,1/128 | |
FEC Code rates | 1/2,2/3,3/4,3/5,4/5,5/6 | |
DEMODULATOR | OFDM | 16QAM,32QAM,64QAM,128QAM,256QAM |
CHANNEL DECODING | Demodulation | QPSK, 8PSK, 16PSK |
FEC mode | DVB-S: 1/2, 2/3, 3/4, 5/6.7/8 | |
DVB-S2: 1/2. 3/5. 2/3.3/4. 4/5, 5/6. 8/9, 9/10 (QPSK) 3/5, 2/3, 3/4, 5/6, 8/9., 9/10 (8PSK) | ||
Symbol Rate | DVB-S: 2.0~45 MS/s | |
Demodulation | QPSK.8PSK. DVB-S2: 10-30 Mb/s (QPSK), 10-31Mb/s (8PSK) | |
DEMULTIPLEXER | Standard | ISO/IEC 13818-1 |
Input Max. Bit Stream Rate | 100Mbps(Serial)/12 .5MBps(Parallel) | |
VIDEO DECODING | Standard | ISO/IEC 13818-2,MPEG-2 MP@ML, MPEG4 AVC (MP L4.1) |
Aspect Ratio | 4:3, 16:9 | |
Video Format | PAL-B/ NTSC-M/ PAL-N / PAL-M | |
Video Resolution | 1080P, 1080I,720P ,480P/576P .480i/576i SD compatible | |
AUDIO DECODING | Standard | ISO/IEC 13818-3 |
Decoding | MPEC-1 Layer I and II. MPEG-2, MPEG-4 AAC | |
Output Mode | LPCM, RAW | |
Sampling Frequency | 32,44.1, 48KHz | |
Volume Level | 24L ,evels | |
AV OUTPUT | Video de-emphasis | CCIR REC. 405-1.625LINES |
Video bandwidth | 5.5MHz | |
Video output impedance | 75Ω | |
Video output level | 1.0Vp-p | |
Audio output | Stereo | |
Audio output frequency | 20Hz~ 20KHz | |
Audio output impedance | Low | |
Audio output level | A1.0Vms±2dB into 10K. | |

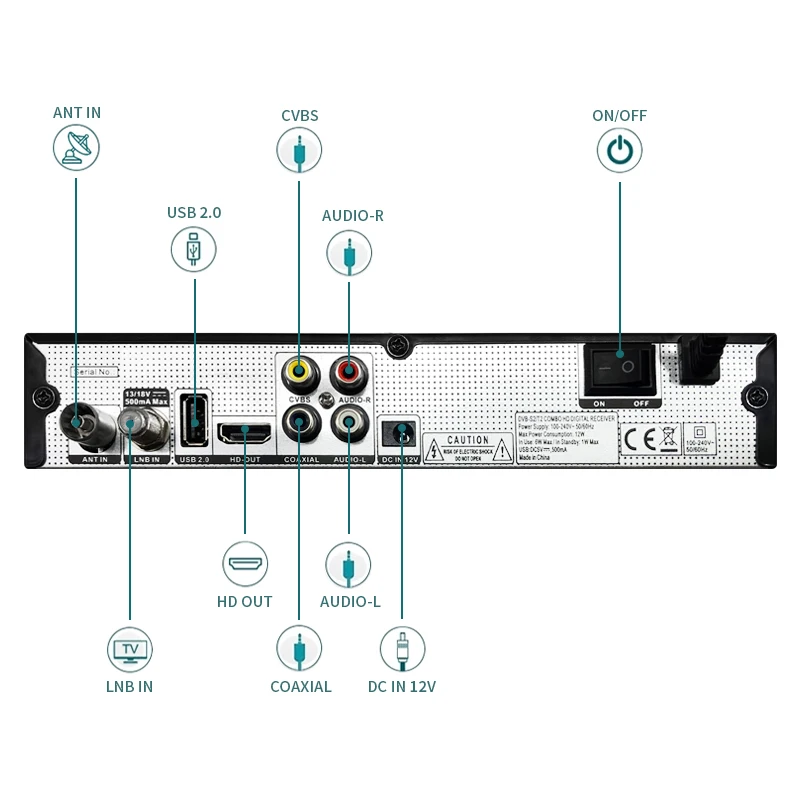

AV OUTPUT | Panel Interface | ● 1xAV(CVBS+R/L AUDIO) ● 1x HDTV ● 1 x LNB IN ● 2 x USB 2.0 Port |
OTHERS | Power input Spec. | 12V/1A DC IN Max.12W |
Product Catalog
Company Information
OEM Service
OEM & ODM Service
1. PCBA desgin
1. PCBA desgin
2. Housing desgin
3. Customize package
4. logo printing on housing
5. Software Customization: Booting image, UI,APP
If you are interested in any of our products, please do not hesitate to contact us for further information.
If you are interested in any of our products, please do not hesitate to contact us for further information.
Product Overviews
Certifications
Packaging Shipping
FAQ
Q1: How to get a sample?
A1: Sample order is acceptable. Please contact us and make sure what sample do you need.
Q2: What about the leading time?
A2: In general, the leading time is about 1 to 7 days. But please confirm the exactly leading time with us as different products
and different quantities will have different leading times.
Q3: How about the packing and shipping?
A3: Normally, we have carton for packaging. And send goods only by cartons.If you have any other special requirements, please feel
free to contact us.
Q4: How about the OEM/ODM service?
A4: We provide all kinds of OEM/ODM service,
For example Logo printing on housing, Customized packing, Software Customization. Please contact with us to make sure the detail
things before placing order.
Q5: How about the payment clause?
A5: Normally,We make full payment before delivery.Paypal, Western Union, and L/C are also available.But if you are our VIP
client,we can accept 30%T/T in advance, the 70% T/T balance before the delivery.
Q6: How about warranty and procedure?
A6: Warranty time: 12 months
Warranty procedure:
1) If the cargo has any problem, please contact us on time, we will help you to result in the problem.
2) If the problems still cannot be solved after checking within warranty time, the user can return the defective unit, we will
repair and send it back to you.
Attention: Customers need to be responsible for the shipping costs.
A1: Sample order is acceptable. Please contact us and make sure what sample do you need.
Q2: What about the leading time?
A2: In general, the leading time is about 1 to 7 days. But please confirm the exactly leading time with us as different products
and different quantities will have different leading times.
Q3: How about the packing and shipping?
A3: Normally, we have carton for packaging. And send goods only by cartons.If you have any other special requirements, please feel
free to contact us.
Q4: How about the OEM/ODM service?
A4: We provide all kinds of OEM/ODM service,
For example Logo printing on housing, Customized packing, Software Customization. Please contact with us to make sure the detail
things before placing order.
Q5: How about the payment clause?
A5: Normally,We make full payment before delivery.Paypal, Western Union, and L/C are also available.But if you are our VIP
client,we can accept 30%T/T in advance, the 70% T/T balance before the delivery.
Q6: How about warranty and procedure?
A6: Warranty time: 12 months
Warranty procedure:
1) If the cargo has any problem, please contact us on time, we will help you to result in the problem.
2) If the problems still cannot be solved after checking within warranty time, the user can return the defective unit, we will
repair and send it back to you.
Attention: Customers need to be responsible for the shipping costs.
