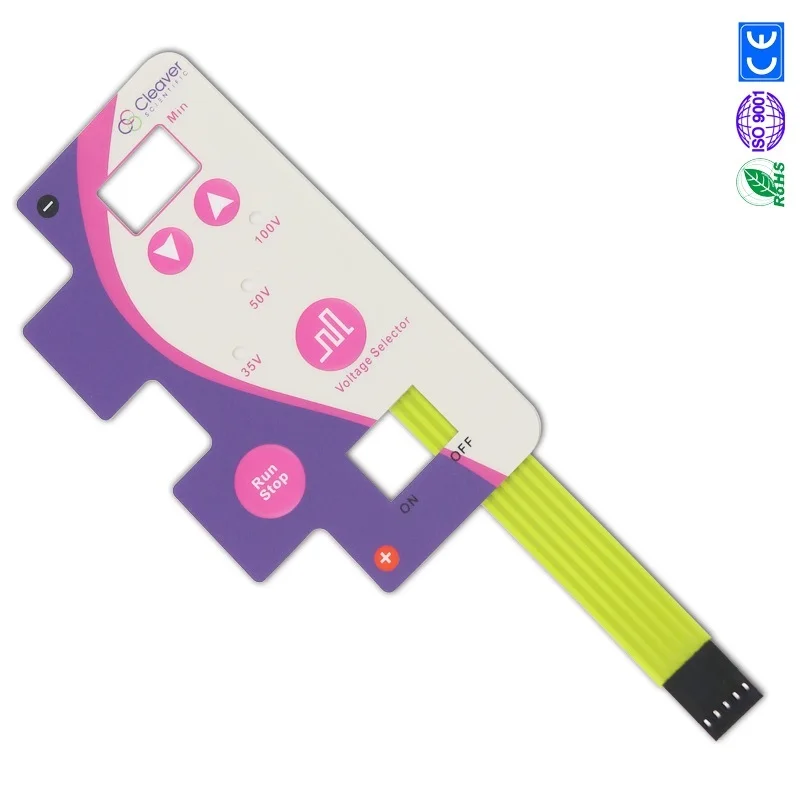

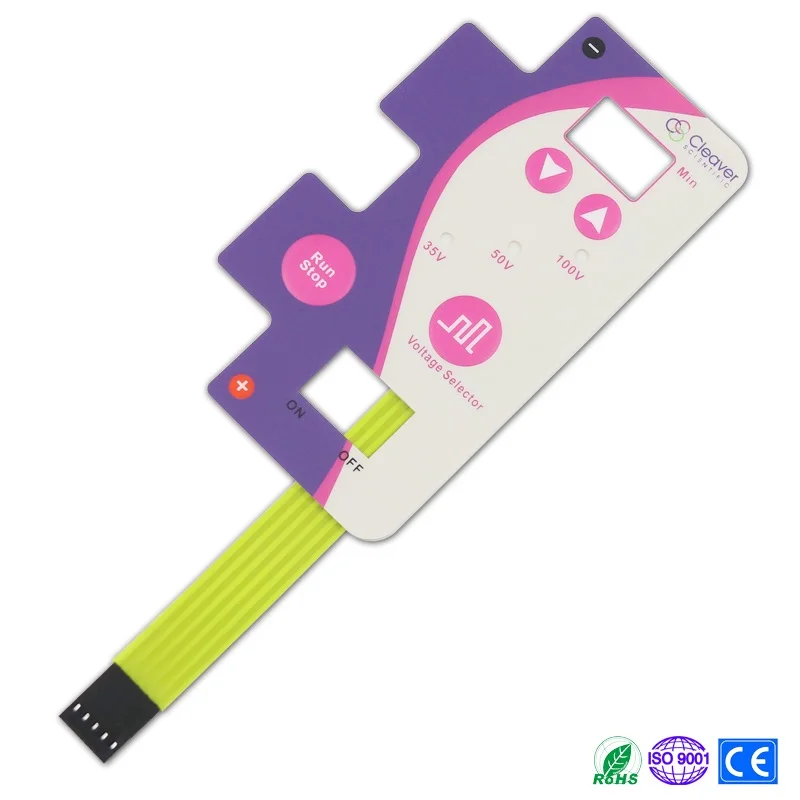

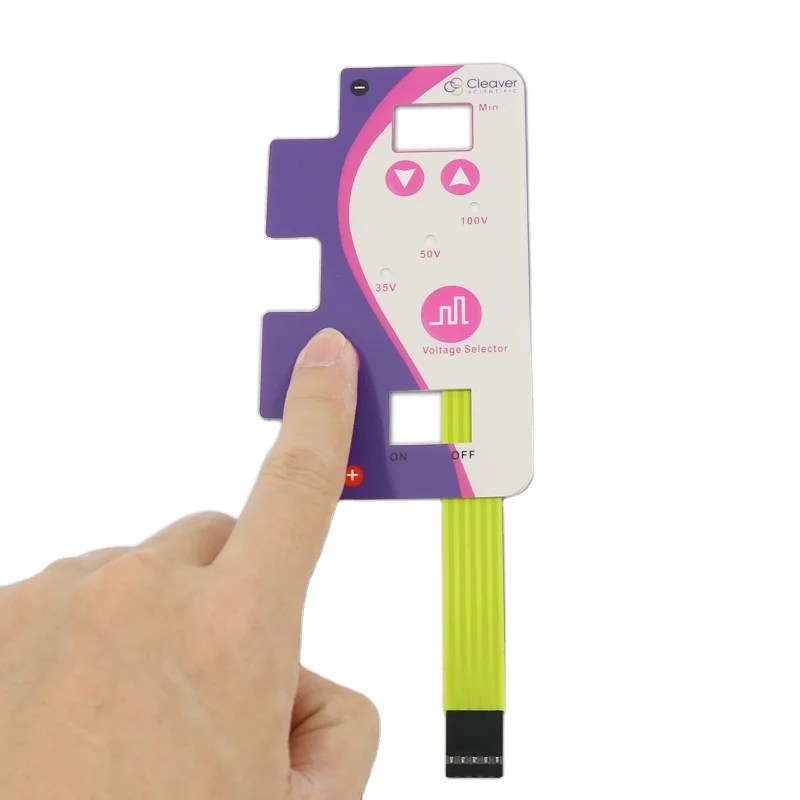

Китай производитель и поставщик Oem сервис печати ПЭТ/Pc схемы мульти четыре 4 кнопки мембранная клавиатура с клейкой лентой
- Категория: Keypads & Keyboards >>>
- Поставщик: Westbay,Intelligent,Technology,(Shenzhen),Co.,Ltd
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 0.69 $* | 0.44 $* |
| Aug-20-2025 | 0.84 $* | 0.25 $* |
| Jul-20-2025 | 0.8 $* | 0.32 $* |
| Jun-20-2025 | 0.43 $* | 0.90 $* |
| May-20-2025 | 0.99 $* | 0.62 $* |
| Apr-20-2025 | 0.0 $* | 0.36 $* |
| Mar-20-2025 | 0.95 $* | 0.37 $* |
| Feb-20-2025 | 0.93 $* | 0.76 $* |
| Jan-20-2025 | 0.46 $* | 0.78 $* |
Характеристики
Products Description
What is Membrane Switch?
The membrane switch is a momentary switching device that is manufactured by using a series of flexible layers of polymer films and adhesives. The top layer, called a graphic overlay, is manufactured by printing on the down surface of transparent polyester or polycarbonate film. Membrane switches can be constructed of multiple circuit layers, and more optimized graphic design features, such as domed key embossing. Designs that are more complex require more material layers for proper construction and reliable operation. Membrane switches, when combined with components such as a tactile dome, graphic overlay, or integrated LEDs or
resistors can provide the designer with virtually limitless capabilities to create the ideal custom user interface for their products.
The membrane switch is a momentary switching device that is manufactured by using a series of flexible layers of polymer films and adhesives. The top layer, called a graphic overlay, is manufactured by printing on the down surface of transparent polyester or polycarbonate film. Membrane switches can be constructed of multiple circuit layers, and more optimized graphic design features, such as domed key embossing. Designs that are more complex require more material layers for proper construction and reliable operation. Membrane switches, when combined with components such as a tactile dome, graphic overlay, or integrated LEDs or
resistors can provide the designer with virtually limitless capabilities to create the ideal custom user interface for their products.
MEMBRANE SWITCH SPECIFICATION | ||
Parameter | Options & Notes | |
Size | As per customer requirements | |
Structure / Construction | Flat / Embedded Switching / Raised Switching / Overlays | |
Integration | Waterproof and dustproof gaskets available | |
Graphic Overlay | ||
Cover Materials | PC, PVC, PET, Silicone, Polyester | |
Thickness | PET: 0.08 – 0.25mm | |
PC: 0.175 – 0.35mm | ||
Decoration | Screen printing, transparent or tinted windows, graphic overlays | |
Additional Options | UV hard-coat surface, various textures | |
Interface | ||

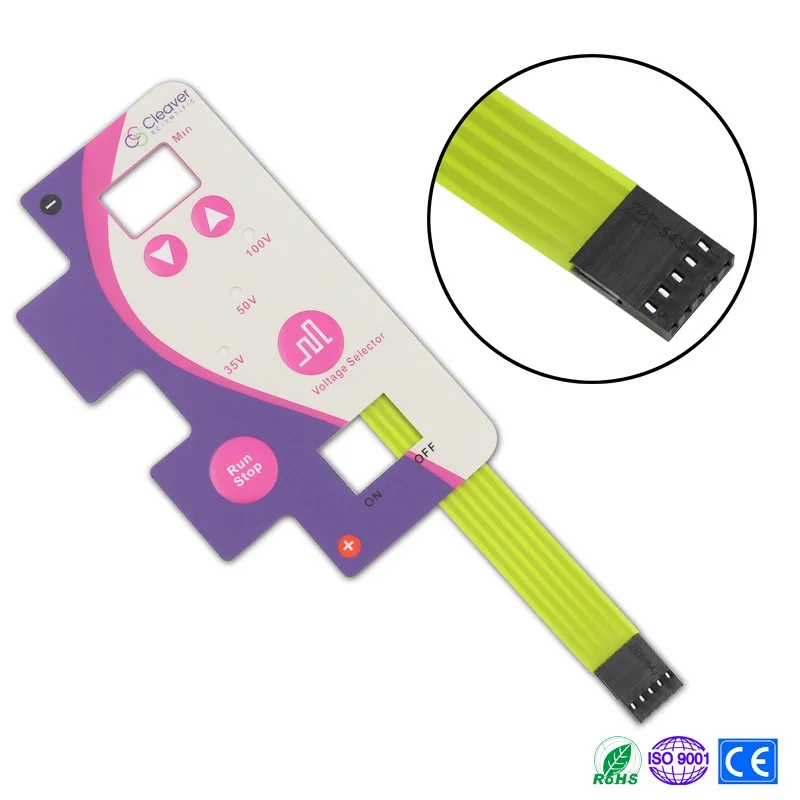

Interface Options | Pin, FFC, FPC, USB | |
Pin Spacing | 2.54 / 1.25 / 1.0mm/0.5mm | |
Housing | Female, 2.54mm | |
Electrical | ||
Circuit Material | Silver Paste, Carbon Paste, Copper Circuit | |
Rated Current | 35V, 100mA, 1W | |
Response Time | ≤ 5 ms | |
Insulation Resistance | >100MΩ 250V DC | |
Operating Voltage | <50V DC | |
Mechanical | ||
Contact Travel | 0.1 – 0.4mm (non-tactile) | 0.4 – 1mm (tactile) | |
Actuation Force | 50 – 350g (non-tactile) | 200 – 750g (tactile) | |
Life span | ≥1 million actuations | |
Environmental | ||
Operating Temp | -30 C to +70 C | |
Storage Temp | -40 C to +80 C | |
Relative Humidity | 20% – 95% RH Non-Condensing | |
Optional Product Enhancements | ||
Tactile | Plastic & metal tactile domes | |
Sealability | IP & NEMA ratings, sealing integration, water-resistant designs | |
EMI Resistance | EMI shielding mesh, layers, or filters | |
Lighting | LEDs, Light Guide Film (LGF), fiber optic lighting | |
Other | Backplate integration, anti-bacterial materials, etc. | |
MS Application

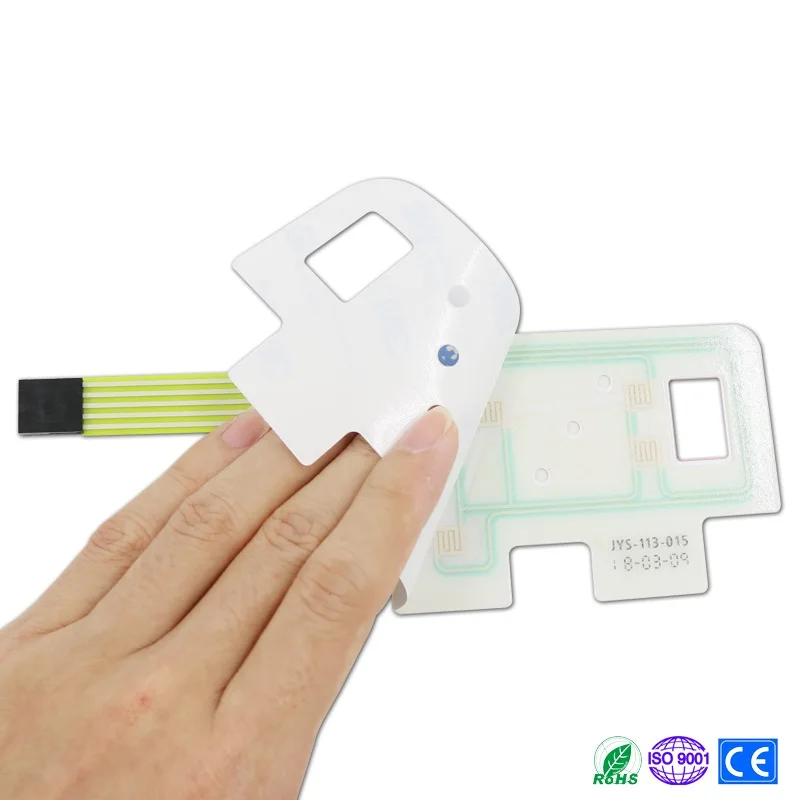

The Structure and Working Principle of Membrane Switch.
1.Graphic Overlay – PET/PC is usually the material of choice due to its fantastic chemical resistance and flex property . Westbay Intelligent can do digital printing, screen-printing, or apply both methods to ensure you get the right colors, textures and finish your design requirements.
2.Overlay Adhesive – This adhesive layer stick the graphic overlay to the top circuit layer, and is usually an acrylic adhesive.
The material is same with the fourth layer. Only the thickness maybe different according to the actual situation.
3.Top Circuit Layer – The material of this layer is specific. Is is a 0.1mm thickness thermostable PET film printed with
conductive silver ink and also dielectric oil, which used for fastening metal domes.
4.Circuit Spacer – This layer separates the top circuit from the bottom circuit so that switch remains normally break until the
keypad is pressed. The circuit spacer is a polyester spacer with adhesive on both sides.
5.Lower Circuit Layer – This layer is a 0.1mm--0.25mm thickness thermostable PET film printed with conductive silver ink and also
dielectric oil. This layer terminates as a flexible tail that serves as an interconnector to controller PCBs or other IC.

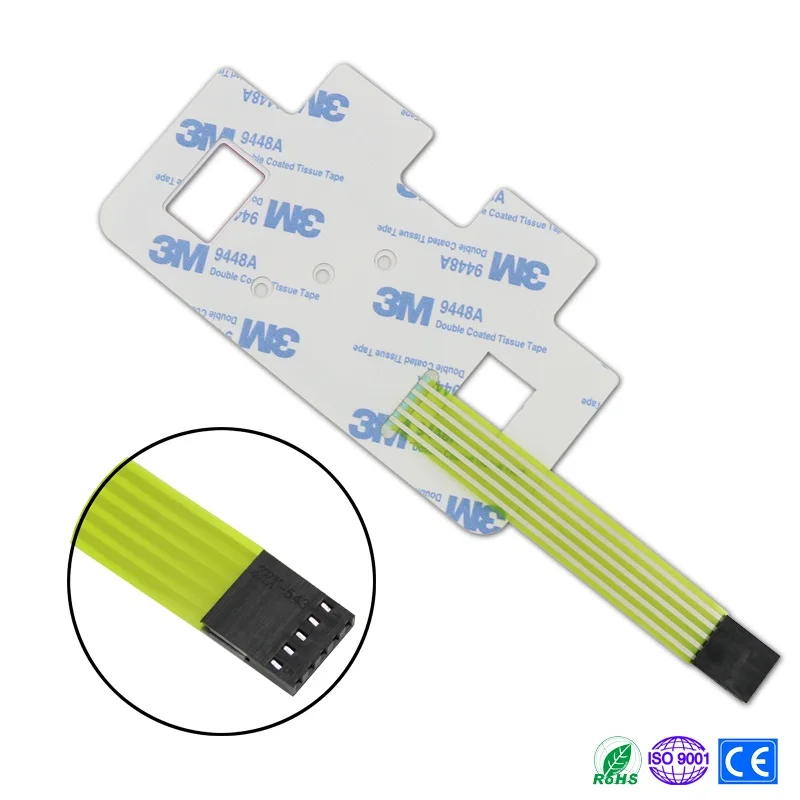

6.Rear Adhesive – This adhesive layer bonds the entire membrane switch to the product surface, housing, or to a rigid support
panel. Westbay can use the proper adhesive type and thickness to bond your membrane switch to your equipment.
2.Overlay Adhesive – This adhesive layer stick the graphic overlay to the top circuit layer, and is usually an acrylic adhesive.
The material is same with the fourth layer. Only the thickness maybe different according to the actual situation.
3.Top Circuit Layer – The material of this layer is specific. Is is a 0.1mm thickness thermostable PET film printed with
conductive silver ink and also dielectric oil, which used for fastening metal domes.
4.Circuit Spacer – This layer separates the top circuit from the bottom circuit so that switch remains normally break until the
keypad is pressed. The circuit spacer is a polyester spacer with adhesive on both sides.
5.Lower Circuit Layer – This layer is a 0.1mm--0.25mm thickness thermostable PET film printed with conductive silver ink and also
dielectric oil. This layer terminates as a flexible tail that serves as an interconnector to controller PCBs or other IC.
6.Rear Adhesive – This adhesive layer bonds the entire membrane switch to the product surface, housing, or to a rigid support
panel. Westbay can use the proper adhesive type and thickness to bond your membrane switch to your equipment.
Other Products
Company Profile
Packing & Shipping
FAQ
1.Are you a manufacturer or trading agent?
We are a experienced manufacturer and we also have a professional overseas sales team to serve our customers all over the world.
2. Can I buy samples placing orders?
(1)please send us the design drawings, photos,requirement, quantity,or samples together with other detailed datas, then we’ll customize the products upon your requests.
(2)We usually quote within 24 hours after we get your inquiry(Except weekend and holidays).
(3)If you are very urgent to get the price, please email us or contact us in other ways so that we can offer you a quote. 3.What is your lead time?
(1) It depends on the order quantity and the season you place the order.
(2)Usually we can ship within 7-15 days for small quantity, and about 30 days for large quantity.
(3)For complicated product should take 1 more week.
4. Can you do the design for us?
Yes, no problem There are many professional engineer having rich experience in graphic overlays& circuit designing. Just let us know your ideas and we will help to carry out your ideas into perfect products. If you send me your samples, we will design the drawings based on the samples and can revise the graphic of the face.
5.How to control quality?
(1)We process the products strictly based on BOM and have total quality management system.
(2)Our many engineers have up to 10 years experience and are very professional.
(3) All the products go through 100% visual inspection and functional test before packaging.
(4)Warranty period is one year. If you find some products is defective, please feedback tous, we will investigate the root cause and make the improvement and solutions.
6.Is the prototype necessary?
Yes.Most of the items are customized orders,so the prototype will be sent to customer for approval.
7. How to guarantee the after sales service?
We will track the production situation of the goods during the whole process,we promise the goods will be shipped to you smoothly.If any problem happened, we will provide the best solution for you.
8. What is the shipping method?
Shipping by: by sea,by air or by express (UPS/ Fedex /DHL /TNT) or other ways specified. Delivery time: 3~20 days after payment received, which depends on your choice.
9. What is the terms of payment?
T/T,Western Union,MoneyGram and Paypal.This is negotiable.
10.How do you make our business long-term and good relationship?
(1) We keep good quality and competitive price to ensure our customers benefit ;
(2) We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from.
2. Can I buy samples placing orders?
(1)please send us the design drawings, photos,requirement, quantity,or samples together with other detailed datas, then we’ll customize the products upon your requests.
(2)We usually quote within 24 hours after we get your inquiry(Except weekend and holidays).
(3)If you are very urgent to get the price, please email us or contact us in other ways so that we can offer you a quote. 3.What is your lead time?
(1) It depends on the order quantity and the season you place the order.
(2)Usually we can ship within 7-15 days for small quantity, and about 30 days for large quantity.
(3)For complicated product should take 1 more week.
4. Can you do the design for us?
Yes, no problem There are many professional engineer having rich experience in graphic overlays& circuit designing. Just let us know your ideas and we will help to carry out your ideas into perfect products. If you send me your samples, we will design the drawings based on the samples and can revise the graphic of the face.
5.How to control quality?
(1)We process the products strictly based on BOM and have total quality management system.
(2)Our many engineers have up to 10 years experience and are very professional.
(3) All the products go through 100% visual inspection and functional test before packaging.
(4)Warranty period is one year. If you find some products is defective, please feedback tous, we will investigate the root cause and make the improvement and solutions.
6.Is the prototype necessary?
Yes.Most of the items are customized orders,so the prototype will be sent to customer for approval.
7. How to guarantee the after sales service?
We will track the production situation of the goods during the whole process,we promise the goods will be shipped to you smoothly.If any problem happened, we will provide the best solution for you.
8. What is the shipping method?
Shipping by: by sea,by air or by express (UPS/ Fedex /DHL /TNT) or other ways specified. Delivery time: 3~20 days after payment received, which depends on your choice.
9. What is the terms of payment?
T/T,Western Union,MoneyGram and Paypal.This is negotiable.
10.How do you make our business long-term and good relationship?
(1) We keep good quality and competitive price to ensure our customers benefit ;
(2) We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from.
