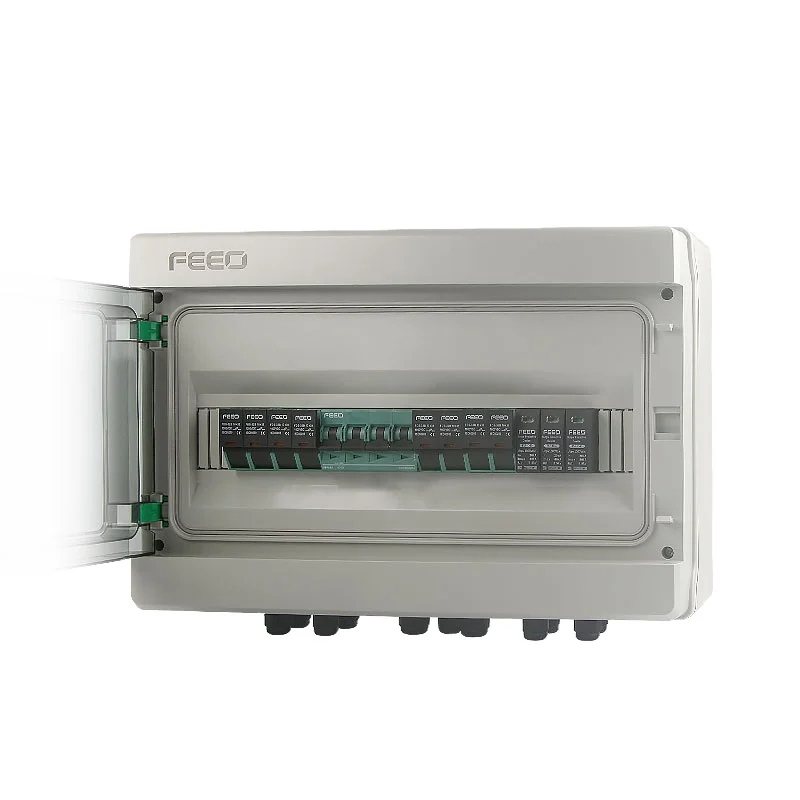

6 струн PV солнечный DC550V 1000V 1500V комбинированный ящик IP65 для солнечной системы

6 струн PV солнечный DC550V 1000V 1500V комбинированный ящик IP65 для солнечной системы

Цена:*

Количество:

.jpg

♦High reliability

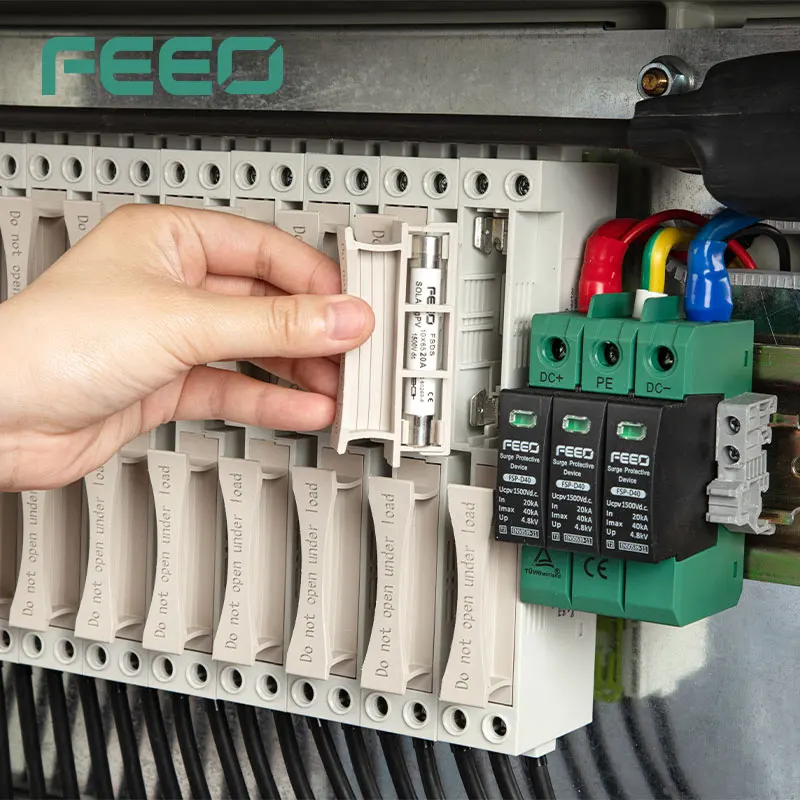

With DC FUSE

With DC Surge Protection Device

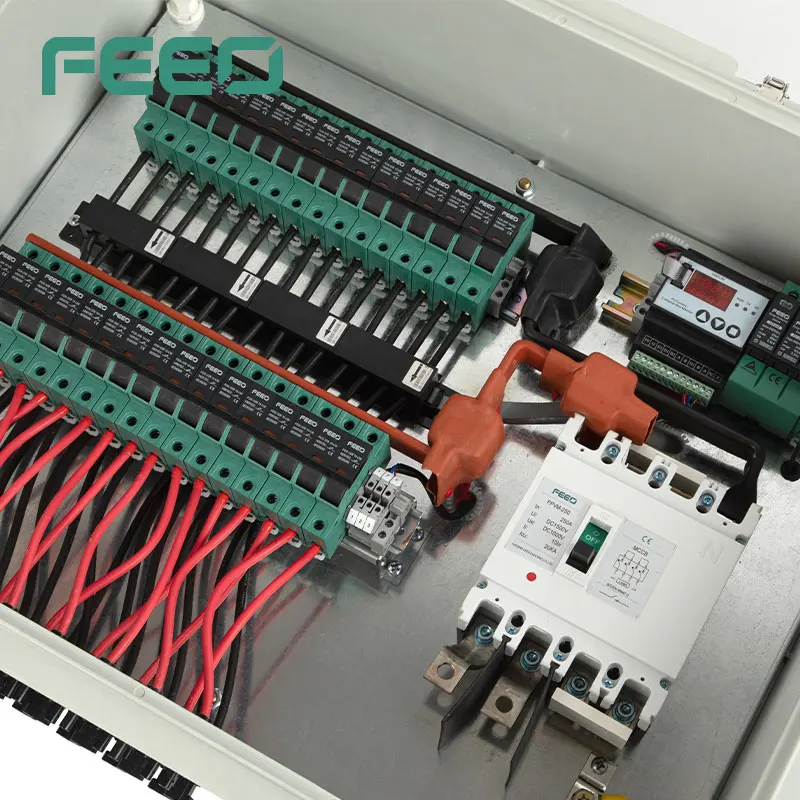

With DC circuit breaker or DC load isolation switch.

♦Strong adaptability

IP65 desigh,waterproof,anti dust and anti ularaviolet.

Strict test for high and low temperature,used widely

The simple installation, the simplified system wiring, the convenient wiring.

The box body is made of cold rolled steel and other metal materials.

♦Flexible configuration

Used for single crystal silicon solar modules, polycrystalline silicon solar modules

thin film solar modules. Current rating of the photovoltaic fuse, cicuit breaker, load isolation switch is modified.

Name	FSCB-PV24/1
	Electric parameter
System maximum DC voltage	1000
Maximum input current for each string	15A
Maximum input strings	24
Maximum output switch current	200A
Number of inverter	N
Number of output strings	1
	Lightning protection
Category of test	Ⅱ grade protection
Nominal discharge current	20KA
Maximum discharge current	40KA
Voltage protection level	3.8KV
Maximum continuous operating voltage Uc	1050V
Poles	3P
Structure characteristic	Plug-push module
	System
Protection grade	IP65
Output switch	DC isolation switch(standard)/DC circuit breaker(optianal)
SMC4 Waterproof Connectors	Standard
PV DC FUSE	Standard
PV Surger protective device	Standard
Monitoring module	Optional
Precenting diode	Optional

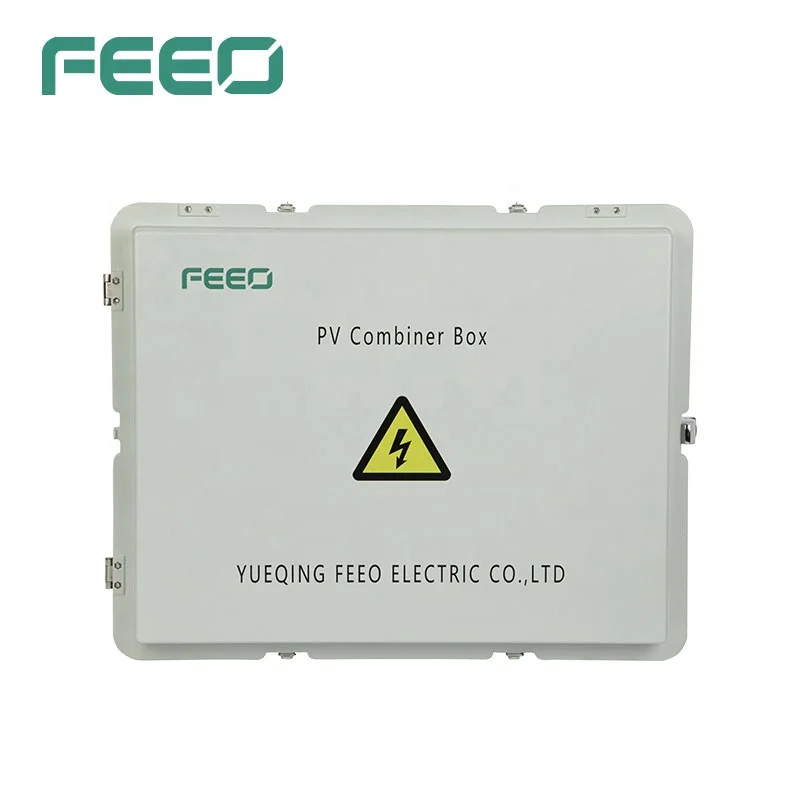

Box material	Metal
Installation method	Wall mounting type
Operating Temperature	-25℃~+55℃
Elevation of Temperature	2km
Permissible relative humidity	0-95%,no condensation
