2021горячая распродажа воздушный фильтр плиссированный предварительной фильтрации систем кондиционирования и вентиляции
- Категория: Air Purifiers >>>
- Поставщик: Henan,Aklly,Filter,Engineering,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-15-2025 | 4.27 $* | 4.3 $* |
| Jul-15-2025 | 3.47 $* | 3.6 $* |
| Jun-15-2025 | 4.8 $* | 4.39 $* |
| May-15-2025 | 4.10 $* | 4.10 $* |
| Apr-15-2025 | 3.0 $* | 3.30 $* |
| Mar-15-2025 | 4.84 $* | 4.23 $* |
| Feb-15-2025 | 4.95 $* | 4.93 $* |
| Jan-15-2025 | 4.75 $* | 4.72 $* |
Характеристики
Product Description

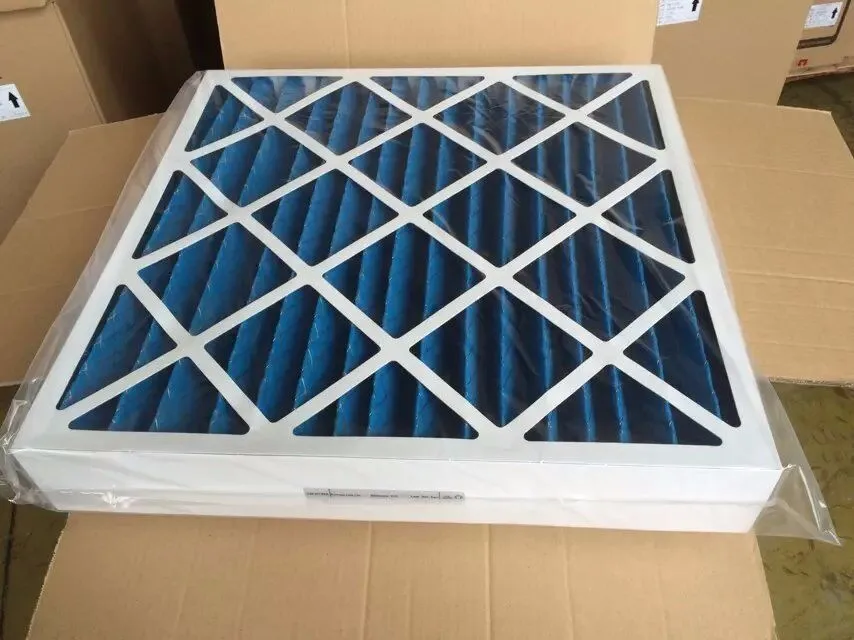

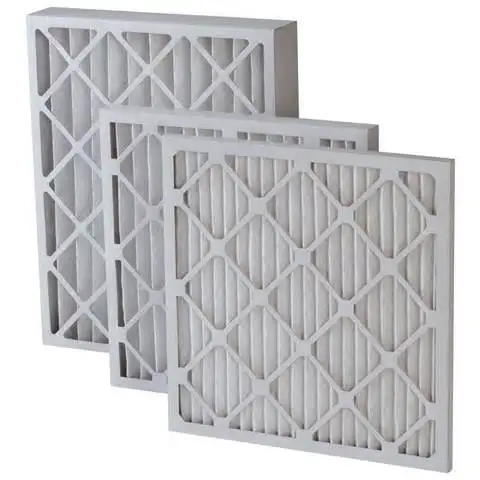

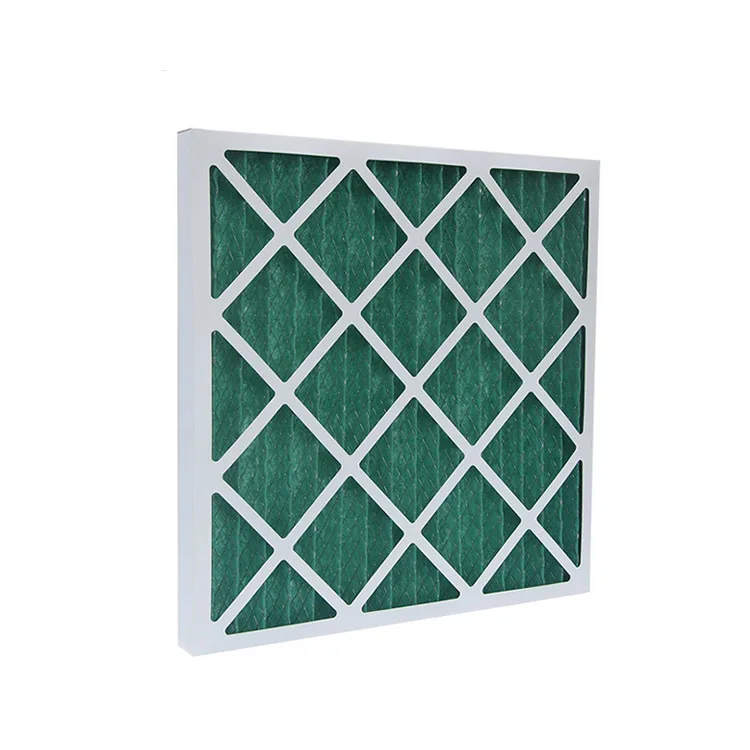

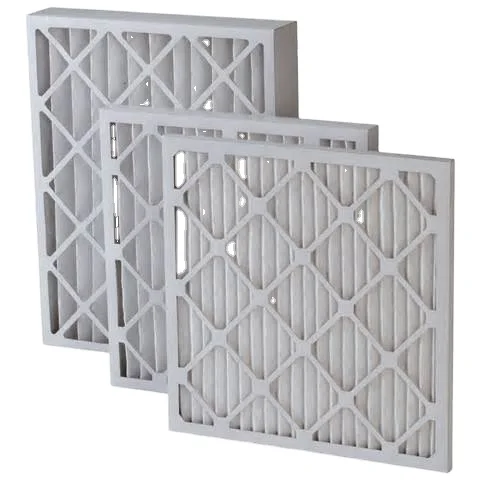

※ABY board filters produced by Henan Ankelin Filter Co., Ltd. have the following features: cheap, light, good compatibility and compact structure.
※The products adopt hard-paper frame and compound fiber filtering media and there is a metal net behind the folded filtering
media for supporting
media for supporting
※ Pre-filtering of air-conditioning and ventilation systems
※ Pre-filtering of large air compressors
※ Returning-wind filtering of cleaning chambers
※Pre-filtering of filtering devices that need high-efficiency filtering at some parts of the devices
※ Filtering efficiency of ABY filters is G3 and the filters are usually used in stage-1 filtering of air-conditioning and ventilation systems, as well as in air-conditioning and ventilation systems that have only one-stage filtering
※ Pre-filtering of large air compressors
※ Returning-wind filtering of cleaning chambers
※Pre-filtering of filtering devices that need high-efficiency filtering at some parts of the devices
※ Filtering efficiency of ABY filters is G3 and the filters are usually used in stage-1 filtering of air-conditioning and ventilation systems, as well as in air-conditioning and ventilation systems that have only one-stage filtering
Technical Data
Filtering efficiency of ABY filters is G3 and the filters are usually used in stage-1 filtering of air-conditioning and ventilation systems, as well as in air-conditioning and ventilation systems that have only one-stage filtering.
Model | Class | Dimensions W×H×D mm | Net media m2 | Rated airflow m3 /h | Resistance Pa,Via rated airflow 70% 100% 120% | ||||
ABY 6605-G3 | G3 | 595×595×46 | 1.15 | 3600 | 40 | 60 | 80 | ||
ABY 3605-G3 | G3 | 595×595×46 | 0.57 | 1800 | 40 | 60 | 80 | ||
ABY 6610-G3 | G3 | 290×595×96 | 2.04 | 3600 | 35 | 55 | 70 | ||
ABY 3610-G3 | G3 | 290×595×96 | 0.94 | 1800 | 35 | 55 | 70 | ||
Related Products
Packing&Shipping
货物包装图4张+1张物流图片
Company Introduction
Henan Aklly Filter Engineering Co., Ltd is a high-tech enterprise producing air filters. The company has excellent equipment,strong economic strength and advanced production technology. It has won the priority support of Henan Provincial People's Government and the Innovation Fund of Ministry of Science and Technology . The company now has two bases for producing air filtration materials and filters. Headquartered in the southern section of Hongli Avenue, Nanpu District, Changyuan County,covering an area of more than 45,000 square meters, with a total assets of 100 million yuan, convenient transportation andbeautiful environment. It is on the east side of the beautiful Yellow River Tourist Ecological Park and the air quality is always good.
The company introduces automatic filter material production line, testing equipment and production technology from Germany and Italy. It has the capacity of producing more than one million square meters of air filtering materials, more than two million square meters of fire-retardant and water-proof filtering materials, more than three million square meters of PM2.5 high-efficiency and low-resistance air filtering materials, more than 600,000 high-speed EMUs air-conditioning filters, more than 2 million air filters, and 1.5 million air-conditioning filters. It is a large-scale filtration equipment manufacturers in China at present. Products are widely used in medical and health care, biopharmaceutical, food industry, automotive industry, rail transit, electronics industry, photovoltaic industry, public places, residential space air purification, etc. It has an extremely important role in improving environmental quality .
In accordance with the quality policy of "management innovation, technical innovation, market development, excellence, excellent service", the company has successfully passed the IS9001 quality management system certification; ISO1400 environmental management system certification; GB28001 occupational health and safety management system certification. It has won three national invention
patents, more than 135 utility model patents, which have passed the Swiss SGS General Standard Technology Company testing and its performance indicators are superior to similar products at home and abroad. It is the products of high starting point, high-tech, high and good corporate reputation that provide a reliable guarantee for the development of the company.
patents, more than 135 utility model patents, which have passed the Swiss SGS General Standard Technology Company testing and its performance indicators are superior to similar products at home and abroad. It is the products of high starting point, high-tech, high and good corporate reputation that provide a reliable guarantee for the development of the company.
Our company is willing to strive for the development of our country's filtration industry to the highest level in the world. And we do hope to work hand in hand with you to create a brilliant tomorrow for our country's filter industry!
FAQ
1.Q:The company's production capacity?
A: It has the capacity of producing more than one million square meters of air filtering materials, more than two million square meters of fire-retardant and water-proof filtering materials, more than three million square meters of PM2.5 high-efficiency and low-resistance air filtering materials, more than 600,000 high-speed EMUs air-conditioning filters, more than 2 million air filters, and 1.5 million air-conditioning filters.
A: It has the capacity of producing more than one million square meters of air filtering materials, more than two million square meters of fire-retardant and water-proof filtering materials, more than three million square meters of PM2.5 high-efficiency and low-resistance air filtering materials, more than 600,000 high-speed EMUs air-conditioning filters, more than 2 million air filters, and 1.5 million air-conditioning filters.
2.Q: Are you factory?
A: Yes, exactly. We are 100% factory and manufacturer with more than 100 well trained and experienced staffs and you are warmly welcomed to visit us at your convenience.
A: Yes, exactly. We are 100% factory and manufacturer with more than 100 well trained and experienced staffs and you are warmly welcomed to visit us at your convenience.
3.Q: What do I need for offering a quote ?
A: Please offer us drawings (with material, dimension and other technical requirement etc.) ,quantity, application or samples. Then we will quote the best price within 48h.
A: Please offer us drawings (with material, dimension and other technical requirement etc.) ,quantity, application or samples. Then we will quote the best price within 48h.
4.Q: Do you provide free samples?
A: Yes, but the freight paid by you.
A: Yes, but the freight paid by you.
5.Q:Can you produce according to the samples?
A:Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
A:Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
6.Q: How to pay?
A:Our company accepts various ways of payment, such as T/T , L/C etc.
A:Our company accepts various ways of payment, such as T/T , L/C etc.
7.Q:How about the quality of your product?
A:100% inspection during production.
A:100% inspection during production.
8.Q:Do you arrange the shipment?
A:Yes, our company can arrange the shipment to deliver the goods according to the client's customer's requirements.
A:Yes, our company can arrange the shipment to deliver the goods according to the client's customer's requirements.
9.Q: Why choose us?
A: We have professional team with rich experiences and high precision equipment which can guarantee the product quality, through our scientific management and strict cost control we can offer you the best competitive.
A: We have professional team with rich experiences and high precision equipment which can guarantee the product quality, through our scientific management and strict cost control we can offer you the best competitive.
