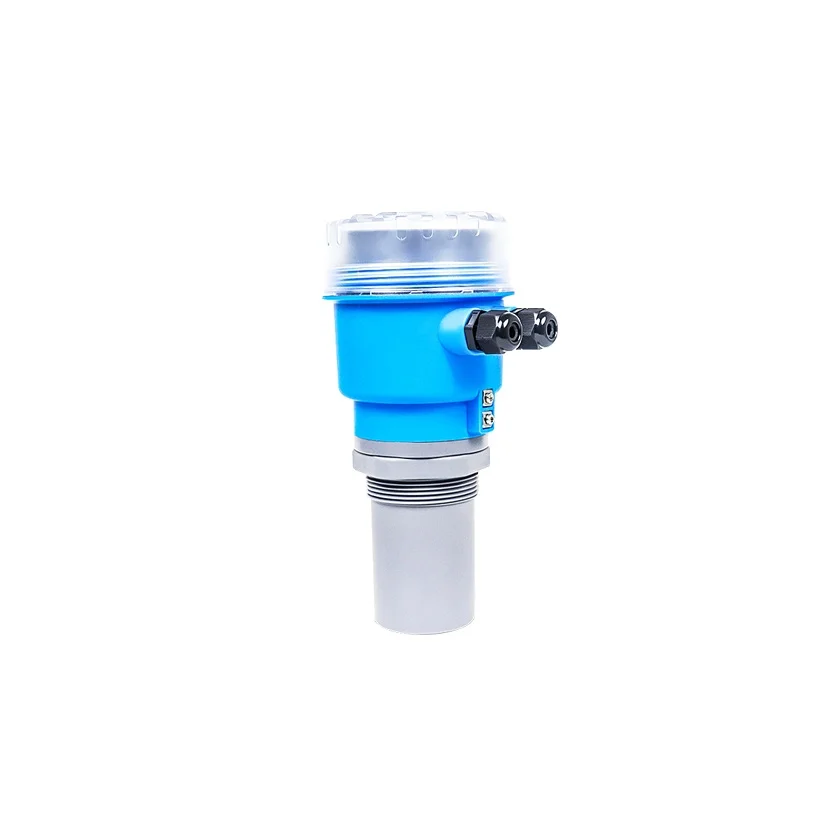

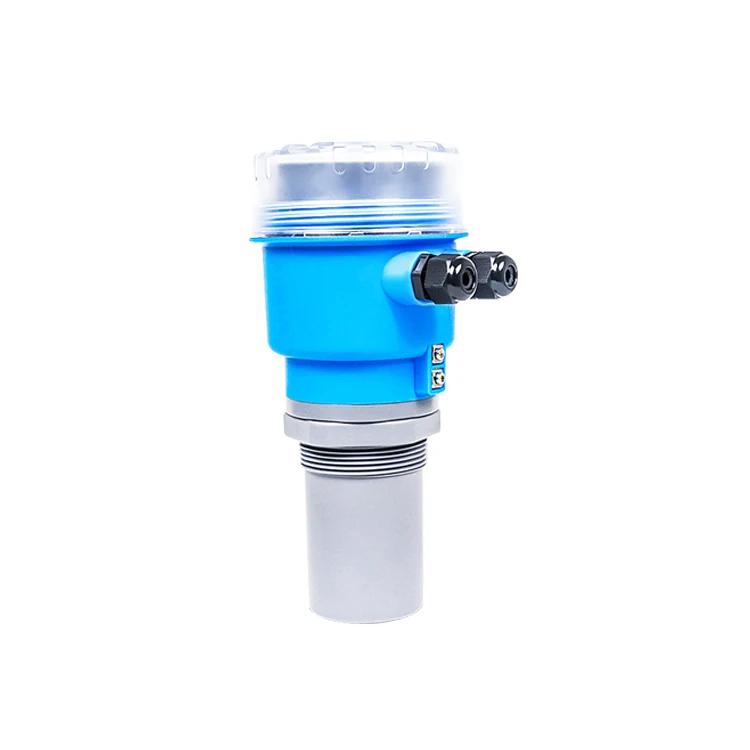

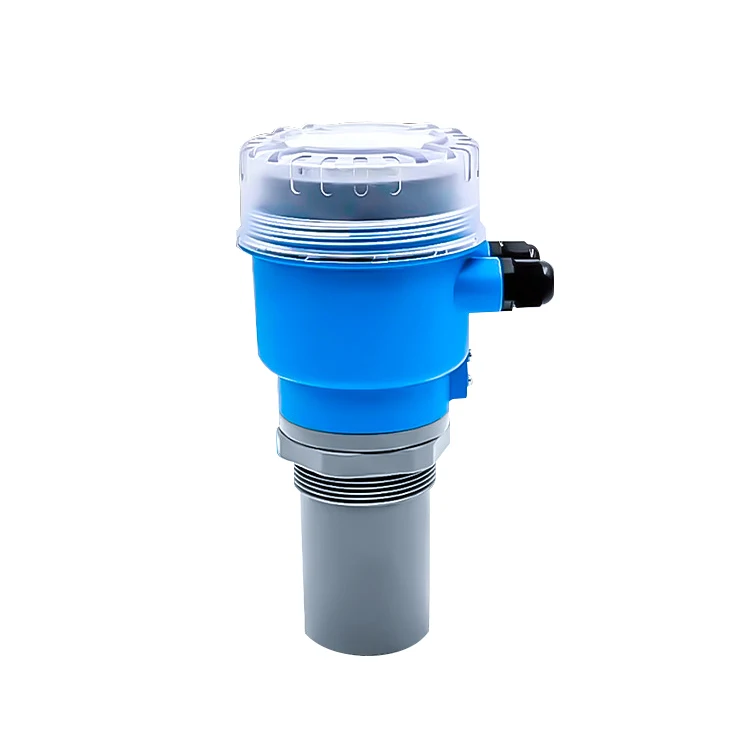

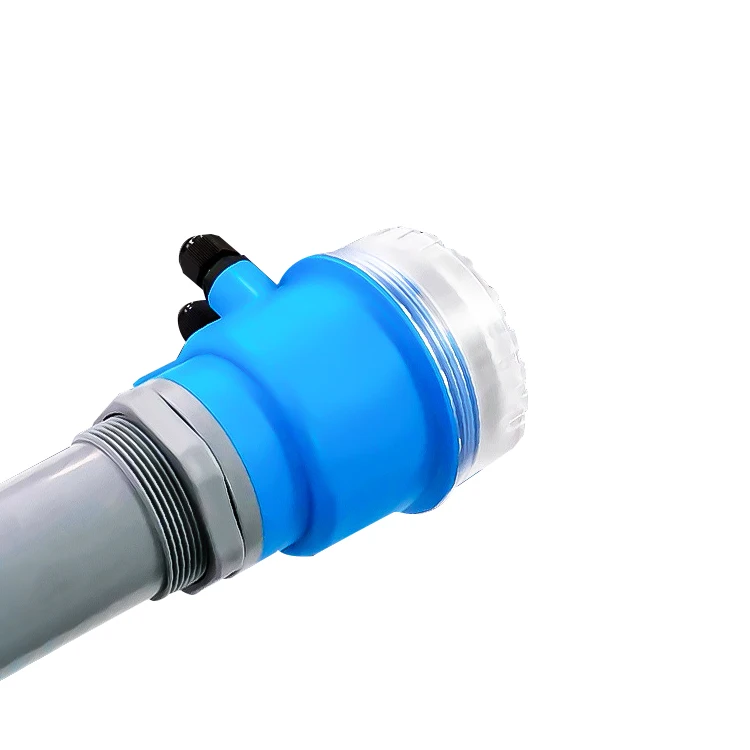

Ультразвуковой датчик уровня жидкости в резервуаре с индикатором
- Категория: >>>
- Поставщик: Changzhou,Manorshi,Sensor,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.78 $* | 0.96 $* |
| Aug-19-2025 | 0.33 $* | 0.41 $* |
| Jul-19-2025 | 0.68 $* | 0.66 $* |
| Jun-19-2025 | 0.51 $* | 0.64 $* |
| May-19-2025 | 0.99 $* | 0.14 $* |
| Apr-19-2025 | 0.6 $* | 0.22 $* |
| Mar-19-2025 | 0.45 $* | 0.29 $* |
| Feb-19-2025 | 0.75 $* | 0.81 $* |
| Jan-19-2025 | 0.54 $* | 0.39 $* |
Характеристики
MNS-ULSI501
This is a ultrasonic level sensor.
Application
● Liquid level measurement
● Solid level measure
● Beverages level monitoring
● Non contact measurement in farm warehouse
● Solid level measure
● Beverages level monitoring
● Non contact measurement in farm warehouse
Level Range | 0-5...70M optional |
Accuracy | 0.25%-0.5%FS |
Output | 4-20mA/750Ω load resistance |
1-5V/0-5V/0-10V(3 wires) | |
Bline Zone | 25~120cm |
Working Pressure | 2 Bar 220VAC+15% 50Hz |
Power supply | 24VDC 120mA 12VDC |
Working temp | -20°C~+80°C |
Resolution | 3mm or 0.1%FS (Max of them) |
Display | English language display: Level measurement,Distance measurement, transmission value |
Water Proof | IP68 |
Pressure port | M68*2.0 male; G 1-1/2 " male; M108*2.0 male |
