Силиконовая машина для изготовления
- Категория: Injection Molding Machines >>>
- Поставщик: Hangzhou,Qianshang,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 19992.26 $* | 20992.79 $* |
| Aug-19-2025 | 19824.22 $* | 20815.15 $* |
| Jul-19-2025 | 16632.97 $* | 17464.13 $* |
| Jun-19-2025 | 19488.16 $* | 20462.11 $* |
| May-19-2025 | 16968.28 $* | 17816.48 $* |
| Apr-19-2025 | 19152.55 $* | 20110.55 $* |
| Mar-19-2025 | 18984.38 $* | 19933.23 $* |
| Feb-19-2025 | 18816.7 $* | 19757.4 $* |
| Jan-19-2025 | 18648.31 $* | 19580.66 $* |
Характеристики

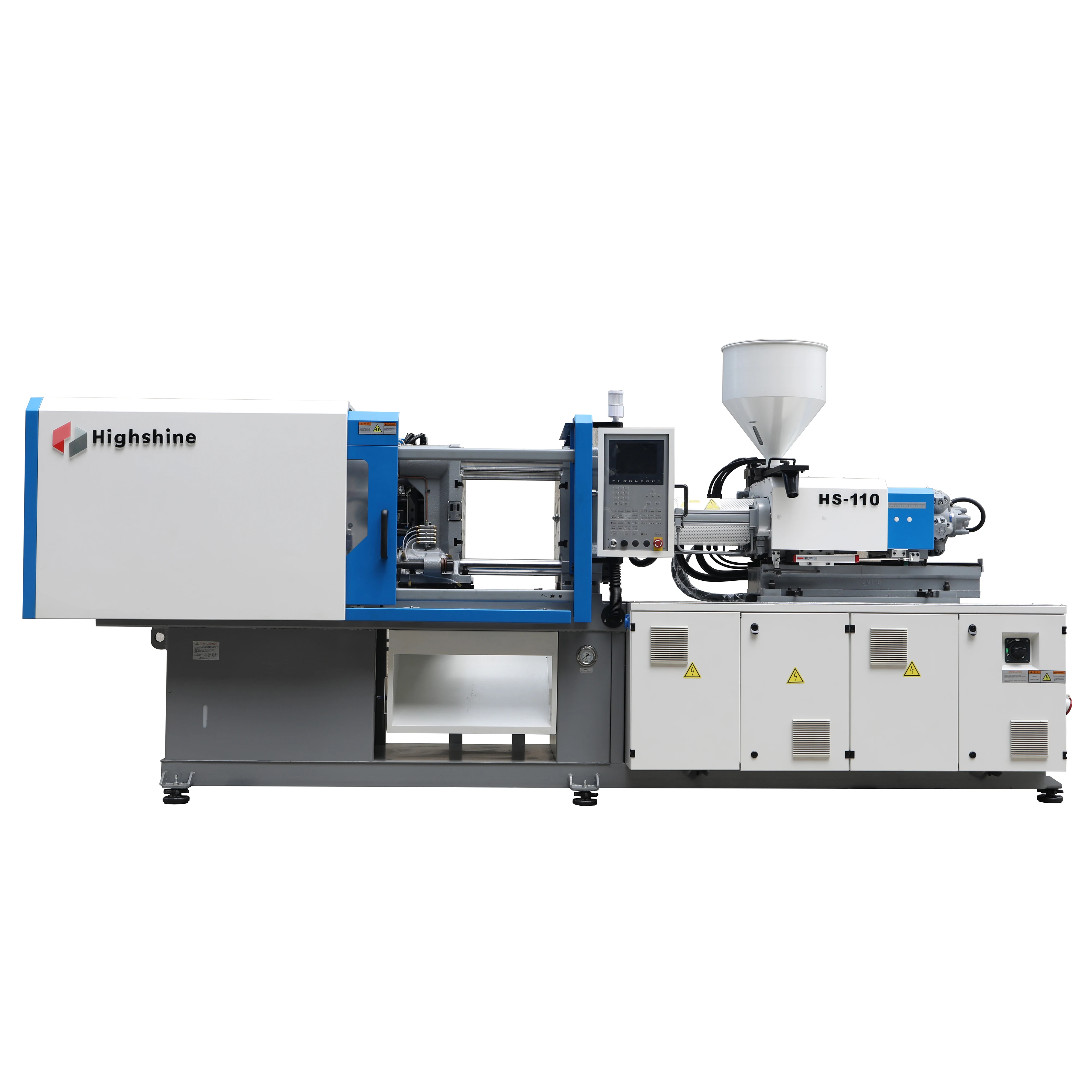

Silicone Baby Nipple Making Machine
Contact: Jodie What's App&wechat: +8615869162884
| Highshine HS series Configuration | |||
| Item | Brand | Origin | |
| Servo Controller | Delta | Taiwan | |
| Servo Motor | Yunsheng | Zhongyi | |
| Electric | PLC | Techmation | Taiwan |
| Components | Transducer | Opkon | Turkey |
| AC Contactor | Schneider | France | |
| Limit Switch | Schneider | France | |
| Air Switch | Schneider | France | |
| Hyraulic Motor | Dandun | Italy | |
| Gear Pump | Eckerle/Sumitomo | Germany/Japan | |
| Hyrailic | Direction Valve | Yuken/Tokyo Keiki | Japan |
| Components | Seal Elements | Hallite | UK |

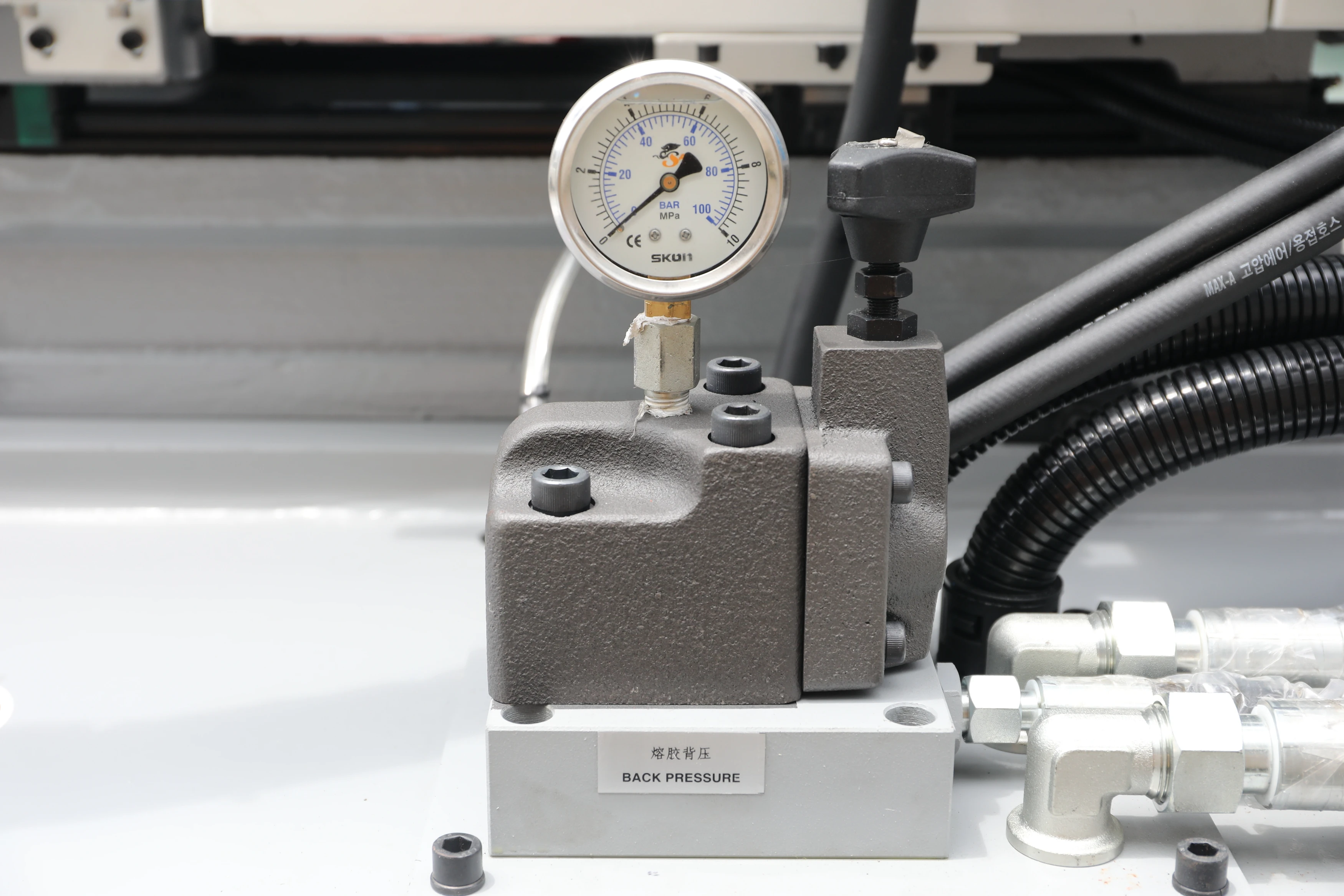

| Pressure Gauge | Skon | Taiwan | |

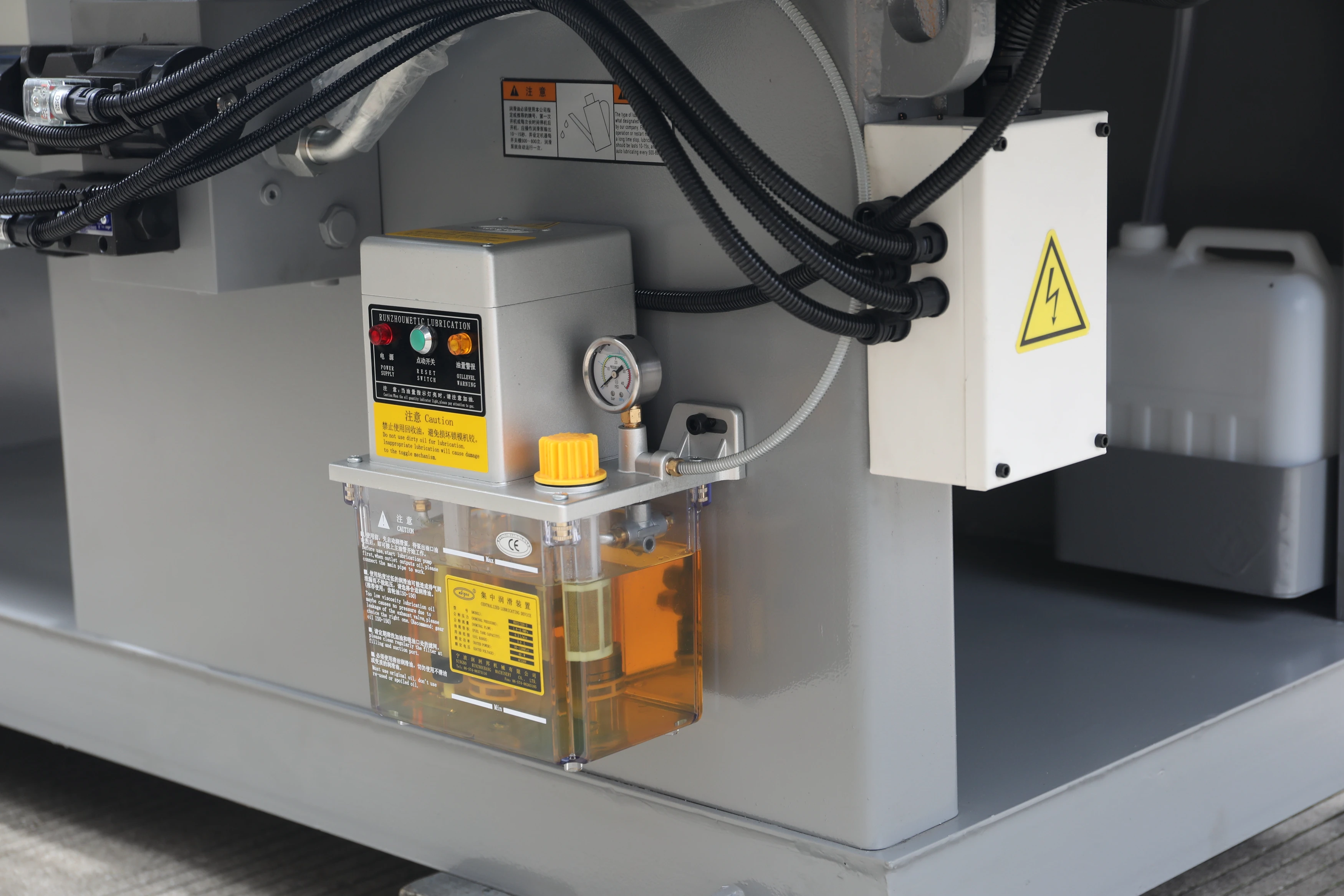

| Lubrication | Herg/Runzhou | Japan | |
| Item | China Standard | German Standard | |
| Casting Steel | QT500-7 | GGG-50 | |
| Mechanical | Tie Bar | 40 Cr | 41Cr4 |
| Components | Pin Shaft | 38crMoAL | 34CrALMo5 |
| Screw Barrel | 38crMoAL | 34CrALMo5 | |
| Rings | SKD61 | DINL.2344 | |
| HS110-HS180: Eckerle Pump, Other models: Sumitomo Pump | |||
| Paramters | ||

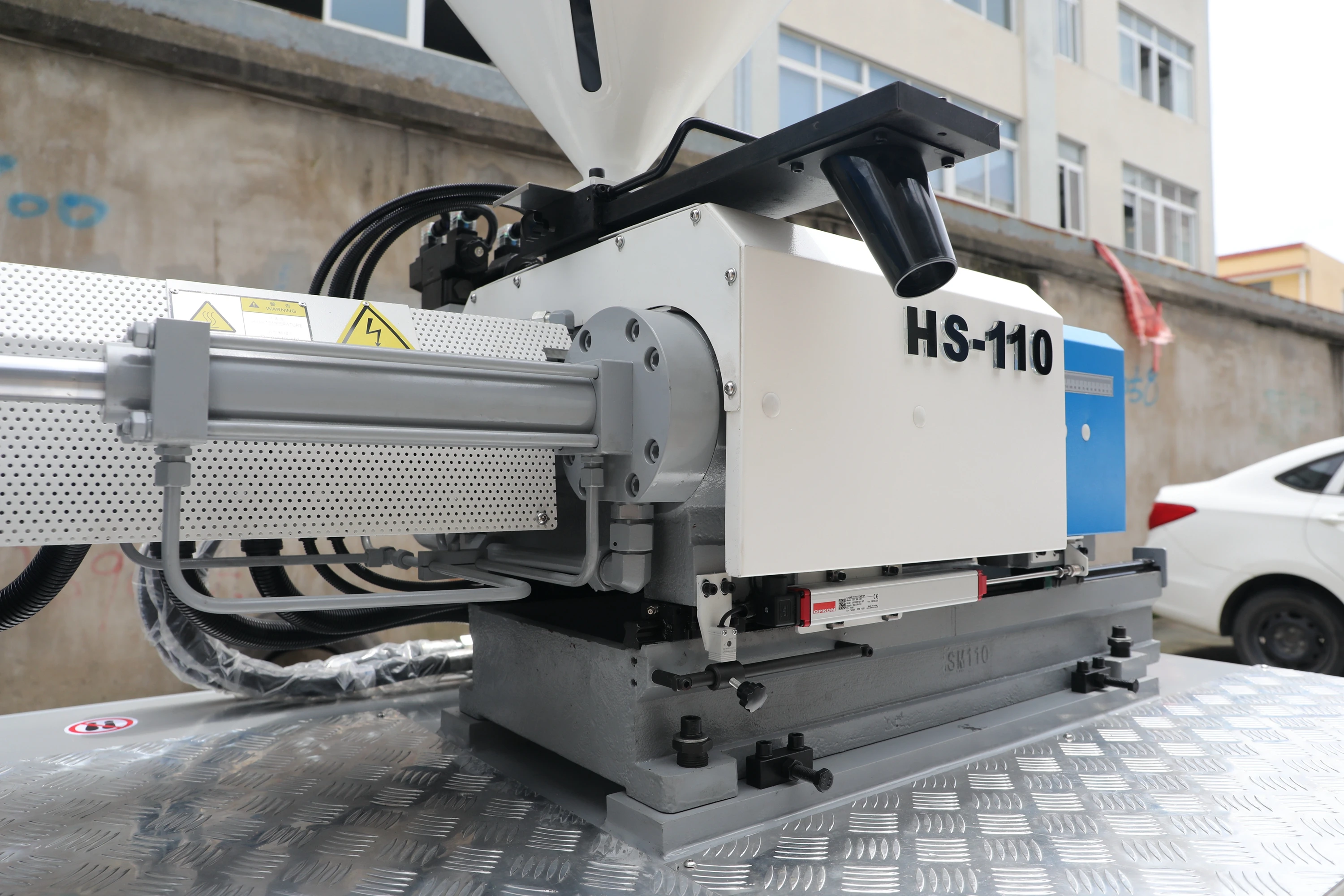

| Injection Unit | B Screw | |
| Screw Diameter | mm | 35 |
| Screw L/D Ratio | L/D | 22 |
| Theoretical Shot Volume | CM3 | 163 |
| Shot Weight (PS) | g | 148 |
| Injection Rate | g/s | 87 |
| Injection Pressure | bar | 1940 |
| Max. Screw Speed | rpm | 200 |
| Clamping Unit | ||
| Clamping Force | KN | 1100 |
| Opening Stroke | mm | 360 |
| Distance Between Tie Bars | mm | 420X370 |
| Max. Mold Height | mm | 400 |
| Min. Mold Height | mm | 150 |
| Ejector Stroke | mm | 100 |
| Ejector Force | KN | 38 |
| Others | ||
| Max. Pump Pressure | MPa | 16 |
| Pump Motor Power | KW | 12 |
| Heating Capacity | KW | 8.2 |
| Machine Dimensions | m | 4.25X1.17X1.6 |
| Oil Tank Cubage | L | 200 |
| Machine Weight | T | 3.8 |
