Which is a highly efficient environmental protection and energy saving ceramic heating components, mainly to replace now the most widely used alloy wire electronic components and PTC heating electric heating element and component.
Technical features of MCH ceramic heater :
1. Energy saving, high thermal efficiency, the unit heat capacity than the PTC save 20%-30%;
2. Security is not charged surface, insulation performance is good, can endure the withstand voltage of 4500v / 10s test, no breakdown, leakage current <0.5mA ;
3. No impact current peak;
4. Heating up fast;
5. Without power attenuation;
6. Security, the halogen-light;
7. Good heat uniform consistency, high power density;
8. Environmental protection, do not contain lead, cadmium, mercury, hexavalent chromium, such as pests, in full compliance with the eu ROHS environmental protection requirements;
9. Long service life.
10. At present the highest temperature can reach 500℃, especially suitable for industrial electric oven.

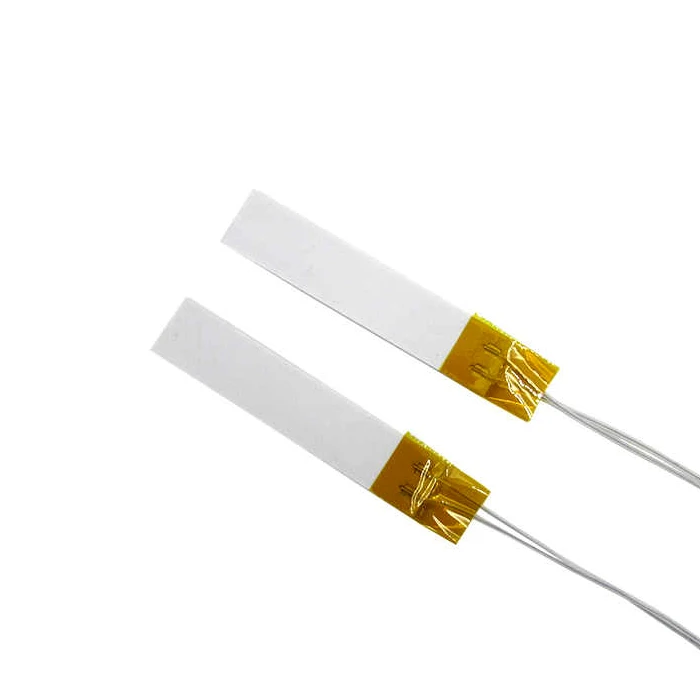

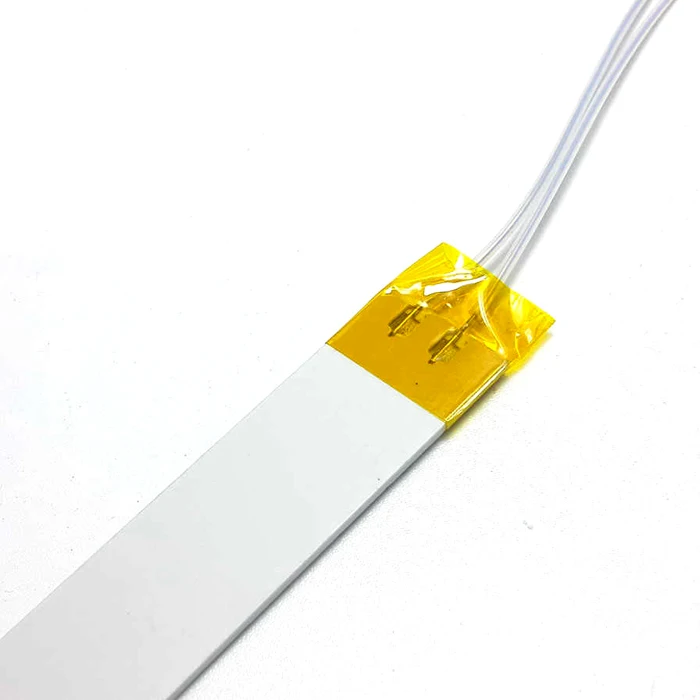

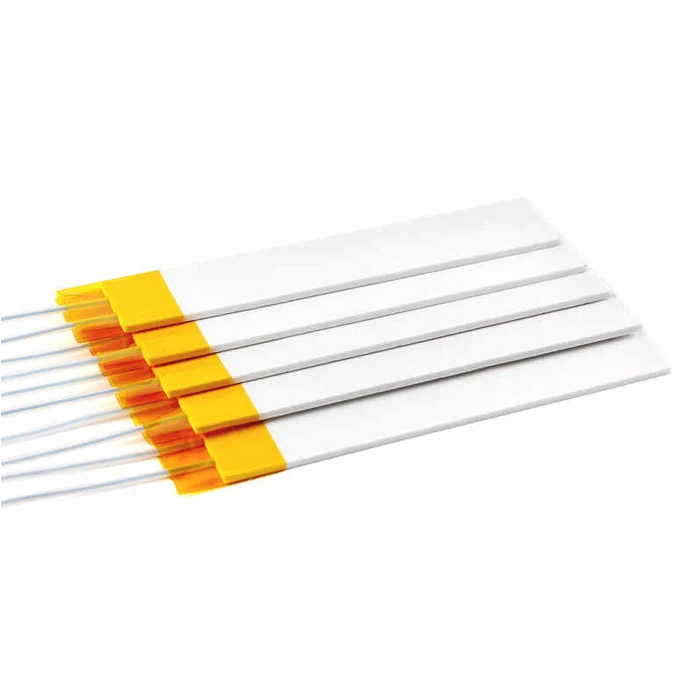

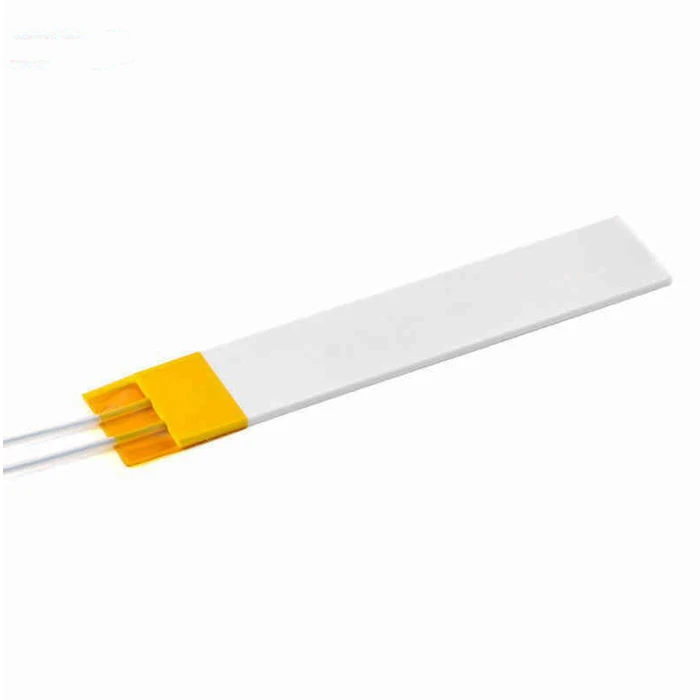

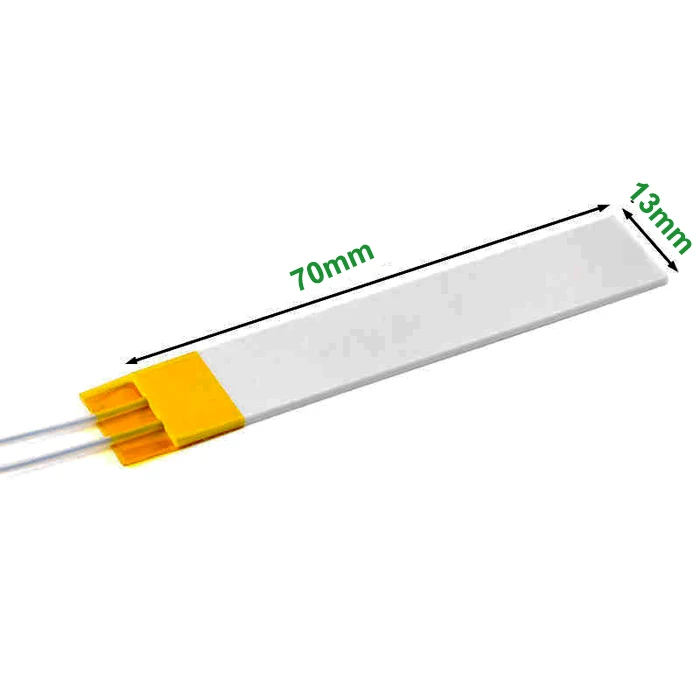

Product | mch ceramic heating element |
Substrate | white multi-layer alumina ceramics with a-A1203 content not less than 95% |
Lead wire | use 0.5mm nickel wire |
Casing tape | Teflon, high temperature resistant tape |
Resistance | high temperature materials such as tungsten |

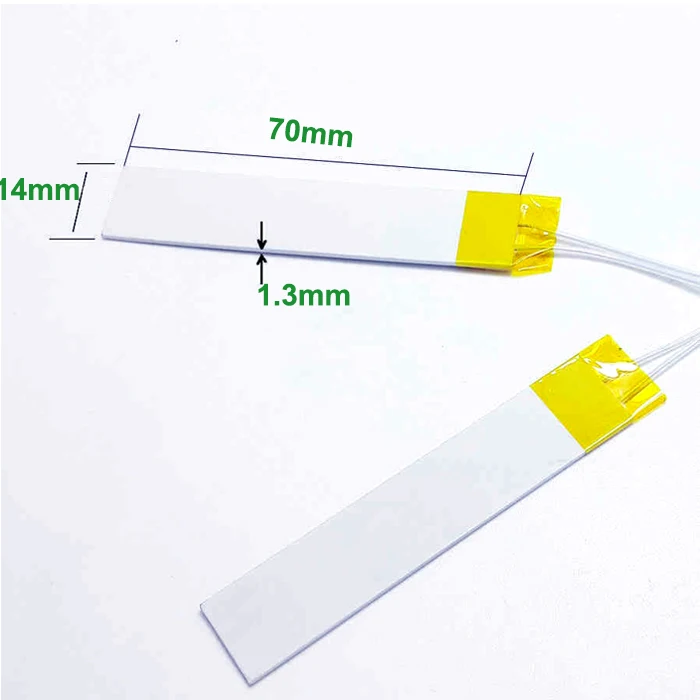

Thickness | 0.7 1.3 2.0MM (customizable) |
Operating voltage | 3.7V, 4.5V, 5V, 7V, 6V, 9V, 12V, 24V, 36V, 110V,220V, etc. can be customized |
Resistance selection | 0.3-1500 ohms, or according to voltage, chip size, power and customer needs |
It commonly used as funcation and engineering ceramic components, widely used in electric power , metallurgy , mineral , coal and chemical industry.
Attention:
1.Material: Different grade alumina, zirconia, silicon carbide available;
2.Available type: ceramic housing, ceramic frame, ceramic shaft, ceramic wafer and so on.
3.Design capability: varity of standard ceramic parts or customized design capability
4.Prototype to mass production capability
External dimension /mm | Power/W | External dimension /mm | Power/W |
φ10.0*φ5.0*84 | 2800-3100 | φ14.5*φ9.6*106 | 2800-3100 |
φ11.5*φ6.2*109 | 1100-1850 | φ14.5*φ10*120 | 2900-3200 |
φ11.5*φ6.5*120 | 1500-2500 | φ15.0*φ9.6*120 | 2700-3150 |
φ11.5*φ6.5*115 | 1700-2300 | φ15.0*φ9.0*120 | 2500-2800 |
φ11.5*φ6.5*125 | 1700-2900 | φ15.0*φ10.0*120 | 1300-3000 |
φ11.5*φ6.5*93 | 1500-1700 | φ15.0*φ10.0*135 | 1700-3300 |
φ11.5*φ7.8*93 | 600-2000 |
Packaging Details:By carton packing / wooden case / could pack as customer's requirements!
Delivery time :3-10days
1. OEM Manufacturing welcome: Product, Package...
2. Sample order
3. We will reply you for your inquiry in 24 hours.
4. After sending, we will track the products for you once every two days, until you get the products. When you got the
goods, test them, and give me a feedback.If you have any questions about the problem, contact with us, we will offer
the solve way for you.
Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent,
we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q4. How about your delivery time?
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and
the courier cost.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
