Золотистый гравитационный сепаратор спиральный желоб для обогащения

Золотистый гравитационный сепаратор спиральный желоб для обогащения

Категория: Sand Washer >>>
Поставщик: Zhengzhou,Zhongding,Heavy,Duty,Machine,Manufacturing,Co.,Ltd.

Цена:3 410,00 $ - 4 500,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-19-2025	4058.2 $*	4261.63 $*
Aug-19-2025	4024.47 $*	4225.56 $*
Jul-19-2025	3376.77 $*	3545.19 $*
Jun-19-2025	3956.66 $*	4154.91 $*
May-19-2025	3444.73 $*	3616.54 $*
Apr-19-2025	3887.75 $*	4081.67 $*
Mar-19-2025	3853.60 $*	4046.80 $*
Feb-19-2025	3819.0 $*	4010.54 $*
Jan-19-2025	3785.54 $*	3974.99 $*

Характеристики

China Sand Washing Equipment Gold Mining Sand Washer Spiral Ore Washing Machine

Product Description

The XSL series of Spiral Sand Washing Machine is suitable for washing and selecting, classifying, and trash-extracting in industries, like metallurgy, construction, water and electricity, etc. This series of machine is suitable for washing and selecting materials of mid-fine and rough granularity.

China Sand Washing Equipment Gold Mining Sand Washer Spiral Ore Washing Machine

Before Reading More Details Sand Making Machine, You Can Consider Folllowing Questions:

1.What's the raw materials you want to process(such as granite, basalt, river stone)?
2.What is capacity you want tons per hour?
3.Your email address or phone number.

Main Features

Main Features of Spiral Sand Washing Machine :

1. High level cleaning and reasonable structure.
2. Large capacity and small power consumption.
3. Small loss of sand during the process of sand washing..

Working Princle:

When the machine is working, the material goes into the input part. It will push the material to the output through the machine. Surface dust and impurity are removed when the material from the input part to the output part is pushed, mixed and washed. The final product goes out through the discharge outlet and the mud and impurity will go out through overflow part.

Technical Parameter

Model	Spiral diameter (mm)	Speed of Spiral (r/min)	Capacity		Slope (°)	Powe r(KW)	Weight (t)
Model	Spiral diameter (mm)	Speed of Spiral (r/min)	Sand Return (t/h)	Overflow (t/h)	Slope (°)	Powe r(KW)	Weight (t)
FL-5	500	8-15.5	143-2611	32	12-18	3	1.9
FL-7	750	4.5-10	256-564	65	12-18	3	2.7
FL-10	1000	1.6-7.4	473-1026	85	12-18	5.5	4.1
FL-12	1200	5-7	1170-1600	155	12-18	5.5	7.5
FL-15	1500	2.5-6	70-115	235	12-18	7.5	10.5
FL-18	1800	2.5-6	100-190	310	12-18	11	17.1
FL-20	2000	2.5-6	160-230	400	12-18	15	19.3
FL-24	2400	3.64	160-230	580	12-18	18.5	26

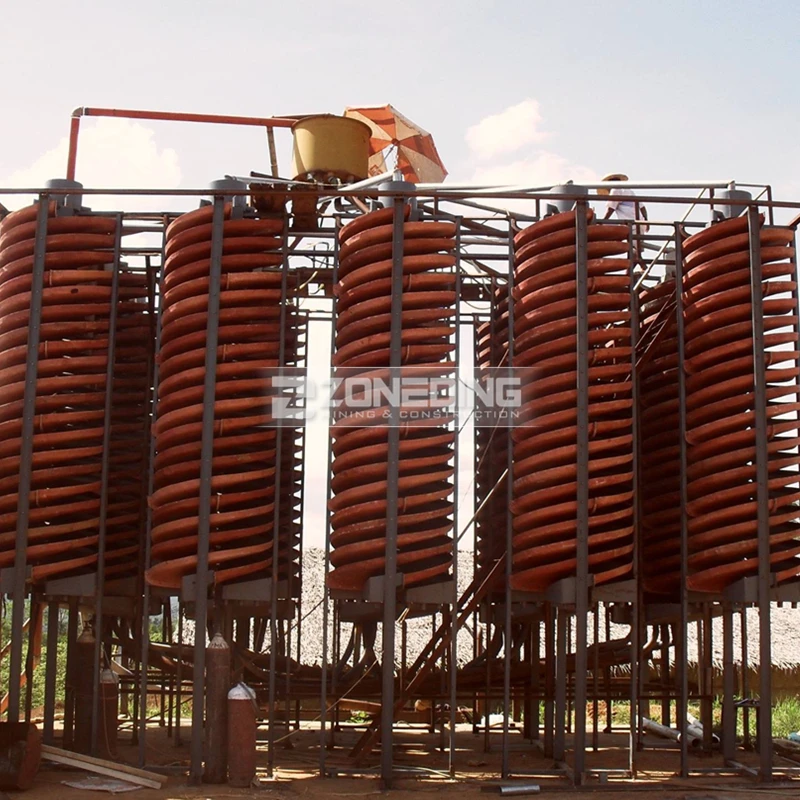

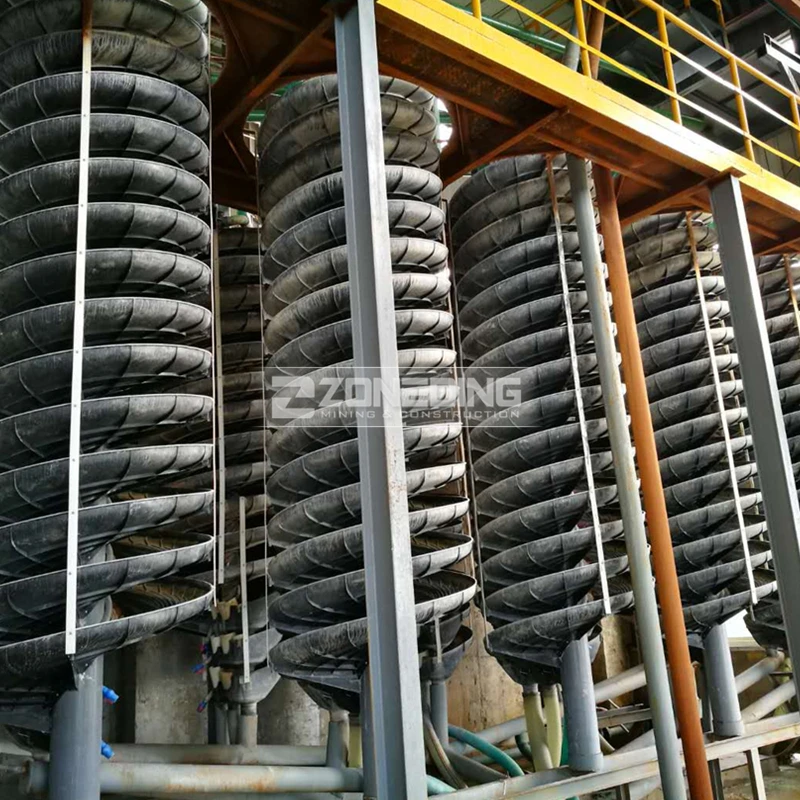

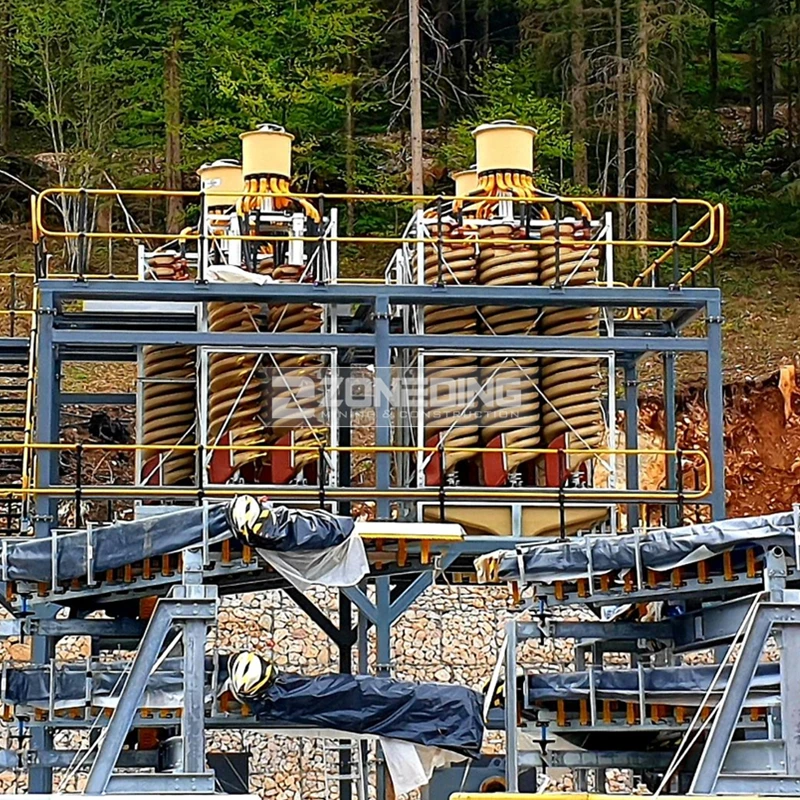

Customer working site

we can provide avaliablel successful cases for your reference.

Discount Price For You!

Packing Details

Reliable Performance Factory Price Spiral Screw Sand Washing Machine

Customers Visiting :

China Sea Sand Spiral Gravel Washing Equipment Price

Our Service

Pre-sale service: solve technical problems and auxiliary configuration advice, revenue analysis.

Sale service: door-to-door installation, on-site training operation technology, user training mechanical and electrical maintenance personnel free of charge.

After-sales service: guarantee the supply of spare parts, product quality strictly implement five package, one year warranty, life-long after-sales service, one of the China's factory with integration solutions for mining station.

Company Information

Zhengzhou Zhongding Heavy Duty Machine Manufacturing Co., Ltd. is a joint-stock enterprise specialized in manufacturing mining machinery. Based in Zhengzhou Machine Industry Park, our company possesses the independent developing, processing and manufacturing capacity and also it has independent R&D center and production base. Endowed with modern cutting equipments, advanced computer aided design system and perfect three-dimensional simulation test system, our company can ensure products’ respective performance. We mainly manufacture the 50-5000tpd capacity stone crushing line and 100-3500tpd mine-selecting equipment.

FAQ:

Q: Do you provide after-sale service?

A: Yes. The warranty period of our machines is one year, and we have a professional after-sale service team to promptly and thoroughly solve your problems.

Q: Do you provide equipment operation training?

A: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training. All of our engineers have passports.

Q: Can you test our samples?

A: Yes. You can send your samples to us for test and analysis.

Q: Do you provide beneficiation flow chart?

A: Yes. Our experienced engineers are specialized in designing process flow for various ores beneficiation, including iron ore, tin ore, copper ore, gold ore, lead zinc ore, manganese ore, etc.
