Характеристики
Product Description
OEM USB Type C Power Delivery Type-C Plug 24-Pin Connectivity Audio Control Key Test Tester
Overview

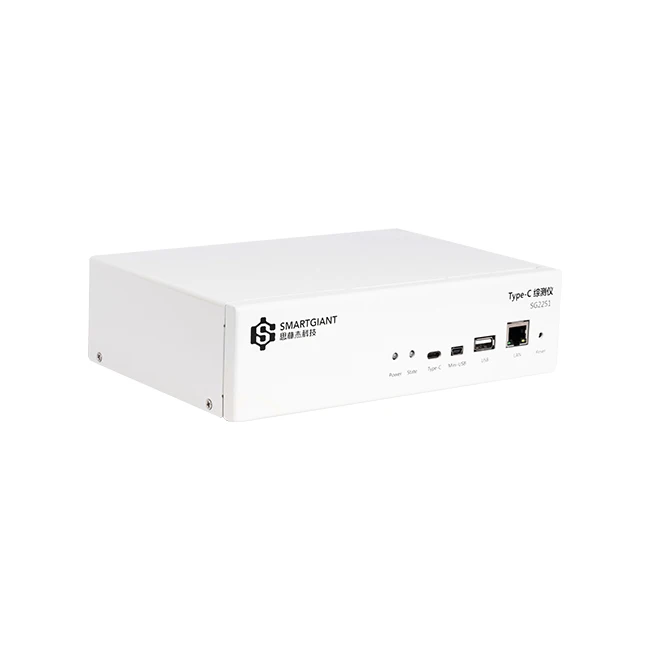

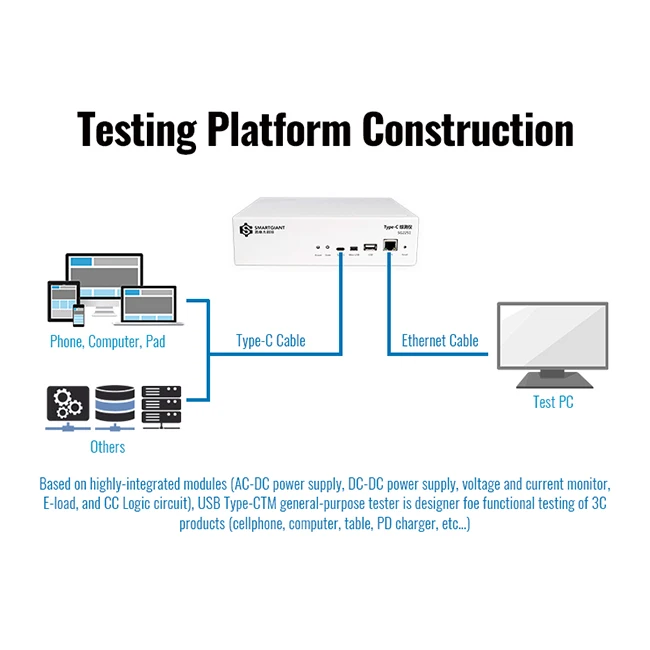

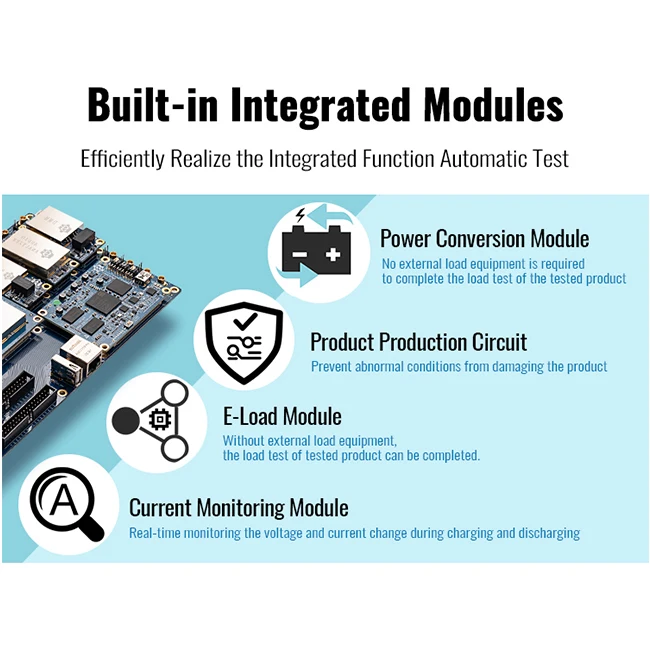

This product is a comprehensive test instrument for Type C interface function, which can implement a complete and reliable functional test on electronic devices with Type C interface (such as: mobile phones, computers, tablets, PD chargers, etc.). Integrated AC-DC power module, DC-DC power module, voltage and current monitoring module, electronic load module and CC Logic related circuits. By running the host computer test platform, it can realize the comprehensive function automation test of Type C interface.
Feature of product
◼ Support Type C forward and reverse insertion test
◼ Support USB2.0, USB3.0 connectivity test
◼ Accurate real-time voltage and current measurement
◼ Support USB2.0, USB3.0 connectivity test
◼ Accurate real-time voltage and current measurement
◼ Support Type C forward and reverse insertion test
◼ Support USB2.0, USB3.0 connectivity test
◼ Accurate real-time voltage and current measurement
◼ Short test time, less than 40S for full function test
◼ Test results can be uploaded to the server for statistics, management, and analysis
◼ Reserved communication interface, can be connected to external devices such as scanners for customer expansion
◼ Software test interface simplified and easy to use
◼ Small size and easy to use. And easy to build
◼ Support USB2.0, USB3.0 connectivity test
◼ Accurate real-time voltage and current measurement
◼ Short test time, less than 40S for full function test
◼ Test results can be uploaded to the server for statistics, management, and analysis
◼ Reserved communication interface, can be connected to external devices such as scanners for customer expansion
◼ Software test interface simplified and easy to use
◼ Small size and easy to use. And easy to build
Function
◼Source PD Source (Host) test: USB Power Delivery (PD) fast charging, support PD2.0 and PD3.0 Protocol, configurable charging power, supports up to 20V / 5A 100W, real-time monitoring of voltage flow.
◼S PD Sink (Device) test: Internally integrated E-load, can perform load test on DUT, Vbus can be set to power The current is 0-5A, Vconn can set the current 0-500mA.
◼ USB connectivity test: coverage of top usb2.0, top usb3.0, bot usb2.0 and bot usb3.0 signals Sex test
◼ Forward and reverse insertion test: all functions can be automatically switched to achieve automatic forward and reverse insertion
◼S PD Sink (Device) test: Internally integrated E-load, can perform load test on DUT, Vbus can be set to power The current is 0-5A, Vconn can set the current 0-500mA.
◼ USB connectivity test: coverage of top usb2.0, top usb3.0, bot usb2.0 and bot usb3.0 signals Sex test
◼ Forward and reverse insertion test: all functions can be automatically switched to achieve automatic forward and reverse insertion
Description | Specification | Description | Specification | ||
Power for PD source test | E-load for PD sink test | ||||
Output voltage range | 0-20.5V | E-load mode | CC / CV can be equipped | ||
Output step voltage | 5mV | Number of channels | 2 | ||
Output voltage accuracy | 0.01%+5mV | Settable current range | CH1:0-5.5A/CH2:0-550mA | ||
Output voltage ripple and noise (Vpp) | <=50mV | Step current | 1mA | ||
Output slew rate can be controlled | YES | Set current accuracy | 0.1%*Setting+0.2%*FS | ||
Output current range | 0-5.5A | slew rate control | YES | ||
Output power | >150W | OVP (Fixed) | 5.5V | ||
OCP (Fixed) | 6A | OTP (Fixed) | 75℃ | ||
OTP (Fixed) | 75℃ | ||||
Datalogger | Basic | ||||
Sampled Input Channel | 2 channels | Input rated voltage | 220V / 50HZ, 110V / 60HZ | ||
Input Coupling | DC | Use environment | Temperature: 0 ~ 55 ℃ Humidity: 10% ~ 80% | ||
Sample Rates | ≤250KSPS | Product Size | 220mm * 150mm * 60mm | ||
ADC Resolution | 24bits | product weight | 1.6kg | ||
Accuracy | ± (0.1% of read + 0.006% of range) | operating system | Windows / MAC OS | ||
Communication Interface | 10/100 / 1000Mbps ETH Port | ||||
Interface definition
Interface | Function |
Status indicator | Power: green when power on |
State: The test results show that Pass is displayed in green and Fail is displayed in red. | |
Type C connector | The product connection interface is connected with the Type C port of the product by a type c-c cable. |
Reserve USB interface | Mini-USB: Connect to the host computer, reserved debugging interface |
USB-A: reserved interface for devices such as scanners | |
Ethernet interface | LAN: Connected to test computer. |
Reset button: | Reset: Reset button to restore the whole machine to the factory setting parameters. |
Power Supply | 220V / 50Hz, 110V / 60Hz. |
Application
This product is suitable for all types of electronic equipment with Type C interface, and performs fast, efficient, convenient and reliable comprehensive functional test of Type C interface.
Environmental adaptability requirements:
▪ Temperature: 0 ~ 55 ℃
▪ Humidity: 10% ~ 80%
▪ ESD protection
▪ Power supply mode: AC 220V / 50HZ 110V / 60HZ
▪ Temperature: 0 ~ 55 ℃
▪ Humidity: 10% ~ 80%
▪ ESD protection
▪ Power supply mode: AC 220V / 50HZ 110V / 60HZ
Appearance and structure size
