Package included:

• 1x 3 Axis GRBL control board V3.4


• 1x USB cable





Specification

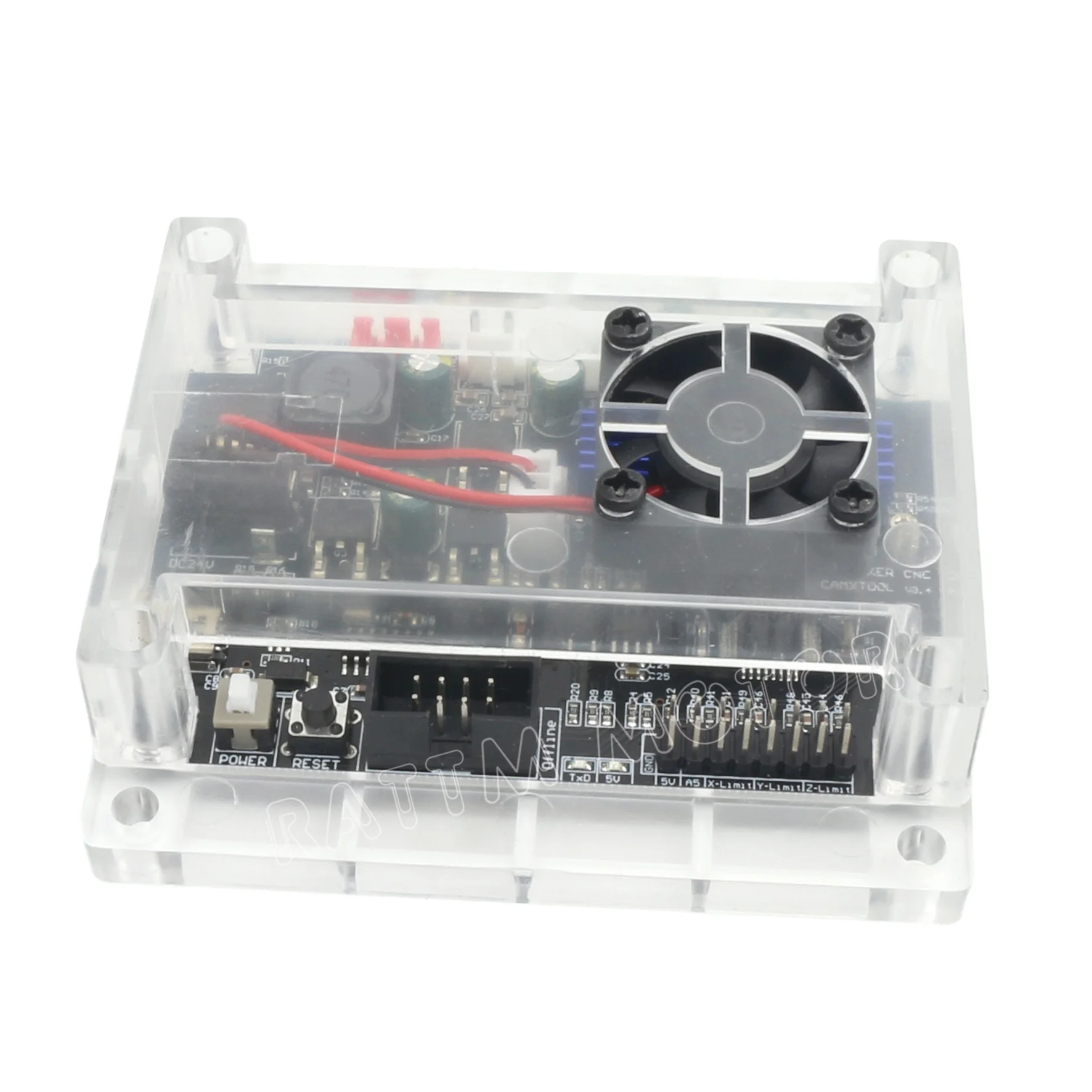

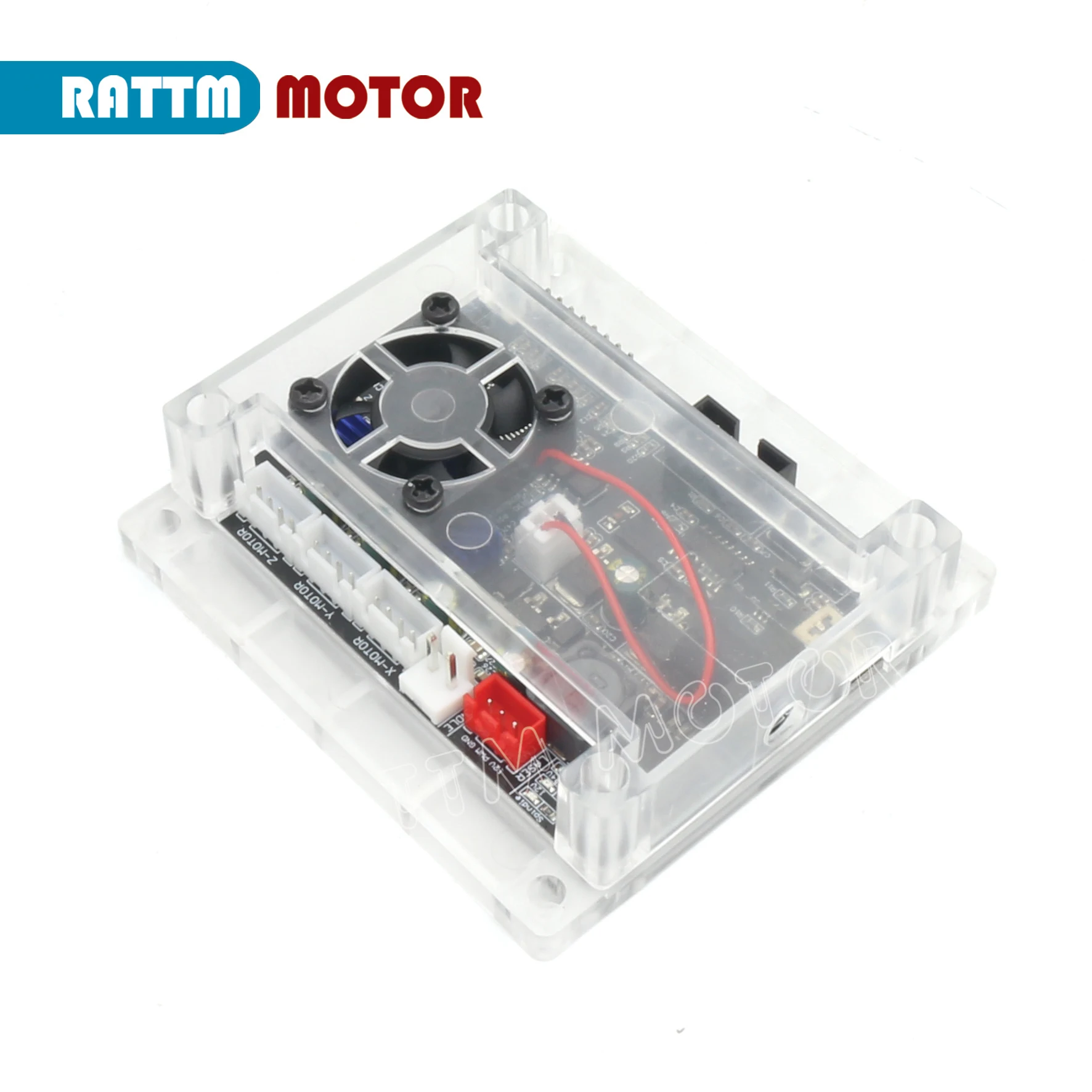

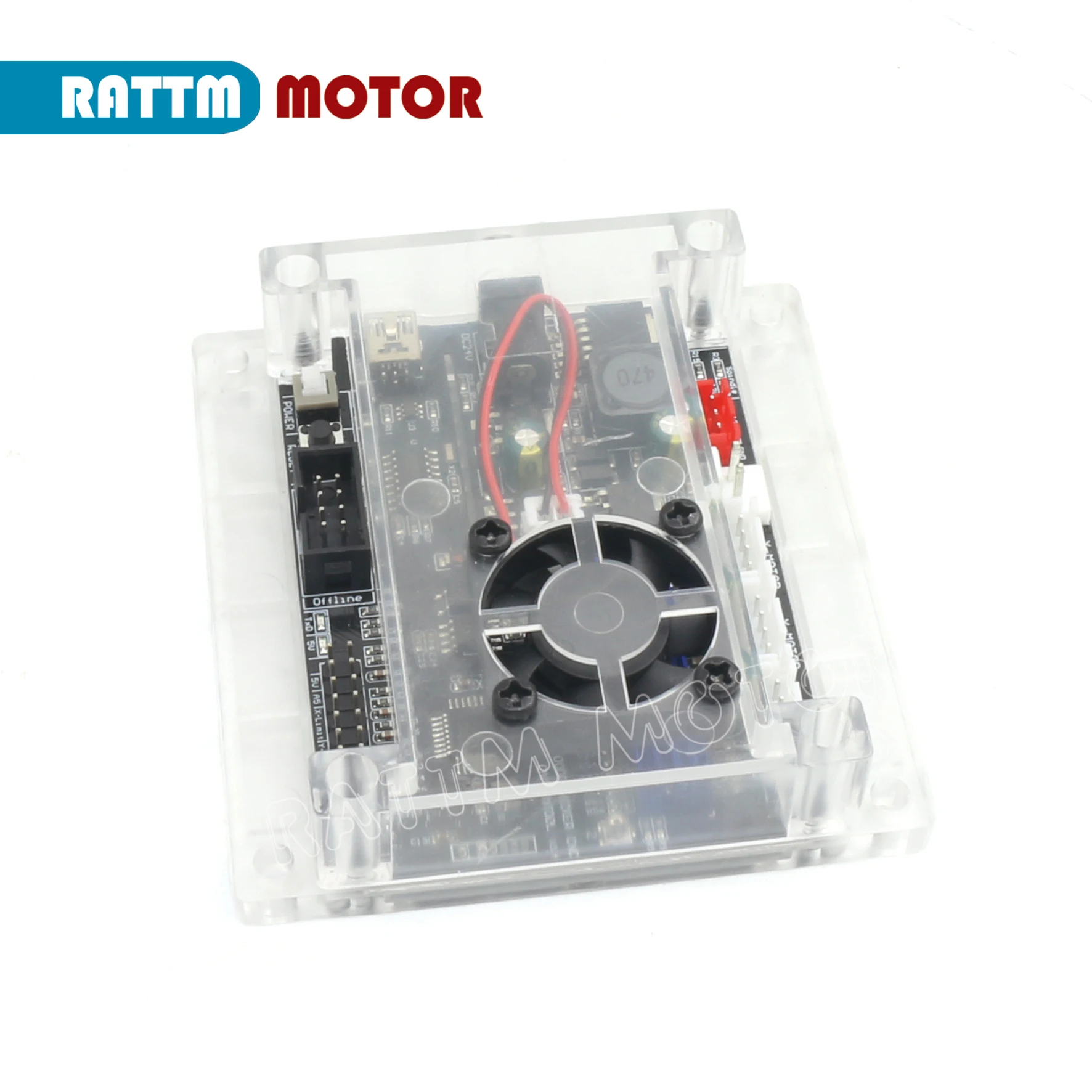

The following elements are located on the upper side of the control module, seen from left to right:
• Light emitting diodes for Spindle/Laser (blue), +12V (red), +24V(red)

• Connection for PWM-controlled 12V DC laser module (red)
• Connection for 24VDC spindle motor (white)
• Connection for stepper motor of X-axis (white)
• Connection for stepper motor of the Y-axis (white)
• Connection for stepper motor of Z-axis (white)


The connection for the 24VDC spindle motor is controlled by an IRF024 N-channel MOSFET with a maximum load of
10A. Since the MOSFET is not cooled, the maximum load capacity should not be used. However, this is still quitesufficient to operate a 775ER type motor. The speed of the spindle motor is controlled by pulse width modulation(PWM)


A PWM-controlled laser module can be connected to the red, 3-pin connector. Please note that either the spindle motor or a laser module is connected to their respective connectors. Simultaneous connection and operation of spindle motor and laser module is not supported by the control module







Specification:

Connection: USB (USB-CH340)

Software: GRBL controller, UniversalGcodeSender

Input voltage: 24VDC (12-24VDC) recommend 24V

Stepper motor: support 24V 2A

Spindle motor: support 24V 10A (supports PWM0%-100%)

Master chip: atmel 328P (arduino nano)

Spindle PWM speed: Support

Support stepper motor: 12V, maximum current of 2A or less is recommended within 1.5A and additional heat. (Any stepper motor 42, 57)

Laser engraving: Support

Power Interface: 5.5-2.5mm DC interface
Support system: win-xp,win7,win8,win10

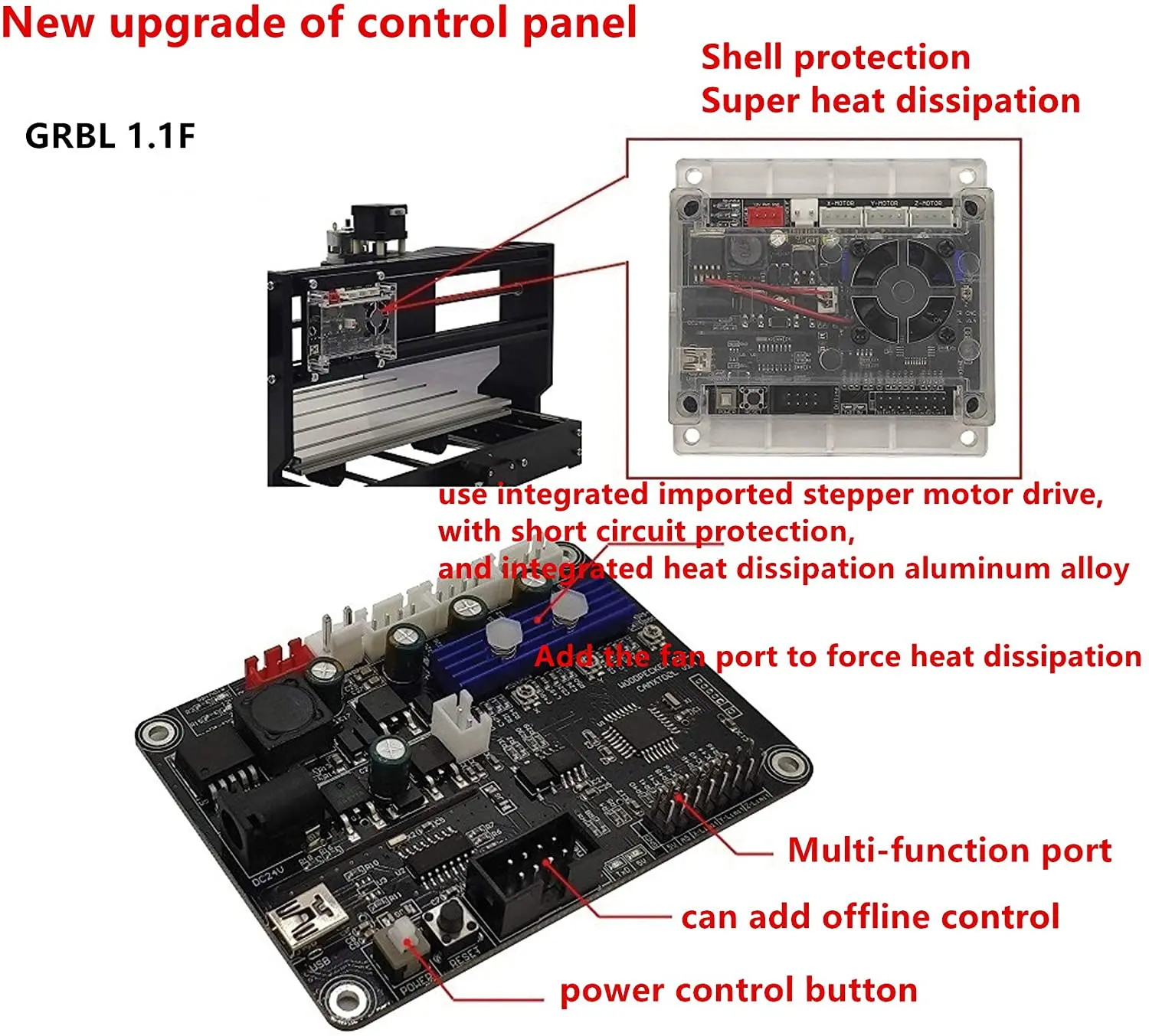

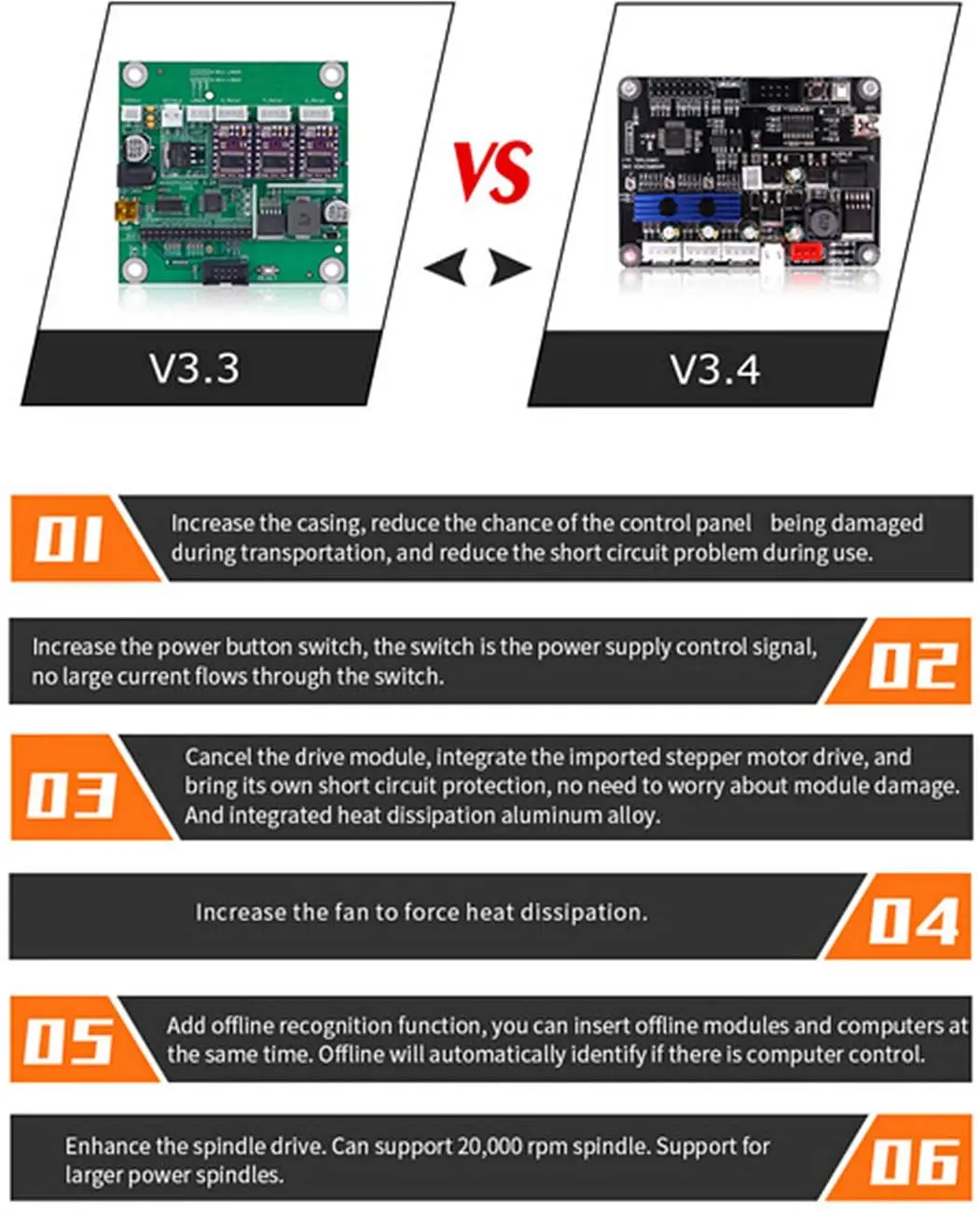

Advantage



add the outer casing: mainly for the bare board of the control board, short circuit problem during use
add the power button switch (this switch is the power supply control signal, there is no large current passing through the switch, do not worry about the switch size)
Cancel the drive module, integrated imported stepper motor drive, with short circuit protection, no need to worry about module damage. And integrated heat dissipation aluminum alloy
add the fan to force heat dissipation.
add offline recognition to insert offline modules and computers at the same time. Offline will automatically identify if there is computer control.
Enhanced spindle drive. Can support 20,000 rpm spindle. Support for larger power spindles
