3-х осевой 20ft 40ft контейнера шасси грузовик
- Категория: Truck Trailers >>>
- Поставщик: Shandong,Haoyue,Vehicle,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 9520.98 $* | 9996.88 $* |
| Aug-19-2025 | 9440.67 $* | 9912.64 $* |
| Jul-19-2025 | 7920.90 $* | 8316.58 $* |
| Jun-19-2025 | 9280.32 $* | 9744.37 $* |
| May-19-2025 | 8080.7 $* | 8484.44 $* |
| Apr-19-2025 | 9120.69 $* | 9576.98 $* |
| Mar-19-2025 | 9040.92 $* | 9492.75 $* |
| Feb-19-2025 | 8960.88 $* | 9408.77 $* |
| Jan-19-2025 | 8880.50 $* | 9324.62 $* |
Характеристики
Product Overview

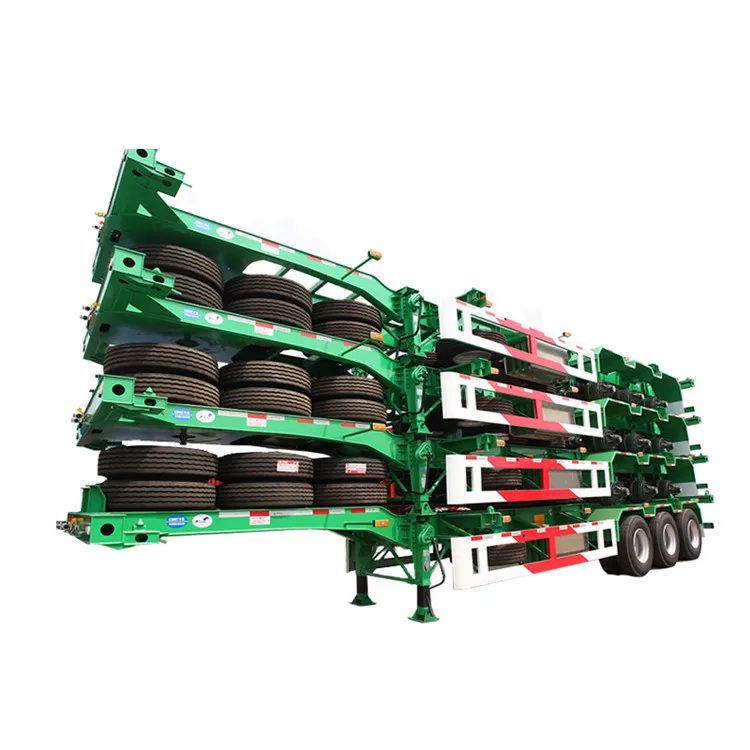

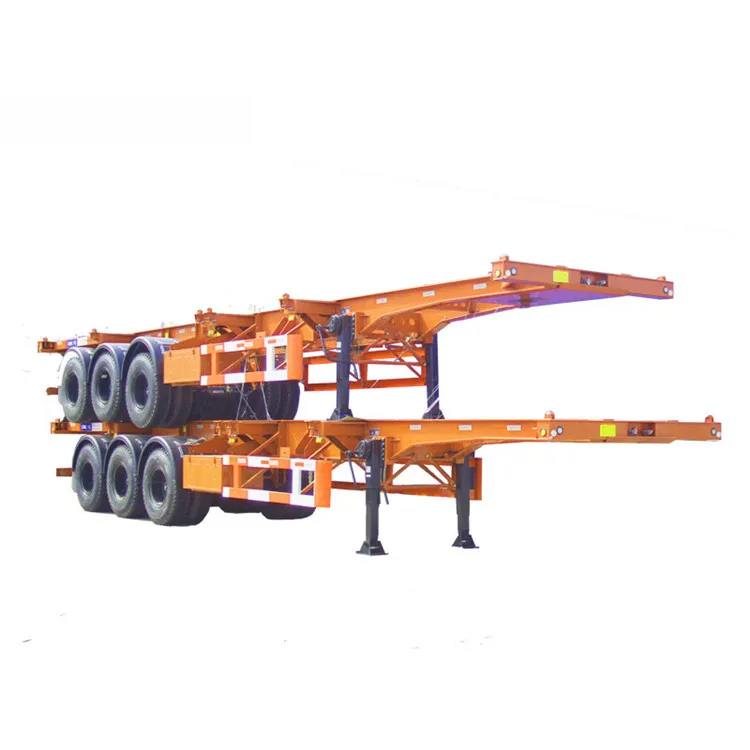

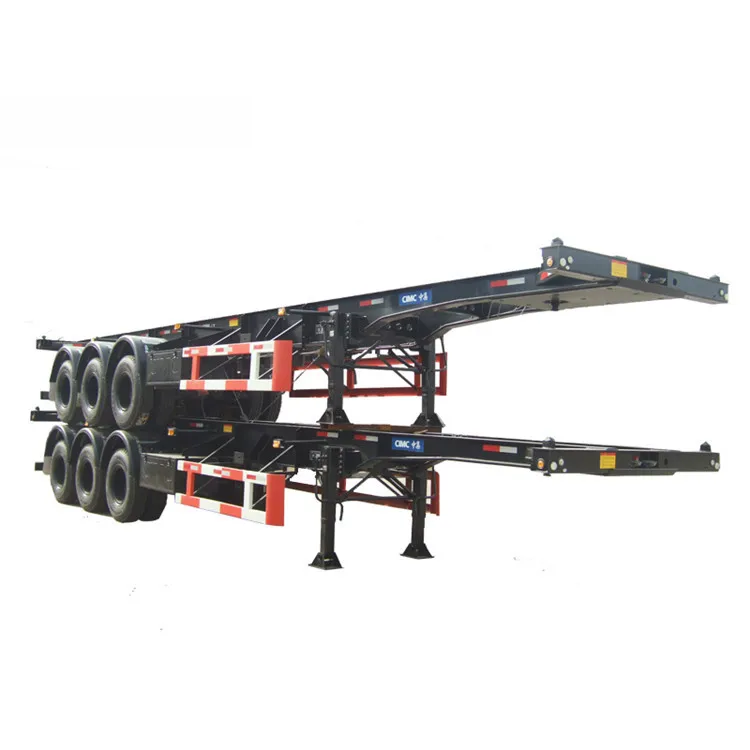

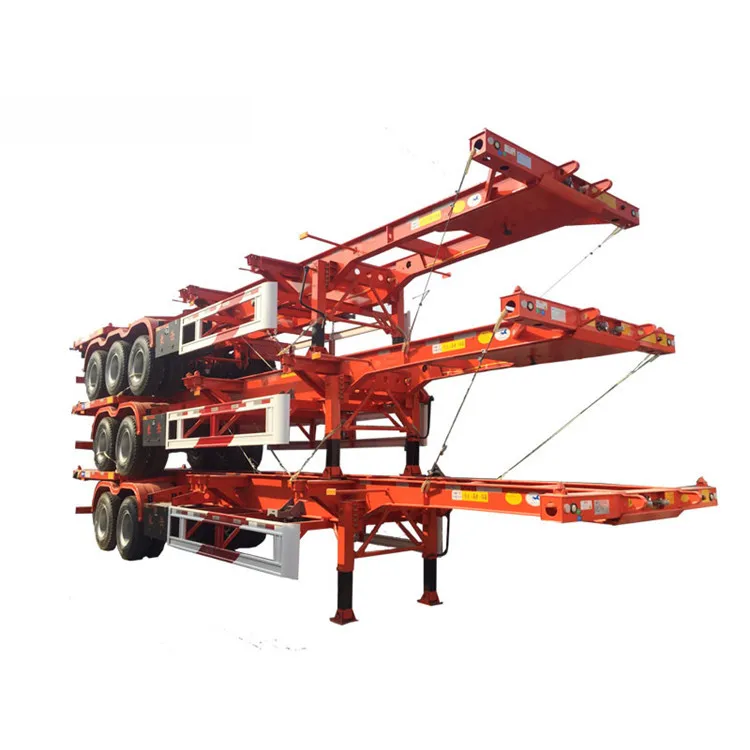

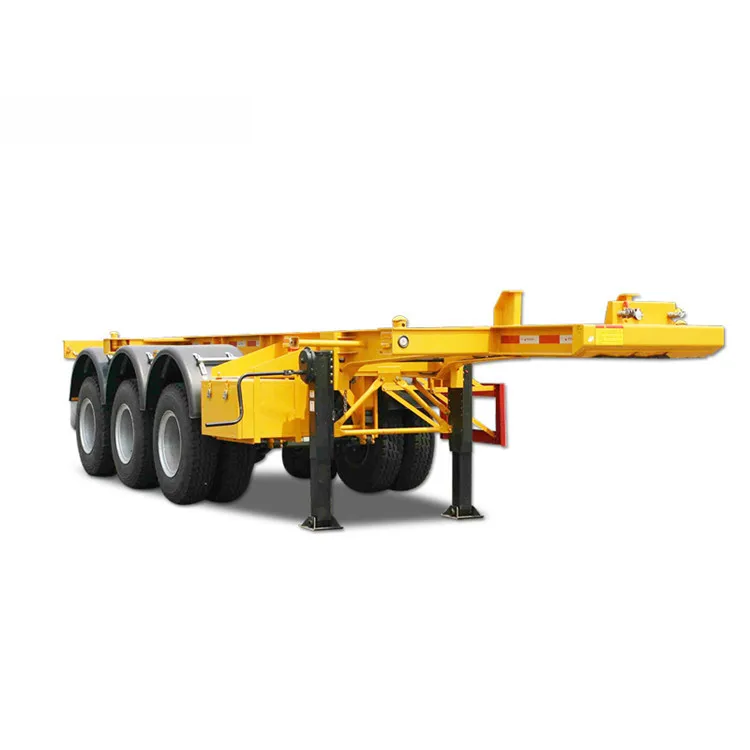

China 3 axles 40FT Container Transport Skeleton Semi Trailer
To Make your transportation much more Economical
Vehicle Master through manufacture and provide all types truck trailer,trailer parts and complete System solutions to make your
transportation much more economical.
China 3 axles 40FT Container Transport Skeleton Semi Trailer
* Finite Element analysis used in vehicle to promote product performance.
* Whole Trailer body Electrophoresis Painting, resistance, painting effect can reach above 10 years.
* High Stength full thickness Steel,titanium content of 0.98‰, which ensure Beam and frame’s Toughness and strength.
* 42 tough ribs design, Ensure the safety and carrying capacity of trailer.
* Specially designed anti-Tire abrasion suspension system,Prevent tire offset after loading
* Whole Trailer body Electrophoresis Painting, resistance, painting effect can reach above 10 years.
* High Stength full thickness Steel,titanium content of 0.98‰, which ensure Beam and frame’s Toughness and strength.
* 42 tough ribs design, Ensure the safety and carrying capacity of trailer.
* Specially designed anti-Tire abrasion suspension system,Prevent tire offset after loading
Feature and Benefit
VEHICLE MASTER TRUCK TRAILER FEATURE LIST
We look at all distributor and driver's every feeling.To solve their transportation problem and optimize our services in further.
A Complete Truck Trailer System for More Economical and more Efficiency
China 3 axles 40FT Container Transport Skeleton Semi Trailer
-The series vehicle uses through going beam structure, has frame structure with flat type and goose neck type, and has high integral strength, small weight, beautiful appearance, safe and reliable operation.-The series vehicle is main product of our company, digests and absorbs the features of foreign and domestic same products fully, and has the features of strong loading capacity and high reliability.
-The series vehicle uses advanced manufacture technology, makes automatic submerged-arc welding for vertical beam,uses shot blasting treatment for integral frame,removes welding stress effectively,uses advanced fixture and technology during the whole production process, and ensures formation and assembly accuracy of work pieces.
-Raw material resource of Vehicle Master guarantees quality, excellent processing equipment and fixture ensure product quality accuracy.All parts use the products of foreign and domestic famous producers,are purchased, inspected and used strictly according to the requirements of quality system documents, and ensure good performance of whole vehicle.
Finite Element Analysis
FEA-Finite element analysis Used in calculation of Aircraft culture strength.Now we used in vehicle to promote product performance.
Rational Analysis design
Adhering to the concept of uniform force on the trailer frame.42 tough ribs design, Ensure the safety and carrying capacity of trailer.
Thickness steel plate
Like 10mm steel plate, even to 10.9mm thick, special custom-made titanium and niobium-containing steel plate,titanium content of 0.98‰, which ensure Beam and frame's Toughness and strength.
Moisture-proof LED lights
Equipped with LED moisture-proof lamps to prevent short circuits and ensure the safety of vehicles transportation at night
Copper Connector
All connector of electrical and gas circuits made of Copper.Metal seal, no rust, no air leakage
Twist Lock
Vehicle Master Unique design Firm and Durable Twist lock to ensure container stability and easy container disassembly
Electrophoresis Painting
Painting does not fall off, corrosion resistance, painting effect can reach 6-9 years.Whole Trailer body Electrophoresis Painting to avoid the existence of dead corners and the best anti-rust performance.
National Level welder
National Level Welding Supervisor.
Meanwhile cooperate automatic welding machine.And More 30 minutes per process than normal welding time. Ensure the best welding results
Anti-Tire abrasion Suspension
Specially designed anti-Tire abrasion suspension system,Prevent tire offset after loading, maximally avoid tire abrasion.Meanwhile,Easy to disassemble and maintain.
Advanced Axle Performance
VEHICLE MASTER/BPW/FUWA Axle.
Integrated Advanced Low-Alloy Axle Beam,Whole Axle Beam No Welding process.Strong Carrying Capacity and high bending Strength.Axle maintenance-free could reach 3 Year/400,000 kilometers.
Landing Device
VEHICLE MASTER/JOST Landing Gear.Self R&D VEHICLE MASTER Aluminum or Steel Landing Gear Warranty come with above 5 Years long.Gear Box with low temperature premlum chassis lube rated for service from -30°C~120°C.
Featured Tire
VEHICLE MASTER/Double-Coin/LingLong/Michelin/Triangle/Bridgestone and other famous brand for choice.Better Performance in wear resistance.
Product Paramenters
VEHICLE MASTER CONTAINER SKELETON SEMI TRAILERS SPECIFICATIONS | ||||
20 Feet Skeleton Semi Trailer Brand:VEHICLE MASTER 2 Axles/3 Axles Application: 20 Feet Container Loading Loading Capacity:20-50 Tons OEM/ODM:Yes CKD/SKD Cooperation:Yes Goose Type:Yes Tandem Type:Yes | 40 Feet Skeleton Semi Trailer Brand:VEHICLE MASTER 2 Axles/3 Axles/ 4 Axles Application: 1*40/2*20 Feet Container Loading Loading Capacity:30-80 Tons OEM/ODM:Yes CKD/SKD Cooperation:Yes Goose Type:Yes Tandem Type:Yes | 45 Feet Skeleton Semi Trailer Brand:VEHICLE MASTER 2 Axles/3 Axles/ 4 Axles Application: 1*40/1*45/2*20 Feet Container Loading Loading Capacity:30-80 Tons OEM/ODM:Yes CKD/SKD Cooperation:Yes Goose Type:Yes Tandem Type:Yes | ||
20 Feet Skeleton Semi Trailer | 40 Feet Skeleton Semi Trailer | 45 Feet Skeleton Semi Trailer | ||
Main Beam | Main Beam | Main Beam | ||
Main Beam Material:Q345/T700 | Main Beam Material:Q345/T700 | Main Beam Material:T700 | ||
Upper Plate Thickness:12mm | Upper Plate Thickness:14mm | Upper Plate Thickness:10mm | ||
Middle Plate Thickness:6mm | Middle Plate Thickness:6mm | Middle Plate Thickness:5mm | ||
Lower Plate Thickness:12mm | Lower Plate Thickness:16mm | Lower Plate Thickness:10mm | ||
Height:500mm | Height:500mm | Height:420mm | ||
Product Size | Product Size | Product Size | ||
L:7000mm*W:2480mm*H:1560mm | L:12400mm*W:2480mm*H:1580mm | L:13950mm*W:2500mm*H:1600mm | ||
Axles | Axles | Axles | ||
2/3 Axles *13 Ton VEHCILE MASTER/FUWA/BPW | 3/4 Axles *13 Ton VEHCILE MASTER/FUWA/BPW | 3/4 Axles *13/16 Ton VEHCILE MASTER/FUWA/BPW | ||
Tire | Tire | Tire | ||
12R22.5 (8/12 Pieces) Linglong/Triangle/Double-Coin/Bridgestone/Other | 12R22.5 (12/16 Pieces) Linglong/Triangle/Double-Coin/Bridgestone/Other | 12R22.5 (12/16 Pieces) Linglong/Triangle/Double-Coin/Bridgestone/Other | ||
Rim | Rim | Rim | ||
9.00*22.5 (8/12 Pieces) Steel/Aluminum | 9.0*22.5 (12/16 Pieces) Steel/Aluminum | 9.00*22.5 (12/16 Pieces) Steel/Aluminum | ||
Leaf Spring | Leaf Spring | Leaf Spring | ||
90mm*13mm*10/90mm*16mm*10 | 90mm*13mm*10/90mm*16mm*10 | 90mm*13mm*10/90mm*16mm*10 | ||
Kin Pin | Kin Pin | Kin Pin | ||
50#(2")/90#(3.5") JOST/Other Brand | 50#(2")/90#(3.5") JOST/Other Brand | 50#(2")/90#(3.5") JOST/Other Brand | ||
Landing Gear | Landing Gear | Landing Gear | ||
28 Tons Two Speed,JOST/Other Brand | 28 Tons Two Speed,JOST/Other Brand | 28 Tons Two Speed,JOST/Other Brand | ||
Twist Lock | Twist Lock | Twist Lock | ||
4 Sets | 12 Sets | 12 Sets | ||
Vehicle Painting | Vehicle Painting | Vehicle Painting | ||
Electrophoresis paint | Electrophoresis paint | Electrophoresis paint | ||
Above Information are VEHICLE MASTER Standard Spec.If customer want to change Spec.Please Let us know. | ||||
Related Products
Vehicle Master Laboratory
VEHICLE MASTER LABORATORY
Company has perfect inspection equipment and advanced inspection methods,own inspection line and physic and chemical analysis rooms of special vehicle,and over 200 items inspection items.
Five Element Analysis of Seel
Through Five Element Analysis,ensure sourcing material better performance.
Steel Tensile Test
Steel Tensile strength, yield point, yield strength and other tensile properties.
Painting Thickness Test
Whole Vehicle Painting Thickness Test,Ensure painting thickness.
Steel Thickness Inspection
All Sourcing Material must be take inspection of thickness,ensure enough steel thickness.
Trailer Side Tilting Test
Tilting Inspection,Maximum testing of vehicle tilting performance.
Multi-Road Condition Test
Maximum testing of vehicle multi-Road Condition performance.
Global Customers
Service & Company Info.
VEHICLE MASTER as famous Truck Trailer and Parts Manufacturer
Provide most comprehensive production and trade services
Before Sale Service
More Than 20 Technical-Business Staff,Provide most professional service and most economical solution for customers.
Middle Sale Service
Production schedule, delivery Time,
Shipping Date, all processes are
monitored and communicated to customers.
After Sale Service
No matter what situation when you meet,
service staffwill response within 12 hours
and provide solution.
VEHICLE MASTER Truck Trailer Production Shop
Since 1980s VEHICLE MASTER Staff Begin to Think of truck trailer transportation,Throuth Almost 40 Years R&D,production and
practice,Finally become famous Manufacturer and supplier of truck trailer.
practice,Finally become famous Manufacturer and supplier of truck trailer.
