Конференц-зал H DMI 3G-SDI выходы 1080P 60fps 20X зум для телемедицинского автообрамления NDI HX
- Категория: Conference Camera >>>
- Поставщик: Zoomking,Industry,Corporation,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 714.49 $* | 750.2 $* |
| Aug-19-2025 | 708.59 $* | 743.58 $* |
| Jul-19-2025 | 594.44 $* | 624.72 $* |
| Jun-19-2025 | 696.81 $* | 731.5 $* |
| May-19-2025 | 606.6 $* | 636.98 $* |
| Apr-19-2025 | 684.13 $* | 718.67 $* |
| Mar-19-2025 | 678.69 $* | 712.39 $* |
| Feb-19-2025 | 672.43 $* | 706.6 $* |
| Jan-19-2025 | 666.40 $* | 699.24 $* |
Характеристики

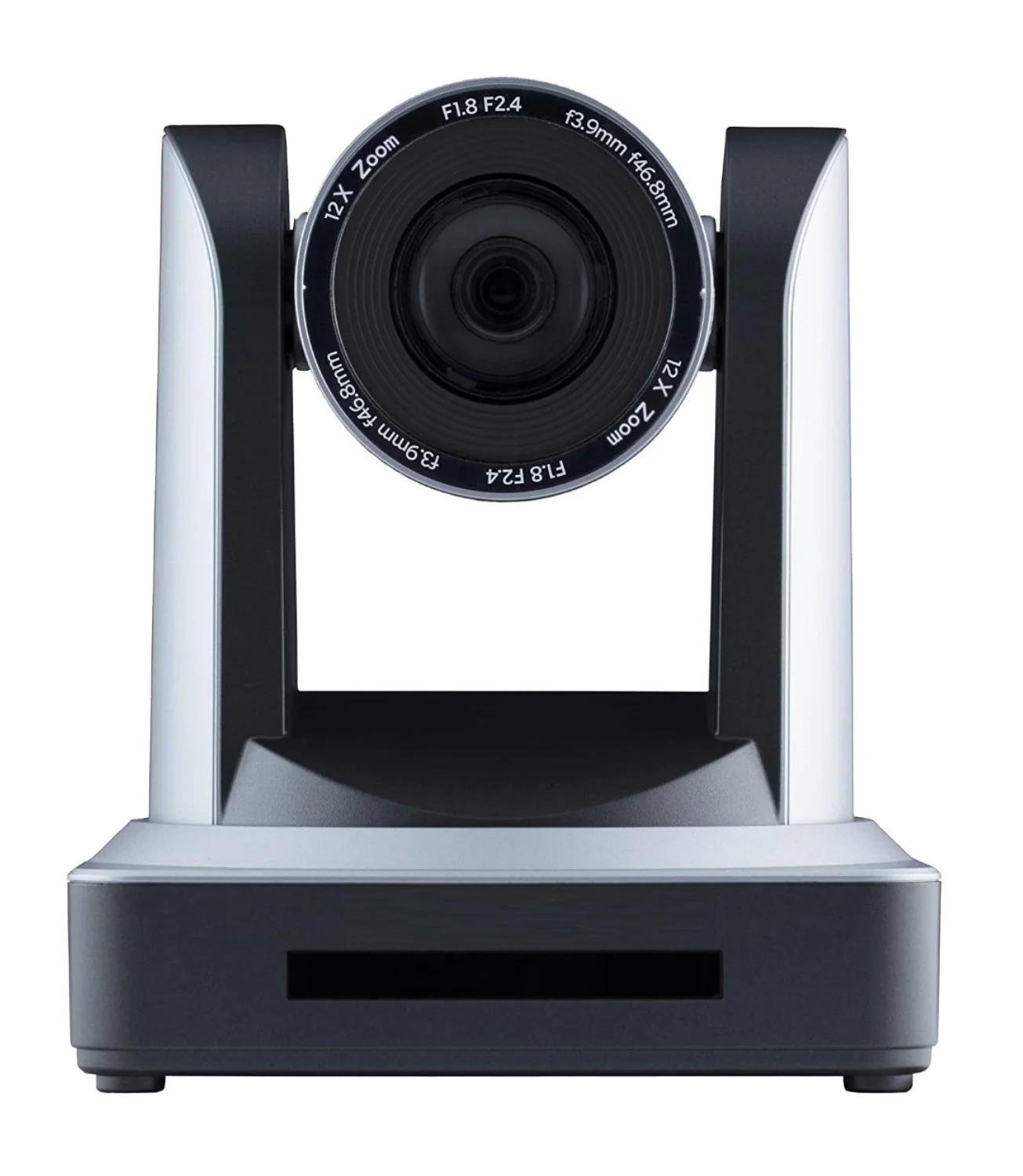

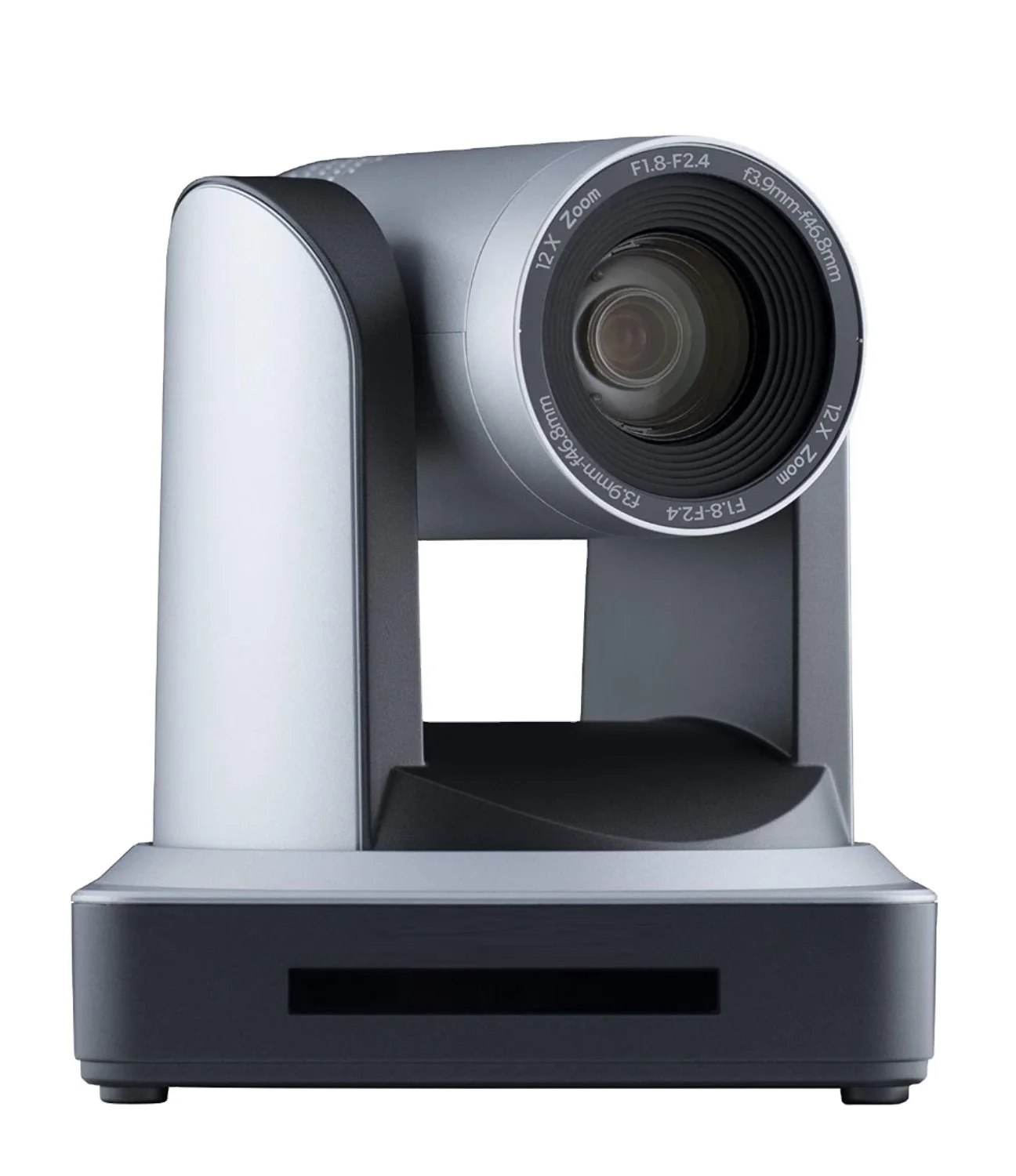

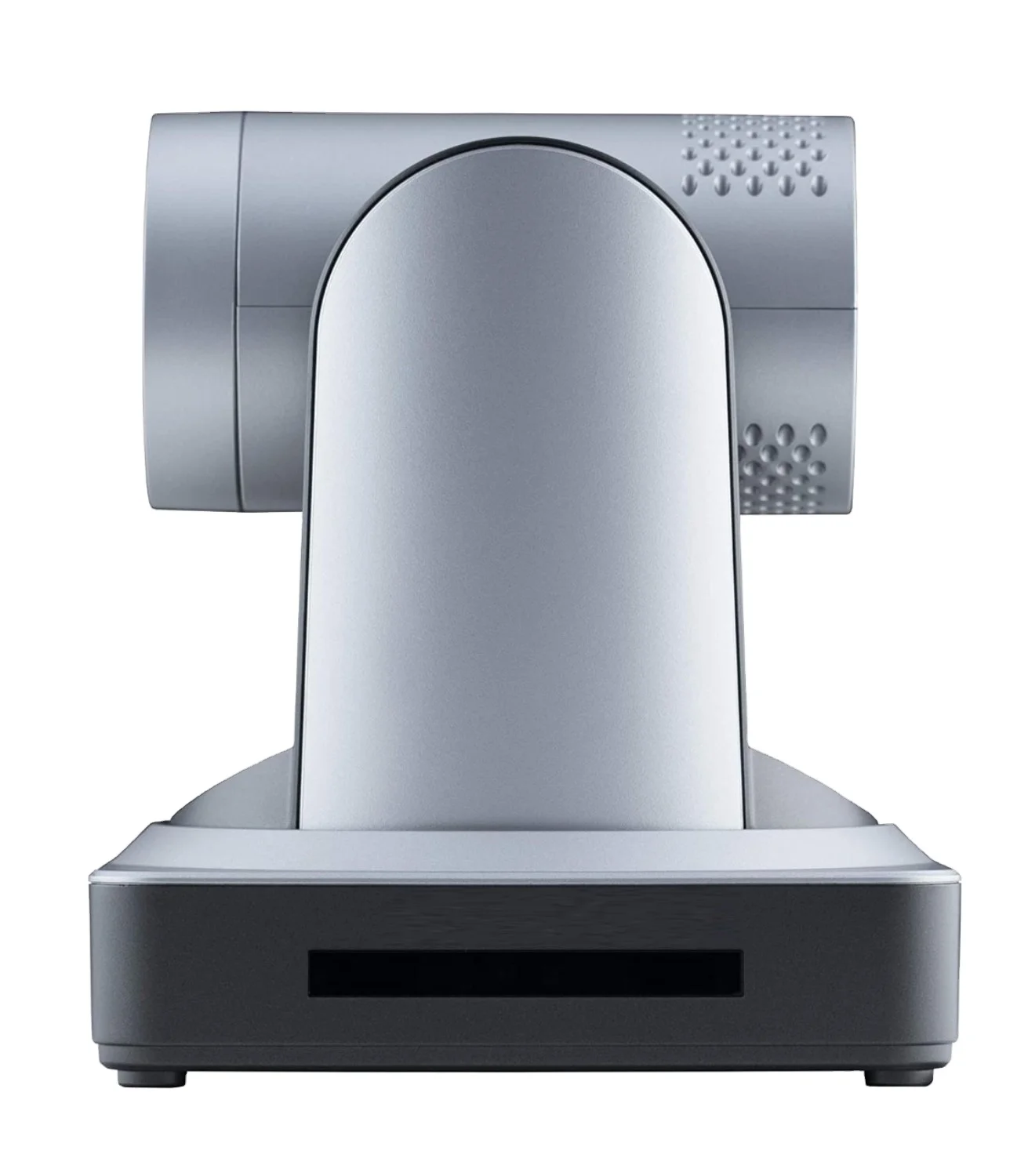

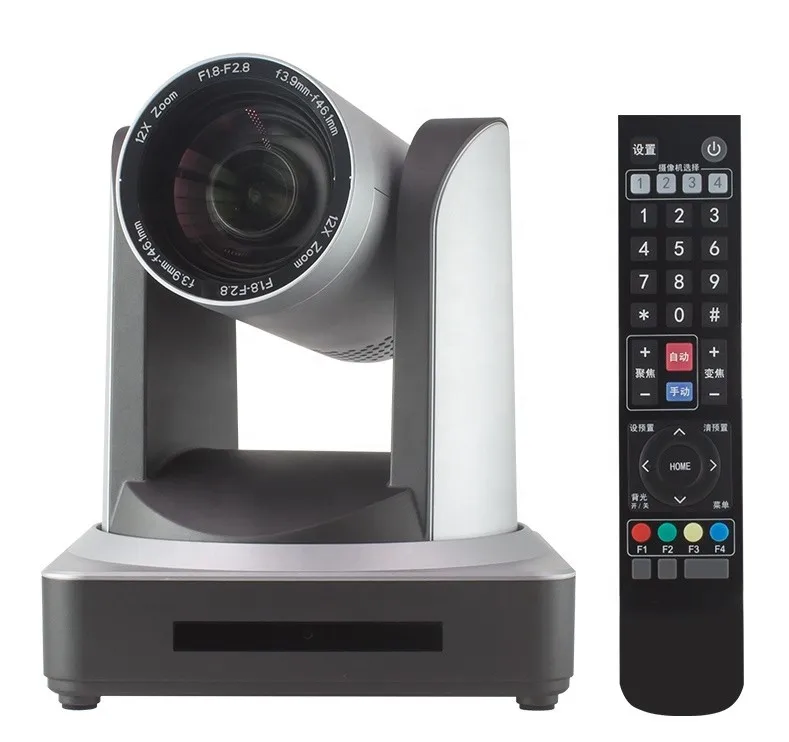

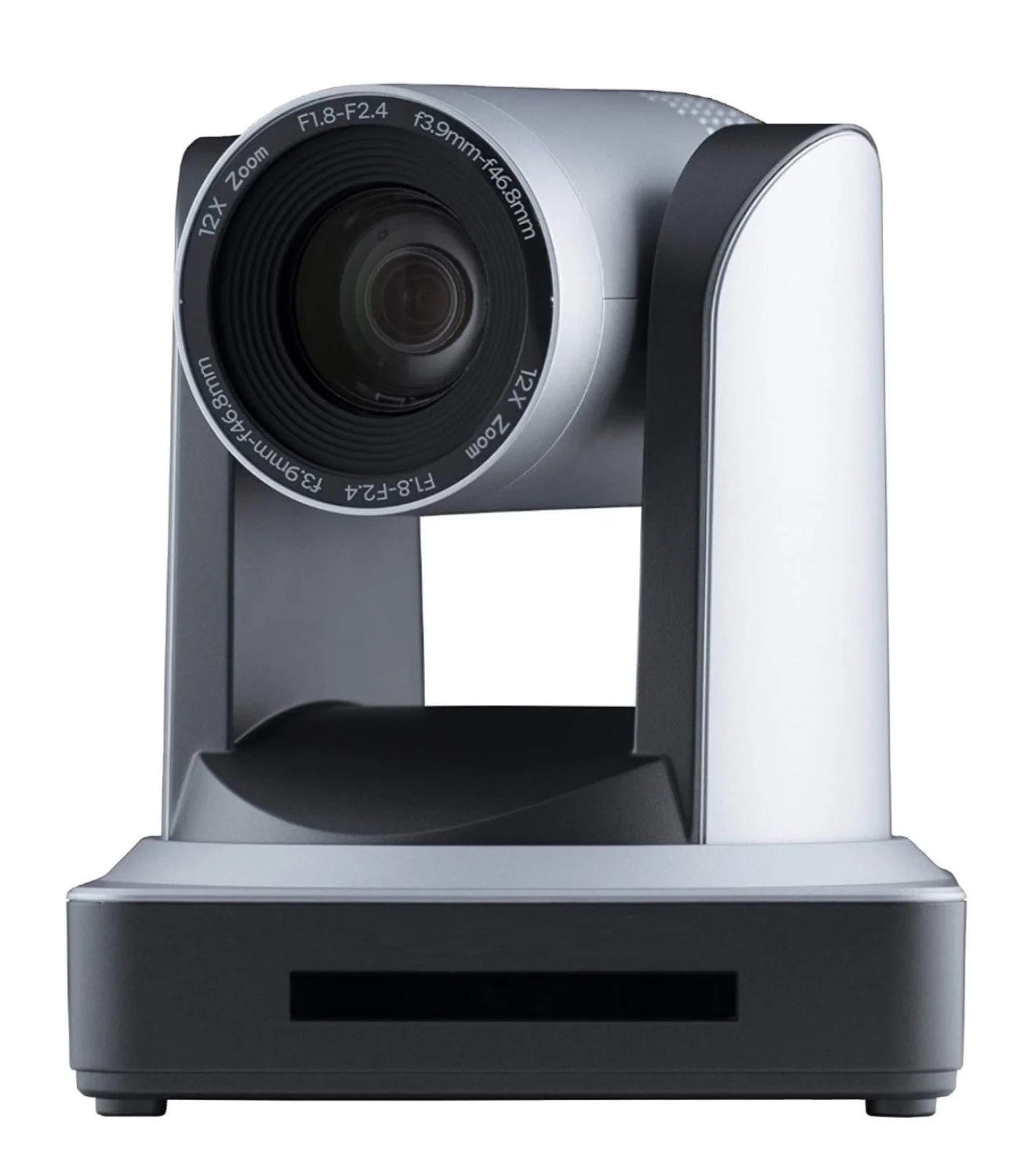

Conference meeting room HDMI 3G-SDI outputs 1080P 60fps 20X zoom for tele-medicine auto framing NDI HX conference camera
Product Description
*Superb High-definition Image
1/2.8 inch high quality CMOS sensor. Resolution is up to 1920×1080 with frame rate up to 60fps.
*Leading Auto Focus Technology
*Low Noise and High SNR
*Multiple Audio/Video compression
Support H.264/H.264+ video compression;AAC, MP3 and PCM audio compression; Support compression of resolution up to 1920×1080 with frame up to 60fps and 2 channel 1920x1080p with 30fps compression.
*Multiple Network Protocol
Support NDI® ,ONVIF,RTSP,RTMP protocols and support RTMP push mode,easy to link streaming media server (Wowza,FMS)
*Wide Application
Tele-education,lecture capture,Webcasting, Videoconferencing,Tele-training,Tele-medicine, Interrogation and Emergency command systems.
ZMK980s-05 | ZMK980s-10 | ZMK980S-12 | ZMK980s-20 | ZMK980s-30 | ||
Camera Parameter | ||||||
Optical Zoom | 5X f=3.6~15.5mm | 10X f=4.7~47mm | 12X f=3.9~46.8mm | 20X f=5.2~110mm | 30X f=4.3~129mm | |
Sensor | 1/2.8 inch high quality HD CMOS sensor | |||||
Effective Pixels | 16: 9, 2.07 megapixel | |||||
Video Format | SDI video format 1080P60/50/30/25/59.94/29.97; 1080I60/50/59.94; 720P60/50/30/25/59.94/29.97 | |||||
View Angle | 20°(tele) 83.7°(wide) | 6.43°(tele) 60.9°(wide) | 6.3°(tele) 72.5°(wide) | 3.3°(tele) 54.7°(wide) | 2.34°(tele) 65.1°(wide) | |
AV | F1.6 – F3.0 | F1.6 – F3.0 | F1.8 – F2.4 | F1.6 – F3.5 | F1.6– F4.7 | |
Digital Zoom | 10X | |||||
Minimum Illumination | 0.1Lux | |||||
DNR | 2D & 3D DNR | |||||
White Balance | Auto / Manual/ One Push/ 3000K/ 4000K/5000K/6500K | |||||
Focus/Aperture/Electronic Shutter | Auto/Manual | |||||
BLC | ON/OFF | |||||
WDR | OFF/ Dynamic level adjustment | |||||
Video Adjustment | Brightness, Color, Saturation, Contrast, Sharpness, B/W mode, Gamma curve | |||||
SNR | >55dB | |||||
Input/Output Interface | ||||||

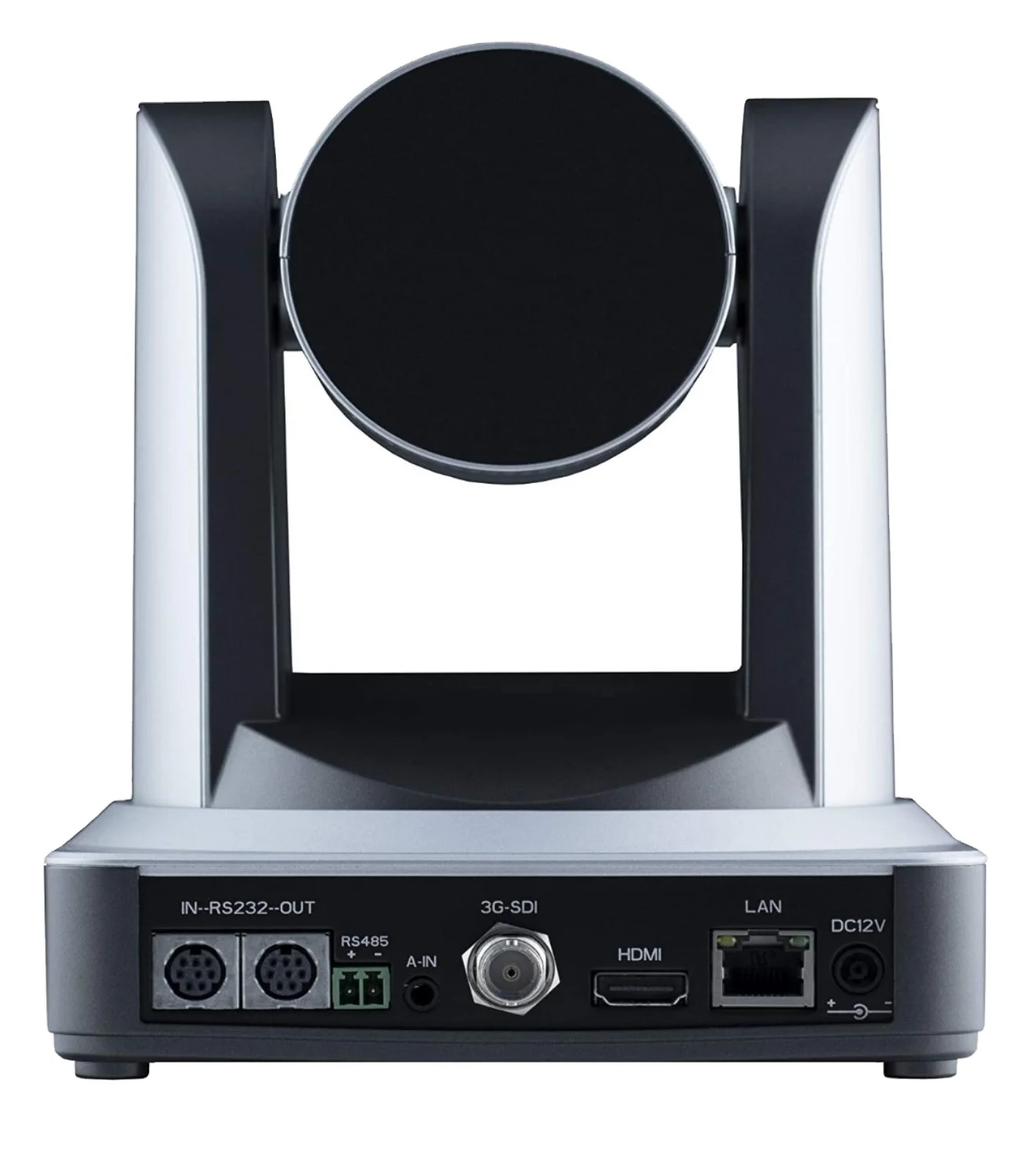

Video Interfaces | ZMK980S-NDI model: SDI, HDMI, LAN(NDI),RS232(In & Out), RS485, A-IN | |||||
Video Compression Format | H.264, H.264+, Dual stream output | |||||
Control Protocol | VISCA/Pelco-D/Pelco-P; Baud Rate:115200/9600/4800/2400bps | |||||
HD IP Interface | 100M IP Port(100BASE-TX); Support VISCA protocol control through IP port. | |||||
Network Protocol | RTSP, RTMP, ONVIF, GB/T28181, NDI | |||||
