Магнитный электронный измеритель толщины покрытия

Магнитный электронный измеритель толщины покрытия

Категория: Gauges >>>
Поставщик: Changzhou,Boer,High,Technology,Co.,Ltd.

Цена:35,06 $ - 38,25 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Aug-15-2025	44.58 $*	45.35 $*
Jul-15-2025	36.69 $*	37.18 $*
Jun-15-2025	44.99 $*	45.64 $*
May-15-2025	43.49 $*	44.75 $*
Apr-15-2025	35.0 $*	36.88 $*
Mar-15-2025	43.83 $*	44.19 $*
Feb-15-2025	42.66 $*	43.19 $*
Jan-15-2025	42.33 $*	43.22 $*

Характеристики

Product Description

It is used to measure thickness of non-magenetic material(for example paint, plastic,copper,zinc,chromium etc) on magnetic substrate(for example steel, iron etc), or thickness of non-conductive material(for example paint, plastic, film etc) on non-magnetic substrate(for example copper,zinc,chromium etc), moreover the gauge can detect the substrate if it is magnetic or non-magnetic automatically.

Product Paramenters

Model	G931	G932
Measuring range	0~1300um/0~51.2mil	0~1500um/0~59.1mil
Measuring accuracy	±2um+3%	±1um+2.5%
Resolution Ratio	0.1um@10-99.9um 1um@100-1300um
Material of Substrate	Fe and NFe
Screen backlight	No	Yes
Principle	Magnetic Induction@Fe Eddyu Current@NFe
Calibration Standard Sheet	50/100/250/500/1000um
Units	um/mil
Min Curvature Radius Convex	1.5mm
Min Curvature Radius Concave	25mm
Minimum Measuring Area	Φ6mm
Min Thickness of Substrate	0.5mm for Fe Substrate 0.3mm for NFe Substrate
Power-off automatically	15 minutes without any operation	5 minutes without any operation
Power	1*9V battery	4*AAA batteries

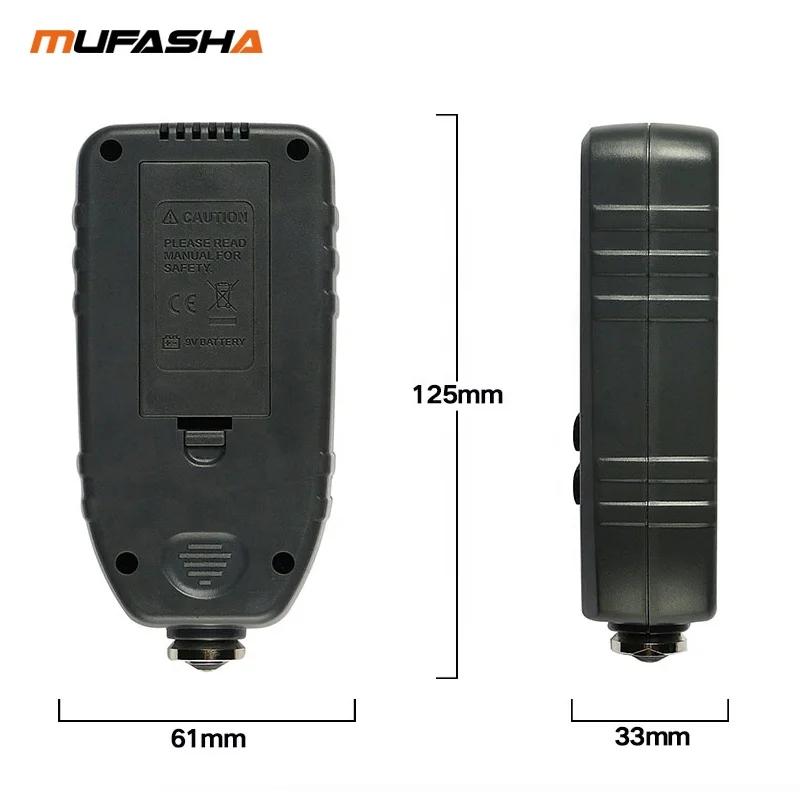

Weight/Size of meter	106g/1206232mm	126g/1556235mm
Weight/Size of package	284g/1708555mm	321g/1708555mm
Out carton	50pcs/carton,15.2kg/435350295mm	50pcs/carton, 17.1kg/435350295mm

Details Images

Suggest Similar Products

Company Profile

We are an enterprise which collection R&D, Production, Processing and Marketing. The company is
located in the Changzhou City Jiangsu Province which is very closed to cosmopolis Shanghai.
We devote into the kinds of Instruments and hardware tools, for example laser products, infrared thermometer, tile cutter, multimeter, coating thickness tester, moisture meter, sound level meter, gas detector etc.,

With the unremitting efforts of our staff and the supports of our customers, our company has enjoyed a good reputation in the eyes of customers. herein, you can get all-in-one service, welcome to our company for visiting and advising and we will be here at your service anytime.

FAQ

1.Are you a trading company or a factory?

We are a combination of design, production and trade company.

2.What is the MOQ?
Usually we have small quantity neutral products or the products with our brand in stock. We accept small order.
If you need customized products, MOQ is 500 to 2000 pcs.

3.Delivery time?

It depends on the order quantity.

4.Does your company accept customization?

Yes. OEM or ODM is available.

5.Do your products have warranty?

Yes, We offer 1 year warranty. Our Policy: If there is some quality problem, send the defective to us. we will bear the freight and resend back new one to you with new order.

6. Payment term?

Western Union, PayPal, T/T, L/C, D/P, O/A are available.
