vertical walls single or double with leak detection Hdpe geomembrane geomembranas membrane film liners
Product Description
Production Introduction;
Hdpe Plastic Geomembrane Liner for Agricultural irrigation storage dam is blow molded by polymer materials such as polyethylene and so on.
Geomembrane(also named as seepage-proofing membrane/HDPE sheet) is a kind of waterproofing obstructing material produced with high-molecular polymer as the basic raw material. Classified by smoothness of the surface, it can be divided into smooth geomembrane with double flat and smooth layers and textured geomembrane with one or two textured surface; Classified by raw material, it can be divided into HDPE geomembrane, LDPE geomembrane, EVA geomembrane.
1.thickness : 0.20mm --- 3.0mm,2.width: Within 8 m ;
3.length:50-100m(or at request)
4.Material: HDPE,( LDPE, LLDPE, PVC,EVA).
5.Color: Black or as required.
Specification
Hdpe Plastic Geomembrane Liner for Agricultural irrigation storage dam has characteristics such as high strength, anti-aging, good welding performance and convenient construction.
Technical Data:
Item | Value | ||||||||||||||||
Thickness,mm | 0.3 | 0.5 | 0.75 | 1 | 1.25 | 1.5 | 2 | 2.5 | 3 | ||||||||
Density, g/cm3 | ≥0.940 | ||||||||||||||||
Tensile yield strength, N/mm | ≥4 | ≥7 | ≥10 | ≥13 | ≥16 | ≥20 | ≥26 | ≥33 | ≥40 | ||||||||
Tensile break strength, N/mm | ≥6 | ≥10 | ≥15 | ≥20 | ≥25 | ≥30 | ≥40 | ≥50 | ≥60 | ||||||||
Yield elongation, % | - | - | - | ≥11 | |||||||||||||
Elongation at break, % | ≥600 | ||||||||||||||||
Angle tear load, N | ≥34 | ≥56 | ≥84 | ≥115 | ≥140 | ≥170 | ≥225 | ≥280 | ≥340 | ||||||||
Puncture resistance, N | ≥72 | ≥120 | ≥180 | ≥240 | ≥300 | ≥360 | ≥480 | ≥600 | ≥720 | ||||||||
Carbon black content, % | 2.0~3.0 | ||||||||||||||||
Carbon black dispersion | Among 10 data, grade 3 should not exceed 1, | ||||||||||||||||
grade 4 and grade 5 are forbidden. | |||||||||||||||||
Oxidation induction time(OIT), min | ≥60 | ||||||||||||||||
Low-temperature impact brittle performance | Pass | ||||||||||||||||
Water vapor permeability, g•cm/(cm2•s•Pa) | ≤1.0x10-13 | ||||||||||||||||
Dimensional stability, % | ±2.0 | ||||||||||||||||
Product process
Applications
Applications:

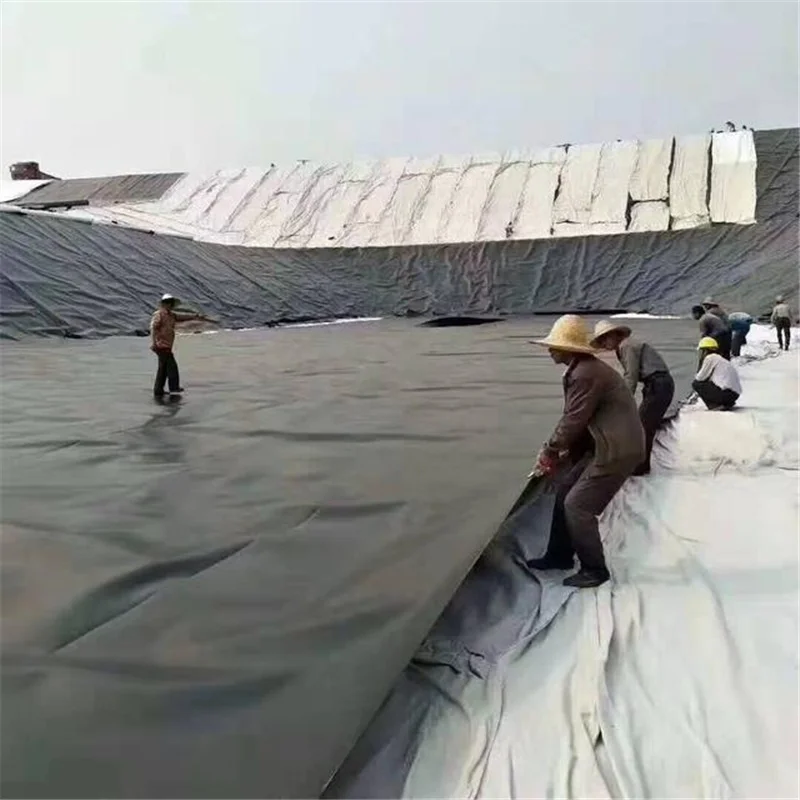

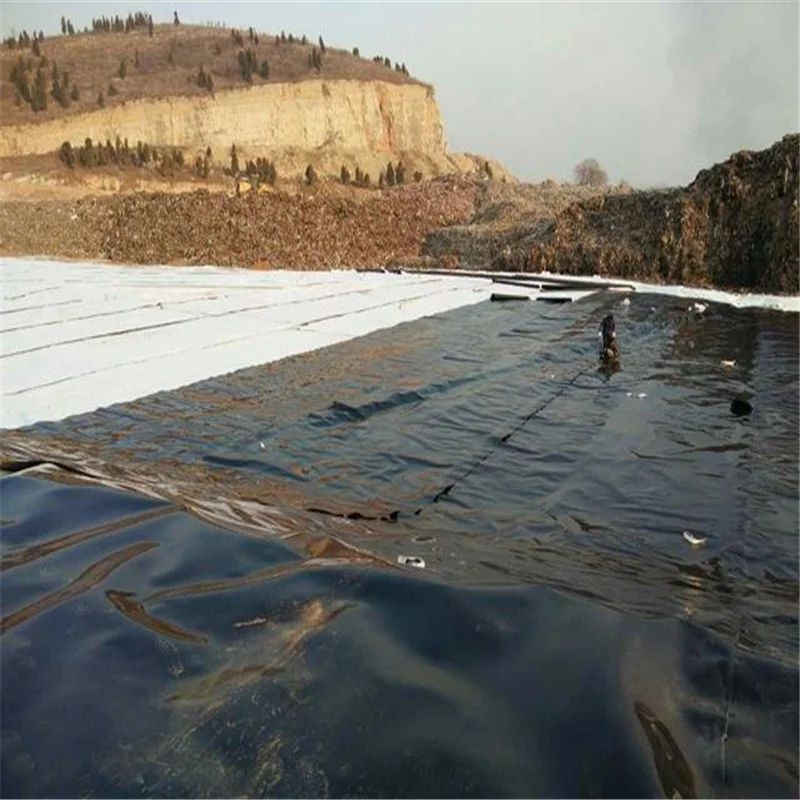

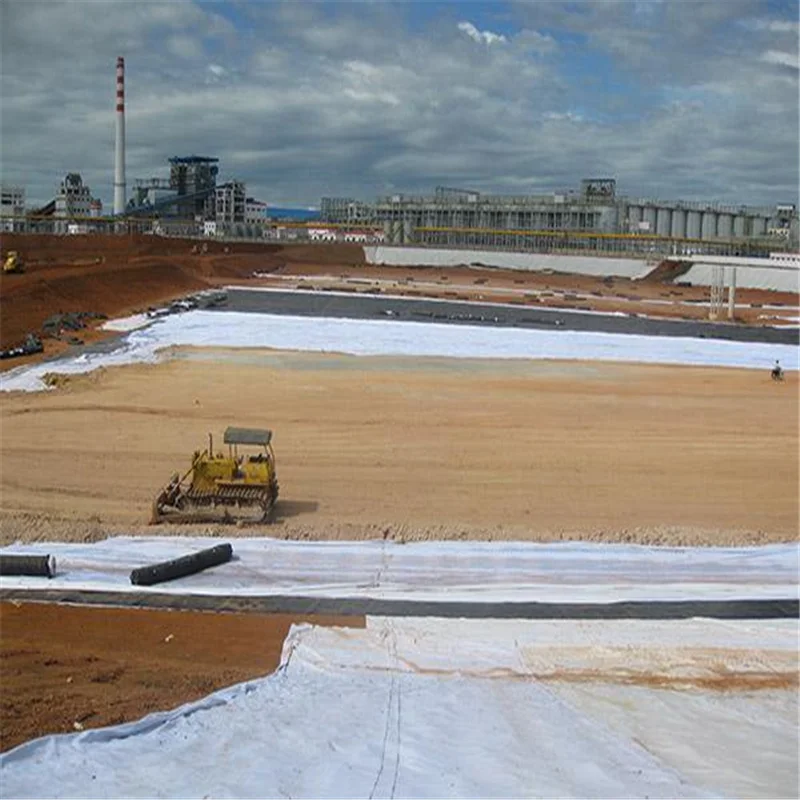

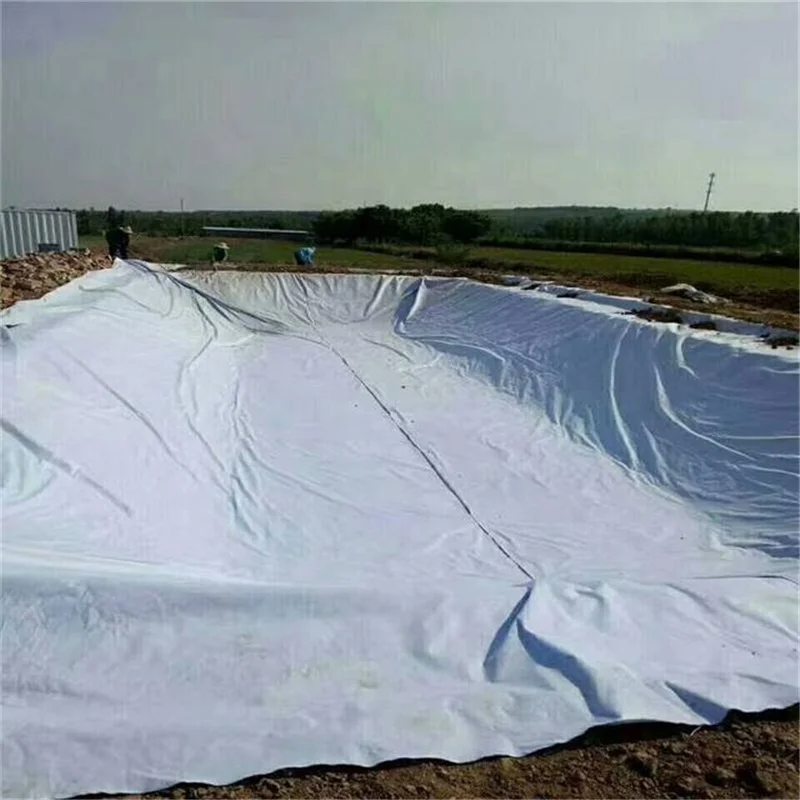

Hdpe Plastic Geomembrane Liner for Agricultural irrigation storage dam is mainly used for anti-seepage, river bank reservoirs, lake dam, subway, landfill and other projects.
1. Environmental protection and sanitation: landfill, sewage treatment plant, regulating reservoir of power plant, solid waste in industrial and hospital, etc.;
2. Water conservancy project: seepage-proofing, leaking stoppage, reinforcement of river, lake and dam; seepage-proofing of canal; vertical core wall, slope protection, etc.;
3. Municipal engineering: underground construction of subway and building construction; seepage-proofing of planted roof and roof garden; lining of sewage conduit, etc.;
4. Gardens: Bottom lining, slope protection, greening and seepage-waterproofing in artificial lake, riverway, reservoir, golf
course, etc.;
5. Petrifaction: Seepage-waterproofing of oil tank in chemical plant, oil refinery, and gas station; Lining and secondary
lining of chemical reaction tank, and sedimentation pond, etc.;
6. Mining industry: bottom lining seepage-waterproofing of washing pond, dissolving tank, sedimentation pond, storage yard, tailing, etc.;
7. Transport facilities: reinforcement of road foundation, seepage-waterproofing of culvert, etc.;
8. Agriculture: seepage-waterproofing of reservoir, drinking pool, irrigation system, etc.;
9. Aquaculture: Lining, seepage-waterproofing and slope protection of intensified and factory-like culture pond, fishpond, and shrimp pond, etc.;
10. Salt industry: Crystallizing pond of saltern, etc.
Packing & Delivery
Company Profile
Certificate
FAQ
1. Are you a factory?
Yes
2. Is free sample available?
Yes
3. How long is the delivery time?
Within 15 days after receiving down payment.
4. What's the MOQ?
1*20GP container, can be negotiated.
