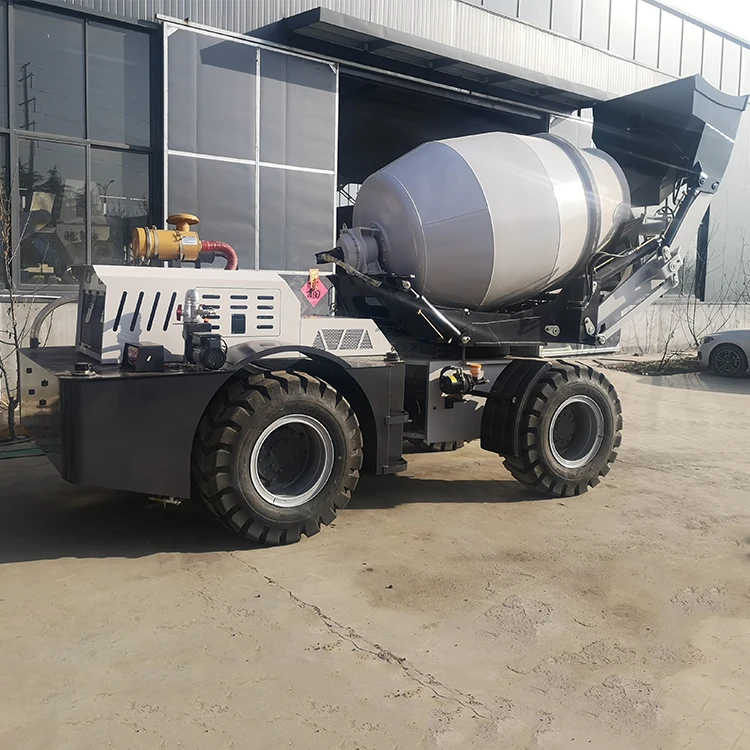

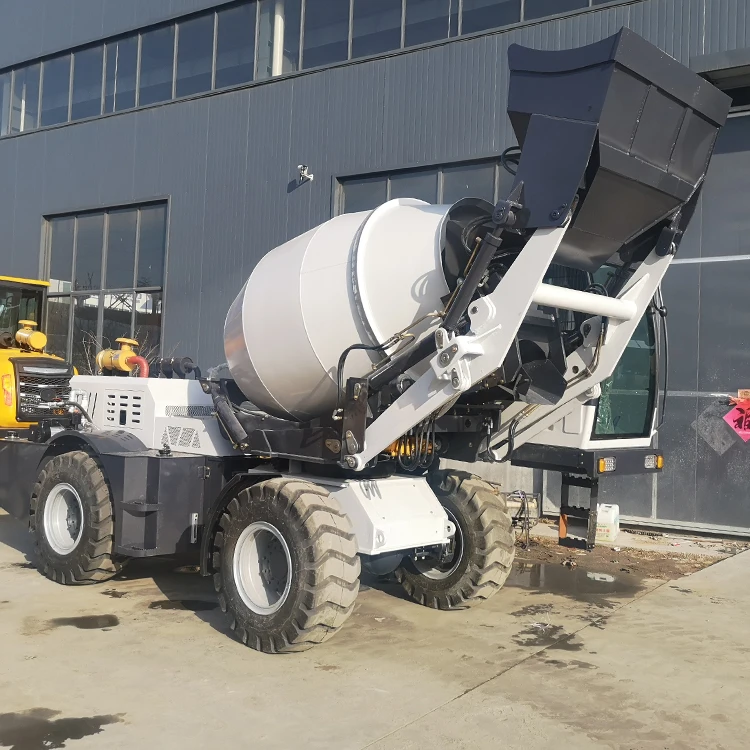

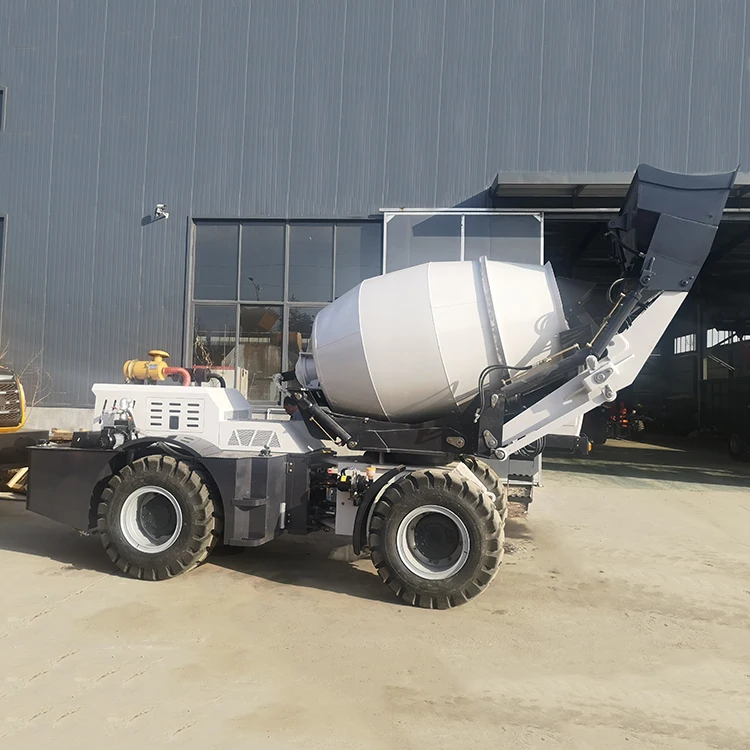

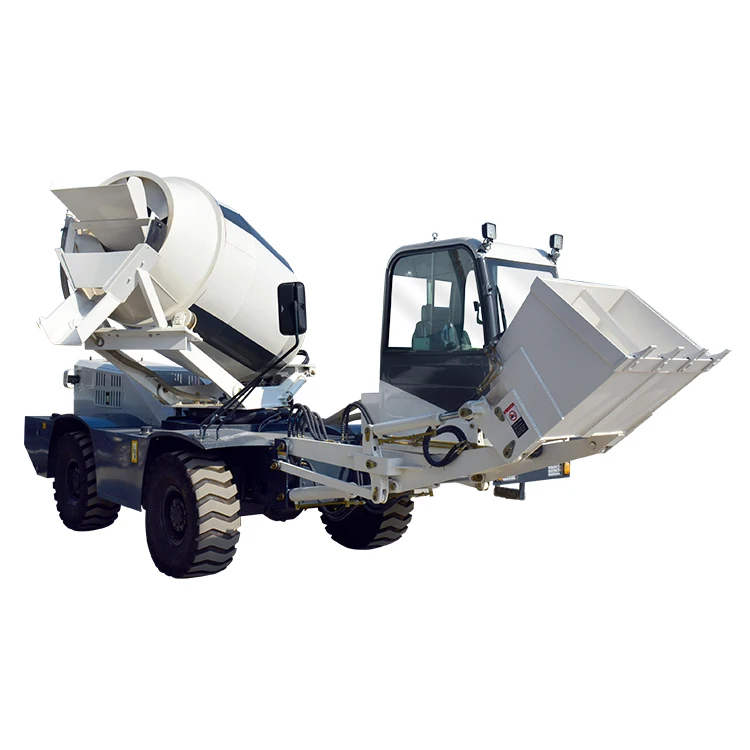

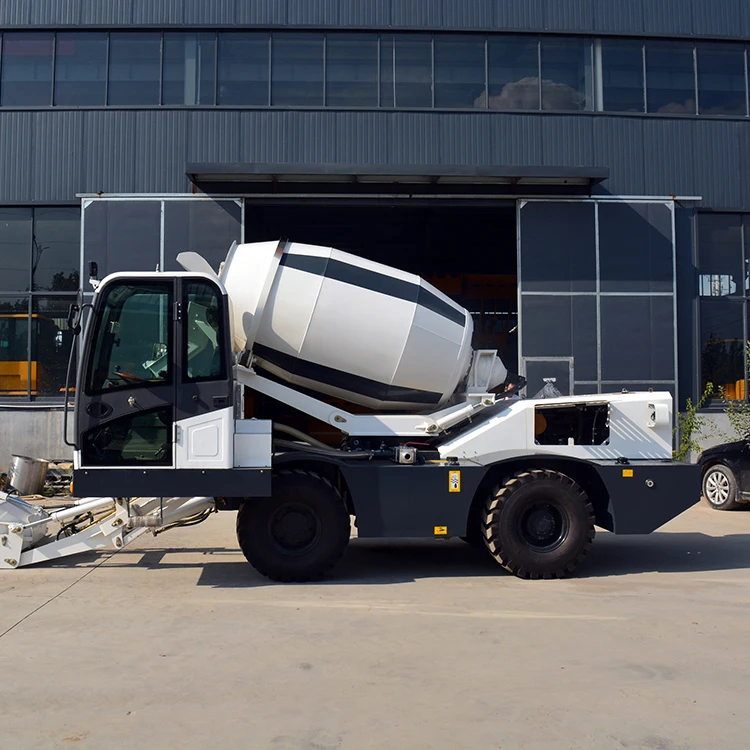

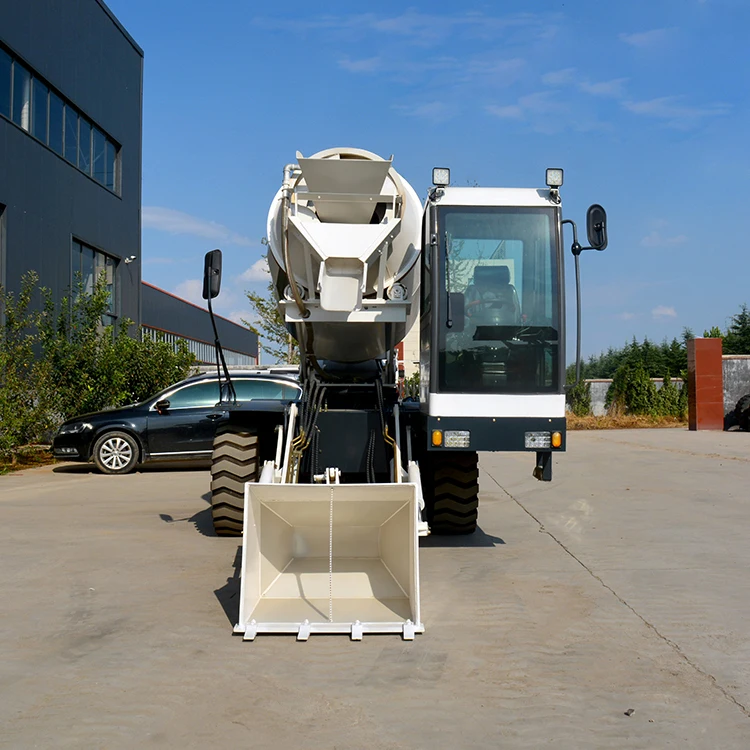

LTMG Топ новый дизайн 2 5 куб. М 3 4 гидравлический насос самозагрузка грузовик бетономешалка машины для

LTMG Топ новый дизайн 2 5 куб. М 3 4 гидравлический насос самозагрузка грузовик бетономешалка машины для

Категория: Concrete Truck >>>
Поставщик: Xiamen,LTMG,Machinery,Co.,Ltd.

Цена:19 495,00 $ - 19 750,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Aug-18-2025	24759.35 $*	25254.37 $*
Jul-18-2025	20080.67 $*	20482.92 $*
Jun-18-2025	24369.13 $*	24856.4 $*
May-18-2025	24174.21 $*	24657.31 $*
Apr-18-2025	19300.67 $*	19686.88 $*
Mar-18-2025	23784.4 $*	24260.82 $*
Feb-18-2025	23589.49 $*	24061.75 $*
Jan-18-2025	23394.68 $*	23862.1 $*

Характеристики

MODEL NO	LTM25J
TYPE	Integral frame chassis movable, self loading, mixing, transporting Drum / cab / boom Synchronous rotation
FUNCTION	concrete, sand, fertilizer compound, wet or dry feed materias mixing and discharging
PRODUCTIVITY	BATCH≤15MINS, 4BATCHS/10m³
Driving	4 x 4
ENGINE	YUNNEI ENGINE: FOUR-CYLINDER 2400RPM,76KW
SPEED	HIGH SPEED: 40KM/H; LOW SPEE:7.5KM/H
Gear number	4 forward shift ,4reverse shift
Fuel consumption	Idle state 2L-3L, working state 8L-10L.
TIRE	1670-20(Steel wire tyre)
DRUM	Geometric volume 3.5 cubic meters, the best stirring 2.0-2.5 cubic meters
Spiral blade in tank	Double helix mixing, with the guide screw, so that the mixing material more uniform.Turn the feed left, turn the discharge right
mixing tank 270°discharges	90 ° left/180 ° right There is no dead Angle for discharging around the vehicle
TIPPING CHUTE	Equipped with 2 chute for detachable to increase discharging length
Tilt of mixing tank	16°
SHOVEL	shovel capacity: 0.6m³
Bucket discharge switch	Hydraulic gate, electric control
OPERATION HANDLE	ELECTRIC CONTROL BUTTON FOUR-WAY GUIDE HANDLE
MOVING HYDRAULIC	PUMP:DENGHONG
		Torque converter（CHENGY）
Work hydraulic	PUMP/valve: DENGHONG
Mixing system	SPEED REDUCER:（CHENGY）
	Mixing motor（ZHENJIANG DALI）
WATER SUPPLY	HYDRAULIC DRIVING SELF-PRIMIING PUMPS.
VOLTAGE	Battery 24V-100A 2 pieces
HYDRAULIC OIL BOX	TANKAGE115L, SUMMER:NO68 HYDRAULIC OIL, WINTER:NO46 HYDRAULIC OIL, VERY COLD ZONE: NO35 HYDRAULIC OIL
Water tank capacity	620L
Diesel tank capacity	90L
whole weight
CAB	Prevent falling objects cab
		Adjustable steering wheel
		Adjustable seat
		Seat belts
		Fire extinguisher
		Astern image
ALARM LAMP	STANDARD CONFIGURATION
RADIO	STANDARD CONFIGURATION
ESCAPE HAMMER	STANDARD CONFIGURATION
Astern sound prompt	STANDARD CONFIGURATION
Walking control mode	STANDARD CONFIGURATION：mechanical	Optional：Electric control

1. who are we?
We are based in Fujian, China, start from 2016,sell to Africa(16.00%),South America(12.00%),Western Europe(12.00%),North America(10.00%),Southeast Asia(10.00%),Oceania(10.00%),Mid East(8.00%),Eastern Asia(5.00%),Northern Europe(5.00%),Eastern Europe(3.00%),Central America(3.00%),Southern Europe(3.00%),South Asia(3.00%). There are total about 101-200 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Wheel Loader,Excavator,Skid Steer Loader,Electric Stacker,Forklift

4. why should you buy from us not from other suppliers?
LTMG has always kept its professional role in Chinese Material Handling Equipment &Construction Machinery industry. At present,LTMG production base owns 120,000 square meters,launched a batch of products representing Chinese advanced level in recent years

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,FCA,CPT,DDP,DDU,DAF；
Accepted Payment Currency:USD,EUR,AUD,HKD,GBP,CNY;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,Western Union;
Language Spoken:English,Chinese,Spanish,French
