Характеристики

Product Description

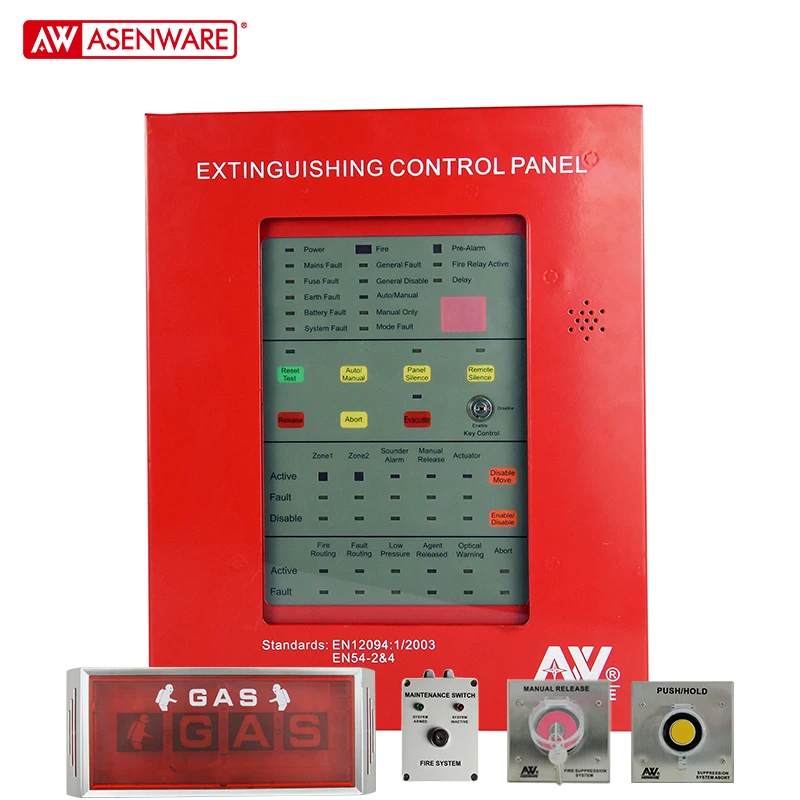

AW-GEC2169

AW-GEC2169 extinguishing control panel is designed in compliance with the requirements of European standards of EN-54-2, EN-54-4 and EN-12904-1. This panel can be used in FM200, CO2, IG541, Novec1230 and other gas fire extinguishing systems.

Specification

AC input	220VAC 50Hz
DC output from power board	24VDC (19V-28V) and 5VDC (4.9V-5.1V)
Voltage for MCU	5V for power board MCU, 3.3V for other MCU
Current at 24VDC from PSE	<450mA standby current
Maximum current from PSE	1.4A (except batteries charge current)
Auxiliary power output	24VDC, 200 mA max, current limited
Extinguishant release delay time	Adjustable 0 to 60seconds(5 second steps)
Battery replace resistance	1.6Ω±10% if needed
The maximum and minimum rated voltage for each input and output	Detector zone : 15.2V-28V Sounder :18-28V Fire protection/Fire routing :18-28V Fault routing :18-28V
Detector numbers in each zone	16 pcs
Zone alarm current	6-27mA
Alarm terminal maximum output current	200mA maximum
Communication ports	2 wires RS485 bus system
Fuse on power board	3A/ 250V Glass tube fuse 5*20(mm) ,quick blow
Panel dimension	(L)350(W)280(H)112.5mm
Net weight	With battery: 9.9kg Without battery: 8.2kg
