Характеристики



Product Description




Specification


Introduction:

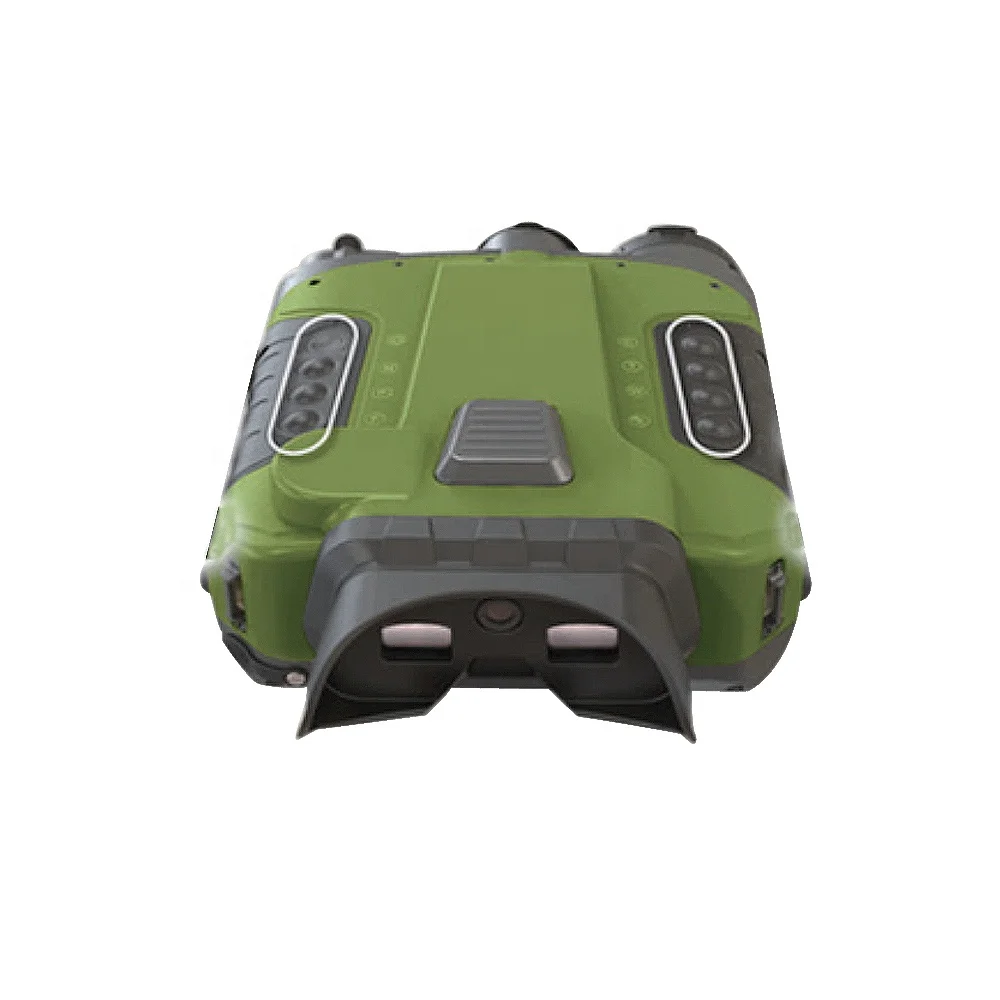

FCT Series Handheld Cooled Thermal Camera integrates infrared detector, E-compass, visible camera and eye-safe grade LRF.
Featuring continuous zoom and compact design, the camera is ideal for observation on the battle field, and such applications as border and costal defense.

Application:
Patrol, surveillance, detection, security surveillance, military, border, customs security.




Model
CQ-FCT33C24
Detection*
Mid-wave cooled FPA, MCT
Resolution *
320x256
Pixel size
30um
Spectral response
3.7um ~ 4.8um
Focal length
60mm / 240mm , bi-FOV
F#
4.0
FOV
9.15° x 7.32° ~ 2.29° x 1.83°
Human(1.8mx0.5m )
Detection: 6.5km
Recognition: 2.5km
Tank (2.3mx23m)
Detection: 9.2km
Recognition: 4.1km
Resolution
800 x 600
Focal length
50mm
CCD
1/4"
Video format
Analog video: PAL(25Hz); Network video (100M )
OLED eyepiece
0.5 inch high-resolution OLED 800 x 600
Digital zoom
x1, x2, x4
Image enhancement
Auto image filter, DDE, partition loads and blank-off (IR526B is equipped with micro-scanning enhancement function ).
Brightness / contrast
Auto / manual
Color mode
Hot-white / hot-black, color.
Storage
16G SD card
Picture storage
JPEG format picture 10000pcs
Video storage
AVI no loss compression video 2.5h
Accuracy
±5m
Resolution
0.1°
Precision
0.5 (RMS)
Laser wavelength
1.57um, eye-safe level.
Accuracy
±5m
Measuring distance
2.3mx2.3m target, >4km
Input power
24V adapter or standard lithium battery.
Battery working time
>5h
Electric interface
Power supply, serial port, USB, analog video port, network port
Mechanical interface
1/4 inch spider
Weight
3.5kg (battery included)
Dimension (eyepiece included)
360mm x 236mm x 118mm
* Note: The detection distance is related to the temperature tolerance of object and environment, atmospheric transmissivity and so on. Please contact with us for further information.
