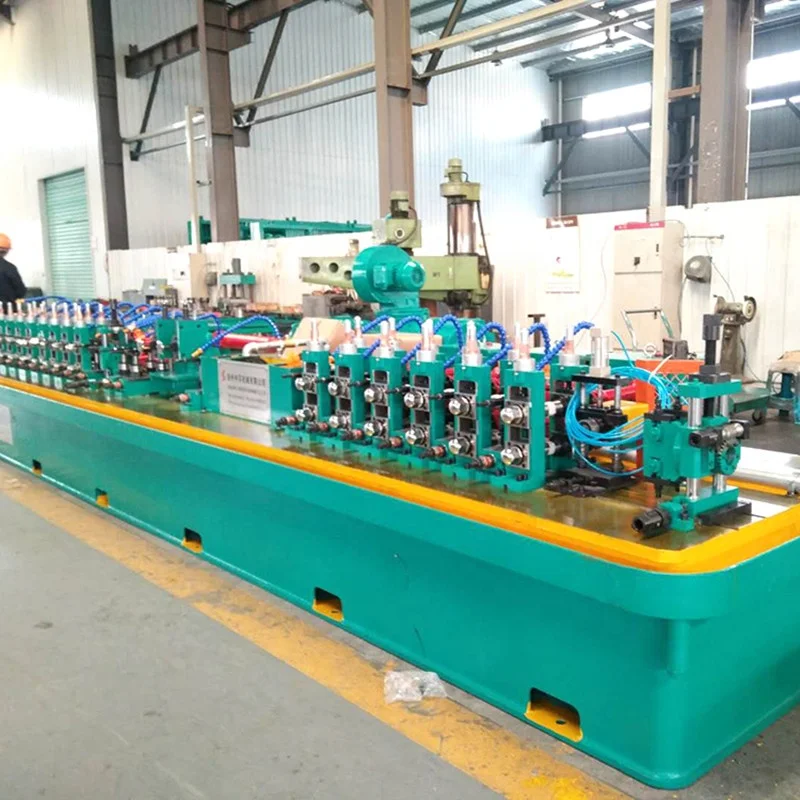

High Performance Pipe Metal Tube Making

Fast and Simple Machine



1.About Our Company

The advanced production equipment, scientific product craft, strict quality system as well as the brilliancy of science and technology shows everywhere to guarantee our factory product quality is always a leader in the industry. In our factory, we guarantee to provide the cost effective high quality products for you, our factory has obtained a lot of certificates and approval.

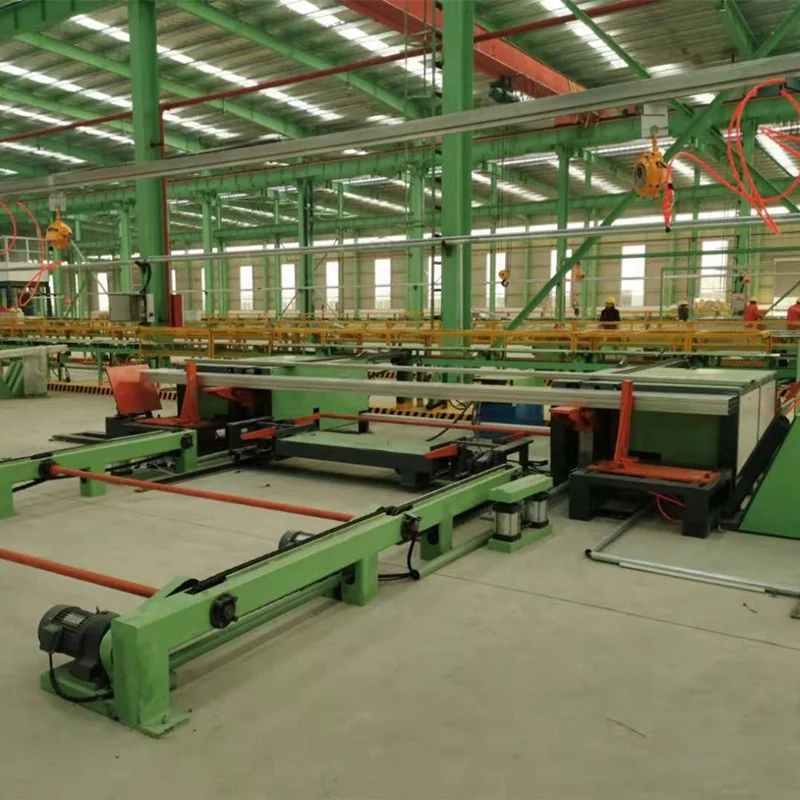

Our workshop pictures are as the followings:

2.Technological Process for Pipe Metal Tube Making Machine

Strip coil → Uncoiler → Shear and butt-welder → Accumulator → Levelling → Forming → Welding → External burr removing → Cooling → Sizing → Straightening → Cut size → Packing


3.Technology Parameter for Pipe Metal Tube Making Machine

Type	Diameter of Welded Tube	Wall Thickness of Welded Tube	Speed of Tube Welding	Power	High Frequency Power
HY16	8-25mm	0.25-1.0mm	30-100m/min	30kw	60kw
HY25	8-32mm	0.35-1.3mm	30-100m/min	45kw	100kw
HY32	13-50.8mm	0.5-2.0mm	30-90m/min	110kw	150kw
HY50	20-63.5mm	0.6-2.5mm	30-90m/min	160kw	200kw
HY60	25-63.5mm	0.8-3.0mm	20-80m/min	185kw	250kw
HY76	25-80mm	1.2-4.0mm	20-70m/min	200kw	300kw
HY90	32-90mm	1.5-4.5mm	20-60m/min	110*2kw	400kw
HY115	38-115mm	2.0-5.0mm	20-60m/min	160*2kw	400kw
HY165	80-165mm	2.0-6.0mm	15-50m/min	200*2kw	500kw
HY219	90-219mm	3.0-8.0mm	15-50m/min	250*2kw	600kw
HY273	185-273mm	4.0-10.0mm	15-40m/min	250+185kw	800kw
HY300	165-355mm	4.0-12.0mm	15-30m/min	250+200kw	1200kw

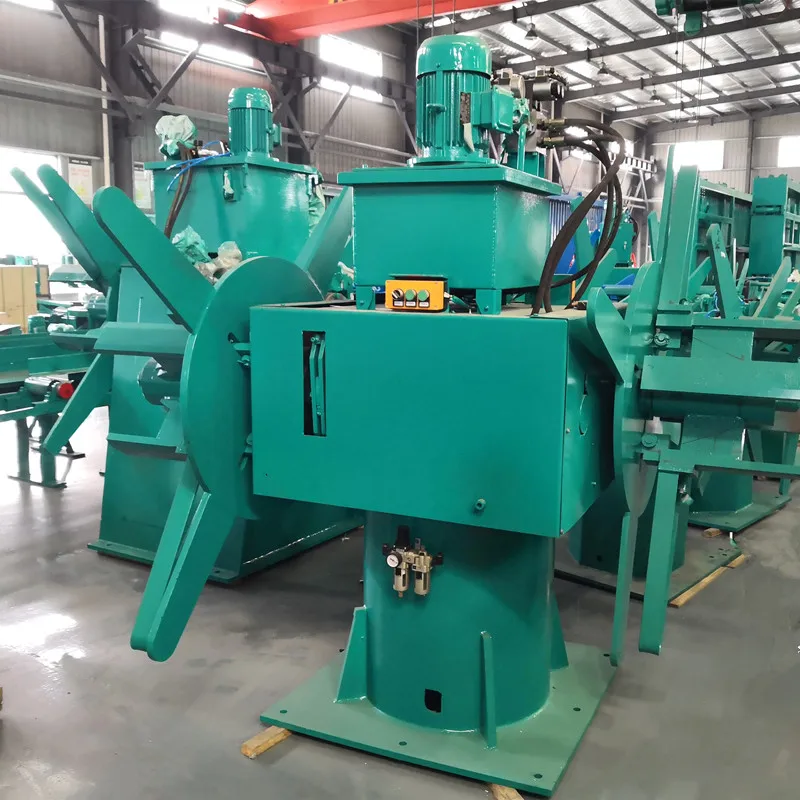

4.Accessory Equipment for Pipe Metal Tube Making Machine
(1)Shear Welder

(2)Accumulator

(3)Cutting-Saw

(4)Moulds-Rollers

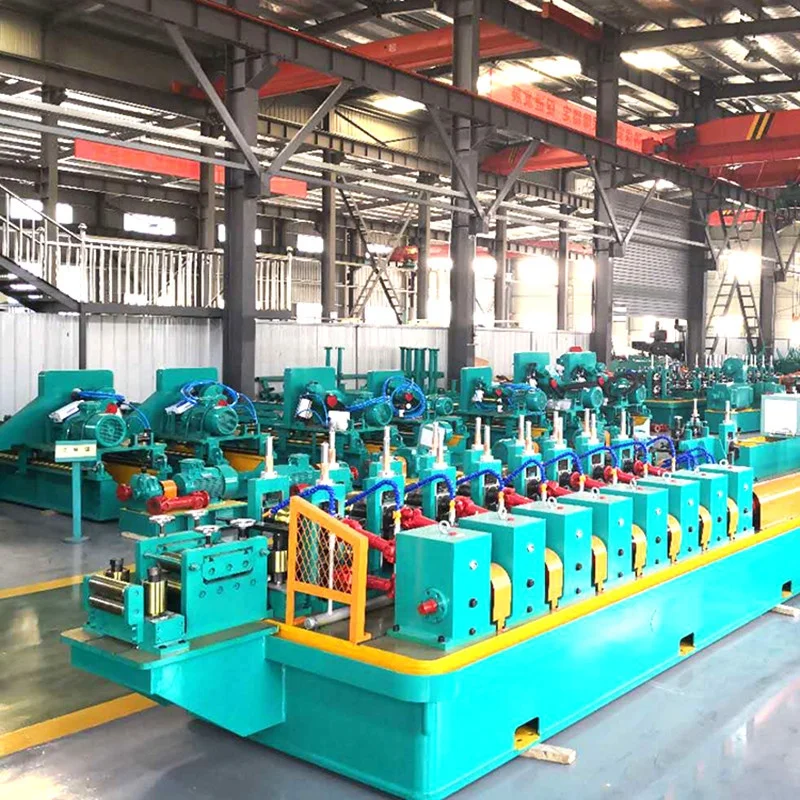

5.Final Customers' Workshop for Pipe Metal Tube Making Machine










6.Final Pipe Products Pictures from Pipe Metal Tube Making Machine

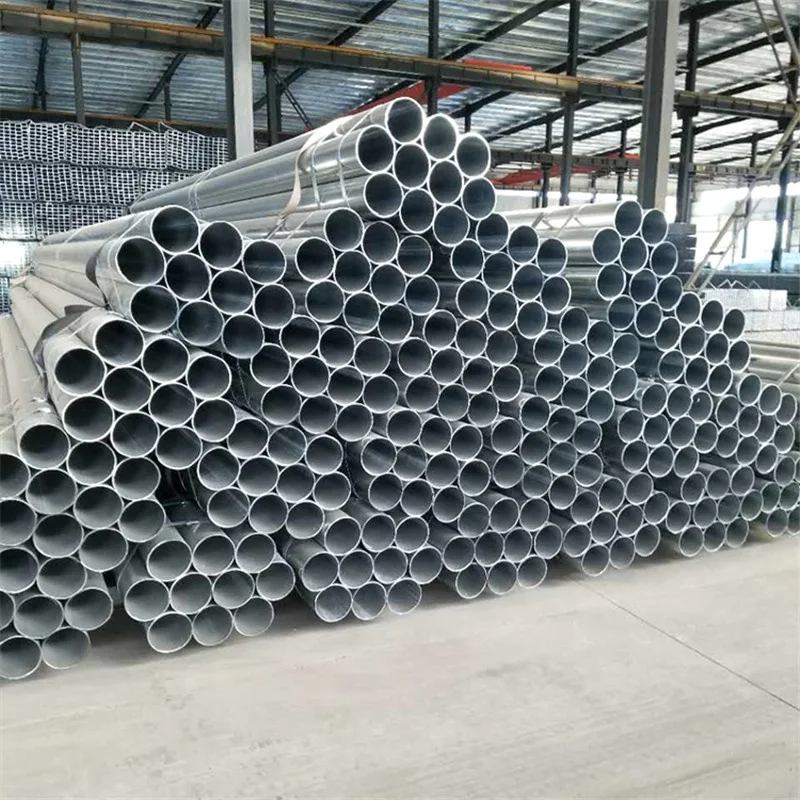

Round Tube(Galvanized Steel Strip)

Square Tube(Galvanized Steel Strip)


Round Tube(Annealing Steel Strip)


Square Tube(Annealing Steel Strip)

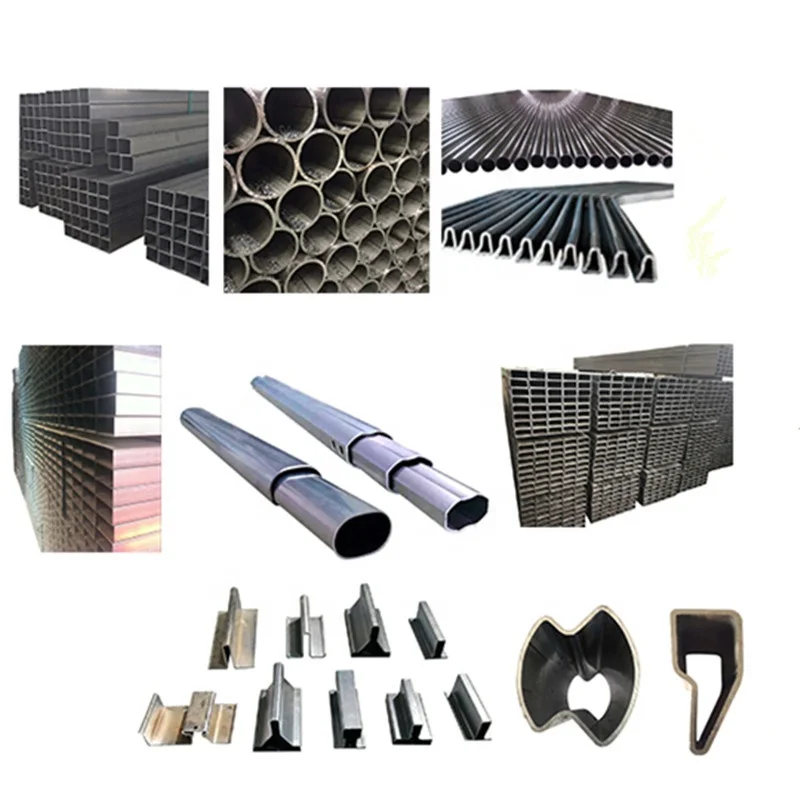

Various Shapes Tube

7.Final Pipe Application Filed


8.Some Shipment Pictures for Pipe Metal Tube Making Machine




9.If you have any question about this pipe metal tube making machine, welcome to contact with me freely as the followings:
