6 5 км обнаружения человека из водонепроницаемого материала с воздушным охлаждением дальний инфракрасная камера режимом ночного
- Категория: Night Vision >>>
- Поставщик: Hangzhou,Chenquan,Tech,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 0.46 $* | 0.52 $* |
| Aug-20-2025 | 0.71 $* | 0.71 $* |
| Jul-20-2025 | 0.94 $* | 0.81 $* |
| Jun-20-2025 | 0.71 $* | 0.78 $* |
| May-20-2025 | 0.81 $* | 0.76 $* |
| Apr-20-2025 | 0.9 $* | 0.53 $* |
| Mar-20-2025 | 0.92 $* | 0.14 $* |
| Feb-20-2025 | 0.79 $* | 0.80 $* |
| Jan-20-2025 | 0.50 $* | 0.93 $* |
Характеристики
Product Description
Specification
Introduction:

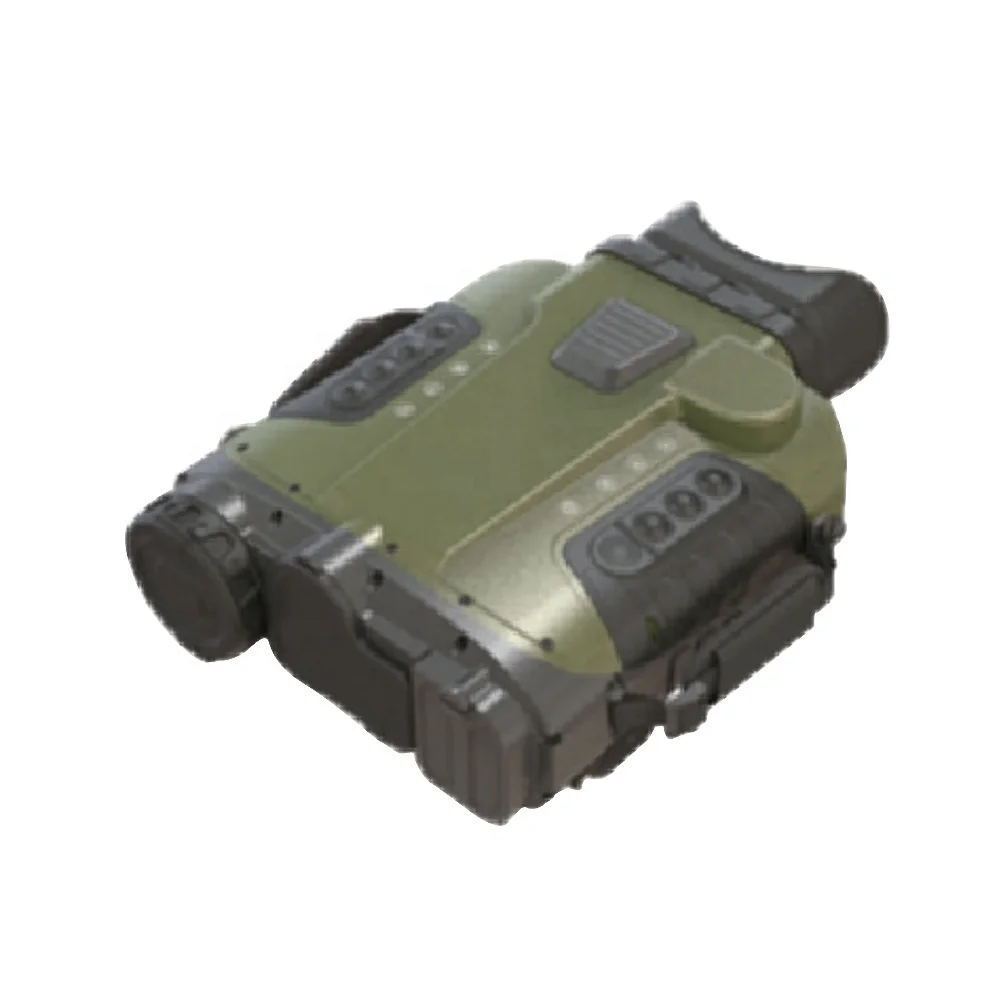

FCT Series Handheld Cooled Thermal Camera integrates infrared detector, E-compass, visible camera and eye-safe grade LRF.
Featuring continuous zoom and compact design, the camera is ideal for observation on the battle field, and such applications as border and costal defense.
Application:
Patrol, surveillance, detection, security surveillance, military, border, customs security.
FCT Series Handheld Cooled Thermal Camera integrates infrared detector, E-compass, visible camera and eye-safe grade LRF.
Featuring continuous zoom and compact design, the camera is ideal for observation on the battle field, and such applications as border and costal defense.
Application:
Patrol, surveillance, detection, security surveillance, military, border, customs security.
Model | CQ-FCT33C0 | |
Detection* | Mid-wave cooled FPA, MCT | |
Resolution * | 320x256 | |
Pixel size | 30um | |
Spectral response | 3.7um ~ 4.8um | |
Focal length | 30mm ~ 300mm continuous zoom, auto focus. | |
F# | 4.0 | |
FOV | 18.18° x 14.59° ~ 2.29° x 1.83° | |
Human(1.8mx0.5m ) | Detection: 6.5km Recognition: 2.5km | |
Tank (2.3mx23m) | Detection: 9.2km Recognition: 4.1km | |
Resolution | 640x512 | |
Focal length | 120mm fixed focus | |
CCD | 1/4" | |
Video format | Analog video: PAL(25Hz); Network video (100M ) | |
OLED eyepiece | 0.5 inch high-resolution OLED 800 x 600 | |
Digital zoom | x1, x2, x4 | |
Image enhancement | Auto image filter, DDE, partition loads and blank-off (IR526B is equipped with micro-scanning enhancement function ). | |
Brightness / contrast | Auto / manual | |
Color mode | Hot-white / hot-black, color. | |
Storage | 16G SD card | |
Picture storage | JPEG format picture 7000pcs | |
Video storage | MP4 format video 5h | |
Accuracy | ±5m | |
Resolution | 0.1° | |
Precision | 0.5 (RMS) | |
Laser wavelength | 1.57um, eye-safe level. | |
Accuracy | ±5m | |
Measuring distance | 2.3m x 2.3m target, >6km | |
Input power | 24V adapter or standard lithium battery. | |
Battery working time | >4h | |
Electric interface | Power supply, serial port, USB, analog video port, network port | |
Mechanical interface | 1/4 inch spider | |
Weight | 5.2kg (4.7kg battery excluded) | |
Dimension (eyepiece included) | 368mm x 255mm x 111mm | |
* Note: The detection distance is related to the temperature tolerance of object and environment, atmospheric transmissivity and so on. Please contact with us for further information. | ||
