4K HDMI видео декодер H.265 HEVC VGA CVBS
- Категория: Radio & TV Broadcasting Equipment >>>
- Поставщик: Nantong,ZYDZ,Electronic,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 190.50 $* | 200.22 $* |
| Aug-16-2025 | 189.65 $* | 198.99 $* |
| Jul-16-2025 | 158.36 $* | 166.5 $* |
| Jun-16-2025 | 186.30 $* | 195.46 $* |
| May-16-2025 | 162.72 $* | 170.46 $* |
| Apr-16-2025 | 182.80 $* | 191.39 $* |
| Mar-16-2025 | 181.93 $* | 190.11 $* |
| Feb-16-2025 | 179.70 $* | 188.13 $* |
| Jan-16-2025 | 178.70 $* | 187.24 $* |
Характеристики
Overview

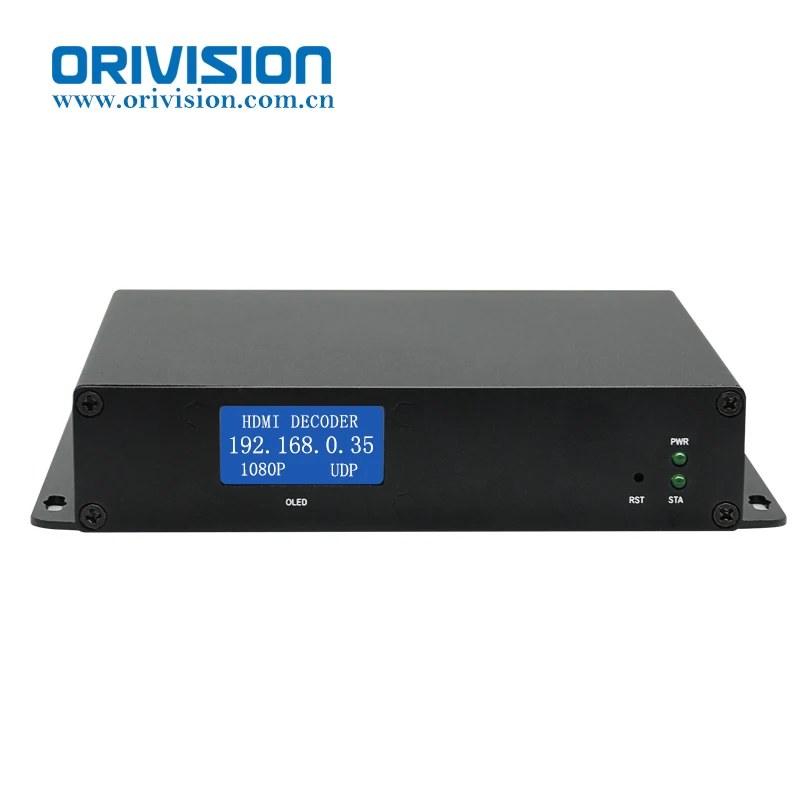

4K HDMI HEVC Hardware Decoder With OLED

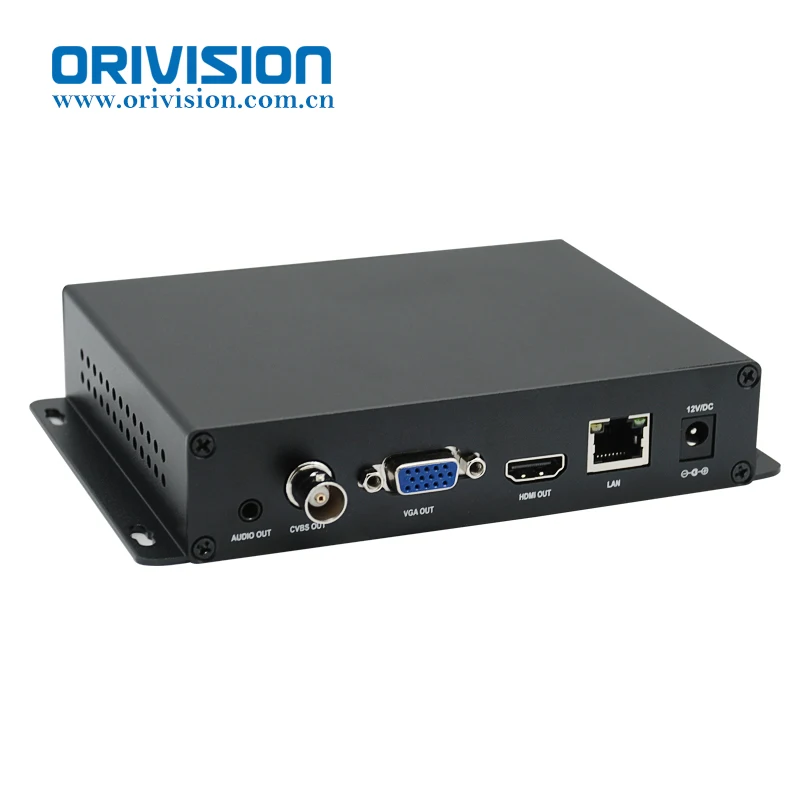

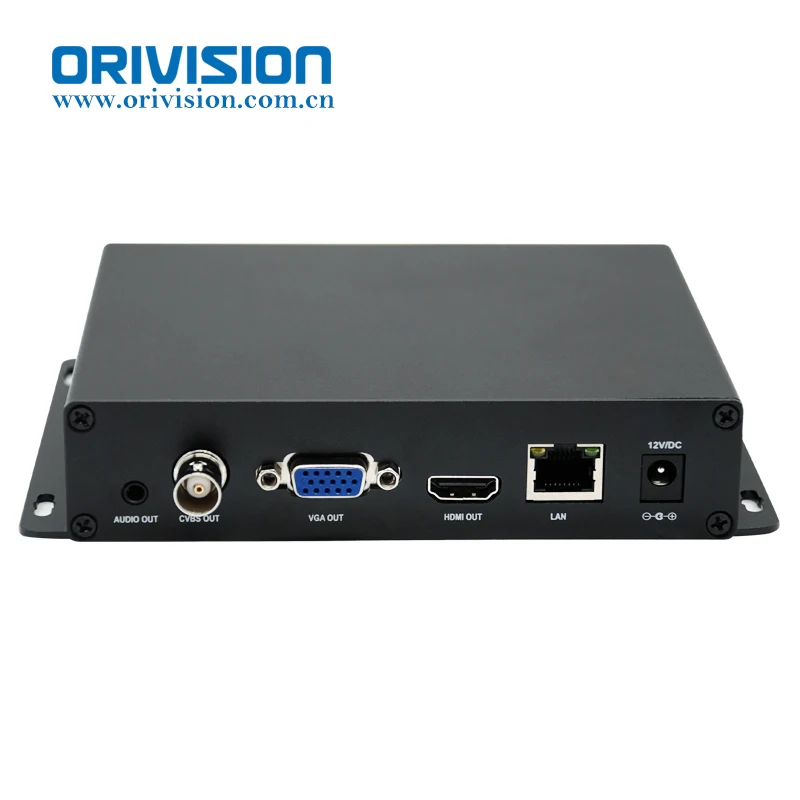

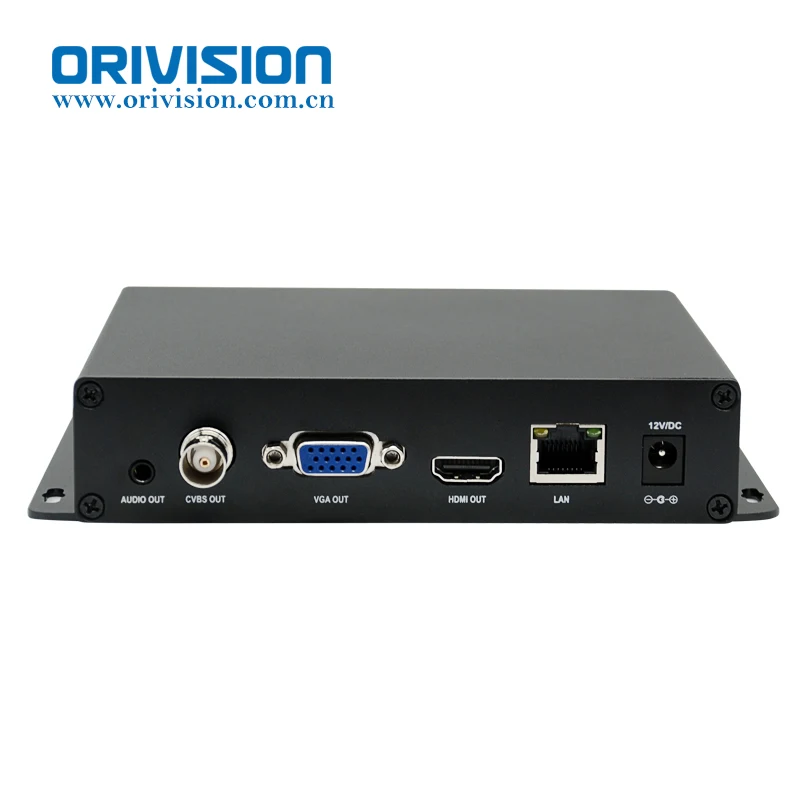

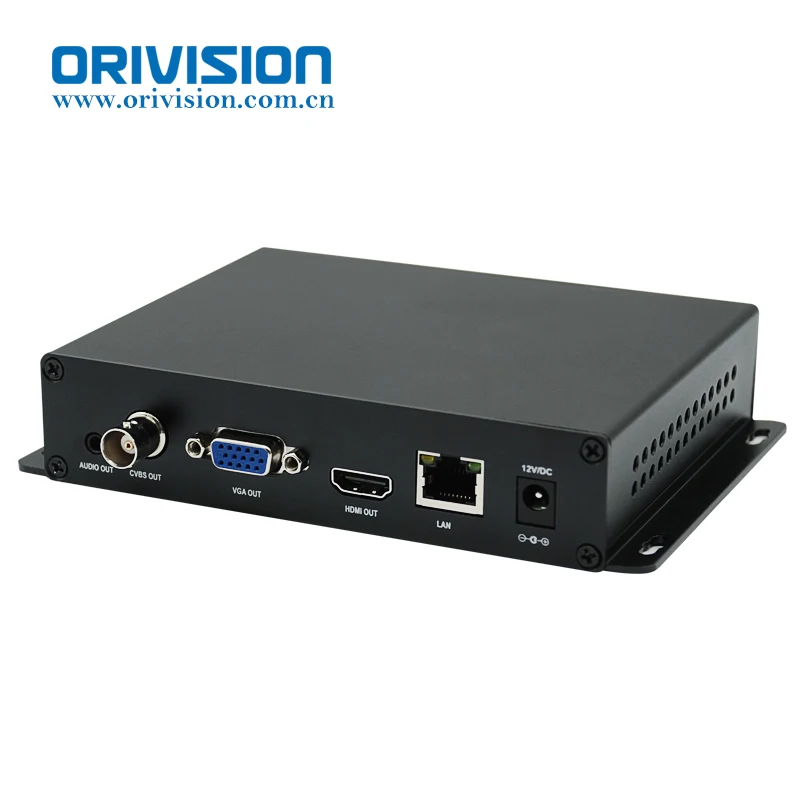

ZY-DH901 is high-definition decoder is a professional high-definition AV decoder. It has a HDMI, a CVBS, a VGA output interface and a stereo audio output and it also supports H.265&H.264 decoding format. It receives TS (transport stream) from encoder, and support set the maximum output resolution is 4K(3840*2160@30HZ). This equipment also has high integration and costs low. It can be widely used in various high-definition video systems like multimedia release, digital signage, and signal issuance.
Support POE power supply, OLED real-time display to ensure uninterrupted video Decoding.
Related Products

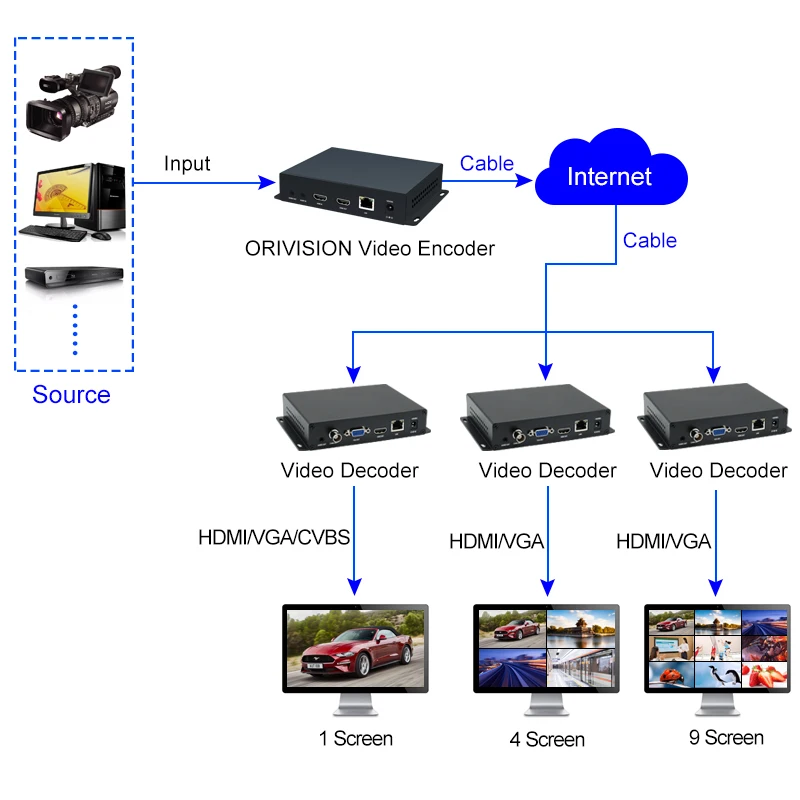

Application Diagram
Specification
Output | ||
Video | 1X HDMI(support HDMI1.4 and HDCP1.4), 1X VGA, 1X CVBS, 1X Audio | |
Output Resolution | 3840×2160@30hz 1080P@60/1080P@50/1080P@30 720P@60 720P@50 576P@50 480P@60 1280×1024@60 1280×800@60 1024×768@60 800×600@60 and so on Please contact us for other resolutions. | |
Decoding | H.265/H.264 | |
Output | 1 channel 4K decoding, 4 channels 1080P decoding, 9 channels 720P decoding | |
Audio | ||
Decoding format | AAC MP3 | |
Stereo | Adjustable sound volume | |
System | ||
OLED | IP address, resolution and working status | |
RJ45 | 1000M internet access | |
Protocol | HTTP, RTSP, RTMP, RTMPS, SRT, UTP, UDP/RTP… | |
Interface | WEB operation interface | |
Upgrade | Software upgrading through the internet | |
General Parameters | ||
Dimension | 6.4*4.4*1.3in(163*111*32mm) | |
Weight | 0.35kg | |
Temperature | 0~45℃(work)，-20~80℃(storage) | |
Power Supply | Stand-alone: 12V/DC 1A | |
Power Dissipation | <5W/1 channel | |
Praise From Customers
Support OEM/ODM
free print company logo by laser print;
MOQ≥1 unit
MOQ≥1 unit
Pls send your requirements to us.
(support@orivision.cn)
(support@orivision.cn)
FAQ
1. Provide OEM & ODM
OEM: Add customer information in software version and control web for free, MOQ is 1 unit
OEM: Add customer logo on the shell of the device for free, MOQ is 10 units
ODM: The customers can provide your customized requirements, We can evaluate production possibilities for our customers for
free,but have to pay for development cost.
2. Provide remote technical support service
Our engineers can provide professional technical support services to customers through remote software, such as Teamviewer,Skype,whatsapp etc.
3. 3 years warranty
We provide new free spare parts in 3 years because of the product quality problems, except for man-made damage.
4. Provide factory repair service
If the customer has a problem with the equipment, he can send it back to the factory for repair. Maintenance is free, but there will be a material charge.
5. About Import tax
I hope you know that import duty is paid on imported goods in most countries. Our all quote and price don't include your import tax. As to specific rates, please consult your local customs office. I appreciate your understanding!
6. About delivery time
Our the fast delivery time will be within 3 days after payment. But we promise to arrange the delivery within 7 days after receiving the payment, In case of special circumstances.If you want to know more about the delivery time, pls contact us.
7.About the shipping way
Customers can choose their own logistics company when placing orders. Or contact us to specify our desired logistics company. Such us FedEx/ UPS/EMS/ ARAMEX/DHL etc. If you need to know the specific shipping time, please contact us.
