Складной Складской стальной Штабелируемый цинковый сетчатый защитный роликовый
- Категория: Cargo & Storage Equipment >>>
- Поставщик: Qingdao,Yishitong,Logistics,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-19-2025 | 98.54 $* | 100.62 $* |
| Jul-19-2025 | 79.33 $* | 81.46 $* |
| Jun-19-2025 | 96.54 $* | 98.56 $* |
| May-19-2025 | 95.49 $* | 97.71 $* |
| Apr-19-2025 | 76.37 $* | 78.55 $* |
| Mar-19-2025 | 94.46 $* | 96.8 $* |
| Feb-19-2025 | 93.19 $* | 95.93 $* |
| Jan-19-2025 | 92.74 $* | 94.10 $* |
Характеристики
Product Description

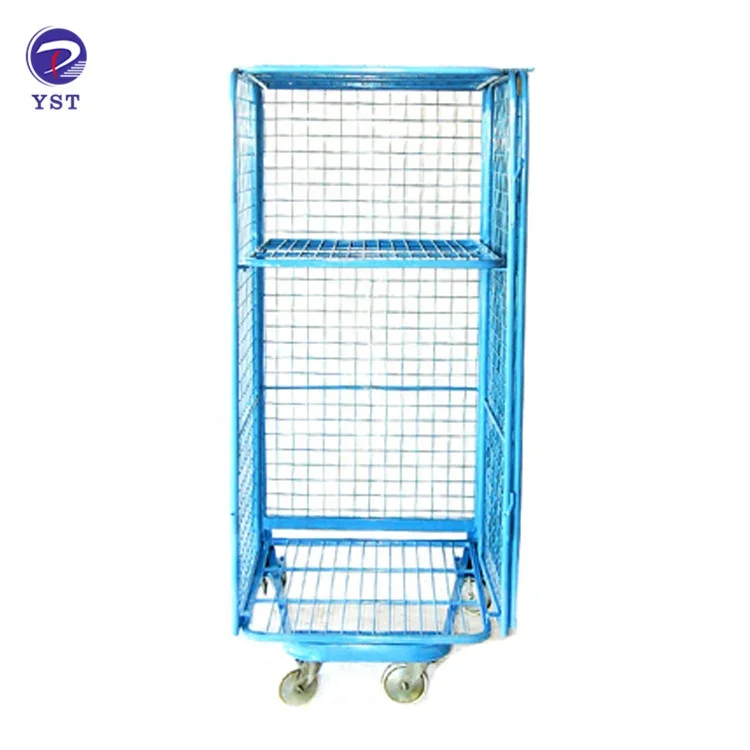

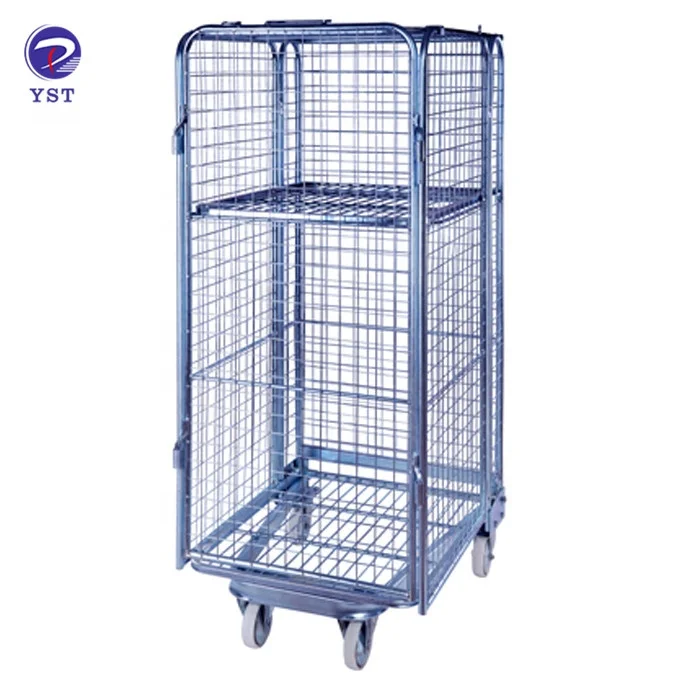

Collapsible warehouse storage steel stacking zinc wire mesh security roll cage container
The products stored in them are very eye-catching, which protects the safety of materials during transportation.
Specifications of roll cage container
Exterior Dimension | Tube Diameter | Wire Diameter | Loading Capacity | Loaded in 1x40'HQ | |||||
LxWxH(mm) | mm | mm | kg | sets | |||||
YST-RT05 | 732x845x1680 | Φ19x2 | Φ3 | 500 | 320 | ||||
YST-RT07 | 720x810x1650 | Φ20x2 | Φ8&Φ 6 | 300 | 450 | ||||
YST-RT08 | 734x854x1680 | Φ19x2 | Φ10&Φ 6 | 500 | 360 | ||||
YST-RT09 | 734x854x1680 | Φ19x2 | Φ10&Φ 6 | 500 | 320 | ||||
YST-RT10 | 734x854x1680 | Φ19x2 | Φ3 | 500 | 320 | ||||
Material | Mild steel Q235 | ||||||||
Available design | 1.Optional extra gates, removable shelf(each with 60kg to 80kg loading capacity) and top lid 2.Possible to add nameplates for identification | ||||||||
Application | Warehouse, logistics, supermarket, E-commerce, etc. | ||||||||
Finish | Zinc/powder coating/hot dip galvanized | ||||||||
1.Steel frame with wire mesh in-fill 2.Available in 2,3, or 4 sided infilled with steel rods and support rods 3.2 fixed and 2 swivel casters with or without brakes 4.Castors material options include nylon, pp as well as rubber | |||||||||
Details Images

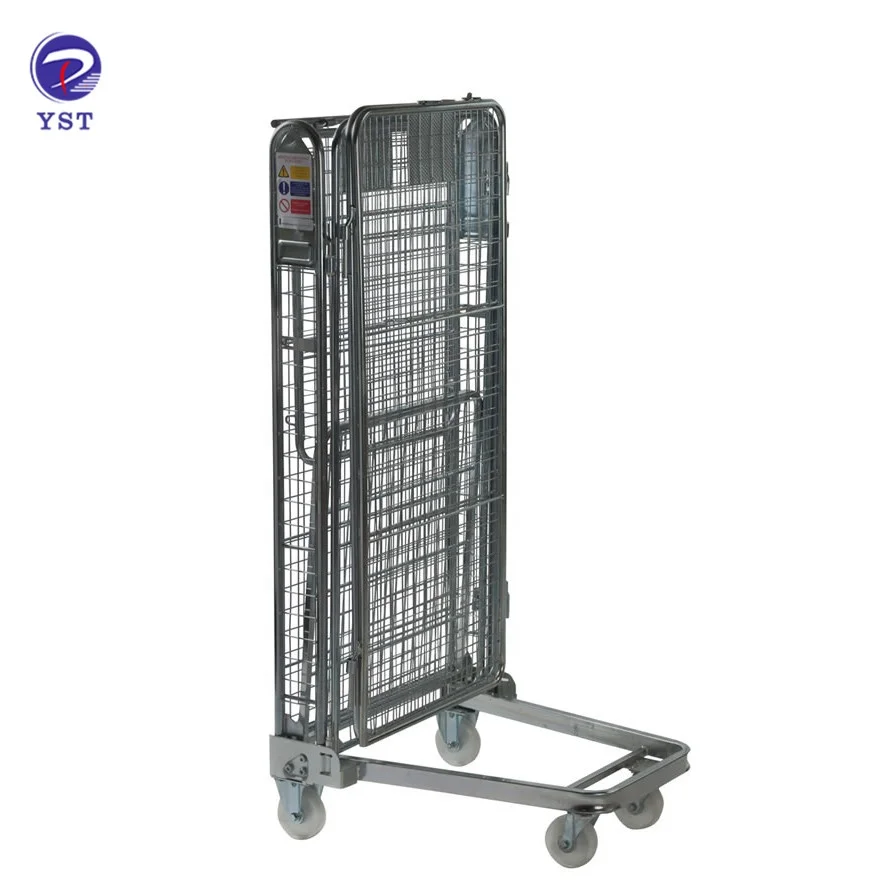

1. Nestable and folding -- save space.
2. Optional base -- square, "A", "Z" "Channel support" type design.

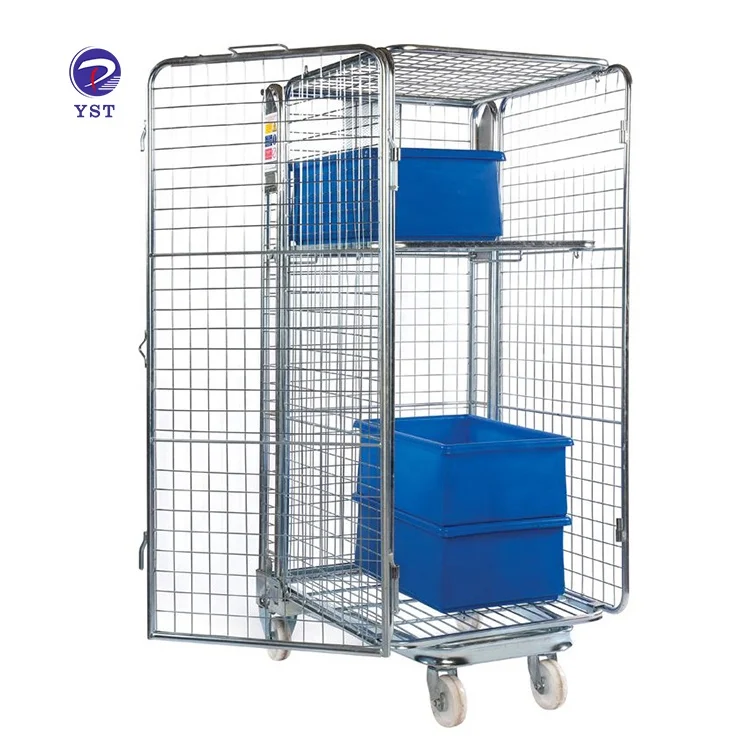

3. Top lid -- anti-theft, ideal for the transportation and storage of high-value goods.
2. Optional base -- square, "A", "Z" "Channel support" type design.
3. Top lid -- anti-theft, ideal for the transportation and storage of high-value goods.
Other optional accessories to create a complete storage system. OEM, ODM support.
Uses & Packaging
Usage:
It is widely used in food, retail, manufacturing, and other industries. It improves organization in the warehouse and transportation efficiency.
It is widely used in food, retail, manufacturing, and other industries. It improves organization in the warehouse and transportation efficiency.
Packaging:
Use plastic straps to secure the products to avoid damage.
The wheels are packed in a carton.
Use plastic straps to secure the products to avoid damage.
The wheels are packed in a carton.
Client Testimonial
Company Profile
Qingdao Yishitong Logistics Equipment Co., Ltd. was established in 2013, mainly engaged in the production, development, and manufacturing of logistics turnover equipment, with more than ten years of production experience. The company has a production area of 5,000 square meters and more than 60 sets of various equipment.
We are committed to providing you with the best solutions for material handling and logistics storage.
We are committed to providing you with the best solutions for material handling and logistics storage.
FAQ
Q: About the surface, can be finished in Zinc?
-Okay, in general, can be finished zinc/hot-dip zinc/powder coated.
Q: The shelf can be in the middle?
A: Yes, it can be in the middle. It is removable. Also, 2 or 3 shelves are available for your preferences.
Q: What the size of the wheels? Brakes?
A: 125MM DIA. 1 set of castors include 2 fixed and 2 swiveled. And the 2 swiveled wheels are with brakes. It is safer.
Q: How to packing? Will transport separately?
A: For more loading QTY
The BASE/ top shelf/ side doors/ front doors/ wheels will be packed separately. Do not worry, easy for assembly. We could offer a video for your to show how to assemble
Q: How long is the shelf life of the roll container?
A: Up to 3 or 5 years against proper handling
Q: What is the thickness of the zinc/hot-dip galvanized finish?
A: The pallets we quote are finished by hot-dip zinc. the thickness of hot zinc is about 60-80μm(0.06-0.08mm) and other coating thicknesses can be customized.
Q: What is the loading capacity?
A: In general, we have light duty(100~300kg) model, medium-duty(400~800kg) model, and heavy-duty (1000~1700kg) model available for your choice.
Q: I don't have a drawing or picture available for the custom products, could you design it for me?
A: Yes, we can make the best suitable design for you but do need to know the details - such as
a) dimension b) loading capacity c)stackability d)operation environment e)what kind of stuff will be loaded in etc
-Okay, in general, can be finished zinc/hot-dip zinc/powder coated.
Q: The shelf can be in the middle?
A: Yes, it can be in the middle. It is removable. Also, 2 or 3 shelves are available for your preferences.
Q: What the size of the wheels? Brakes?
A: 125MM DIA. 1 set of castors include 2 fixed and 2 swiveled. And the 2 swiveled wheels are with brakes. It is safer.
Q: How to packing? Will transport separately?
A: For more loading QTY
The BASE/ top shelf/ side doors/ front doors/ wheels will be packed separately. Do not worry, easy for assembly. We could offer a video for your to show how to assemble
Q: How long is the shelf life of the roll container?
A: Up to 3 or 5 years against proper handling
Q: What is the thickness of the zinc/hot-dip galvanized finish?
A: The pallets we quote are finished by hot-dip zinc. the thickness of hot zinc is about 60-80μm(0.06-0.08mm) and other coating thicknesses can be customized.
Q: What is the loading capacity?
A: In general, we have light duty(100~300kg) model, medium-duty(400~800kg) model, and heavy-duty (1000~1700kg) model available for your choice.
Q: I don't have a drawing or picture available for the custom products, could you design it for me?
A: Yes, we can make the best suitable design for you but do need to know the details - such as
a) dimension b) loading capacity c)stackability d)operation environment e)what kind of stuff will be loaded in etc
