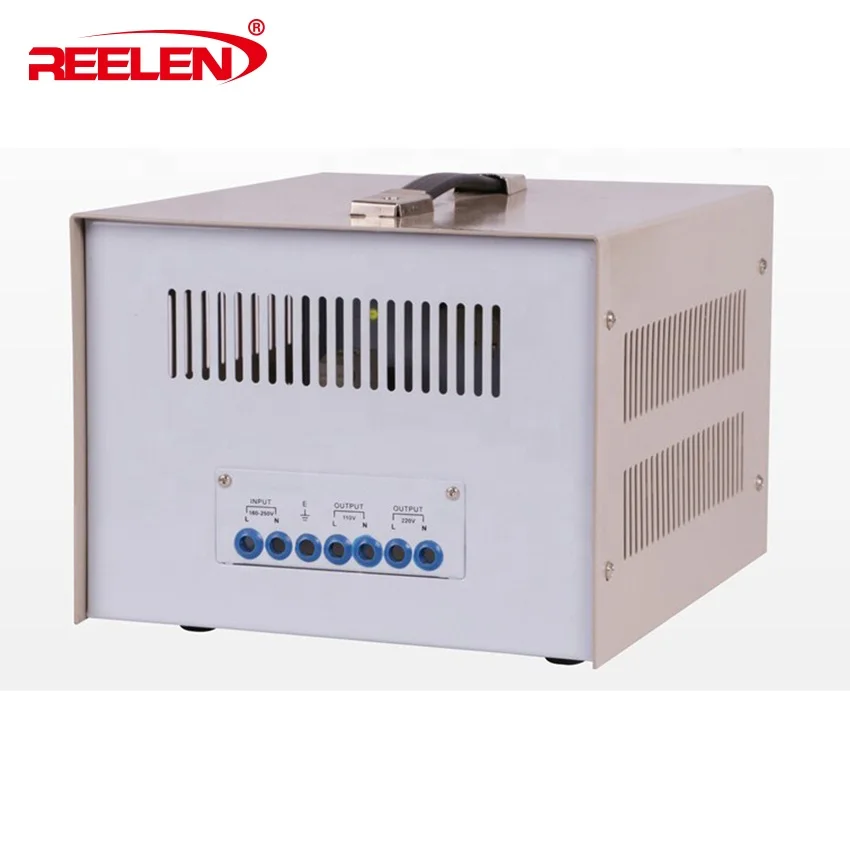

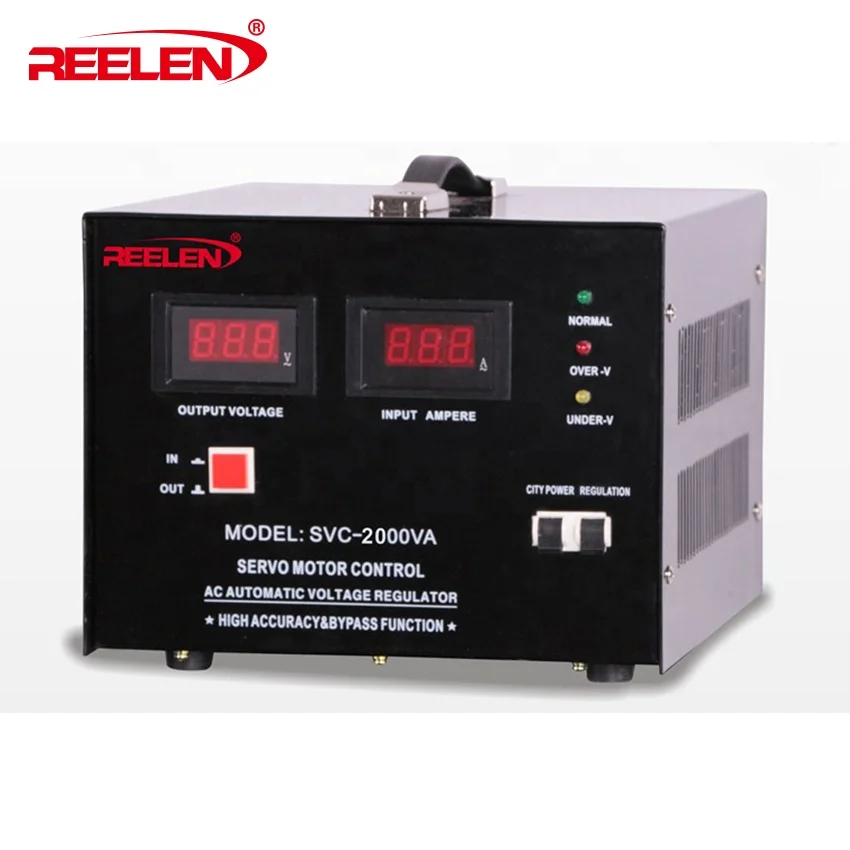

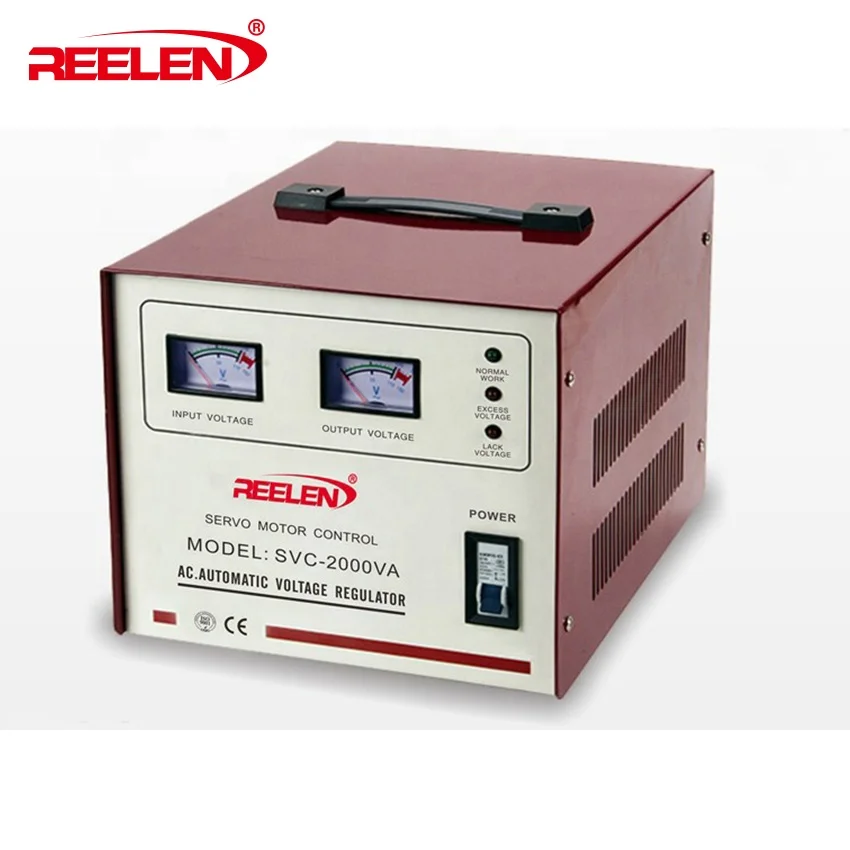

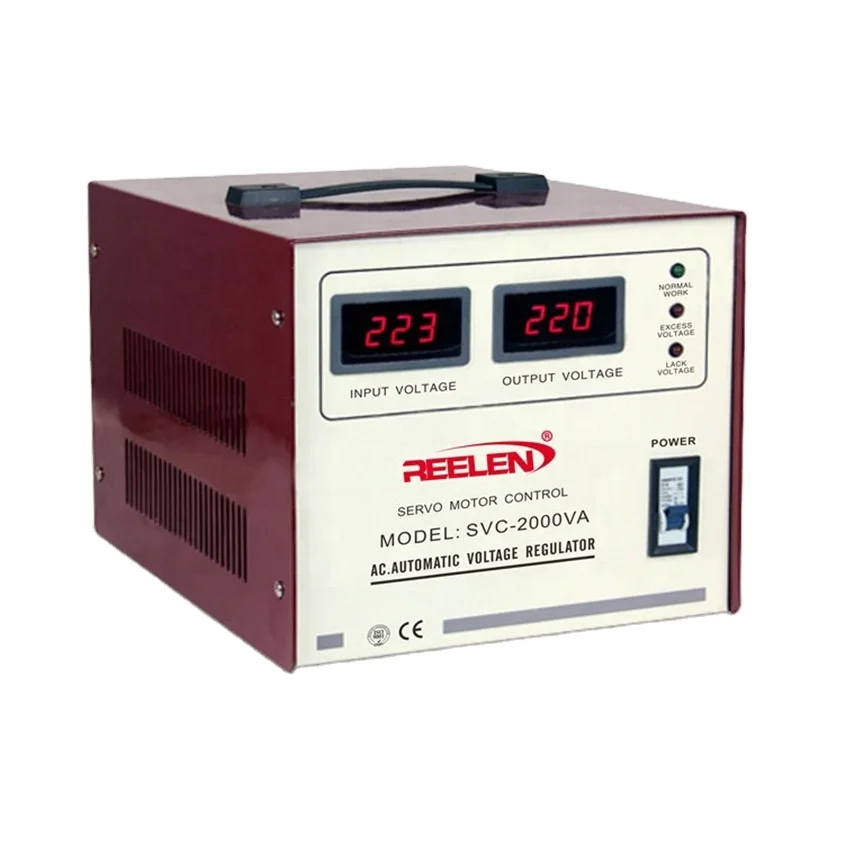

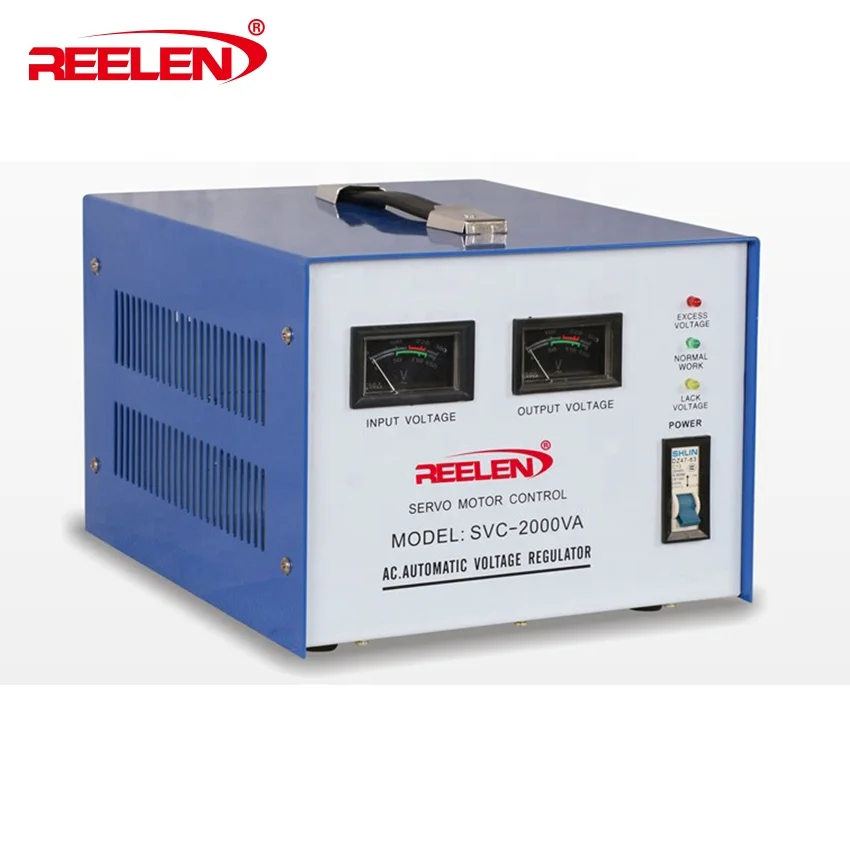

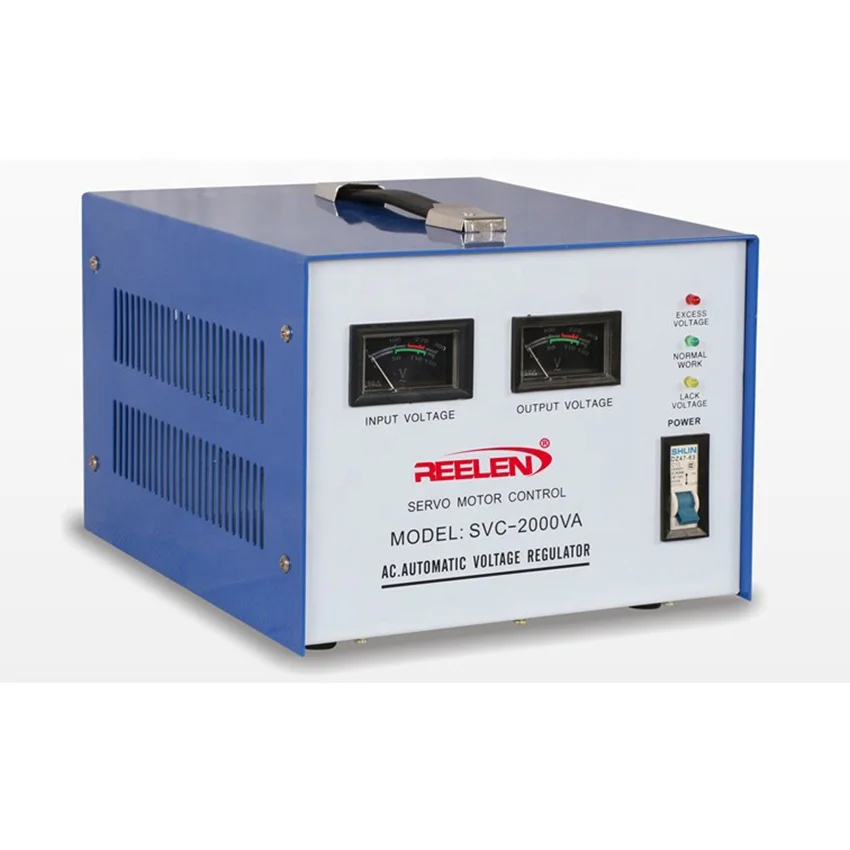

Высокое качество одиночная фаза Ac стабилизатор напряжения 2000VA SVC-2000VA

Высокое качество одиночная фаза Ac стабилизатор напряжения 2000VA SVC-2000VA

Категория: Voltage Regulators\/Stabilizers >>>
Поставщик: WENZHOU,REELEN,ELECTRICAL,CO.,LTD.

Цена:45,00 $ - 52,50 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Aug-19-2025	57.12 $*	58.52 $*
Jul-19-2025	46.98 $*	47.12 $*
Jun-19-2025	56.90 $*	57.38 $*
May-19-2025	56.6 $*	57.45 $*
Apr-19-2025	45.93 $*	46.27 $*
Mar-19-2025	55.84 $*	56.77 $*
Feb-19-2025	54.66 $*	55.55 $*
Jan-19-2025	54.40 $*	55.99 $*

Характеристики

Specification

1.Reasonable Price, Best Quality
2.Reliable Performance
3.Long-term With Simple Operation
4.Servo motor drive
5.Full Automatic Timely
6.High accuracy

Product Description

Product Introduction

________________________________________________________________

SVC (TND/TNS) series servo motor automatic voltage stabilizer is the first generation of voltage stabilizer and made of contact type self-coupling voltage regulator, servo motor and automatic control circuit, etc. When the network voltage is unstable or the load change, the automatic sampling control circuit sends a signal to drive the servo motor to adjust the contact type self-coupling voltage regulator's carbon brush position, which finally make the output voltage regulated to the rated value and be stable. The overvoltage, under-voltage and delay protection can be added as per your requirement.

Main Technical Characters

Power Range	0.5KVA-60KVA (single phase)
Input Voltage	Ordinary 150-250V, or optional larger range
Output Voltage	Ordinary 220V and 110V (Power: 500VA-3000VA), 220V (Power: 5KVA-60KVA) or be customized
Output Accuracy	220V±3%, 110V±6%
Coil Material	Ordinary aluminum and copper mixed, full copper can be customized
Display	Ordinary pointer display, LED or LCD display screen can be customized
Frequency	50Hz/60Hz
Adjusting Time	<1s ( when input voltage has a change of 10%)
Adjusting Speed	>15V/s
Waveform Distortion	No additional waveform distortion
Efficiency	>95%
Ambient Temperature	-5 ~ +40°C
Relative Humidity	≤95%
Dielectric Strength	1500V/min
Insulation Resistance	≥2MΩ

Overall dimension and installation dimension diagram

Model	Rated Output Power (kVA)	Product Dimension LxWxH (mm)					Packaging Dimension LxWxH (mm)			N.W (kg)	G.W (kg)
SVC-500VA	0.5	190	160	140	420	250	340	15	16
SVC-1000VA	1	220	190	170	500	290	390	21	22
SVC-1500VA	1.5	220	190	170	500	290	390	24	25
SVC-2000VA	2	290	240	200	600	360	260	16	17
SVC-3000VA	3	310	230	240	600	390	300	23	24
SVC-5000VA	5	480	250	200	520	290	250	22	24
SVC-7000VA	7	490	310	240	520	350	290	29	31
SVC-8000VA	8	490	310	240	520	350	290	30	32
SVC-10KVA	10	490	310	240	520	350	290	31.5	33.5
SVC-15KVA	15	420	380	760	460	440	810	58	63
SVC-20KVA	20	420	380	760	460	440	810	60	65
SVC-30KVA	30	450	430	870	490	480	940	80	85
SVC-40KVA	40	530	580	1000	620	600	1100	135	140
SVC-50KVA	50	530	580	1000	620	600	1100	142	148
SVC-60KVA	60	530	580	1000	620	600	1100	155	162

Attention

1.The payment term: We accept TT, 30% deposit and 70% balance against copy of BL.

2.The delivery time: Usually it will take about 15-20 days.

3.The standard of package: For the small capacity, it will be in carton, for big capacity, we should use strong wooden case for protection.

4.The material of windings: We have two types, one is 100% copper and another one is copper with aluminum. It depends on your requirement. In fact, those two have difference if normal work well. Only except the long life. Copper is better and also higher price.

5.The logo: If you have good quantity, it absolute no problem to do OEM.

6.The month capacity: reach near 80000pcs/month(for small capacity) or near 7000pcs/month(for big capacity).

7.Our market: our products are popular in Indonesia, Philippines, Russia, USA, Middle East and so on. Some of them are our regular customers and some of them are developing. We hope you can join us and make mutual benefit from our cooperation.

8.Warranty: in 13 months since BL date.
