Поликарбонатная/пластиковая пленка/стеклянная сельскохозяйственная теплица проект под ключ для посадки
- Категория: Greenhouses >>>
- Поставщик: Weifang,Caiwang,Agricultural,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 0.92 $* | 0.76 $* |
| Aug-18-2025 | 0.53 $* | 0.96 $* |
| Jul-18-2025 | 0.79 $* | 0.34 $* |
| Jun-18-2025 | 0.54 $* | 0.4 $* |
| May-18-2025 | 0.53 $* | 0.86 $* |
| Apr-18-2025 | 0.81 $* | 0.67 $* |
| Mar-18-2025 | 0.90 $* | 0.7 $* |
| Feb-18-2025 | 0.91 $* | 0.49 $* |
| Jan-18-2025 | 0.91 $* | 0.48 $* |
Характеристики
PC/Plastic Film/Glass Agricultural Greenhouse Turnkey Project for Tomato/Cucumber/Pepper Planting
Product Feature
Parameters and Configurations | ||
Span width | 8m, 9.6m, 10.8m, 12m or customized | |
Bay/section width | 4m, 5m or customized | |
Gutter height | 3.0-6.0m as customer requirements | |
Steel structure | Hot-dip galvanized steel frame, no welding joint structure. | |
Cover material | 4-8mm tempered glass or 5+6A+5 insulated glass | |
Wind load | 0.50kN/m2 (equivalent to tenth wind) | |
Snow load | 0.35kN/m2 (20 kg per square meter) | |
Rainwater drainage | Max. 120mm/h (5 minutes duration) | |
Greenhouse dead load | 20Kg/m2 | |

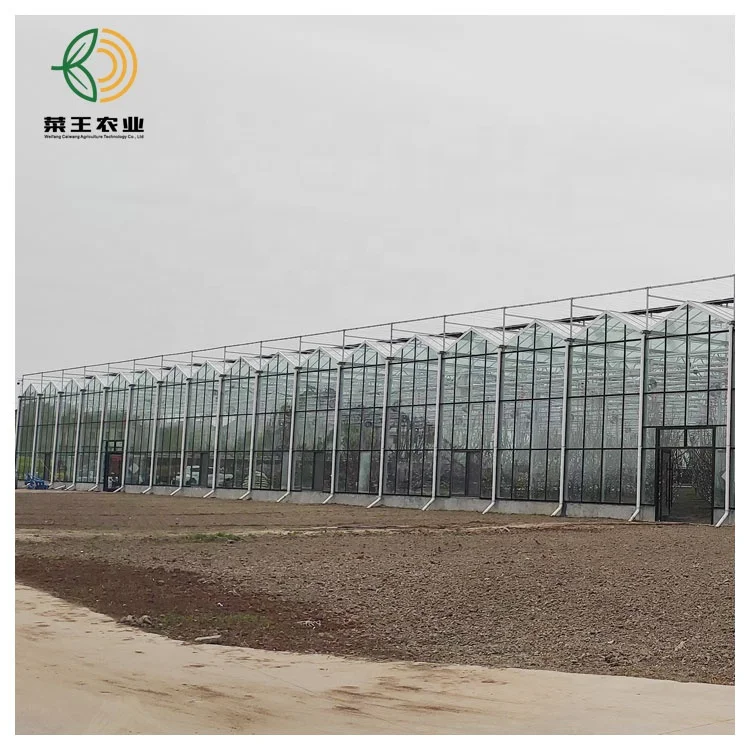

The glass greenhouse uses glass as the enclosure, special aluminum alloy profile as the frame, and galvanized steel frame as the main body. Usually, the top is covered with tempered glass or polycarbonate sheet, which has high heat preservation and ensures light transmittance.
Glass greenhouse has the characteristics of quick installation and good heat dissipation. The price is more favorable, the appearance is more beautiful, its lifetime is more than 20 years, so it is the first choice for commercial hydroponics and usually used as exhibition.
Greenhouse System
Material standards: The main frame design conforms to the "GB 50017-2003 Steel Structure Design Code", the steel material conforms to the "GB700-88 Carbon Structural Steel", and the steel and accessories must conform to the "GB/T13912-2002 Metal Cover-Steel Product Thermal Technical Requirements for Galvanized Layer "Hot-dip galvanized anti-corrosion, smooth and flat surface, thickness of galvanized layer ≥40µm;
All arround insulated glass: the thermal conductivity k value is less than 3.0w/m2k;
Sound insulation performance: can reduce the incoming external noise by 27-53 decibels;
Frost resistance: the dew point on the glass can reach -40 degrees Celsius;
Sealing performance: not easy to enter dust;
Stable performance: not easy to break, wind pressure resistance, long service life;
Glass installation parts: aluminum alloy profile inlay device, sealing device, domestic high-quality self-tapping nails.

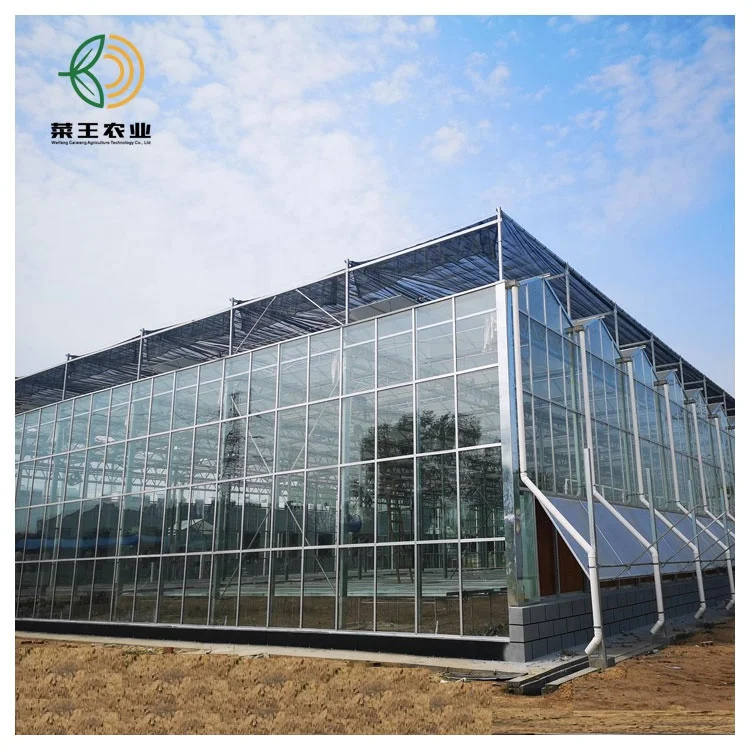

3. Shading System
Outside shading material: black round-wire sunshade net, installed and fixed above the frame of greenhouse, supported by the uprights and beams. It can reduce the internal temperature and avoid damages to plants caused by intense sunlight.
Inside shading material: aluminum sunshade net, shading 75%, other shade rate can be customized, installed in the greenhouse, supported by the uprights and beams. It can reduce the internal temperature by cutting off excess solar radiation.
Top ventilation: All the middle spans have two electric roll up motors and both of side spans have one electric roll up motor.
Side ventilation: Both sides have two electric roll up motors.
Each motor is 60w with climber and cable film fixed parts, rolling up 60m plastic film.
Side ventilation: Both sides have two electric roll up motors.
Each motor is 60w with climber and cable film fixed parts, rolling up 60m plastic film.
Introduction:Installed in the greenhouse, supported by the uprights and beams.
Advantage: In cold night, the system can effectively prevent the escape of infrared, reduce surface radiation heat loss and heating energy consumption, usually used together with heating system. ( Boiler + heating fans)
Advantage: In cold night, the system can effectively prevent the escape of infrared, reduce surface radiation heat loss and heating energy consumption, usually used together with heating system. ( Boiler + heating fans)

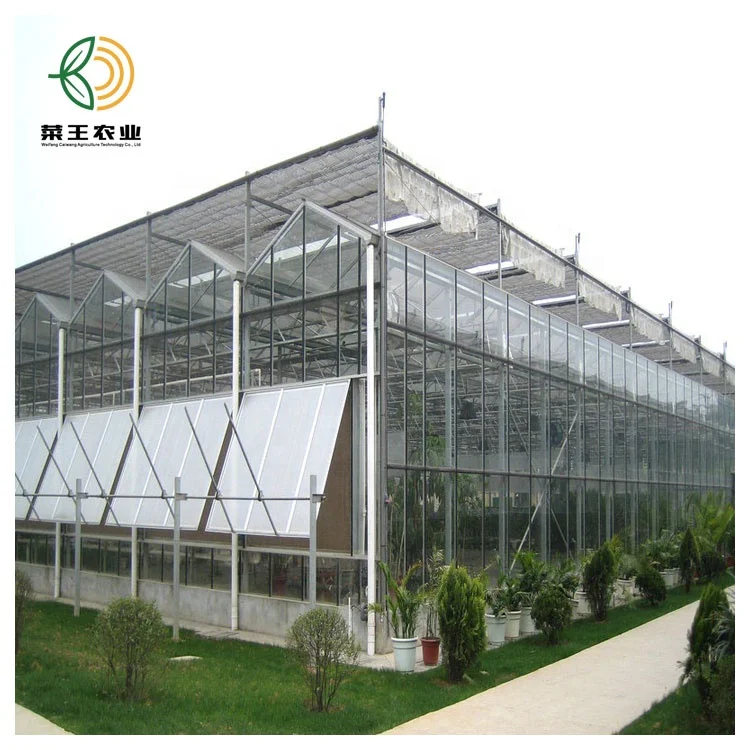

6. Cooling System
Cooling Fan and exhaust fans
Introduction: The pads and fans are used together to realize the functions of cooling and ventilation.Advantage:In hot weather, using cool water circulation could reduce temperature and increase humidity inside the greenhouse at same time.
Introduction: The pads and fans are used together to realize the functions of cooling and ventilation.Advantage:In hot weather, using cool water circulation could reduce temperature and increase humidity inside the greenhouse at same time.
The electric control system is used for control all the mechanical equipment installed in the greenhouse to realize the greenhouse micro climate control.
The system includes one set of control cabinet, cables and accessories and tools.It can realize the automatic control of water heaters and cooling system to save energy.
The system includes one set of control cabinet, cables and accessories and tools.It can realize the automatic control of water heaters and cooling system to save energy.

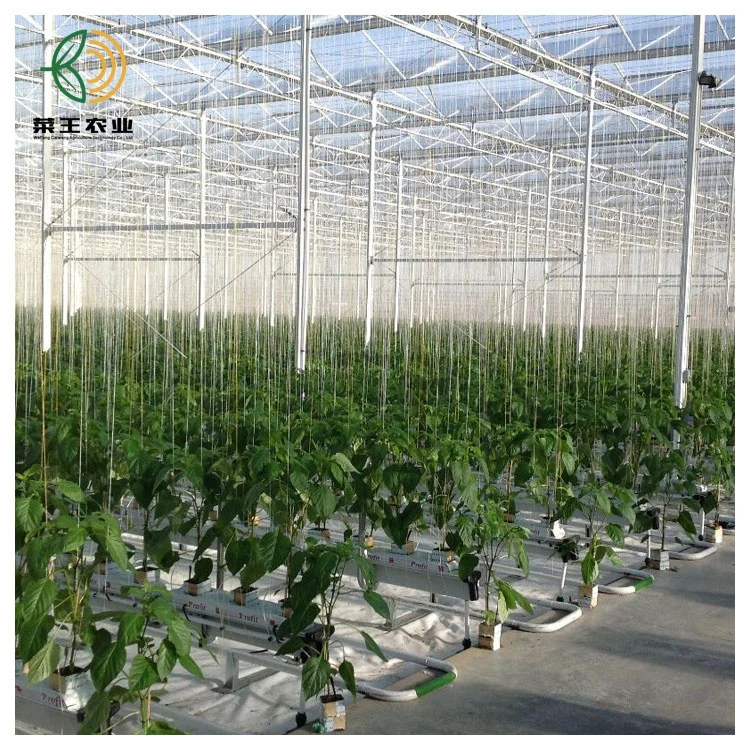

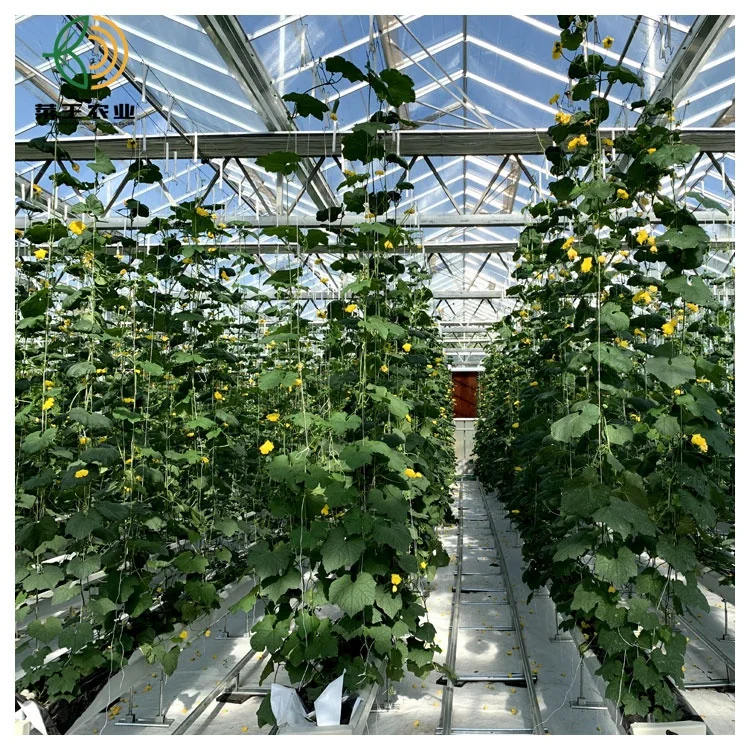

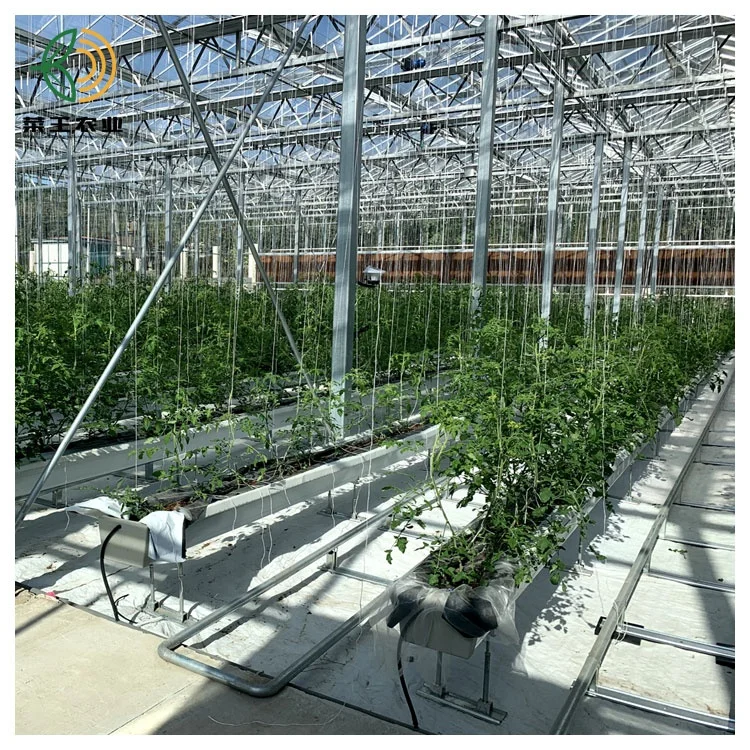

NFT hydroponic systems
DWC hydroponic system
Substrate hydroponic system
Company Profile
Our projects
Photovoltaic greenhouse
Hydroponics for tomatoes
Hydroponics for leafy vegetables
Certification
FAQ
1. Are u a manufacturer or a trade company?
We are an integrated manufacturing with our own planting base and processing factory.
2. What is MOQ ?
In general, the minimum order is 500 sqm, which can be negotiated online.
3. What is your payment term?
For first cooperation, it's better to do T/T or L/C, after we trust more each other, we negotiate terms suitable for each
other, details can be discussed online.
4. How to install greenhouse?
First we prepare the material and export. After your customs clearing, we send engineers or all workers to guide to install. If you want to save money, we only send engineers, and you match local workers. If you think it is hard to do, we also can send engineers and workers to install for you.
5. When installing, what cost should we pay?
Our engineers and workers visas and round-trip tickets, their foods and accommodation, their communication fees.
2. What is MOQ ?
In general, the minimum order is 500 sqm, which can be negotiated online.
3. What is your payment term?
For first cooperation, it's better to do T/T or L/C, after we trust more each other, we negotiate terms suitable for each
other, details can be discussed online.
4. How to install greenhouse?
First we prepare the material and export. After your customs clearing, we send engineers or all workers to guide to install. If you want to save money, we only send engineers, and you match local workers. If you think it is hard to do, we also can send engineers and workers to install for you.
5. When installing, what cost should we pay?
Our engineers and workers visas and round-trip tickets, their foods and accommodation, their communication fees.
Judy
Weifang Caiwang Agricultural Technology Co., Ltd Telephone: 008618106362711
Whatsapp: 008618106362711
Email: judy@sdhualiang.com.cn
