13m working height mobile towable trailer lift/hot sale spider aerial work platform for sale



Product Description





1. Standard dual speed for walking:
The walking is realized by a two-speed hydraulic reducer, which improves work efficiency.
2. Outrigger protection system:
The outriggers are equipped with grounding instructions to prevent virtual legs and improve safety.
3. One-key leveling of the car body:
The outriggers can realize automatic leveling and improve work efficiency.
4. Load protection system:
The equipment has a built-in load protection system, which can automatically control the arm length and angle to improve the performance:
The safety of industry personnel.
5. Soft action operation:
The perfect match of the automatic throttle and the imported proportional valve makes the whole vehicle operate with a micro-movement
Better and softer movements.
6. The hanging basket is detachable:
The hanging basket can be disassembled or replaced as required, and it can be easily disassembled by one or two people;
Unload.
7. Three sets of power systems:
Equipped with diesel engine system, electric power system and emergency manual pump system, all
Can provide power for all actions.
8. Optional non-marking track and one-way 220V motor:
Customers can choose non-marking tracks and 220V unidirectional motors according to their needs.
Convenient for indoor use.





Technical Parameters
































































































TECHNICAL DATAUnitTechnical parameter

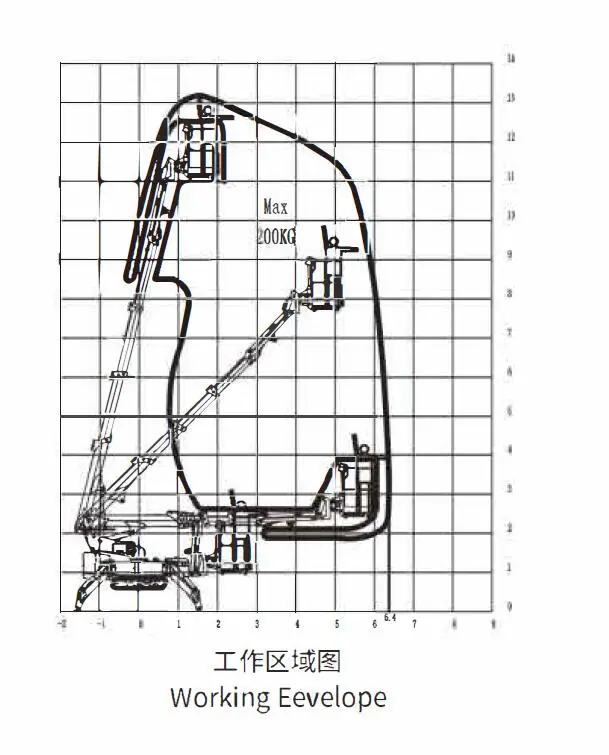

Max working heightm13
Max height basket floorm11
Max side outreachm6.4
Rotation angle°360
Basket sizem1.3*0.75
Basket rotation angle°180
Max basket capacitykg200

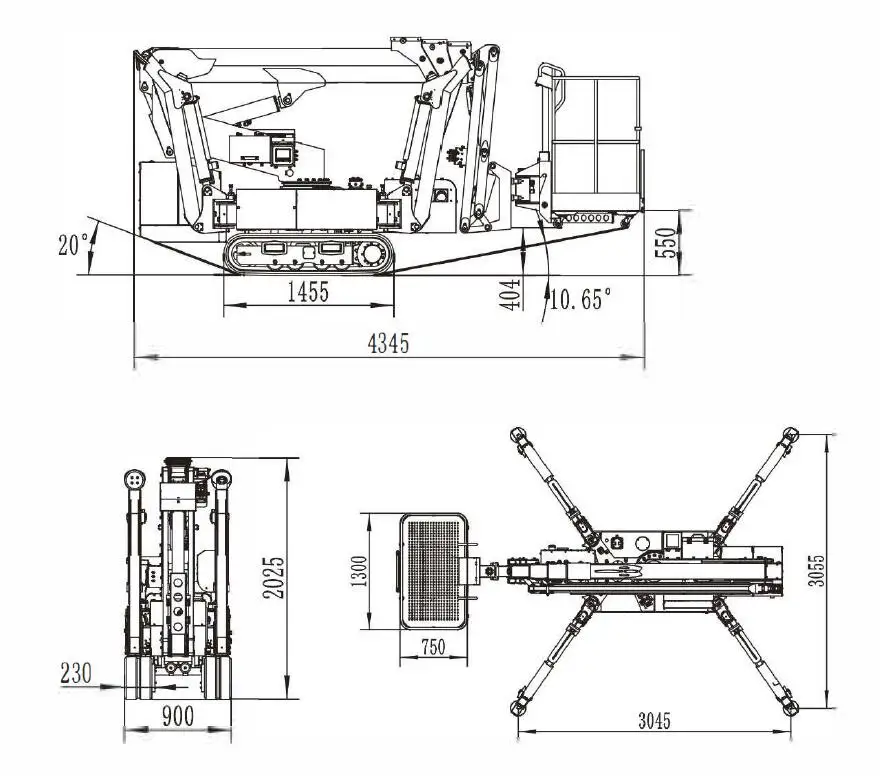

Transport lengthm4.35/3.64
Transport widthm1.3/0.9
Stowed heightm2.03
overall outrigger footprintm3.05x3.05
Max gradeability°20/ (36.4%)
Max side gradeability°17/ (30%)
Driving speedkm/h1.45-2.56
Weightkg2000
Engine 3TNV 70Kw /rpm10/2200




Contact us


Max Xu


Tel / Whatsapp / Wechat: +8615728042560

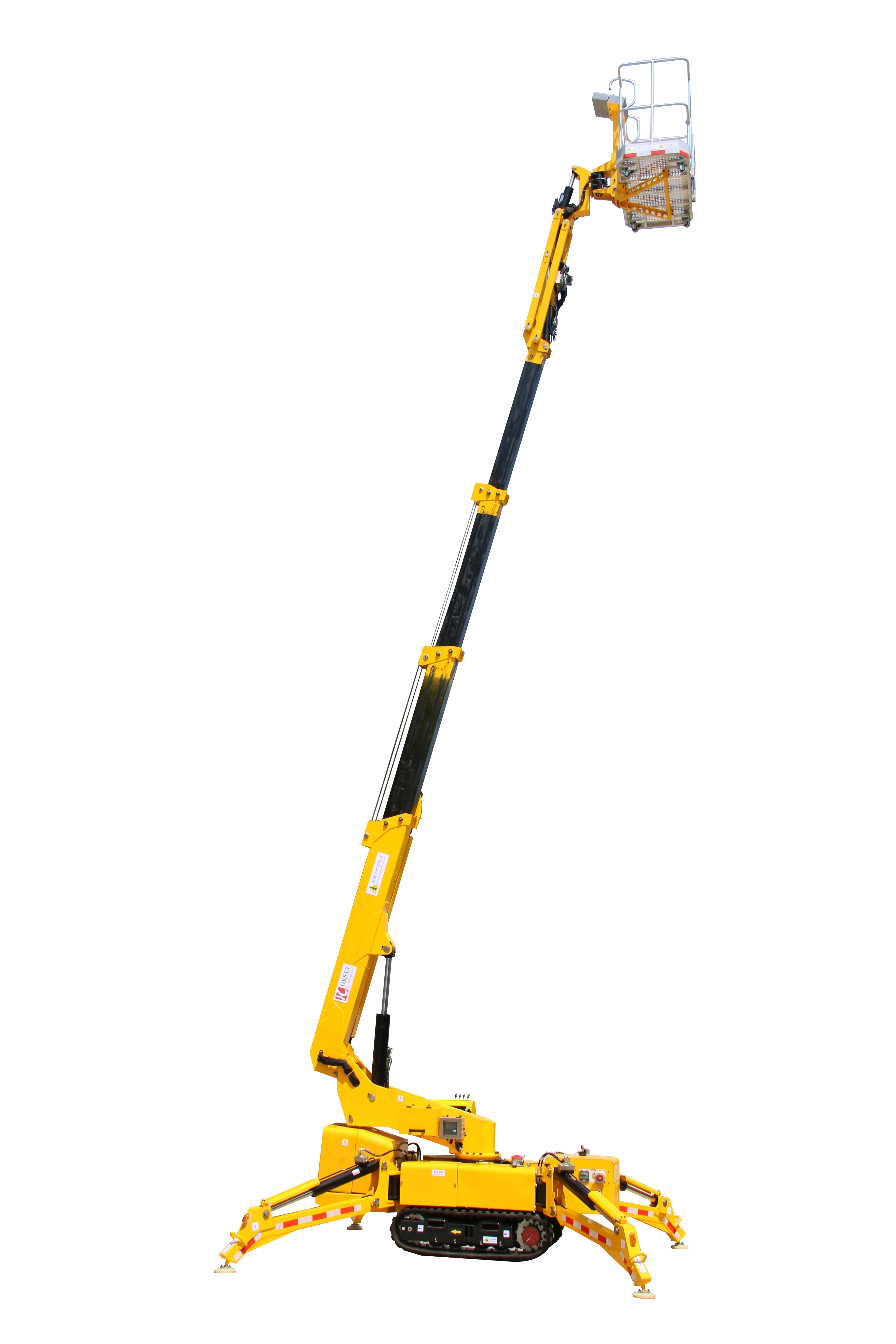

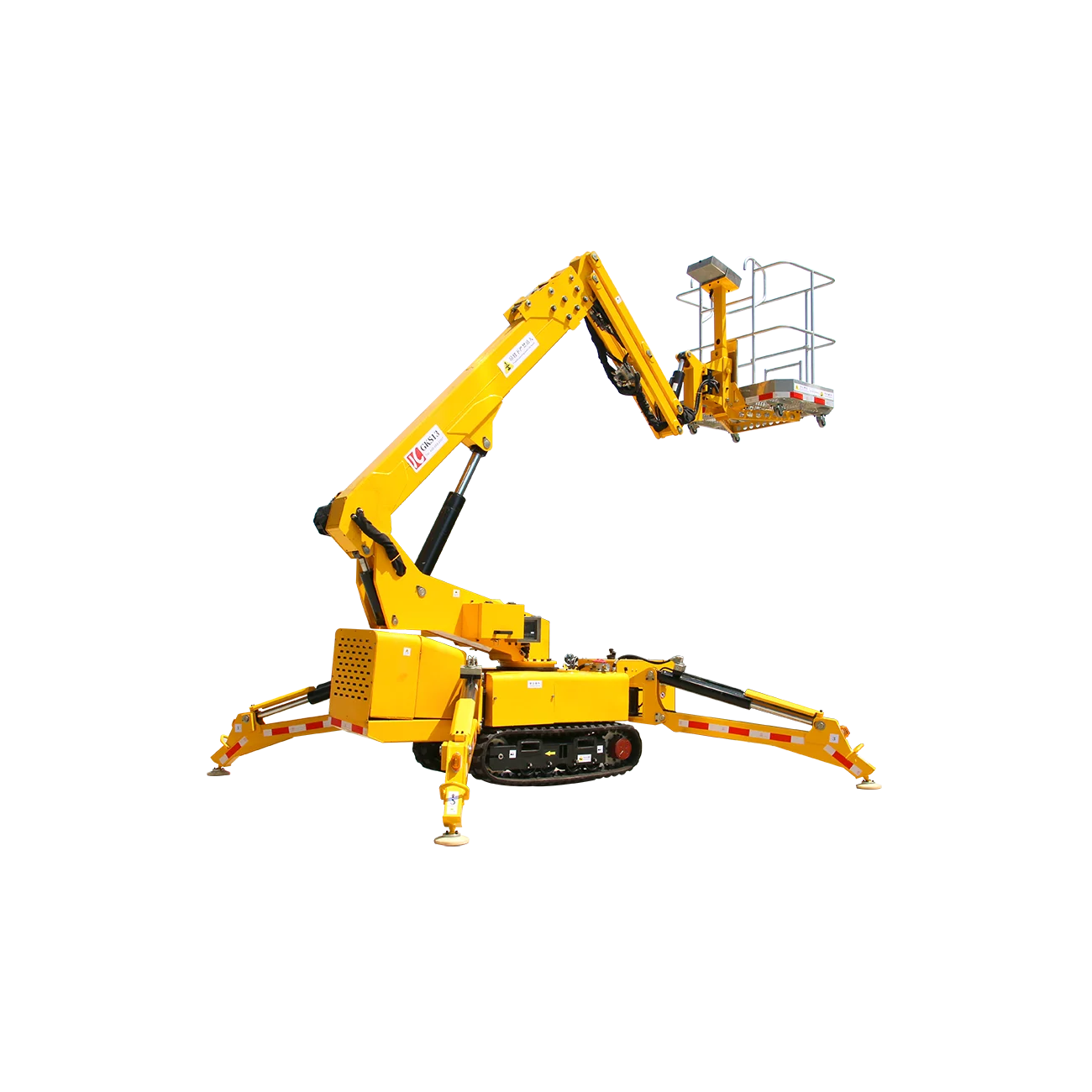

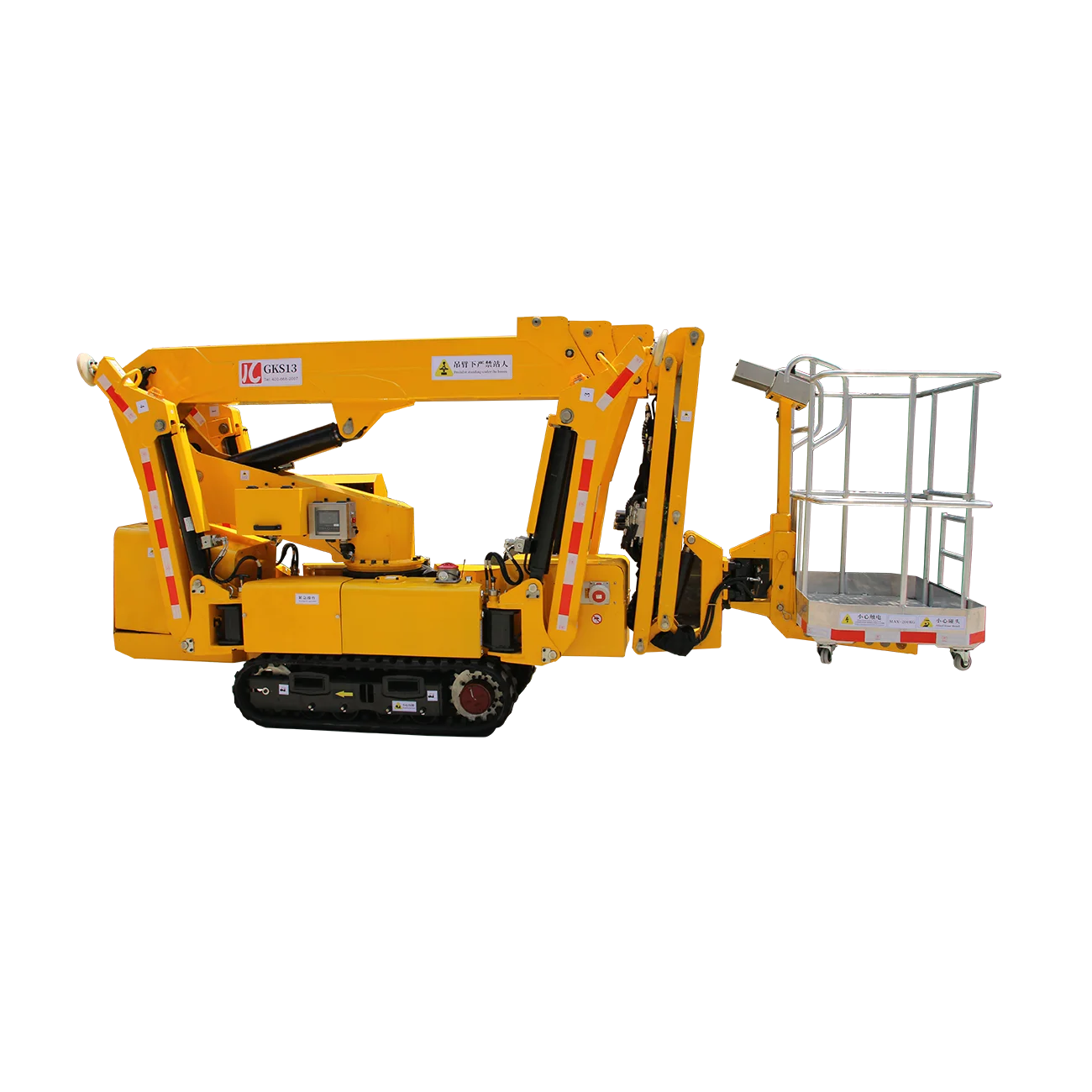

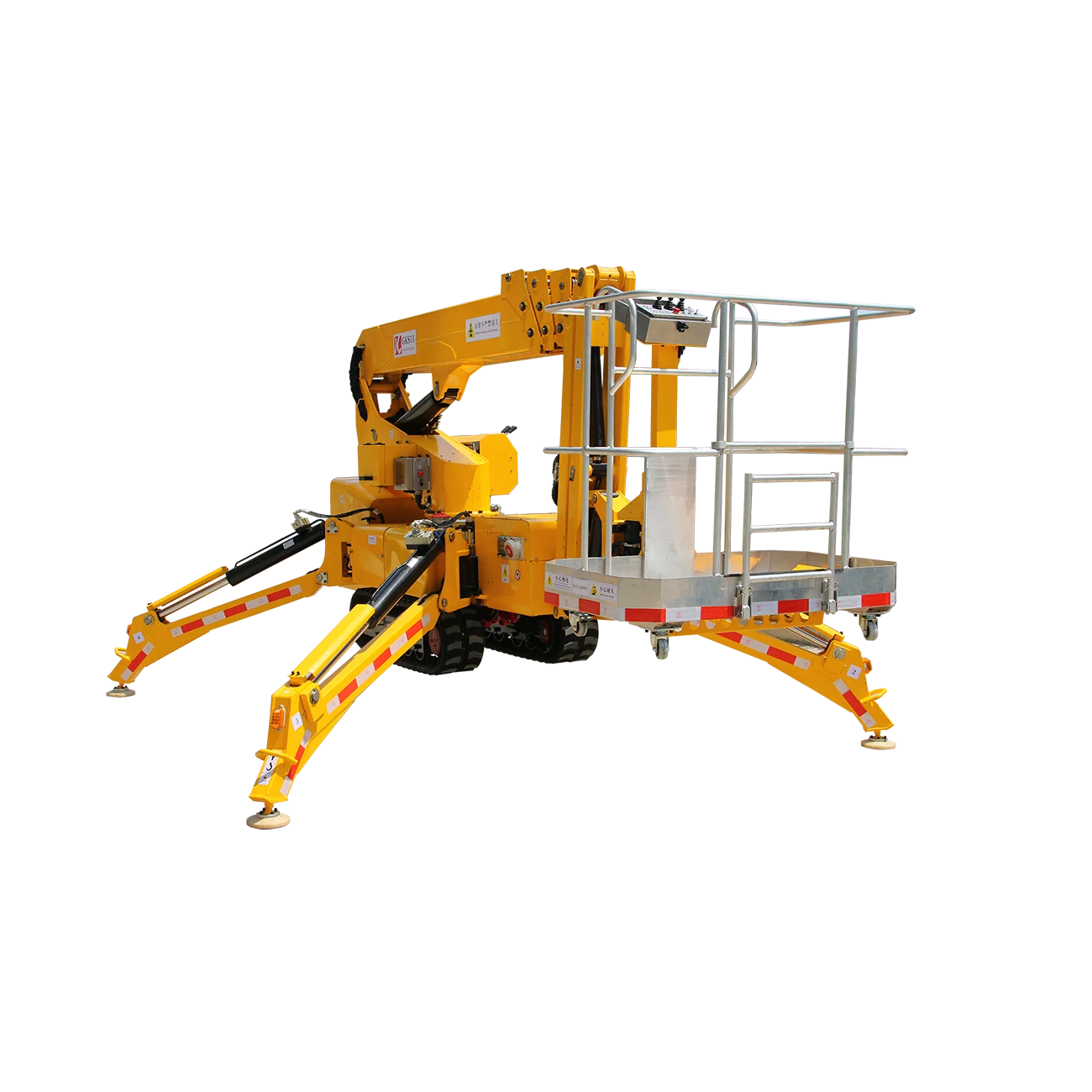

Product Pictures
