Силовой Кабель swa среднего напряжения 11 кВ 15 35 ПВХ оболочка xlpe изолированный 3 ядра 16 кв. Мм для
- Категория: Other Wires, Cables & Cable Assemblies >>>
- Поставщик: Shandong,Jianshou,New,Material,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.66 $* | 0.31 $* |
| Aug-19-2025 | 0.0 $* | 0.4 $* |
| Jul-19-2025 | 0.65 $* | 0.72 $* |
| Jun-19-2025 | 0.73 $* | 0.28 $* |
| May-19-2025 | 0.82 $* | 0.49 $* |
| Apr-19-2025 | 0.47 $* | 0.64 $* |
| Mar-19-2025 | 0.96 $* | 0.26 $* |
| Feb-19-2025 | 0.64 $* | 0.49 $* |
| Jan-19-2025 | 0.75 $* | 0.26 $* |
Характеристики

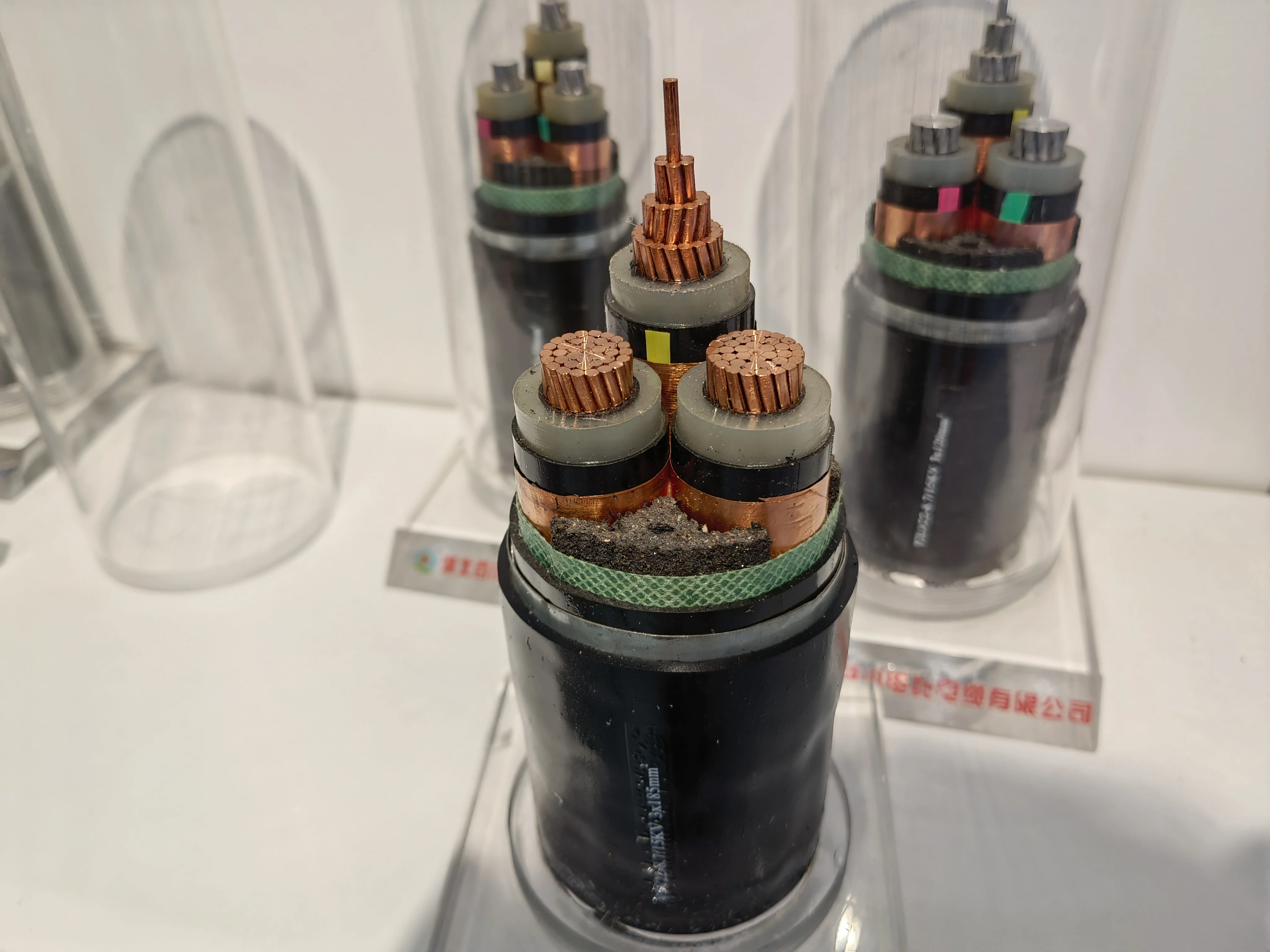

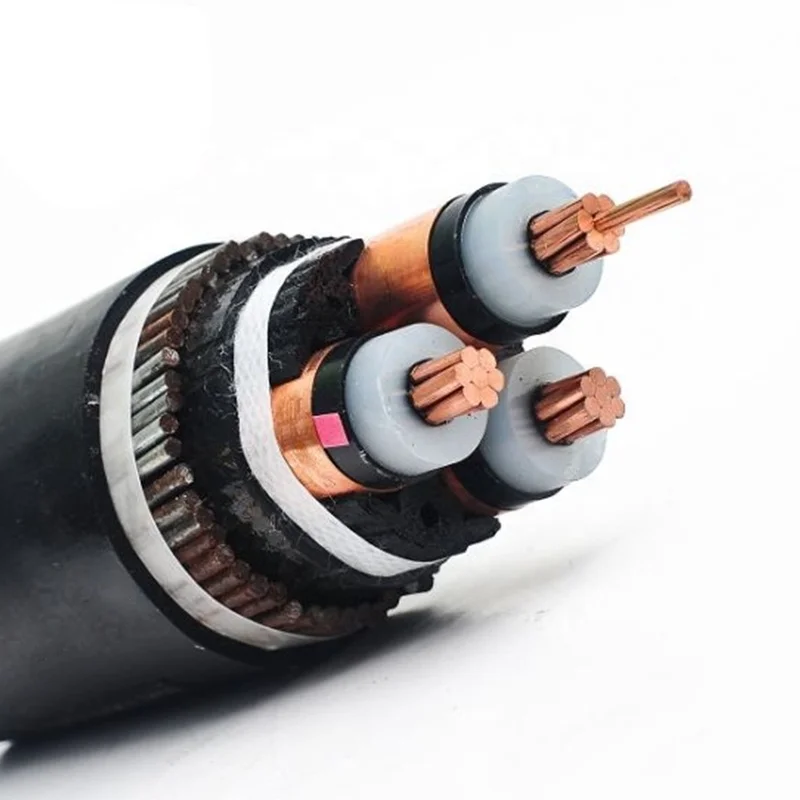

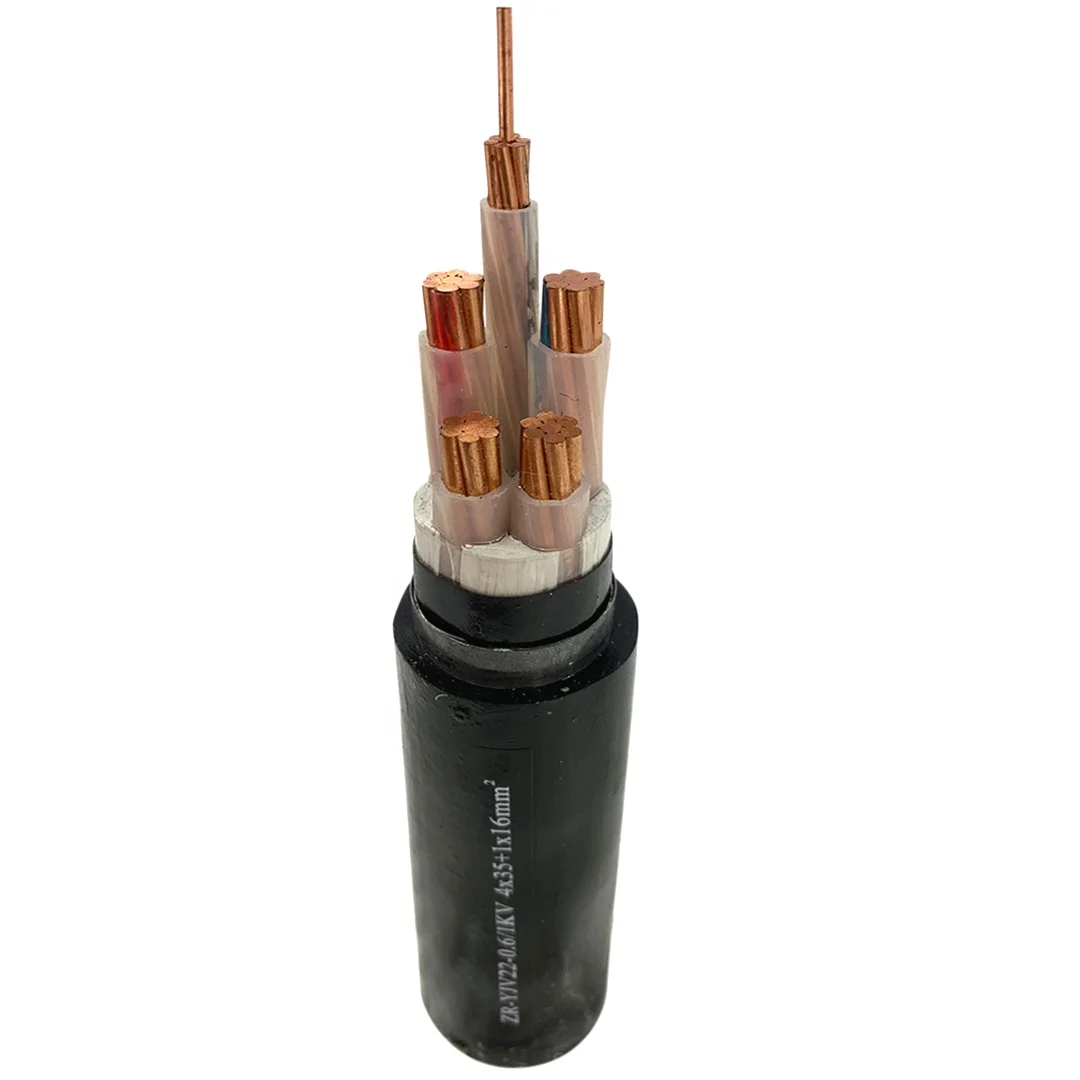

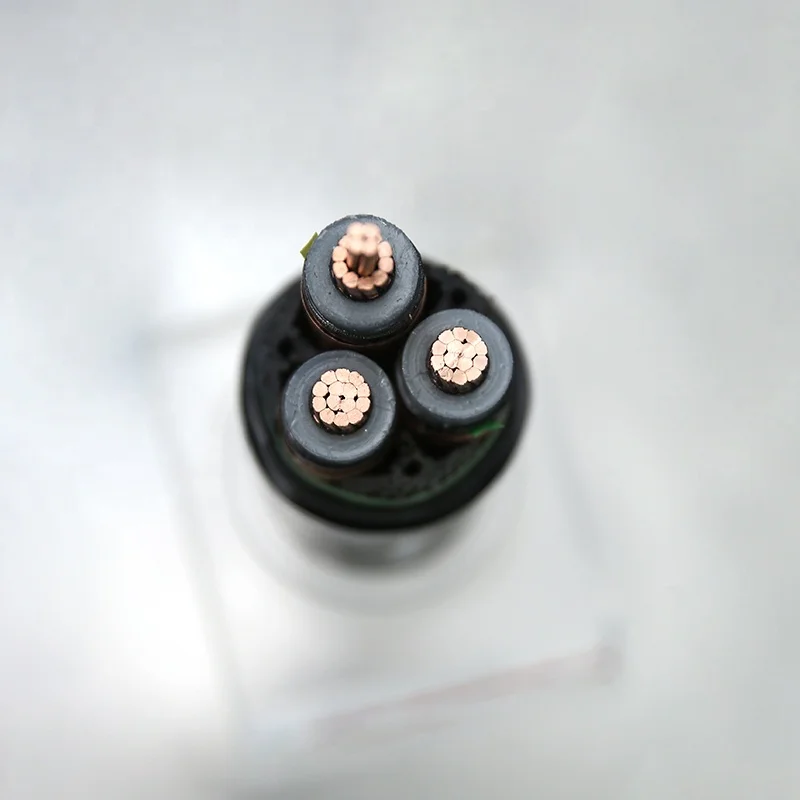

Medium voltage 11kv 15kv 35kv pvc sheath xlpe insulated 3 core 16mm2 swa power cable for construction
Name： XLPE Insulation Cu Conductor PVC sheath Power Cable
Conductor: High quality copper
Insulation: XLPE/PVC
Outer Sheath: PVC
Armour (optional): Steel tape/Steel wire
Filler: Polypropylene lament with lapped binding tape
Core: 1, 2 ,3, 4 ,5, 3+1, 3+2, 4+1....
Cross Section (mm2): 1.5, 2.5, 4, 6, 10, 16, 25, 35, 50, 70, 95, 120, 150, 185, 240, 300, 400, 500, 630
Rated voltage: Frequency ac rated voltage 0.6/1 KV, highest use ac system voltage should be not more than 1.2 KV.
Model:
YJV / YJLV: Cu /Al conductor XLPE insulated PVC sheathed power cable
YJV22 / YJLV22: Cu/Al conductor XLPE insulated steel tape PVC sheathed power cable
YJV32.42 / YJLV32.42: Cu/Al conductor XLPE insulated steel wire PVC sheathed power cable
Conductor: High quality copper
Insulation: XLPE/PVC
Outer Sheath: PVC
Armour (optional): Steel tape/Steel wire
Filler: Polypropylene lament with lapped binding tape
Core: 1, 2 ,3, 4 ,5, 3+1, 3+2, 4+1....
Cross Section (mm2): 1.5, 2.5, 4, 6, 10, 16, 25, 35, 50, 70, 95, 120, 150, 185, 240, 300, 400, 500, 630
Rated voltage: Frequency ac rated voltage 0.6/1 KV, highest use ac system voltage should be not more than 1.2 KV.
Model:
YJV / YJLV: Cu /Al conductor XLPE insulated PVC sheathed power cable
YJV22 / YJLV22: Cu/Al conductor XLPE insulated steel tape PVC sheathed power cable
YJV32.42 / YJLV32.42: Cu/Al conductor XLPE insulated steel wire PVC sheathed power cable
Name | Usage | |||
Copper | Aluminum | |||
YJV ZR-YJV | YJLV ZR-YJLV | XLPE insulated and PVC sheathed (flame retardant) power cable | Laying in indoor and outdoor tunnels, cable trenches, or buried in loose soil, can withstand a little laying traction, but cannot withstand external mechanical forces, single-core cables are not allowed to be laid in magnetic pipelines | |
WDZ-YJY | WDZ-YJLY | XLPE insulated low-smoke halogen-free sheathed power cable | ||
YJV22 ZR-YJV22 | YJLV22 ZR-YJLV22 | XLPE insulated steel tape armored PVC sheathed (flame retardant) power cable | For laying indoors, it is also used for buried laying, where it can withstand external mechanical forces, but cannot withstand large tensile forces. | |
YJV62 ZR-YJV62 | YJLV62 ZR-YJLV62 | XLPE insulated non-magnetic metal tape armored PVC sheathed (flame retardant) power cable | ||
WDZ-YJY23 | WDZ-YJLY23 | XLPE insulated steel tape armored low-smoke halogen-free sheathed power cable | ||
YJV32 ZR-YJV32 | YJLV32 ZR-YJLV32 | XLPE insulated thin steel wire armored PVC sheathed (flame retardant) power cable | Laying in the shaft water or high drop area, can withstand mechanical external force and considerable pulling force | |
YJV72 ZR-YJV72 | YJLV732 ZR-YJLV32 | XLPE insulated non-magnetic metal armored PVC sheathed (flame retardant) power cable | ||
WDZ-YJY33 | WDZ-YJLY33 | XLPE insulated thin steel wire armored low-smoke halogen-free sheathed power cable | ||
YJV42 ZR-YJV42 | YJLV42 ZR-YJLV42 | XLPE insulated thick steel wire armored PVC sheathed (flame retardant) power cable | Laying in shafts, seabed or high-drop areas, it can withstand greater positive pressure and tension | |
WDZ-YJY43 | WDZ-YJLY43 | XLPE insulated thick steel wire armored low-smoke halogen-free sheathed power cable | ||
Product Description
Our Advantages
Product Application
Packaging & Delivery
Company Profile
About Us
Shandong Jianshou New Material Co., Ltd., is located in Liaocheng, Shandong Province, the manufacturing base of steel in China. Our factory occupied 50000 square meters, and specialize in overhead ABC cable, AAC, ACSR, AAAC, 0.6-35KV power cable, control cables, welding cables, rubber cables, mining cables.
We can provide standard cables with GB, IEC, BS, ICEA, ASTM, DIN, VED and JIS srandards.
We can provide standard cables with GB, IEC, BS, ICEA, ASTM, DIN, VED and JIS srandards.
Certifications
Global Market
We are committed to exploring the international market. Our customers come from all over the world, such as Africa, Latin America,Middle East, Southeast Asia, Europe, etc. Our high quality and low price products have won their recognition.
FAQ
1. Q: Are you a factory or trading company?
A: We’re a factory locates in ShanDong Province, which integrates R&D, manufacture and sales of various wires and cables
2. Q: What are your main products?
A: VV/LV/ZR-VV/ZR-LV/ /YJV/RV conductor, ABC cable, power cable, control cable, concentric cable,common electric wire, etc
3. Q: Can we have our logo or company name to be printed on your products or the package?
A: Yes, OEM and ODM are both acceptable for us.
4. Q: Do you provide samples? Free or not?
A: Yes, we’d like to provide free samples for your reference, but won’t bear the express fees.
5. Q: How long is your warranty period?
A: 1 year, and we promise to return or replace the cables within one year if any quality problem is found.
A: We’re a factory locates in ShanDong Province, which integrates R&D, manufacture and sales of various wires and cables
2. Q: What are your main products?
A: VV/LV/ZR-VV/ZR-LV/ /YJV/RV conductor, ABC cable, power cable, control cable, concentric cable,common electric wire, etc
3. Q: Can we have our logo or company name to be printed on your products or the package?
A: Yes, OEM and ODM are both acceptable for us.
4. Q: Do you provide samples? Free or not?
A: Yes, we’d like to provide free samples for your reference, but won’t bear the express fees.
5. Q: How long is your warranty period?
A: 1 year, and we promise to return or replace the cables within one year if any quality problem is found.
