Yuanmu новейший 30L лучший Дрон OEM сельскохозяйственный для сельского хозяйства
- Категория: Drone Sprayer >>>
- Поставщик: Yuanmu,(shenzhen),Holding,Group,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 12138.4 $* | 12745.48 $* |
| Aug-15-2025 | 12036.7 $* | 12638.95 $* |
| Jul-15-2025 | 10098.59 $* | 10603.40 $* |
| Jun-15-2025 | 11832.30 $* | 12424.85 $* |
| May-15-2025 | 10302.43 $* | 10817.17 $* |
| Apr-15-2025 | 11628.26 $* | 12209.58 $* |
| Mar-15-2025 | 11526.95 $* | 12102.2 $* |
| Feb-15-2025 | 11424.13 $* | 11995.86 $* |
| Jan-15-2025 | 11322.71 $* | 11888.95 $* |
Характеристики

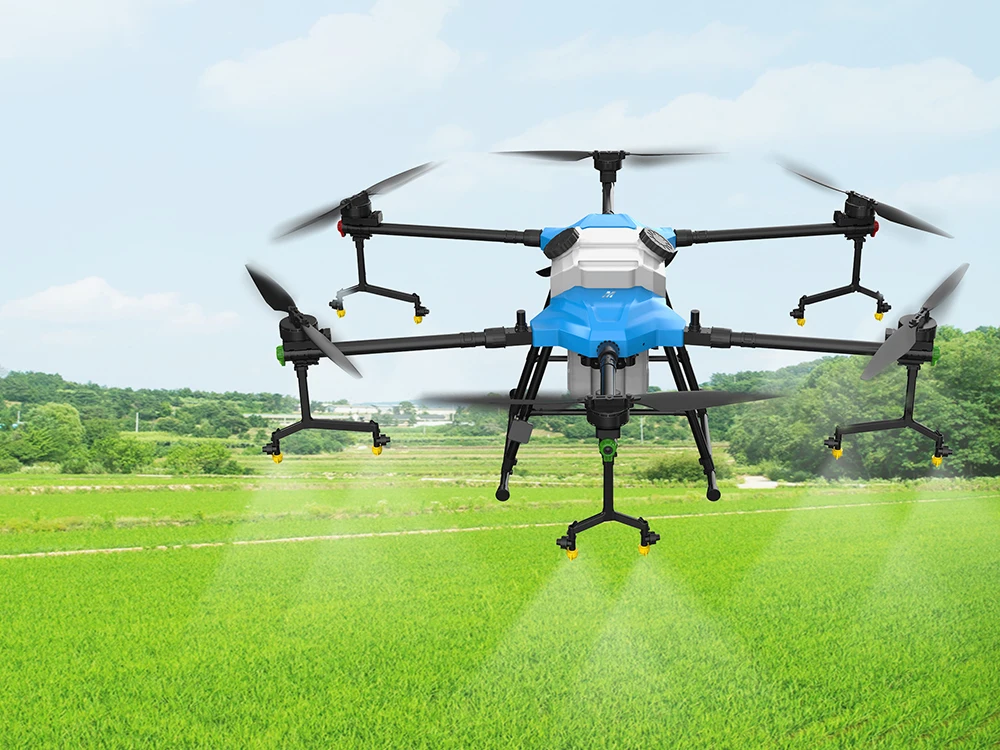

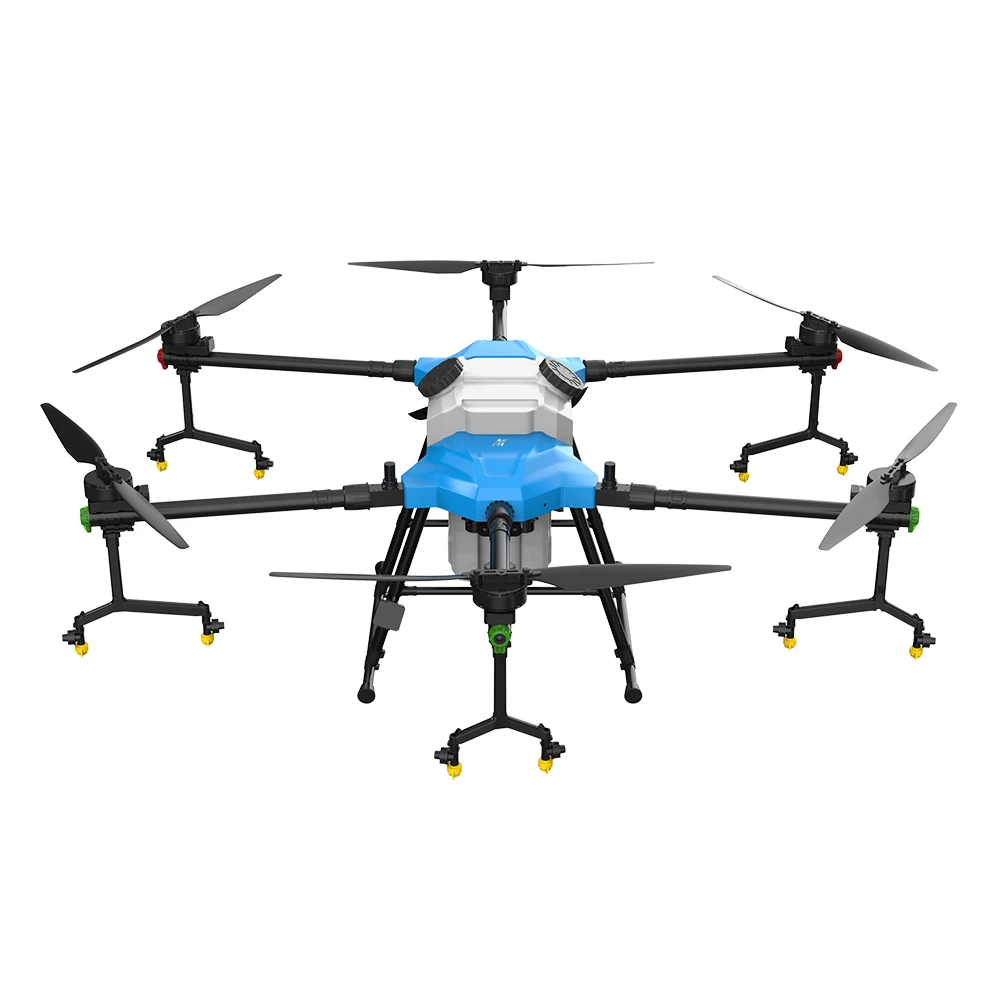

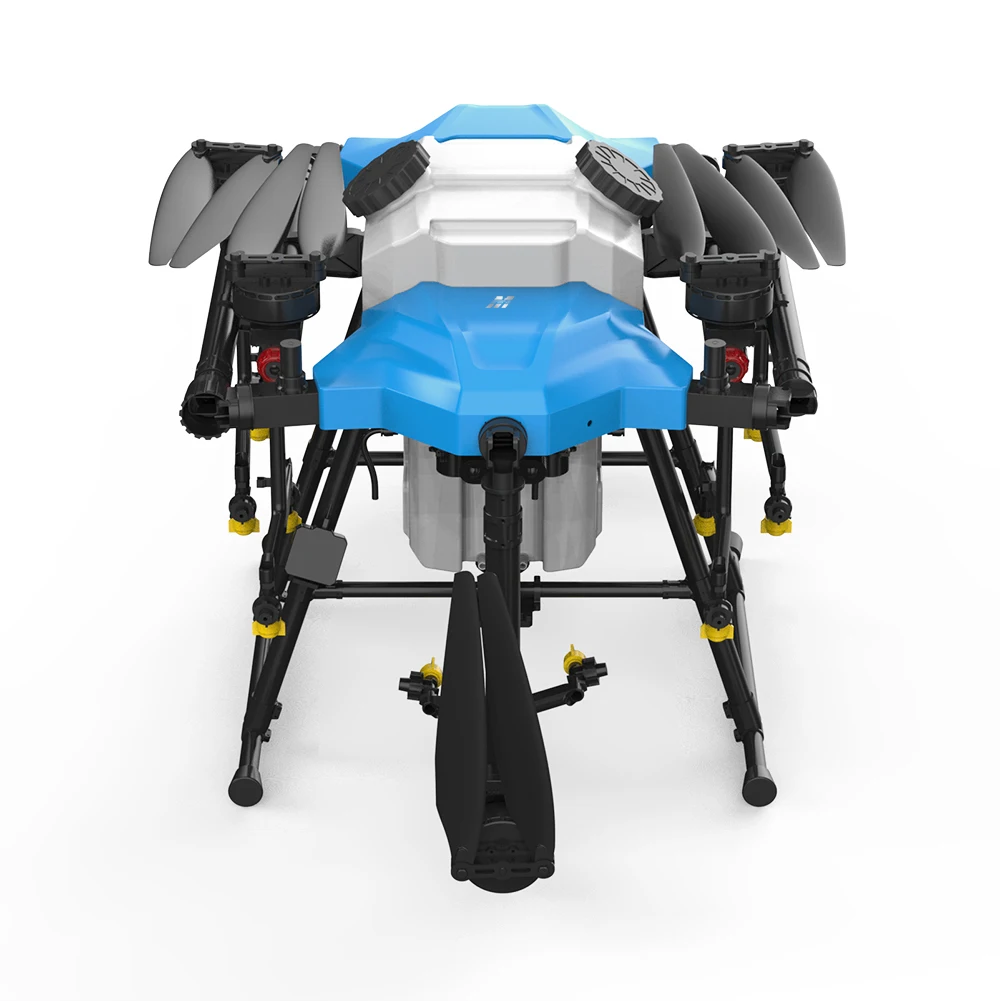

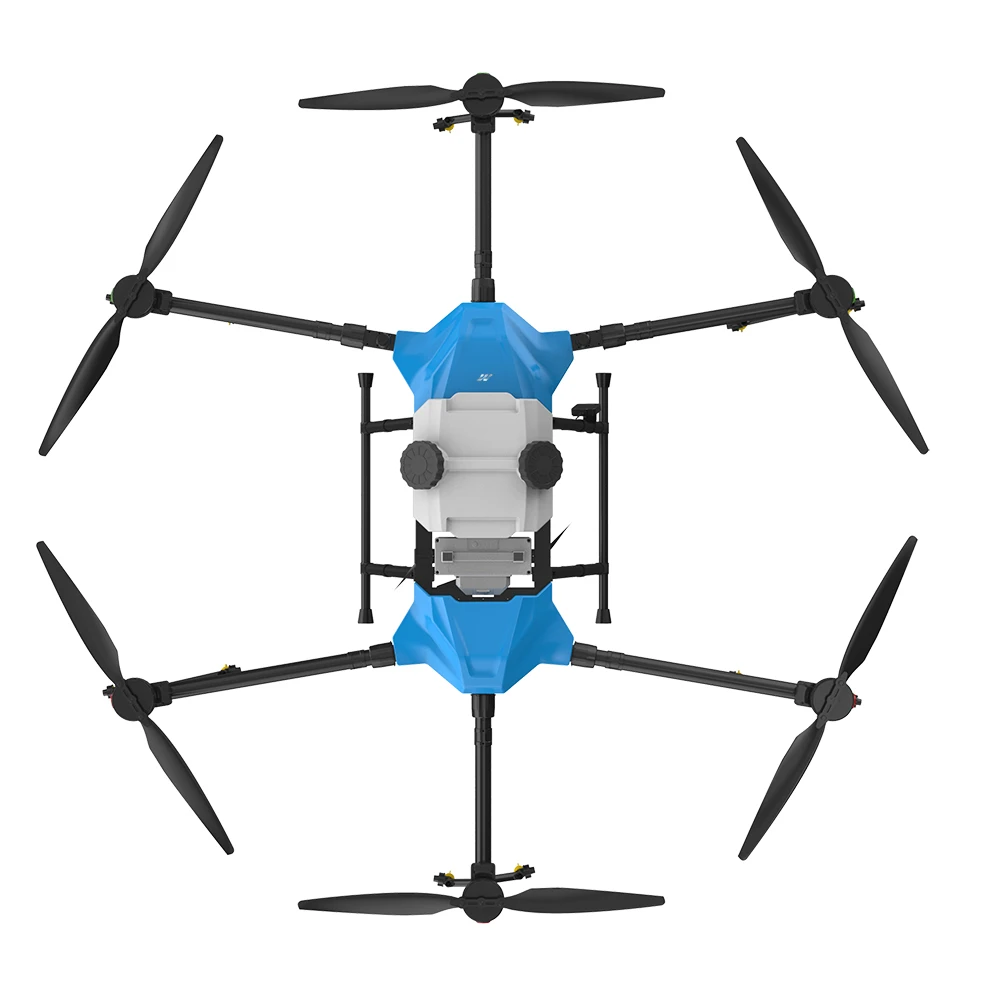

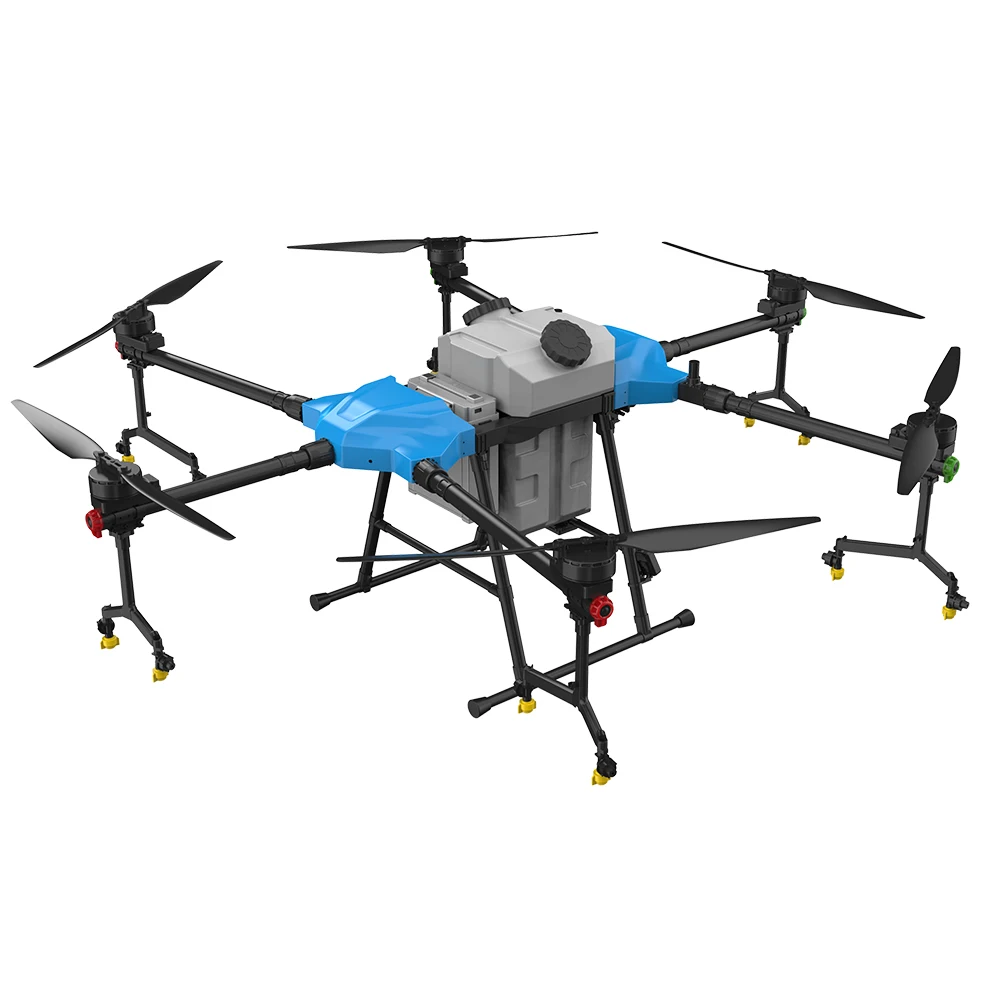

The GF-30 agricultural spraying drone is a very mature multi-rotor drone, which has reached the industrial leading level in terms of functions, appearance, control, and safety. Due to the principle and structure of the multi-rotor drone itself, this product may be hazardous and destructive during use. Please strictly follow the safety instructions and user manual for operation. The use of this product in violation of regulations may easily cause direct or indirect loss and injury.
Products Description
Specifications | Parameter | |
Rack | ||
Symmetrical motor wheelbase | 1950MM | |
Overall dimensions | 2160×2100×775 mm (not including the propellers) | |

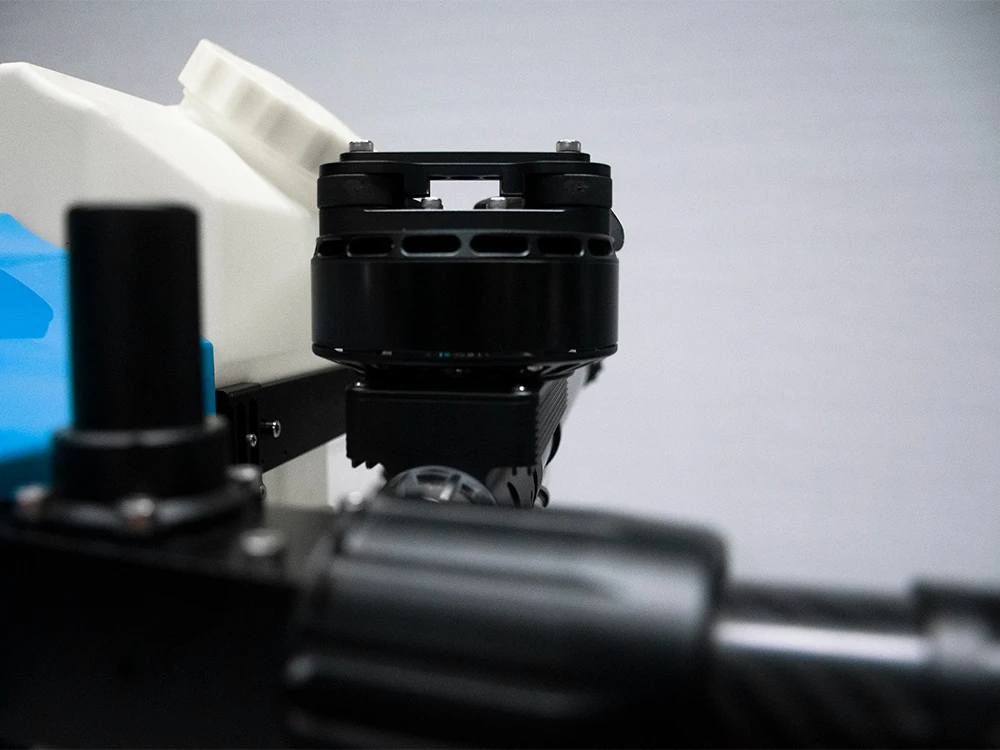

Power motor | ||
Power model | X9 PULS | |
KV value | 100rpm/V | |
Boosting ESC | ||
Working voltage | 14S LiPo | |
Maximum signal frequency | 50-500Hz | |
Driving PWM frequency | 20KHz | |
Maximum control frequency of bus | 2KHz | |
Propeller | ||
Material | Carbon plastic | |
Diameter | 36 inches | |
Pesticide tank | ||
Volume | 30.2L | |
Standard operating load | 30L | |
Nozzle | ||
Recommended model | XR110015VS | |
Quantity | 12 pieces | |
Maximum spraying rate | 8.4l/min (tested using XR1100015VS nozzle and water) | |
Spraying width | 6~9 meters (depending on different height and different crops) | |
Atomized particle size | XR110015VS: 130-250 μm (related to the spray solution type, spraying rate, etc.) | |
Radar system | ||
Terrain following Radar | ||
Modulation mode | FMCW | |
Frequency | 24GHz | |
Height range | 1~10m | |
Ranging accuracy | 0.02m | |
Obstacle avoidance radar | ||
Sensing range | 2~12m | |
Service conditions | The relative altitude of the drone is higher than 1.5m and the speed is lower than 6m/s | |
Safe distance | 6m | |
Obstacle avoidance direction | Avoid obstacles in front and rear according to the flight direction | |
Protection grade | IP65 | |
FPV camera | ||
Field of View (FOV) | 120° | |
Resolution | 480P | |
Brightness of fill light | 1000lux | |
Power of fill light | 8W | |
Flight parameters | ||
Overall weight (including battery) | 37.8kg | |
Rated takeoff weight | 68kg | |
Maximum takeoff weight | 114kg | |
Hovering accuracy (Good GNSS signal) | Horizontal ± 1.0 m, vertical ± 0.5 m | |
Horizontal ± 10 cm, vertical ± 10 cm (RTK is enabled) | ||
Vertical ± 0.1 m (Radar is enabled) | ||
Hovering time* | ＞10min (full load) ＞15min (zero load) | |
*Hovering time is measured near sea level when the wind speed is less than 3m/s and ambient temperature is 25℃. | ||
Maximum flight speed | 10m/s | |
Maximum flight altitude | 2000m | |
Recommended operating temperature | 0~40℃ | |
a. Remote control unit | ||
Model | H12 | |
Operating frequency | 2.400-2.4833 GHz | |
Effective distance of signal (No interference or obstacle) | 3KM | |
Battery voltage | 3.7V (chargeable lithium battery) | |
Battery capacity | 1000 mAh | |
Weight | 530g | |
Dimensions | 190*170*85mm | |
Language | Simplified Chinese/English | |
RTK system | ||
Used frequency point | GPS：L1/L2；GLONASS：L1/L2；BDS：B1/B2 | |
Positioning precision | Single point: 1.5 m | |
Floating: 0.4 m | ||
Fixed: horizontal 1cm±1ppm, vertical 2cm±1ppm | ||
Orientation precision | 0.4° | |
Speed measurement precision | 0.03m/s | |
Communication frequency band | 840MHz-845MHz | |
Charger | ||
Input | 100V-240V~11A 50/60Hz | |
Output power | 3000W | |
Number of channels | Four channels | |
Language | Simplified Chinese | |
Battery (14S-25000mAh) | ||
Voltage | 51.8V | |
Discharge rate | 15C | |
Protection grade | IP65 | |
Battery life | 500 cycles | |
Volume | 25000mAh | |
Weight | 9.28kg | |
