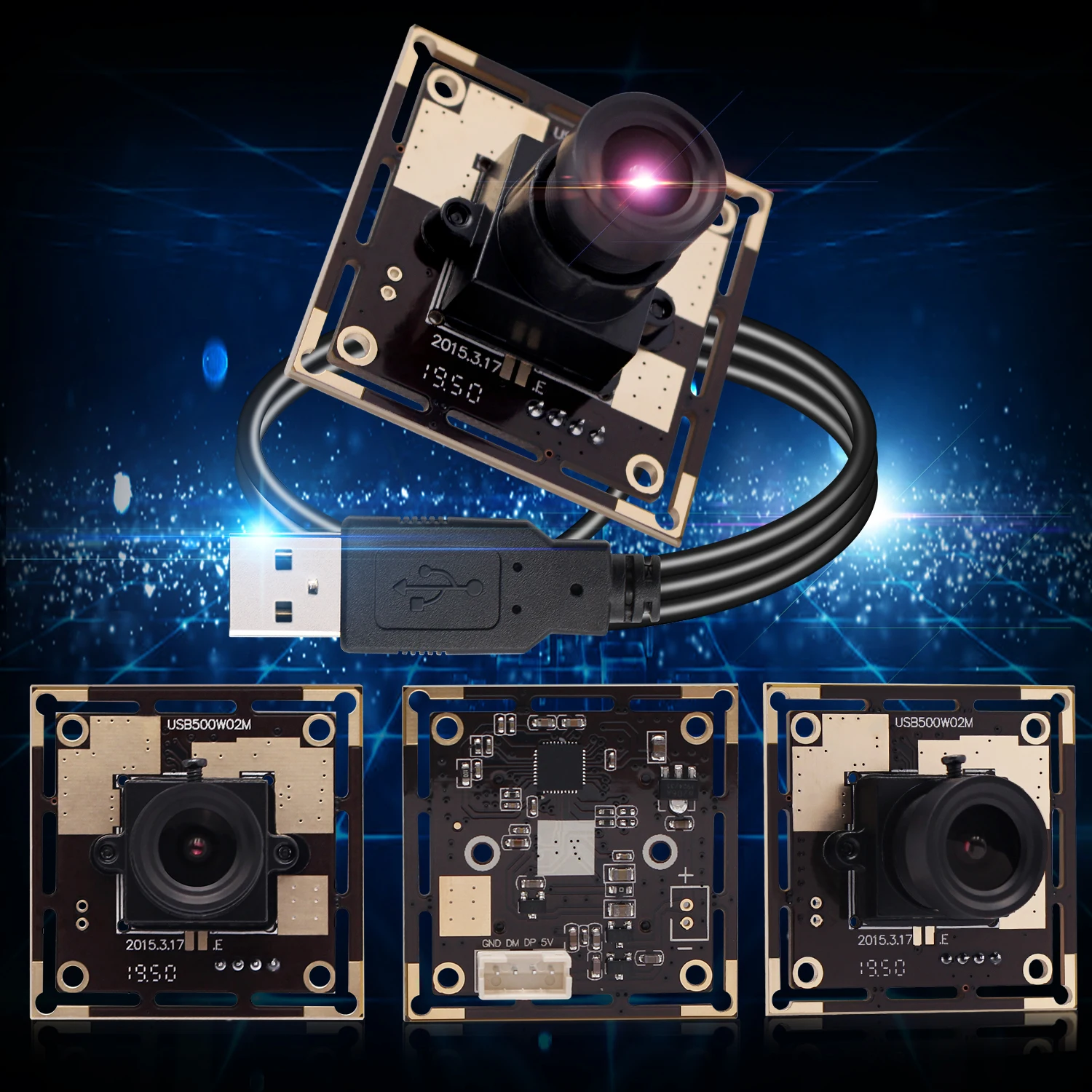

Модуль камеры ELP MJPEG с объективом 3 6 мм 5 МП HD USB промышленное видение для систем

Sensor

1/4"" CMOS OV5640

Max. Pixels

5.0megapixel 2592(H)x1944(V)

Picture format

MJPEG / YUY2

USB Protocal

USB2.0 HS/FS

AEC(Automatic Exposure Control)

Support

AEB(Auto white blance)

Support

Effective Pixels

2592 (H) x 1944 (V) pixels/2048 (H) x 1536 (V) pixels/1600 (H) x 1200 (V) pixels/1920 (H) x 1080 (V) pixels 1280 (H) x 1024(V)
pixels/1280 (H) x 720 (V) pixels/1024 (H) x 768 (V) pixels/800 (H) x 600 (V) pixels/640 (H) x 480 (V) pixels (Other special size
resolution is customized)

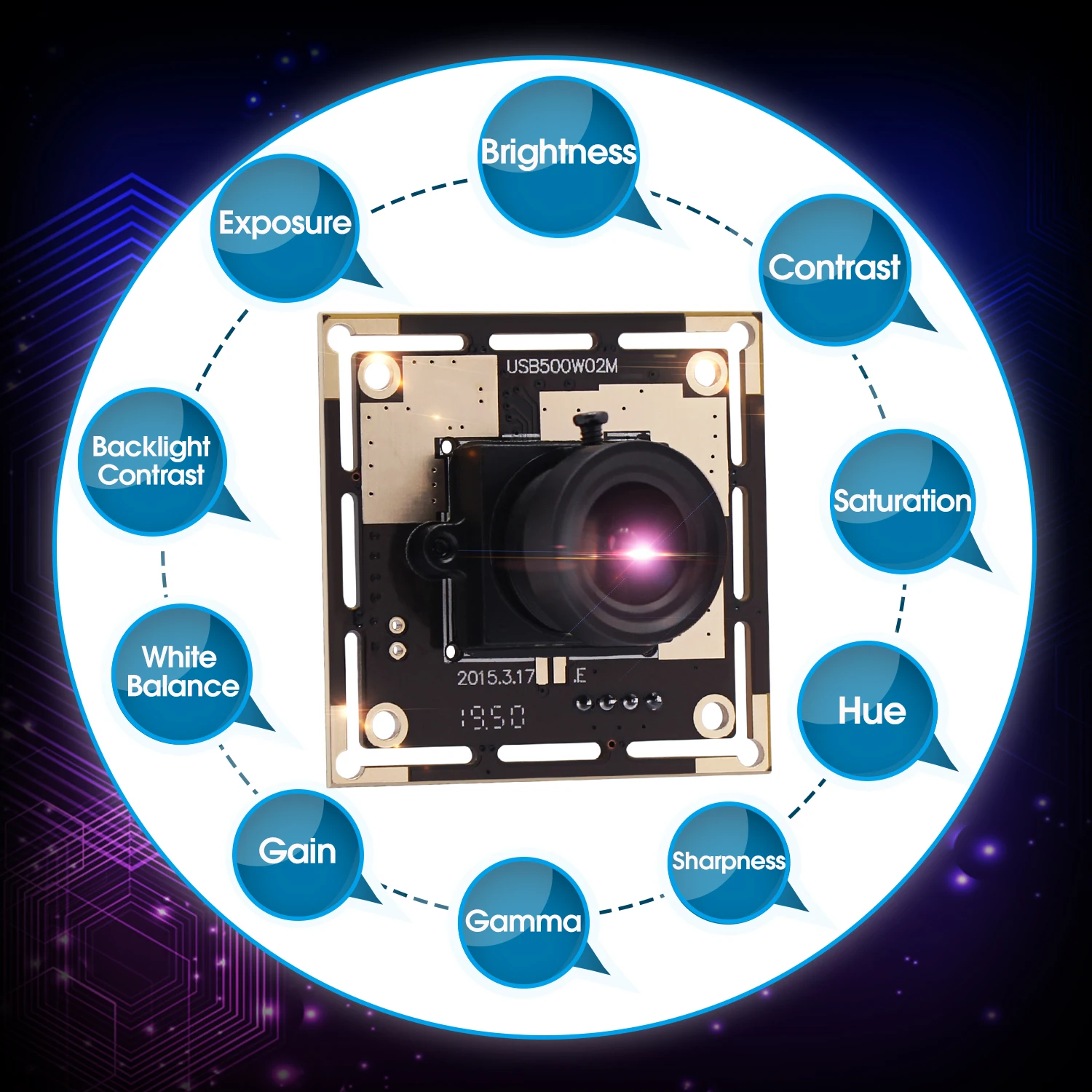

Adjustable parameters

Brightness/Contrast/Color saturation /Definition/Gamma/WB

Voltage DC

5V

current

150mA

work temperature DEGREES

DEGREES(-20~70 ℃)

work temperature DEGREES

38mm x 38mm/32 x 32mm

Size

WinXP/Vista/WIN7/WIN8/Linux with UVC/Mac-OS X 10.4.8 or later
