Sunchonglic термостат холодильника контроля во втором ряду N13-4 градусов 8115
- Категория: Refrigerator Parts >>>
- Поставщик: Guangzhou,Golden,Hongfa,Electronic,Trading,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 0.24 $* | 0.46 $* |
| Aug-17-2025 | 0.42 $* | 0.56 $* |
| Jul-17-2025 | 0.79 $* | 0.17 $* |
| Jun-17-2025 | 0.21 $* | 0.17 $* |
| May-17-2025 | 0.50 $* | 0.22 $* |
| Apr-17-2025 | 0.5 $* | 0.47 $* |
| Mar-17-2025 | 0.65 $* | 0.69 $* |
| Feb-17-2025 | 0.40 $* | 0.80 $* |
| Jan-17-2025 | 0.83 $* | 0.4 $* |
Характеристики
Posters

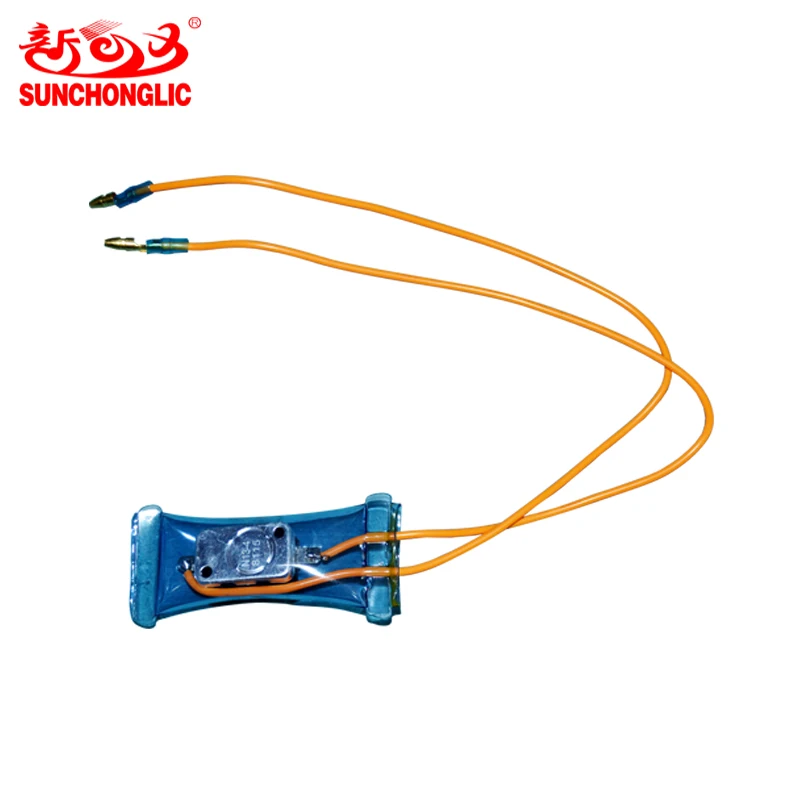

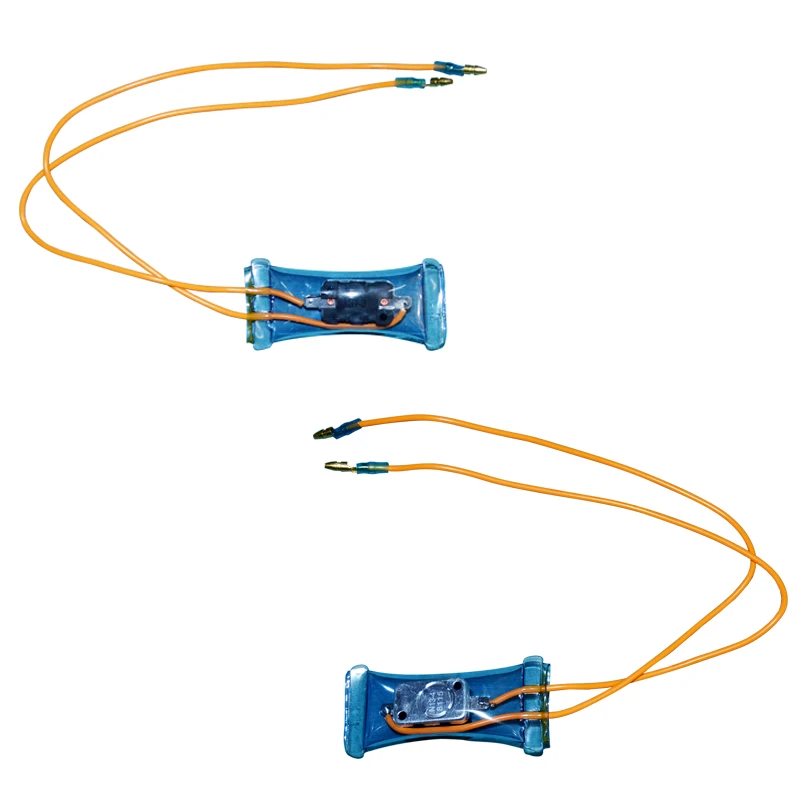

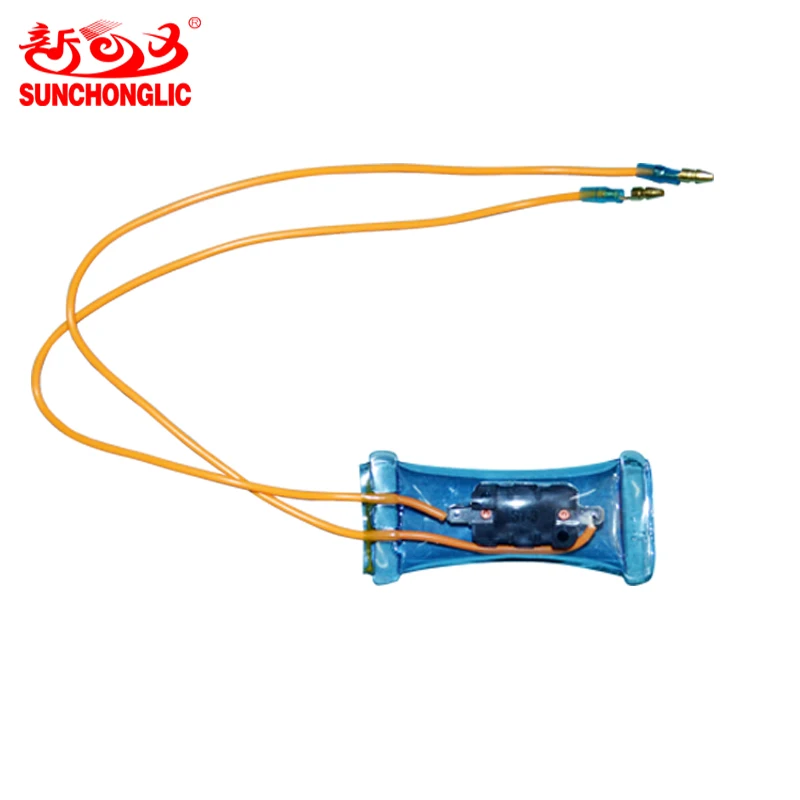

Sunchonglic refrigerator thermostat control second line N13-4 degrees 8115 square
Product Description
Structure and application
In a free state, the contact is in a closed state. When the temperature reaches the customer's use temperature, the bimetallic element is heated to generate internal stress and act quickly, pushing the movable contact piece to open
The contact cuts off the circuit, thereby controlling the temperature. When the electrical appliance is cooled to the set reset temperature, the contact is automatically closed and the normal working state is restored.
Features
Refrigerator/Freezer thermostat is a kind of switch with bimetal as the temperature sensing element. When the electrical appliance is working normally, the bimetal is in stable performance.
The temperature control precision is high, the action is reliable and crisp, small in size, light in weight, no arcing, high reliability, long life, and low radio interference.
Precautions
1) When using the touch-sensing temperature installation, the metal cover should be close to the mounting surface of the controlled appliance. To ensure the temperature sensing effect, the temperature-sensing surface should be coated with thermal conductive silicone grease or other thermal conductive media with similar performance.
2) Do not crush, loosen or deform the top of the cover during installation, so as not to affect performance.
3) Do not allow liquid to penetrate into the temperature controller or excessive force to cause cracks in the shell, and do not change the shape of the external terminals at will.
Influencing electrical reliability, there are adequate insulation protection measures to prevent leakage and ensure safe use.
4) The product is used in a circuit with a current of no more than 5A, and the copper core cross-section should be 0.5-1mm2 wire connection; no more than 10A
Used in current circuits, the wire is selected to be connected with a copper core with a cross-section of 0.75-1.5mm2.
5) The product should be stored in a ventilated, clean, dry, and non-corrosive gas warehouse with a relative humidity of less than 90°C and an ambient temperature of 40°C.
Available specifications:
| Model | Characteristics |
| B02020017 | -7℃ second line (circular) |
| B02020018 | -7℃ second line (square) |
| B02020021 | -7℃ four line (square) |
| B02020016 | -14℃ three lines (square) |
| B02020020 | -7℃ three lines (circular) |
| B02020022 | Three lines (N12-5) degrees (square) |
Product Display
Company Information
why choose us
Welcome to enquiry, our sales team service at any time!
More Products
FAQ
1. May I take some samples to test before placing the order ?
Answer:Yes,but customers need to pay for the sample fees and express fees,and it will be returned when next order is confirmed.
2. How long can you offer the samples?
Answer:1~5 days after the deposit payment is confirmed.
3. What's your payment terms for sample?
Answer:You can pay via T/T
4. What’s the price terms can you offer for us?
Answer:We can accept EXW,FOB,CIF and so on.
5. Do you have any certifications for your products?
Answer:We have ISO9001:2000,CE,RoHS,certifications for all of our products.
6. Where is your main market for your products?
Answer:Most of our Suoer brand products are exported to Southeast Asia,Africa and Mid East.
