Construction building scaffolding system motorized cradle rope gondolas facade cleaning equipment
Product Description
Construction building scaffolding system motorized cradle rope suspension working platform
We are a factory specializing in suspended platform is mainly composed by suspension mechanism, hoist, safety lock, electric control box, building working platform.Its structure is reasonable and easy to operate.It can be assembled and disassembly according to the actual Demand.The building cleaning platform is mainly used for refurbishment, decoration, cleaning and maintenance of high construction building.
Construction building scaffolding system motorized cradle rope gondolas facade cleaning equipment Technical Parameter | ||||||||
Type | ZLP500 | ZLP630 | ZLP800 | ZLP1000 | ||||
Rated Load | 500KG | 630KG | 800KG | 1000KG | ||||
Platform Sise | 5x0.69x1.18m | 6x0.69x1.18m | 7.5x0.69x1.18m | 7.5x0.69x1.18m | ||||
Platform material | Aluminum Alloy type, steel type with hot galvanized,steel type with painting | |||||||
Wire Rope Height | 0-200m | |||||||
Electrical Cable | (3x2.5+2x1.5mm2 )0-200m | |||||||
Working height | 0-200m | |||||||
Steel rope | 4pcsx100m,Ф8.3mm,Ф8.6mm,Ф9.1mm | |||||||
Hoisting Machinery (Copper winding) | LTD5.0 | LTD6.3 | LTD8.0 | LTD10.0 | ||||
1.5kwx2 | 1.5kwx2 | 1.8kwx2 | 2.2kwx2 | |||||
15KN | 15KN | 15KN | 15KN | |||||
Lifting speed | 9.3m/min ± 5% | |||||||
Safety Lock | LSG20 | LSG20 | LSG30 | LSG30 | ||||
20KN | 20KN | 30KN | 30KN | |||||
Locking Cable Angle: 3°~8° | ||||||||
Suspension mechanism Hot Galvanized | Front beam overhang: 1.3 m | |||||||
Support adjustable height: 1.1~1.6m | ||||||||
Power Source | 380V/50HZ 3Phase, 220V/60HZ 3Phase , 220V/60HZ single phase | |||||||
Counterweight | 800kg | 1000kg | 1000kg | 1200kg | ||||
Suspended by parapet clamps ride on the wall
Standard type suspension mechanism hanging boom for platform
A. High quality hot galvanized aluminum ZLP630 building platform suspension motorized rope climb platform
1. Combination of the bottom platform
2. Convenient and reliable electric control system
3. Reasonable designed structure and Attractive appearance
4. The working height can be adjusted to customer need.
5.. The voltage and frequency can be changed according to different countries conditions.
6. The material of the suspended platform can be determined by customer: Steel material (finish treatment: power coated, hot dipping) or aluminum alloy material
7. Famous brand of galvanized steel wire rope
8. The film of the ZLP630 Suspended platform is anti-corrosion( Steel material platform finish treatment is power coated or hot galvanized could chosen; price will be different. )
B. High quality hot galvanized aluminum building platform suspension motorized rope climb platform
Access Platform can be widely used parapet and complicated building in different height. And we can also supply customized platform to meet different requirements from customers.
1.The length of platform can be adjusted within 1M-30M.
2.The working height can be adjusted with your need.
3.The voltage can be adjusted with your need.
4.The platform materials can be adjusted with your need. 1) Aluminum alloy 2) Steel
Special design of aluminum suspended platform building facade working platform

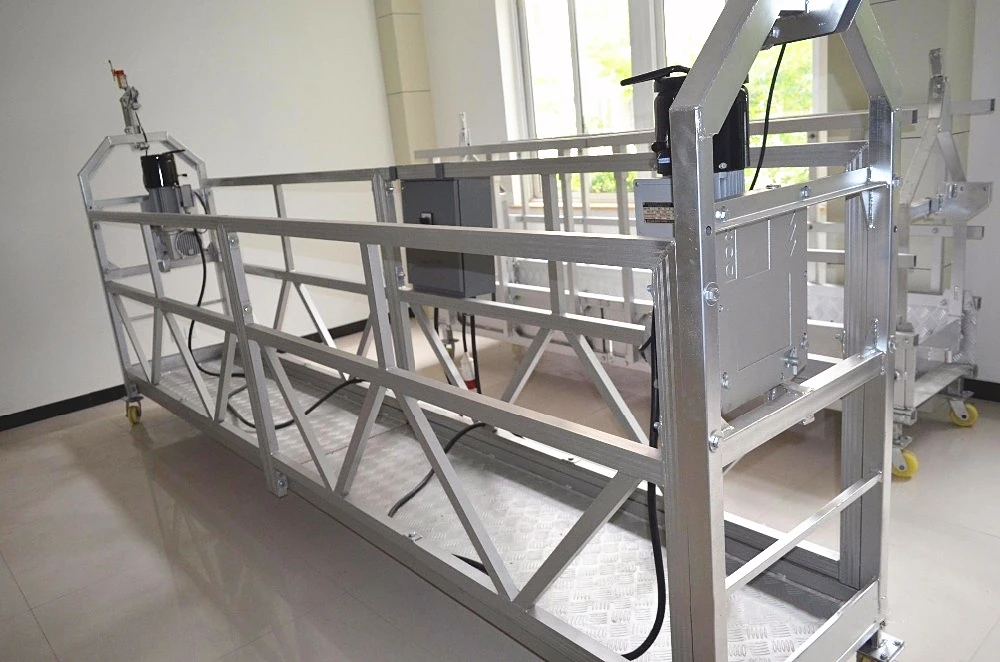

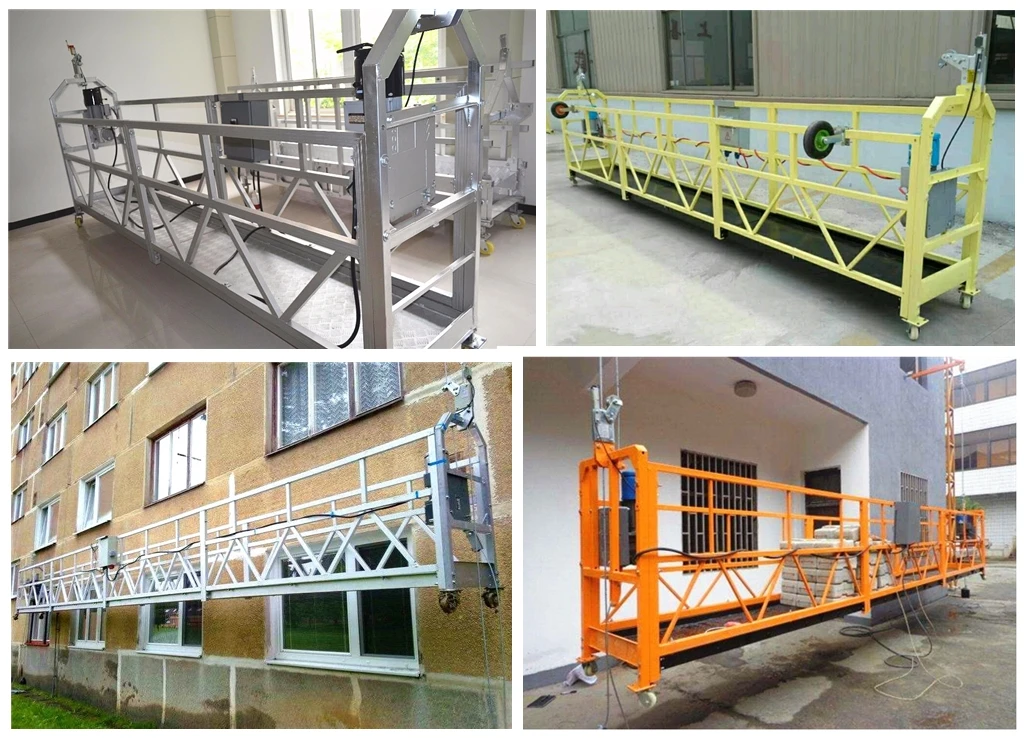

Products show
Cleaning suspended platforms main parts
1. Suspension Mechanism: Steel (painted or hot galvanized)
1. Hoist: LTD6.3, LTD8.0, LTD10
2X1.5KW, 2X1.8KW, 2X2.2KW
3. Safety Lock: LSG30
Dacromet, stainless lock core
4. Hoist installation rack
Strong reinforced
5. Platforms assembly parts
well matched with each part
6. Electrical box
High quality Schneider and CHINT
7. Leading brand wire rope
Strong reinforced
8. Steel wrapped cement
counterweight
9. Wire rope winder
Efficient for high buildings
10. OverLoad limiter
Protection from overload
11. Wall Parapet clamp
For special building roof
12. Centrifugal safety lock
Special for UAE or Europe
\t\t\t\t\t\t\t\t\tManufacture \t\t\t\t\t\t\t
A professional manufacturer of Construction building scaffolding system motorized cradle rope gondolas facade cleaning equipment with advanced equipment and workmanship.
\t\t\t\t\t\t\t\t\tProject Showcase \t\t\t\t\t\t\t

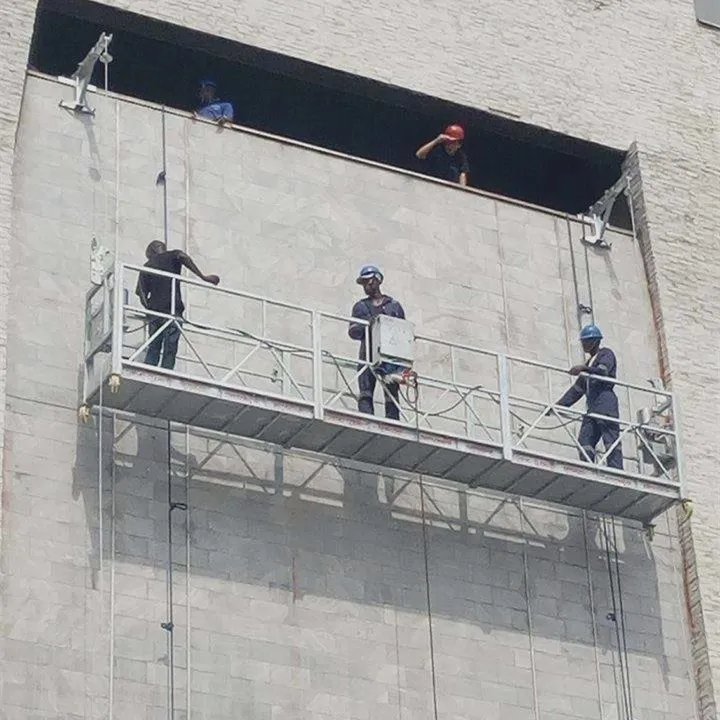

Successful project and application of Construction building scaffolding system motorized cradle rope gondolas facade cleaning equipment

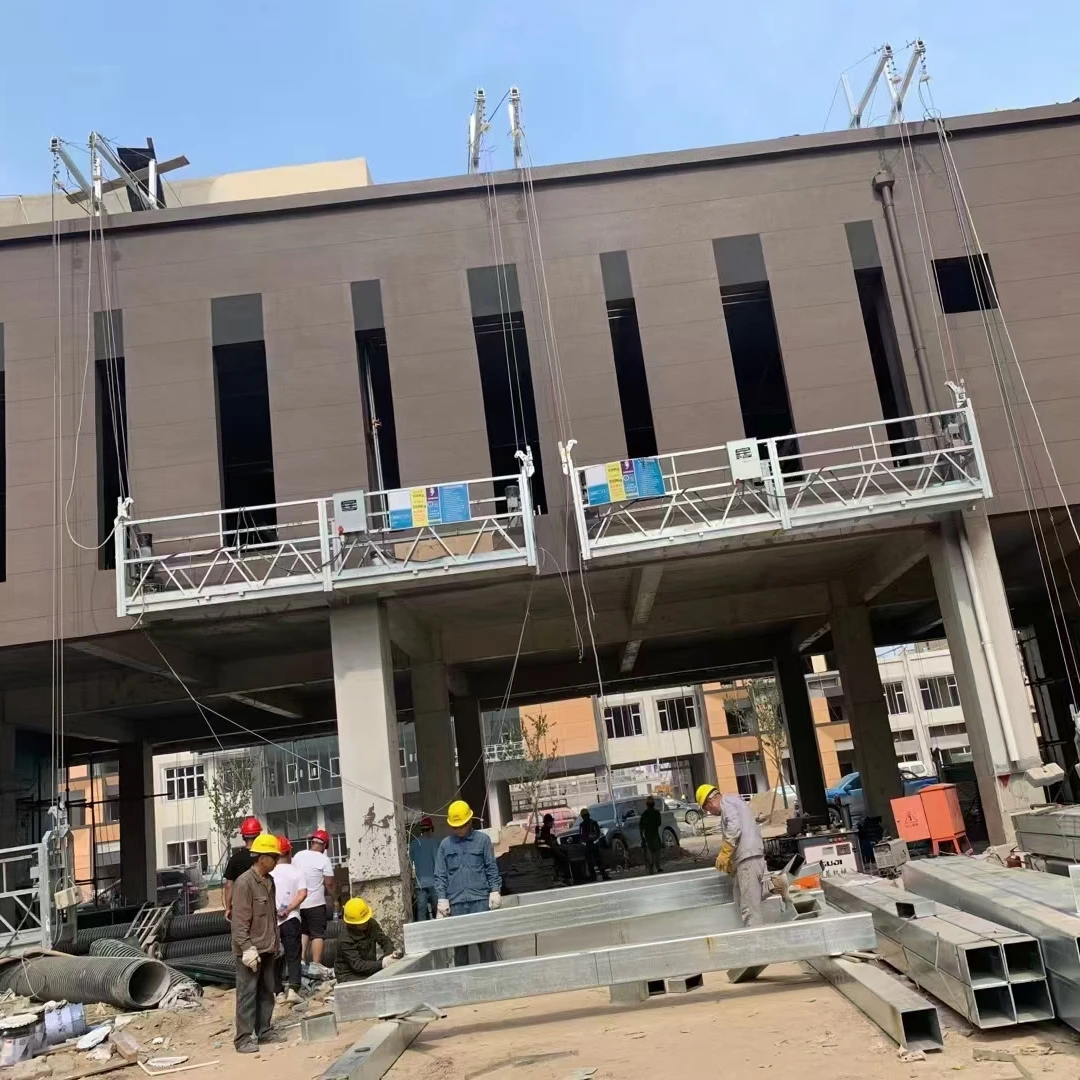

Bridge project use building platform pictures
ZLP500 ZLP630 ZLP800 Construction building platform suspension motorized rope climb working platform

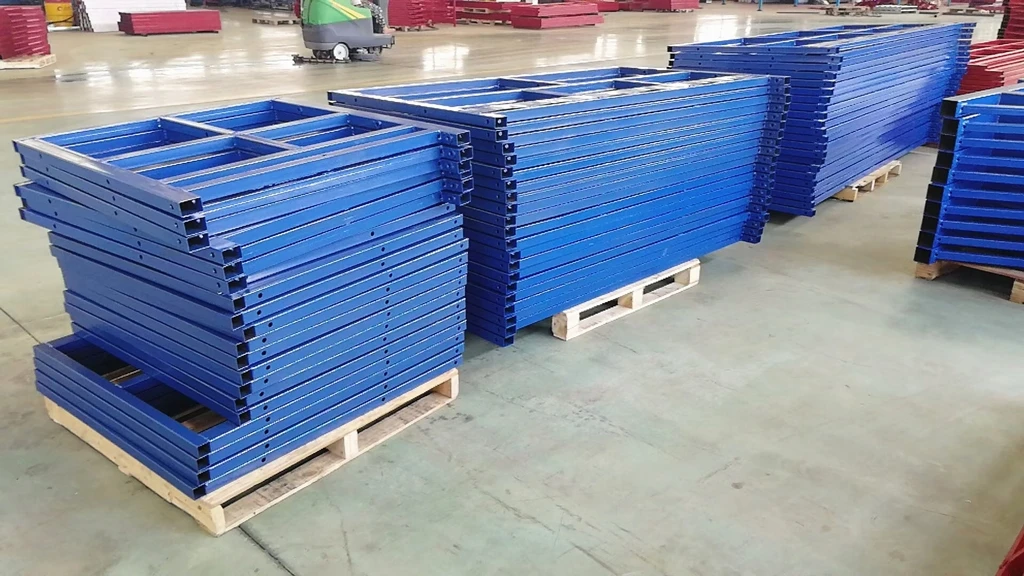

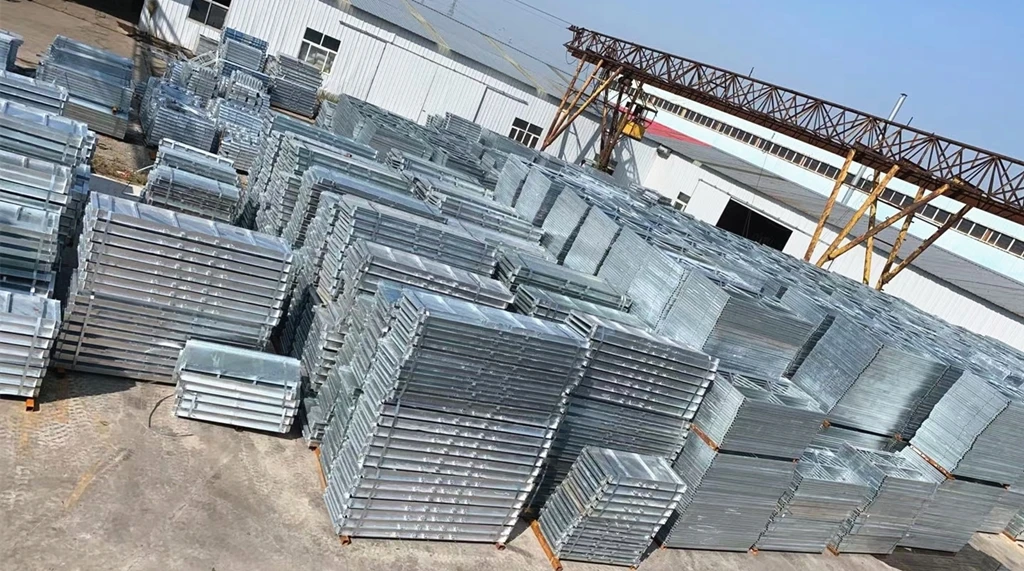

Packing&Delivery
Well packing of Construction building scaffolding system motorized cradle rope gondolas facade cleaning equipment
Certifications
Different of certificate match different markets standards
\t\t\t\t\t\t\t\t\tFaq \t\t\t\t\t\t\t
Request for a quotation with the following contact info., we will get back to you with professional technical parameters and quotation details.
1. Please choose the model you are interested:
ZLP500 with loading capacity 500kg and platform length 5m;
ZLP630 with loading capacity 630kg and platform length 6m;
ZLP800 with loading capacity 800kg and platform length 7.5m
2. We have three materials with different coat for you choosing: Aluminum Alloy type, steel type with hot galvanized coat or steel type with painting spray coat, please choose the type you need.
3. with counterweight or without? if you need counterweight, please choose one type.（A.Cement cast counterweight, B.steel pack cement counterweight , C. Iron Cast type counterweight）
4. Your power source: 380V/50HZ 3Phase, 220V/60HZ 3Phase or other type, please let us know.
5. What's the quantities you need?
6. CIF price or FOB price? If CIF price, please let me know your destination port ?
