Features:

     The heating thermostat perfectly fits most water heating equipment under 95-240VAC current load 3A max. Suitable for installation in a standard single bespatters box or European 60mm round box

 Programmable temperature controller: the ability to write settings procedure through the thermostat to let the thermostat work according to the setting rules.Only5+2 six period per day programming

     Touch screen thermostat, one-touch temperature control over-ride. pre-set temperatures maintained within +/-1℃

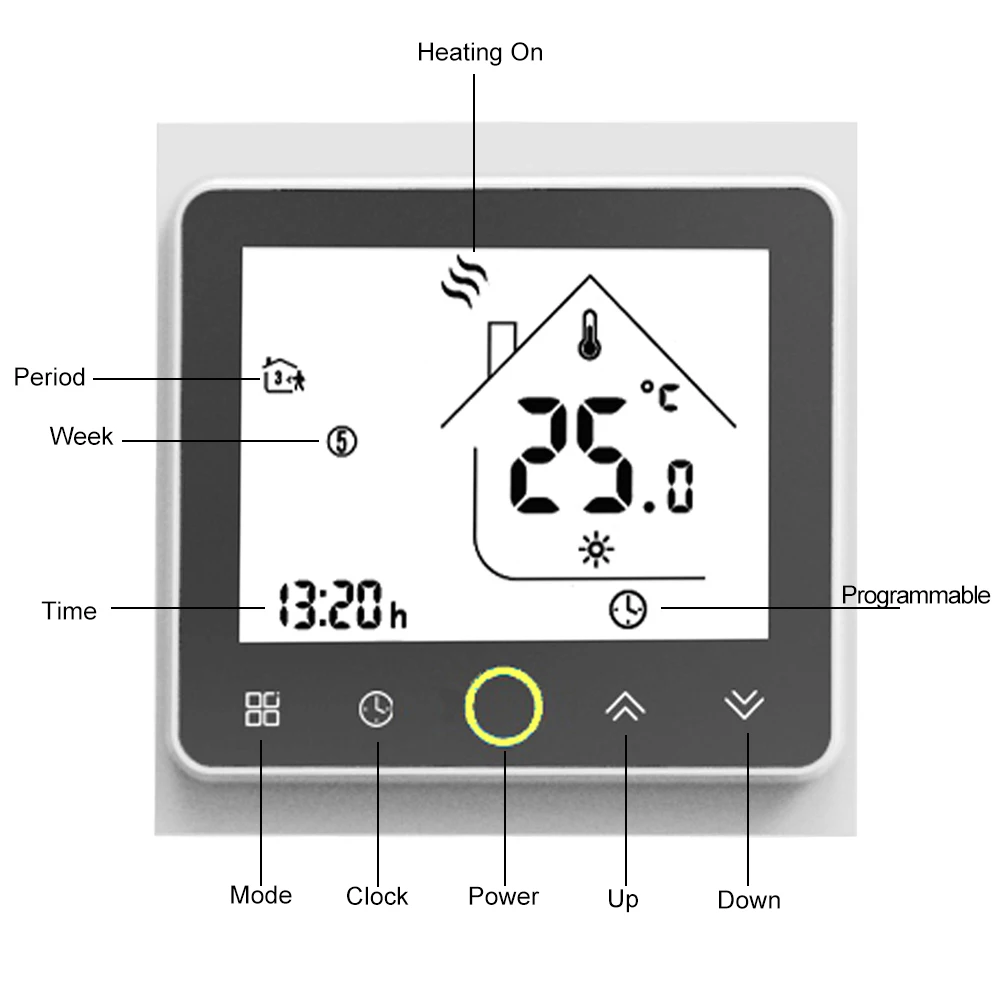

     LCD display thermostat with touch button and ultra thin large LCD screen display, simple to operate and easy to read even in the dark

     NTC sensor room temperature controller, internal and external sensor allow control of both air and/or floor temperatures





Description:

Simple installation

Acrylic face plate

Large, back lit display

Sleek, contemporary design

Elegant chrome frame

Feather touch control panel

5+2 six period per day programming

Simple, one-touch temperature control over-ride .

Pre-set temperatures maintained within +/- 1°C

Internal and external sensors allow control of

both air and/or floor temperatures

Suitable for installation in a standard single bespatters

box or European 60mm round box



Specification:

Sensor:NTC

Accuracy:±1℃

Power Consumption:< 1.5W

Timing Error:<1%

Power Supply:95 ~ 240VAC, 50 ~60Hz

Current Load:3A(water heating),

Shell material:PC+ABS (flame retardant)

Dimension:86x86x13.3mm

Ambient Temp.:0-45℃,5-95%RH

(Non-condensing)

Storage Temp.:-5-55℃

Installation Hole distance: 60mm

Set Temp. Range:5-35℃

Room Temp. Range:5-99℃



Package Include:

1*Thermostat

2*Screws

1*User Guide
