Awon SFM165 60-80HP фермы оборудованием поперечное перекрытие швов 3-точечный гидравлический мотор грани mulcher
- Категория: Agricultural Machinery Parts >>>
- Поставщик: Jiangsu,AWON,Machinery,And,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 2380.15 $* | 2499.33 $* |
| Aug-19-2025 | 2360.69 $* | 2478.21 $* |
| Jul-19-2025 | 1980.42 $* | 2079.0 $* |
| Jun-19-2025 | 2320.56 $* | 2436.5 $* |
| May-19-2025 | 2020.61 $* | 2121.26 $* |
| Apr-19-2025 | 2280.60 $* | 2394.0 $* |
| Mar-19-2025 | 2260.89 $* | 2373.74 $* |
| Feb-19-2025 | 2240.87 $* | 2352.35 $* |
| Jan-19-2025 | 2220.16 $* | 2331.24 $* |
Характеристики
Product Overview

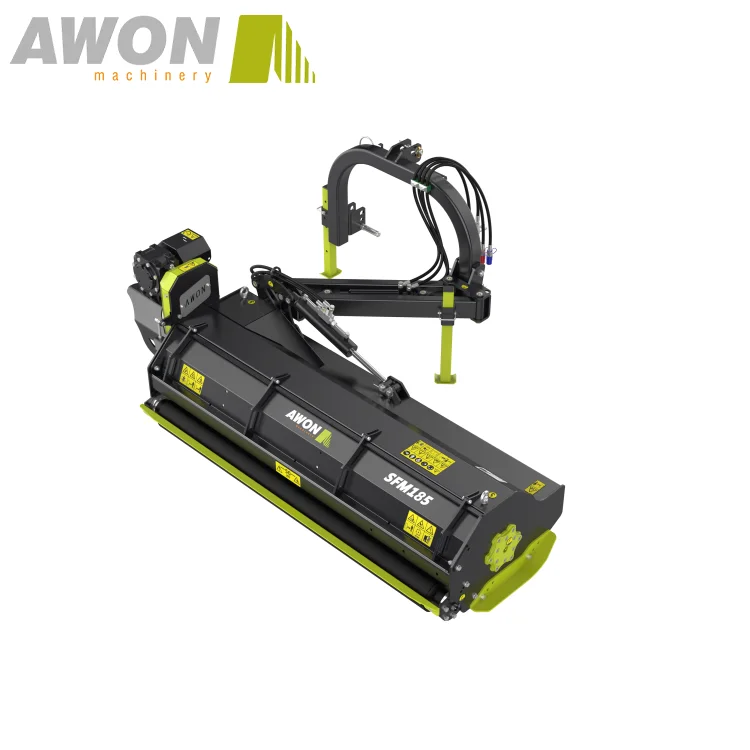

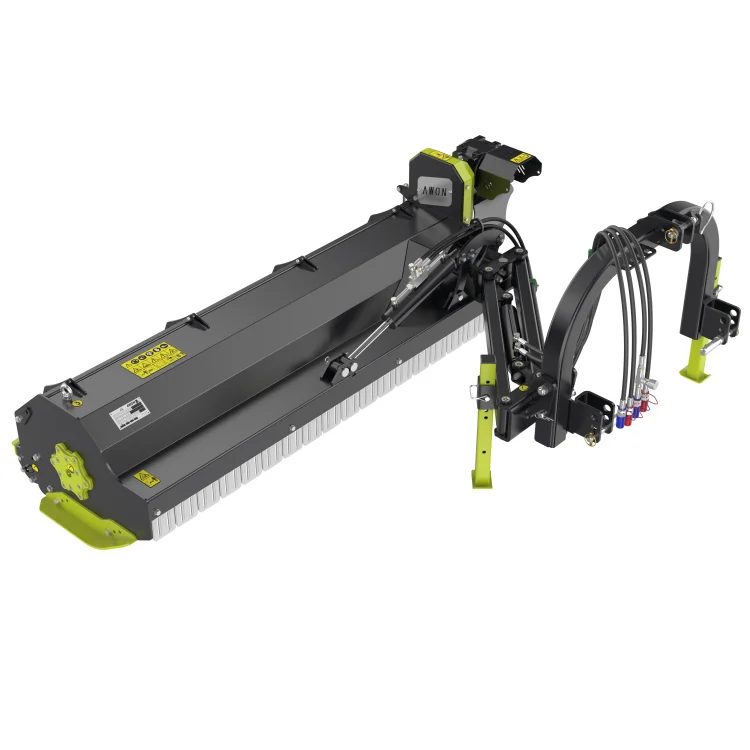

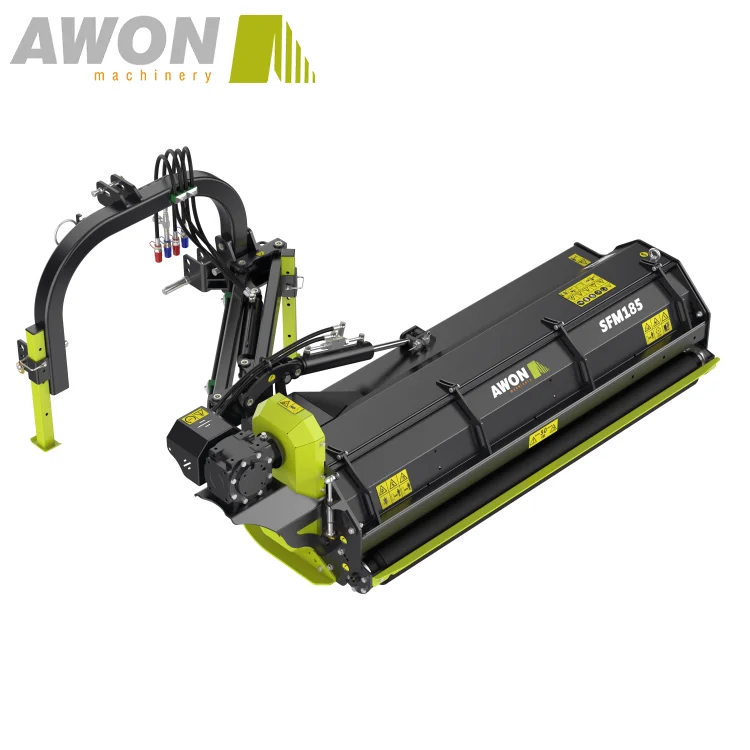

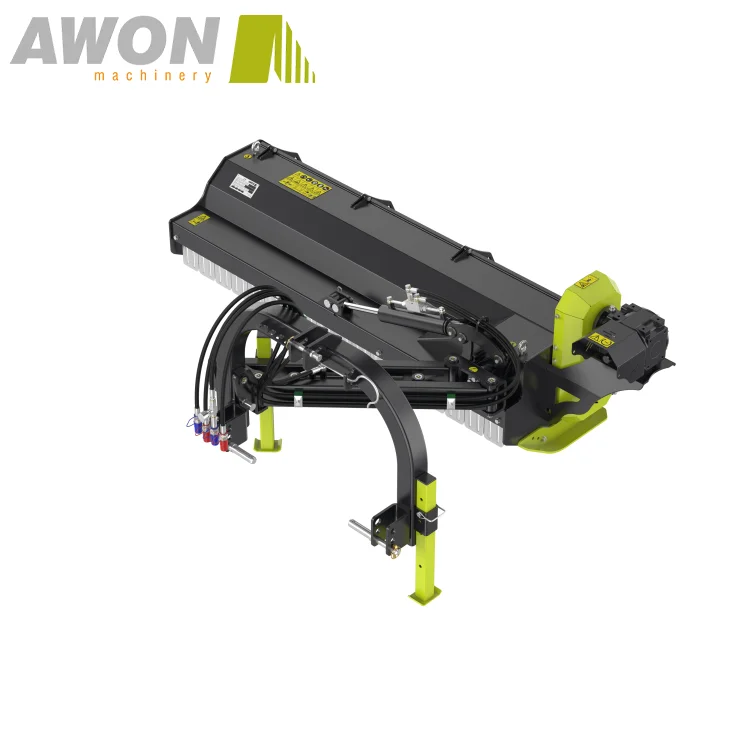

Awon Rear-Side Flail Mower
SFM rear-side series are rear mounted,PTO driven flail mowers for tractors. 10 models in total,working width varies from 1,200 to 2,400mm,power demand 25-130HP.SFM series can be typically aggregated with tractors with 3-point hitch of Cat.Ⅰor Ⅱ.SFM with paralellogram arm, enables operation in-line or at the side of the tractor.Down-tilt angle can reach up to 45°, which is perfect whenever road shoulders and slopes need to be mowed (tilt angle between -45°; +90°).SFM series are specially designed for carriageway maintenance,green belts,scarps,embankments,road shoulders or ditches.
The mowers cut the grass and spread it properly crumbled along the whole width of the cut surface.It enables forming a natural swath and plant offcut mineralization.
Standard Equipment
Shaft with double flail spiral• Overrunning clutch integrated with gearbox• Mechanical
safety breakaway device • Mowing height adjustment with ground following
bar • Wide-angle PTO shaft • Automatic tension of V-belts •Hammer Blades•3-point hitch
safety breakaway device • Mowing height adjustment with ground following
bar • Wide-angle PTO shaft • Automatic tension of V-belts •Hammer Blades•3-point hitch
PRODUCT FEATURES
Main Features
1.Boom reach up: up to 90°，down to -45°
2.Boom reach out: 80 degrees offset
3.Transport: AWON series transport places the cutter head to the rear of the tractor for optimum operator visibility
4.Operation:
1)Enables rise of the machine when obstacle is met
2)Owing to the paralellogram arm works perfectly for heavy-duty road maintenance Assignments
PRODUCT SPECIFICATIONS
Model | SFM165 | SFM185 | SFM`205 |
Weight(Kg) | 443 | 460 | 507 |
Cutting Width(mm) | 1650 | 1850 | 2050 |
PTO Input Speed | 540 | 540 | 540 |
Number of blades | 18 | 22 | 24 |
Power required(HP) | 60-80 | 60-80 | 60-80 |
Production Capacity &Quality Assurance
Packing & Delivery
Why Choose Us
WHO WE ARE
Jiangsu AWON Machinery and Equipment Co.,Ltd located in Nantong, China, a wholly-owned subsidiary of ELITE VIEW ENTERPRISES LIMITED, is an integrated solution provider for Agricultural, Orchard and Gardening applications.
Certifications
Intellectual Property Rights
Patents：9 patents for invention（pending patent included），15 patents for utility model，4 patents for appearance
Registered trademark :4 trademarks
Product Certification：CE、ISO9001、 High-Tech Enterprise Certification
Registered trademark :4 trademarks
Product Certification：CE、ISO9001、 High-Tech Enterprise Certification
FAQ
Q1.Are you a manufacturer,trading company or a third party?
We are a ISO9001 certified factory over 10 years,we design and we produce by ourselves.
Q2.How to ensure the quality of the products?
We have a set of intact quality management system to ensure the quality of products
Q3.Do you have any certificate?
We have ISO9001 and CE certificates.We also have patents for the designs of our machines.
Q4.Do you accept OEM or ODM?
Yes.
Q5: Can we buy one sample?
Yes, we need to add sample fee to the price and will return it back to your after receiving your large order in future.
Q6: What's your delivery time?
After receiving your deposit, we start to produce your order. It usually takes about 30-45 days
We are a ISO9001 certified factory over 10 years,we design and we produce by ourselves.
Q2.How to ensure the quality of the products?
We have a set of intact quality management system to ensure the quality of products
Q3.Do you have any certificate?
We have ISO9001 and CE certificates.We also have patents for the designs of our machines.
Q4.Do you accept OEM or ODM?
Yes.
Q5: Can we buy one sample?
Yes, we need to add sample fee to the price and will return it back to your after receiving your large order in future.
Q6: What's your delivery time?
After receiving your deposit, we start to produce your order. It usually takes about 30-45 days
