PRODUCT DESCRIPTION
Plastic PE Pipes 400mm 500mm 630mm PE100 SDR11 PN16 HDPE Pipe and Fitting Prices Hose HDPE Pipe For Water Supply
HDPE PIPE
is the replacement products of traditional steel pipe PVC drinking water pipes, which not only has a good economy ,but also has the advantages of stable and reliable interface, material impact resistance,crack resistance,aging resistance,corrosion resistance and so on.
PRODUCT DETAILS
Plastic PE Pipes 400mm 500mm 630mm PE100 SDR11 PN16 HDPE Pipe and Fitting Prices Hose HDPE Pipe For Water Supply
Product name | Plastic PE Pipes 400mm 500mm 630mm PE100 SDR11 PN16 HDPE Pipe and Fitting Prices Hose HDPE Pipe For Water Supply |
Working pressure | SDR26/SDR21/SDR17/SDR13.6/SDR11/SDR9 (0.6MPa/0.8MPa/1.0MPa/1.25MPa/1.6MPa/2.0MPa PN6/PN8/PN10/PN12.5/PN16/PN20) |
Size | DN16mm-DN1600mm |
Features | Convenient transportation easy to install |
Material | PE100 |
Executive standard | ISO14001, ISO9001,ISO4427 |
FEATURES AT A GLANCE
Plastic PE Pipes 400mm 500mm 630mm PE100 SDR11 PN16 HDPE Pipe and Fitting Prices Hose HDPE Pipe For Water Supply
Food-grade Quality
Manufactured from 100% virgin HDPE(PE100 grade) raw materials which is non-toxic and tasteless.
It belongs to green building
materials and never scaling through the strict health test,
materials and never scaling through the strict health test,
which can effectively improve
the water quality.
Low Flow Resistance
The smooth inner wall is easy for pipeline for transportation.Under the same condition, HDPE pipe’s delivery capacity can be increased by 30% , as its roughness is much less than that of steel pipe and glass reinforced pipe.
Excellent Flexibility
HDPE pipes could be coiled for the small diameter products.Also,it could be slightly bended for the large diameter products,which
will be much more convenient in the construction site.
50 Years’ Service Life
HDPE pipe is is 4 times the wear resistance of the steel pipe,which means HDPE pipe has long service life and better efficiency.Designed 50 years’ service life under rated temperature and pressure.
Convenient installation
HDPE pipe is connected in the ways of butt fusion,socket fusion and electronic fusion,which means easy and convenient to install.
PRODUCT SPECIFICATION
Plastic PE Pipes 400mm 500mm 630mm PE100 SDR11 PN16 HDPE Pipe and Fitting Prices Hose HDPE Pipe For Water Supply
HDPE PIPE SPECIFICATION | ||||||||||
Outer Diameter (DN/mm) | SDR26 | SDR21 | SDR17 | SDR13.6 | SDR11 | |||||
Working Pressure（Mpa） | ||||||||||
0.6 | 0.8 | 1.0 | 1.25 | 1.6 | ||||||
Thickness（mm） | ||||||||||
φ16 | ||||||||||
φ20 | 2.3 | |||||||||
φ25 | 2.3 | |||||||||
φ32 | 3.0 | |||||||||
φ40 | 3.7 | |||||||||
φ50 | 3.7 | 4.6 | ||||||||
φ63 | 4.7 | 5.8 | ||||||||
φ75 | 4.5 | 5.6 | 6.8 | |||||||
φ90 | 4.3 | 5.4 | 6.7 | 8.2 | ||||||
φ110 | 4.2 | 5.3 | 6.6 | 8.1 | 10.0 | |||||
φ125 | 4.8 | 6.0 | 7.4 | 9.2 | 11.4 | |||||
φ140 | 5.4 | 6.7 | 8.3 | 10.3 | 12.7 | |||||
φ160 | 6.2 | 7.7 | 9.5 | 11.8 | 14.6 | |||||
φ180 | 6.9 | 8.6 | 10.7 | 13.3 | 16.4 | |||||
φ200 | 7.7 | 9.6 | 11.9 | 14.7 | 18.2 | |||||
φ225 | 8.7 | 10.8 | 13.4 | 16.6 | 20.5 | |||||
φ250 | 9.6 | 11.9 | 14.8 | 18.4 | 22.7 | |||||
φ280 | 10.7 | 13.4 | 16.6 | 20.6 | 25.4 | |||||
φ315 | 12.1 | 15.0 | 18.7 | 23.2 | 28.6 | |||||
φ355 | 13.6 | 16.9 | 21.1 | 26.1 | 32.2 | |||||
φ400 | 15.3 | 19.1 | 23.7 | 29.4 | 36.3 | |||||
φ450 | 17.2 | 21.5 | 26.7 | 33.1 | 40.9 | |||||
φ500 | 19.1 | 23.9 | 29.7 | 36.8 | 45.4 | |||||
φ560 | 21.4 | 26.7 | 33.2 | 41.2 | 50.8 | |||||
φ630 | 24.1 | 30.0 | 37.4 | 46.3 | 57.2 | |||||
φ710 | 27.2 | 33.9 | 42.1 | 52.2 | 64.6 | |||||
φ800 | 30.6 | 38.1 | 47.4 | 58.8 | 72.7 | |||||
φ900 | 34.4 | 42.9 | 53.3 | 66.2 | 81.8 | |||||
φ1000 | 38.2 | 47.7 | 59.3 | 73.5 | 90.9 | |||||
φ1200 | 45.9 | 57.2 | 67.9 | 88.2 | ||||||
φ1400 | 53.5 | 66.7 | 82.4 | 102.9 | ||||||
φ1600 | 61.2 | 76.2 | 94.1 | 117.6 | ||||||
PRODUCT APPLICATION
Plastic PE Pipes 400mm 500mm 630mm PE100 SDR11 PN16 HDPE Pipe and Fitting Prices Hose HDPE Pipe For Water Supply
PRODUCT CERTIFICATION
Plastic PE Pipes 400mm 500mm 630mm PE100 SDR11 PN16 HDPE Pipe and Fitting Prices Hose HDPE Pipe For Water Supply
RELATED PRODUCTS

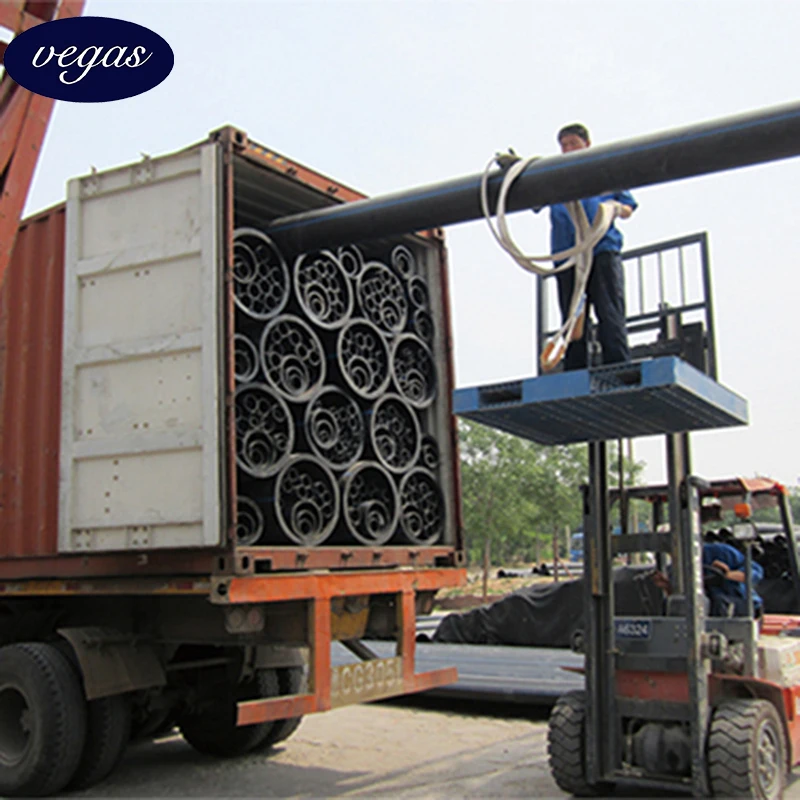

PACKING&LOADING
Plastic PE Pipes 400mm 500mm 630mm PE100 SDR11 PN16 HDPE Pipe and Fitting Prices Hose HDPE Pipe For Water Supply
Vegas Plastic PE Pipes PE100 SDR11 PN16 Water Suipply HDPE Pipe Price
Vegas Plastic PE Pipes PE100 SDR11 PN16 Water Suipply HDPE Pipe Price
Plastic PE Pipes 400mm 500mm 630mm PE100 SDR11 PN16 HDPE Pipe and Fitting Prices Hose HDPE Pipe For Water Supply
CORE COMPETITVENESS
Intergrity------Alibaba assessed supplier&Trade saaurance service provided by Alibaba group.Professional------50 sets of advanced
HDPE pipe production lines and production capacity of more than 80,000 MT per year .
Quality------ISO9001 certification acquired manufacturer,successfully pass the international third party 's test for ISO4427,ASTM
D3035,AS/NZ 4130,EN12201, and GSS text report is avaiable.
Service------Providing professional support and guanrantee in each stages of the sales.
HDPE pipe production lines and production capacity of more than 80,000 MT per year .
Quality------ISO9001 certification acquired manufacturer,successfully pass the international third party 's test for ISO4427,ASTM
D3035,AS/NZ 4130,EN12201, and GSS text report is avaiable.
Service------Providing professional support and guanrantee in each stages of the sales.
