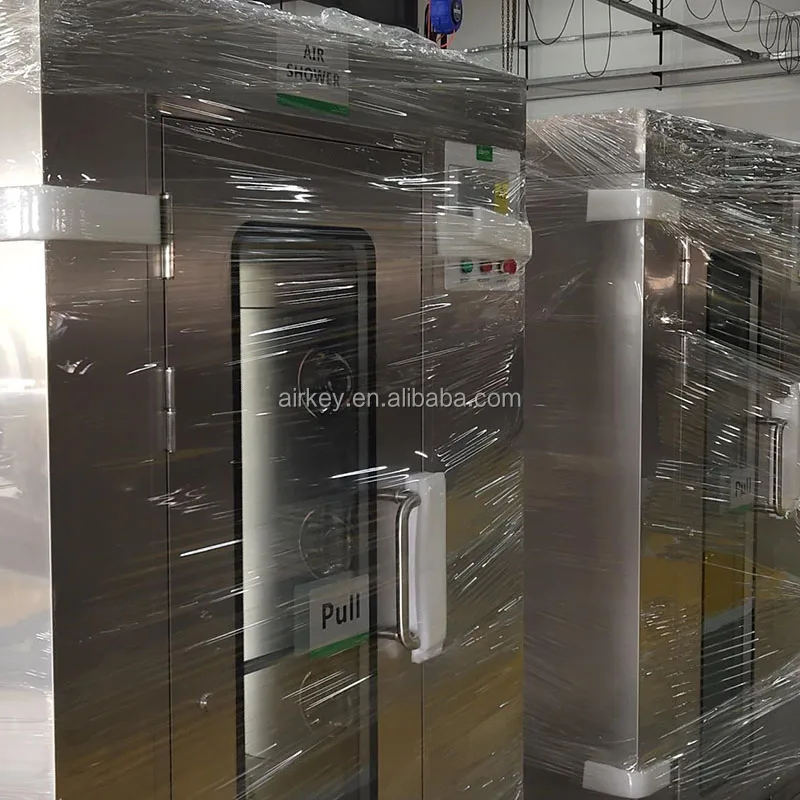

AIRKEY AIR SHOWER



























SERLES	single person  single side air shower	single person double side air shower	double person double side air shower	double person goods air shower
MODEL	GAS-1310*1000*2145	GAS-1360*1000*2145	GAS-1360*2000*2145	GAS-1770*2000*2095
External  Dinension	1310*1000*2145	1360*1000*2145	1360*2000*2145	1770*2000*2095
WxLxH(mm)
lnternal Dimension	790*920*1935	790X920X1935	790*1920*1935	1200*1920*1935
W1xL1xH1(mm)
Door WxH(mm)	744X1925	744X1925	745X1925	1200*1935(double side)
Air Velocity(m/s)	18-22	18-22	18-22	18-22
Number Of Nozzles	6	12	24	24
Lighting Fixture	20WX	20WX	20WX	20WX
HEPA Filter Size(mm)	570x570x69	570x570x69	570x570x69	570x570x69
Qty	1PC	1pc	2PC	2PC
Efficiency	99.99%@0.5μm	99.99%@0.5μm	99.99%@0.5μm	99.99%@0.5μm
Jetting Side	single side	double side	double side	double side
Voltage	3P,380V,50Hz/AC	3P,380V,50Hz/AC	3P,380V,50Hz/AC	3P,380V,50Hz/AC
Max.Consumption	770W	1120W	2240W	22240W
Door Marweial	Aluminum door or all stainless steel
Finishing	Electrostatic powder spraying
Wall  Opening Size	W+10mm,H+5mm
Prefilter	Washable nonwoven fabric
Construction	The box is painted with cold plate, and the bottom plate and nozzle are made of stainless steel (there is no bottom plate in the cargo shower)
Colour	ivory







1. Principle

Air shower/goods air shower are used between clean area and unclean area, or used between cleanroom of lower level and cleanroom of higher level. It can remove dusts on person or on goods and also work as airlock to prevent dusts going inside the clean area.



Air goes inside from the pre filter and fan which are at the bottom of the air shower/goods air shower, then pass the plenum chamber and hepa filter, and go inside via the nozzles. In this way the dusts can be removed from person or goods.



2. Construction

Bottom plate and the nozzles are made of stainless steel; other parts are made of cold roll plate which is rust-free; Inside the top, there is LED light; Electric board can be seen after detaching the cover board of the control panel; Nozzles are at both sides and the direction of nozzles can be adjusted; Hepa filter is at the back of nozzles; There is photoelectric inductive switch so that the air shower will shower automatically when there is person or goods inside; Below the photoelectric inductive switch there is pre filter; It is easy to remove the pre filter, just pull the filter frame upwards. Air shower is interlocking.





Goods air shower is without bottom plate so that trolley can go inside and outside conveniently.





Below are construction of standard single person double side air shower:
