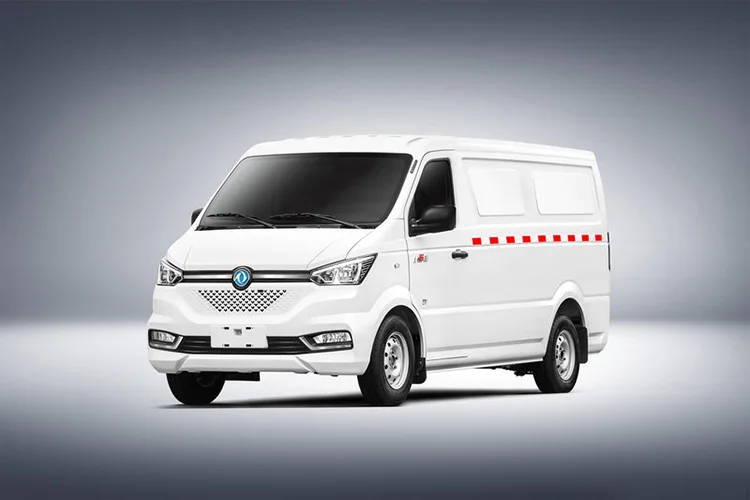

Brand new electric cargo passenger van 220km mileage with customized design
Product Overview
PRODUCT SPECIFICATIONS
Dimensions (mm) Length \\ Width \\ Height | 4865*1715*2060 | 4865*1715*2060 |
Body structure | frameless body | frameless body |
Wheelbase mm | 3050 | 3050 |
Front/rear wheel track (mm) | 1470/1450 | 1470/1450 |
Maximum design total GVW (kg) | 3000 | 3000 |
Curb weight (kg) | 1640 | 1640 |
Rated carrying passengers (persons) | 2 | 2 |
Rated load weight (kg) | 1230 | 1230 |
Maximum speed (km/h) | 90 | 80 |
Maximum gradeability (%) | ≥20 | ≥25 |
Range (km) operating method | 220 | 170 |

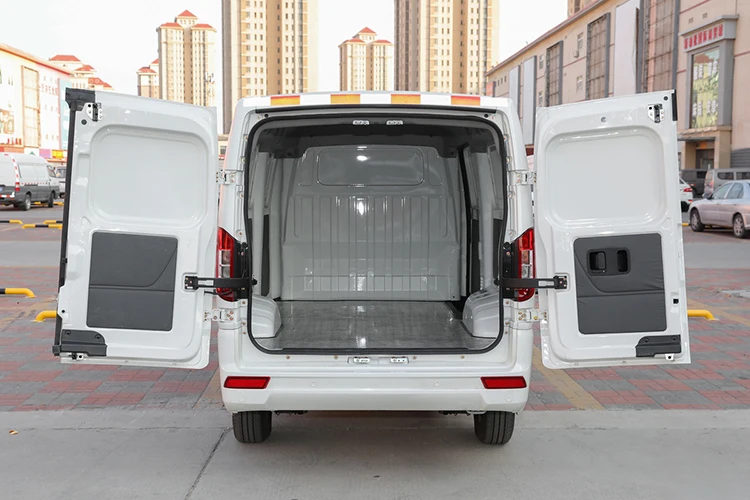

Inside dimension of cargo box (length × width × height) (mm) | 2670*1550*1350 | 2670*1550*1350 |
Trunk/cargo box Capacity (m³) | 5.59 | 5.59 |
Electric motor type | permanent magnet synchronous motor TZ180XS105 | permanent magnet synchronous motor TZ180XS105 |
Electric motor manufacturer | INOVANCE SUZHOU | INOVANCE SUZHOU |
Motor rating/peak power (kW) | 30/70 | 30/70 |
Motor rating/maximum torque (NM) | 90/230 | 90/230 |
Motor rating/maximum speed (RPM) | 3183/9000 | 3183/9000 |
Cooling mode | hydraulic | hydraulic |
Protection grade | IP67 | IP67 |
model | KTZ33X28S001 | KTZ33X28S001 |
Controller Manufacturer | INOVANCE SUZHOU | INOVANCE SUZHOU |
Rated current (A) | 140 | 140 |
Cooling method (air-cooled/liquid-cooled) | hydraulic | hydraulic |
Protection grade | IP67 | IP67 |
Type of energy storage device (lithium iron phosphate/ternary) | LFP | LFP |
Energy storage device assembly model | L125V01 | L125V01 |
Energy storage device assembly production enterprises | CATL | CATL |
Single model of energy storage device | CB220 | CB220 |
Energy storage unit production enterprises | CATL | CATL |
Total storage capacity of energy storage device (kWh) | 41.86 | 41.86 |
Energy Storage Device Assembly Nominal Voltage (V) | 334.88 | 334.88 |
Energy Storage Plant Assembly Nominal Capacity (AH) | 125 | 125 |
Battery Charging Time Fast/Slow Charging (h) | fast 2-2.5h,slow 14-16h | fast 2-2.5h,slow 14-16h |
Battery heating system | ● | ● |
Rated power (3.3/6.6kW) | EU charging Port | EU charging Port |
Cooling method (air-cooled/liquid-cooled) | hydraulic | hydraulic |
Qty of speeds | 3 | 3 |
Shifting device | Handle type electronic shift gear | Handle type electronic shift gear |
Rear axle ratio | 10.5 | 10.5 |
Drive mode (front/middle/rear, front/middle/rear drive) | RR | RR |
Front suspension type | McPherson type independent suspension | McPherson type independent suspension |
Rear suspension type | Sheet spring non-independent suspension | Sheet spring non-independent suspension |
Steering assistance (hydraulic/electric) | electric | electric |
Front and rear brake type (disc/drum) | Front disc/Rear drum | Front disc/Rear drum |
Parking Brake (Electronic/Handbrake) | Hand brake | Hand brake |
Tire size | 195 R14C | 195 R14C |
Rim material (steel/aluminum alloy) | Iron | Iron |
The spare tire | ● | ● |
Near and far light lamp source (halogen/xenon /LED) | LED | LED |
LED daytime running lights | ● | ● |
front fog lamp | ● | ● |
rear fog lamps | ● | ● |
Reverse lamp | ● | ● |
High brake lamp | ● | ● |
Cargo box dome lamp | ● | ● |
Headlight height adjustable (manual/electric) | electric | electric |
Reading lamp | ● | ● |
Window lifting (electric/manual) | electric | electric |
External rearview mirror adjustment (manual/electric) | manual | manual |
Interior cosmetic mirror | passenger | passenger |
Inside rearview mirror - manual mode | ● | ● |
Seat belts | ● | ● |
Safe shake handshandle | 1 | 1 |
Electric central control door lock | ● | ● |
ABS antilock | ● | ● |
Alarm when the vehicle is under high pressure | ● | ● |
Low speed signal | ● | ● |
Door door open reminder | ● | ● |
No seatbelt alert | DRIVER● PASSENGER● | DRIVER● PASSENGER● |
Remote terminal monitoring system | ● | ● |
Reversing radar | — | — |
Reversing camera | — | — |
Mechanical keys | 1 | 1 |
Remote control key | 1 | 1 |
Steering wheel position adjustment (manual/electric, 2-way / 4-way) | — | — |
Electric horn (horn for driving whistle) | ● | ● |
Combination instrument | ● | ● |
Air conditioning refrigeration (manual/automatic) | manual | manual |
PTC heating | ● | ● |
Visor | DRIVER● PASSENGER● | DRIVER● PASSENGER● |
Cigarette lighter | ● | 、● |
Cab carpet (fabric/nylon /PVC etc.) | PVC● | PVC● |
Trunk/Carpet (fabric/nylon /PVC/ aluminum alloy, etc.) | aluminium alloy● | aluminium alloy● |
Inside container skin | ● | ● |
Car roof outside the antenna | ● | ● |
Inside the door to protect the plate storage space | ● | ● |
Dashboard storage box/cup holder | ● | ● |
Dashboard storage box/cup holder | ● | ● |
Ceiling | ● | ● |
Trunk lid open (manual/electric) | manual | manual |
Seat material (fabric/leather) | fabric | fabric |
Main drive seat adjustment mode (manual/electric, 4/6/8 direction) | manual 4 direction● | manual 4 direction● |
First seat adjustment mode (manual/electric, 4/6/8 direction) | manual 4 direction● | manual 4 direction● |
Master/first officer seat headrest height adjustment | ● | ● |
Radio | ● | ● |
External antenna | ● | ● |
USB/AUX interface | ● | ● |
Interior color | Dark gray | Dark gray |
Outside rearview mirror housing color | black | black |
Front and rear bumper colors | same as body | same as body |
High level brake light | ● | ● |
Automatic headlights on | ● | ● |
Seat belt not fastened (driver/passenger) | ● | ● |
Daytime running light | ● | ● |
Trolley low speed warning system | ● | ● |
