Высококачественная HD видеокамера для видеоконференций с CMOS сенсором и полнофункциональным
- Категория: Conference Camera >>>
- Поставщик: Shenzhen,Grandvideo,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 0.84 $* | 0.92 $* |
| Aug-17-2025 | 0.86 $* | 0.75 $* |
| Jul-17-2025 | 0.7 $* | 0.63 $* |
| Jun-17-2025 | 0.96 $* | 0.81 $* |
| May-17-2025 | 0.94 $* | 0.48 $* |
| Apr-17-2025 | 0.32 $* | 0.46 $* |
| Mar-17-2025 | 0.80 $* | 0.75 $* |
| Feb-17-2025 | 0.16 $* | 0.10 $* |
| Jan-17-2025 | 0.98 $* | 0.37 $* |
Характеристики
Products Description

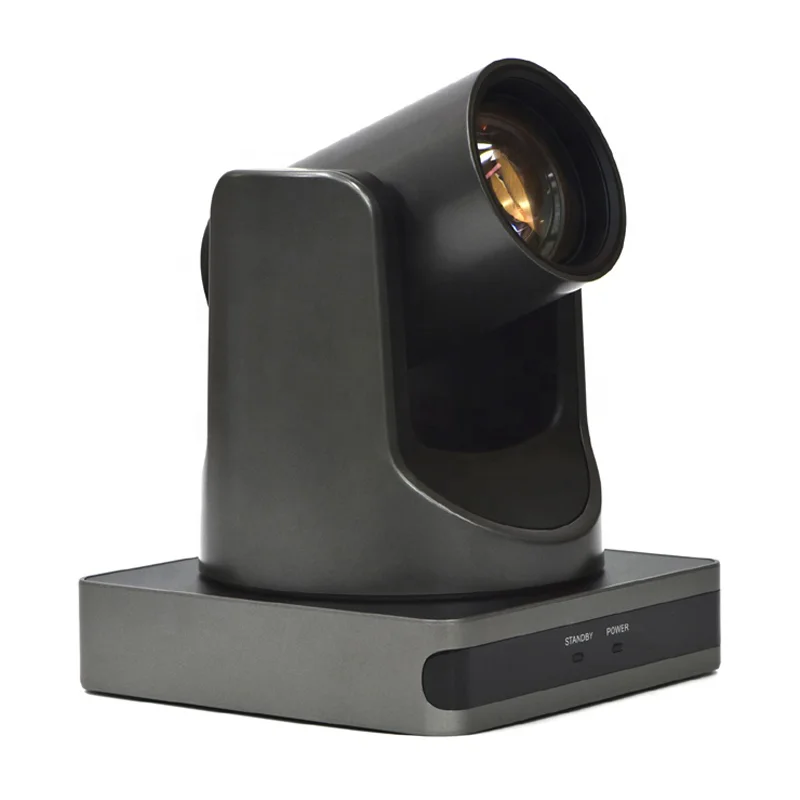

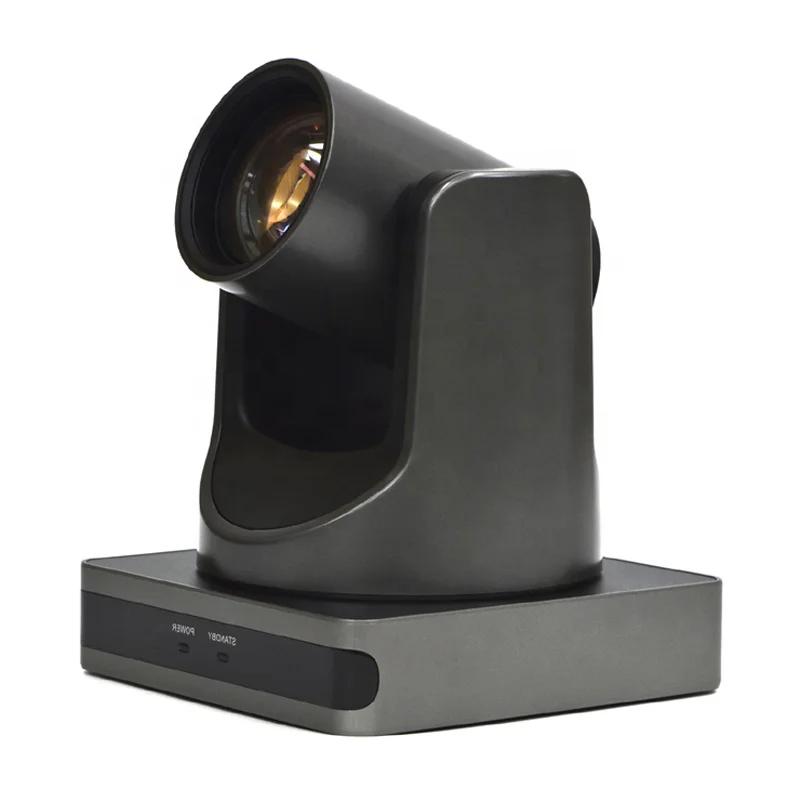

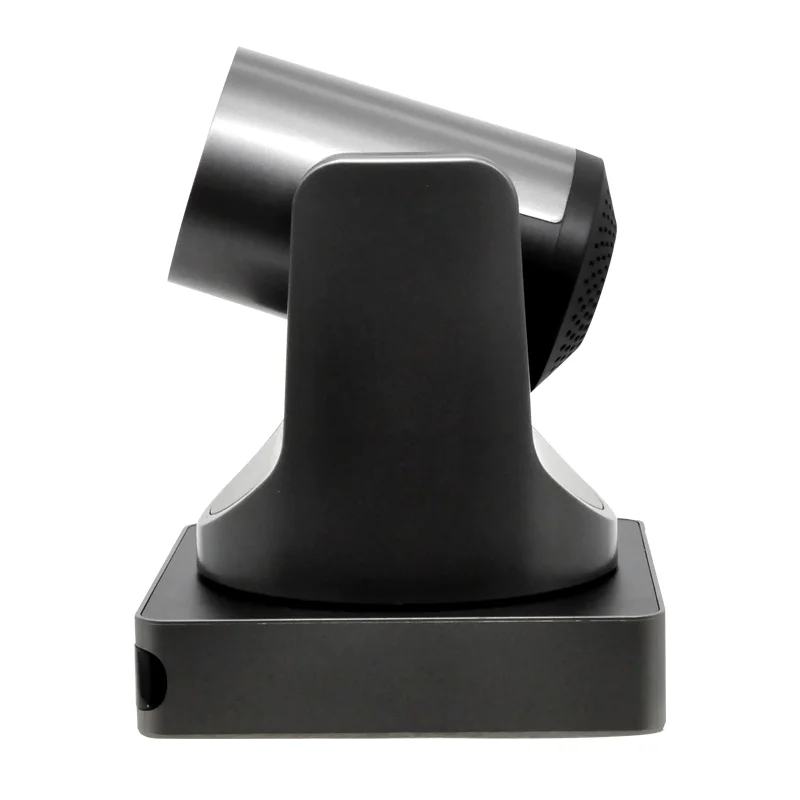

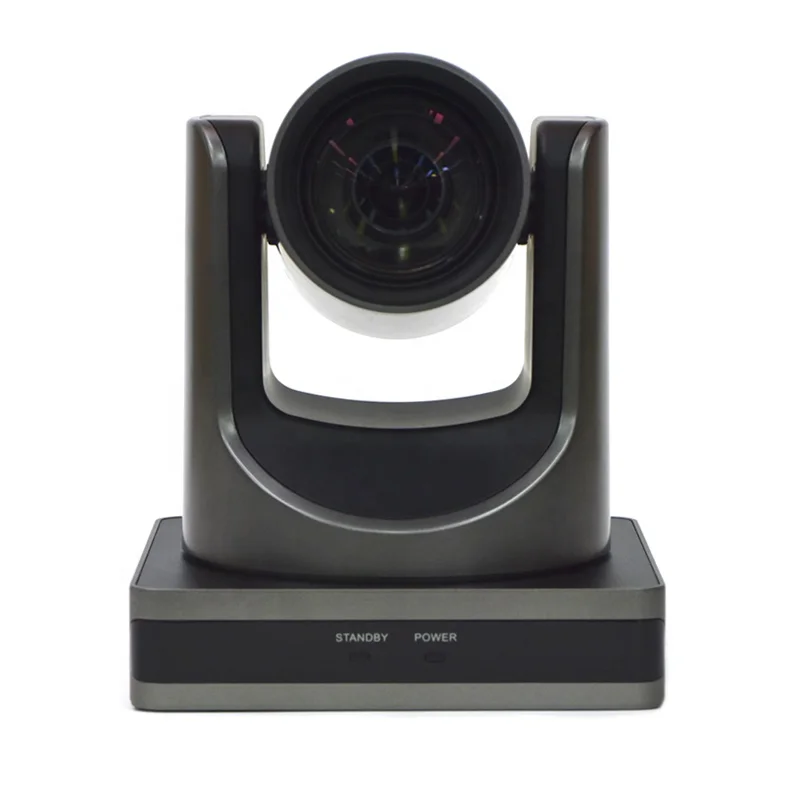

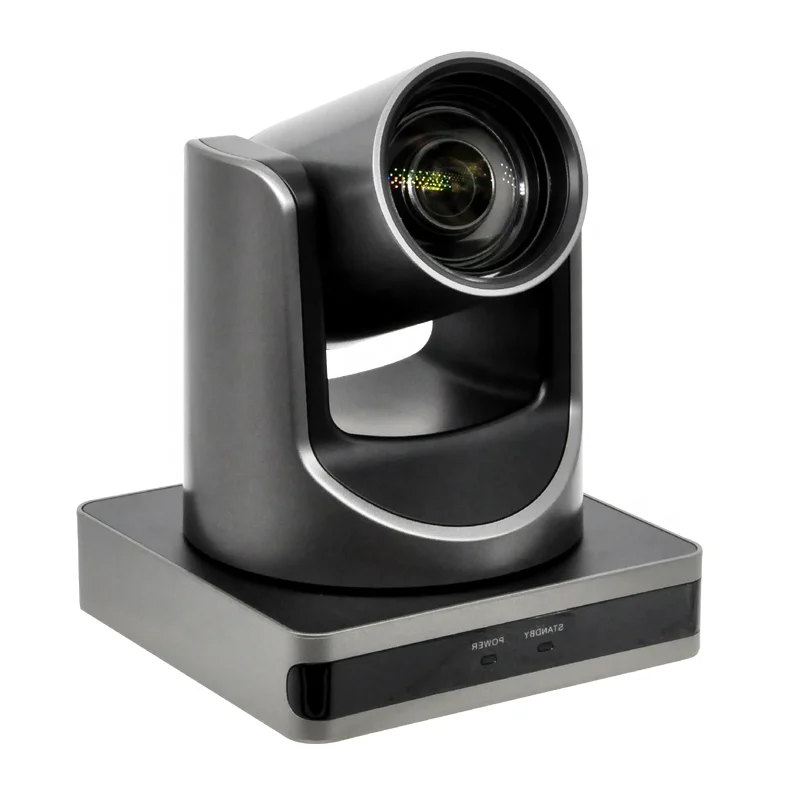

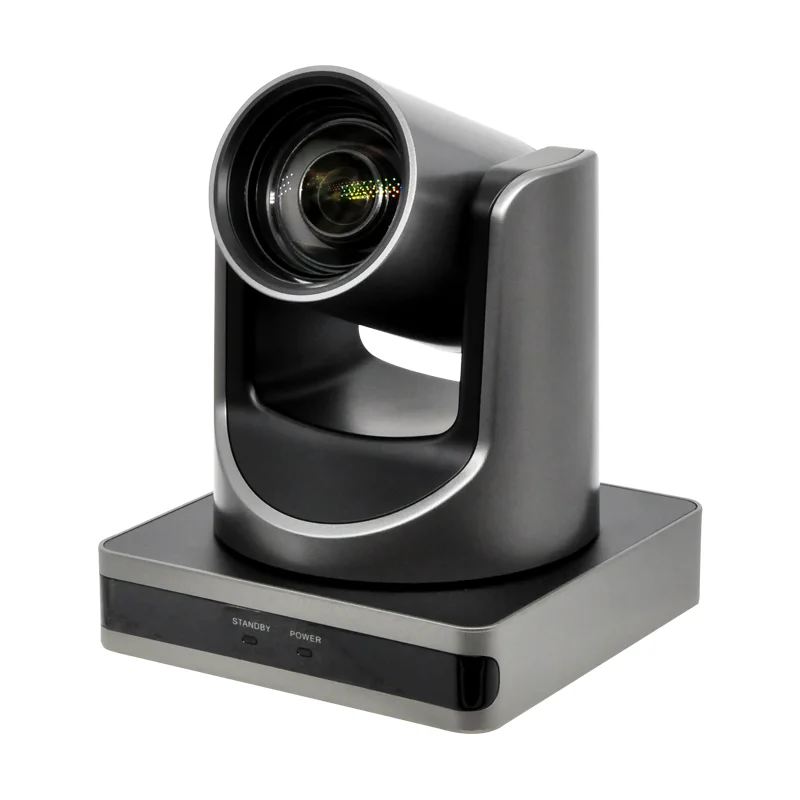

GV-V71CV
HD video conference camera
1080P UVC 12X
1080P UVC 12X
Features
● Full-featured USB interface
High-speed USB interface, support encoding output, support UVC protocol.
● USB infrared transmission (optional)
According to customer needs, the required infrared code value can be transparently transmitted.
● Good compatibility
Support UVC v1.1 protocol, support mainstream video conferencing software on the market.
● 72.5° wide-angle lens + 16x digital zoom
Using a 72.5° high-quality ultra-wide-angle lens, the optical zoom reaches 12 times and supports 16 times digital zoom.
● 1080P
It adopts a 1/2.8-inch, 2.07 million effective pixel high-quality HD CMOS sensor to achieve high-quality images with a maximum
resolution of 1920x1080.
● Low illumination
The new CMOS image sensor can effectively reduce the image noise in low illumination conditions, while applying 2D and 3D noise
reduction algorithms, the image signal-to-noise ratio is as high as 55dB or more.
● Remote control
Use the RS232 serial port to control the camera.
High-speed USB interface, support encoding output, support UVC protocol.
● USB infrared transmission (optional)
According to customer needs, the required infrared code value can be transparently transmitted.
● Good compatibility
Support UVC v1.1 protocol, support mainstream video conferencing software on the market.
● 72.5° wide-angle lens + 16x digital zoom
Using a 72.5° high-quality ultra-wide-angle lens, the optical zoom reaches 12 times and supports 16 times digital zoom.
● 1080P
It adopts a 1/2.8-inch, 2.07 million effective pixel high-quality HD CMOS sensor to achieve high-quality images with a maximum
resolution of 1920x1080.
● Low illumination
The new CMOS image sensor can effectively reduce the image noise in low illumination conditions, while applying 2D and 3D noise
reduction algorithms, the image signal-to-noise ratio is as high as 55dB or more.
● Remote control
Use the RS232 serial port to control the camera.
Parameters
Video camera
Video resolution | 1080p, 720p, 540p, 480p, 360p, 240p, etc., with different resolutions according to different color spaces/ compression methods. | ||||||
sensor | 1/2.8 inch, CMOS, 2.07 million pixels | ||||||
scanning method | progressive scan | ||||||
Lens | 12x, f3.5mm ~ 42.3mm, F1.8 ~ F2.8 | ||||||
Digital zoom | 16x | ||||||
Minimum illumination | 0.5Lux @ (F1.8, AGC ON) | ||||||
shutter | 1/30s ~ 1/10000s | ||||||
White balance | Automatic, indoor, outdoor, one-button, manual, specified color temperature | ||||||
BLC | support | ||||||
Digital noise reduction | 2D&3D digital noise reduction | ||||||
Signal to noise ratio | ≥ 55dB | ||||||
Horizontal field of view | 72.5° ~ 6.9° | ||||||
Vertical field of view | 44.8° ~ 3.9° | ||||||
Horizontal rotation range | ±170° | ||||||
Ve r t i ca l rotat i o n range | -30° ~ +90° | ||||||
Pan speed range | 1.7° ~ 100° /s | ||||||
Ve r t i ca l rotat i o n speed range | 1.7° ~ 69.9° /s | ||||||
F l i p h o r i zo n ta l l y and vertically | support | ||||||
Image freeze | support | ||||||
Number of preset positions | 255 | ||||||
Input and output interface
USB interface | 1 way, USB 2.0, type B socket | ||||||
C o m m u n i c a t i o n Interface | 1 channel, RS232 In: 8-pin small DIN, maximum distance: 30 meters, VISCA/ Pelco-D/Pelco-P protocol; 1 channel, RS232 Out: 8-pin small DIN, maximum distance: 30 meters, VISCA protocol networking; | ||||||
Power connector | JEITA type (DC IN 12V) | ||||||
USB features
Support operating system | Windows 7, Windows 8, Windows 10, Mac OS X, Linux, Android | ||||||
Color space | YUY2 / MJPEG / H.264 | ||||||
Video format | YUY2 (isochronous mode): up to 640x480P/30 H.264 AVC: up to 1080P/30 MJPEG: up to 1080P/30 | ||||||
UVC audio | support | ||||||
USB video communication protocol | UVC 1.1 | ||||||
UVC PTZ control | support | ||||||
General specification
Input voltage | DC 12V | ||||||
Input Current | 1.0A (maximum) | ||||||
Operating temperature | -10 ~ 40° C | ||||||
stored temperature | -40 ~ 60℃ | ||||||
Power consumption | 12W (maximum) | ||||||
Mean time between failures | >30000 hours | ||||||
size | 144mm x144mm x 167.9mm | ||||||
weight | 1.35Kg | ||||||
Application
SMB Enterprise/Government/Education and teaching/Telemedicine etc.
Our assemble line
dust-free workshop
Cheaking
intelligent and professional
Aging test
High quality because aging test one by one
Our company
Shenzhen Grandvideo Technology Co., Ltd. is a high-tech enterprise focusing on the research and development, production, sales and
related technical services of audio and video equipment.
Founded in 2005, the company has more than 10 years of experience in OEM/ODM/JDM, focusing on full HD, ultra-high definition video
cameras and audio equipment, covering HD video conferencing PTZ cameras, HD network cameras, integrated cameras, microphones, etc.
Products are mainly used in video conference, distance education, telemedicine, e-government, emergency communication, unified
communication, multimedia classroom and other fields.Our products and solutions serve more than 30 countries and regions in the
world, including China, the United States, Germany, the Netherlands, France, Norway, Italy, Singapore, Russia, South Korea, India,
South Africa, etc.
The headquarter and factory are located in Baoan District, Shenzhen, with more than 150 employees and a plant area of more than
6,000 square meters, and branches and warehouses in Hong Kong, London, Hungary and the United States.
The company's core competence lies in deep understanding of the industry user needs, many years of experience in video
communication, ability to convert advanced technologies into product, sincere customer service, and flexible business model.
related technical services of audio and video equipment.
Founded in 2005, the company has more than 10 years of experience in OEM/ODM/JDM, focusing on full HD, ultra-high definition video
cameras and audio equipment, covering HD video conferencing PTZ cameras, HD network cameras, integrated cameras, microphones, etc.
Products are mainly used in video conference, distance education, telemedicine, e-government, emergency communication, unified
communication, multimedia classroom and other fields.Our products and solutions serve more than 30 countries and regions in the
world, including China, the United States, Germany, the Netherlands, France, Norway, Italy, Singapore, Russia, South Korea, India,
South Africa, etc.
The headquarter and factory are located in Baoan District, Shenzhen, with more than 150 employees and a plant area of more than
6,000 square meters, and branches and warehouses in Hong Kong, London, Hungary and the United States.
The company's core competence lies in deep understanding of the industry user needs, many years of experience in video
communication, ability to convert advanced technologies into product, sincere customer service, and flexible business model.
