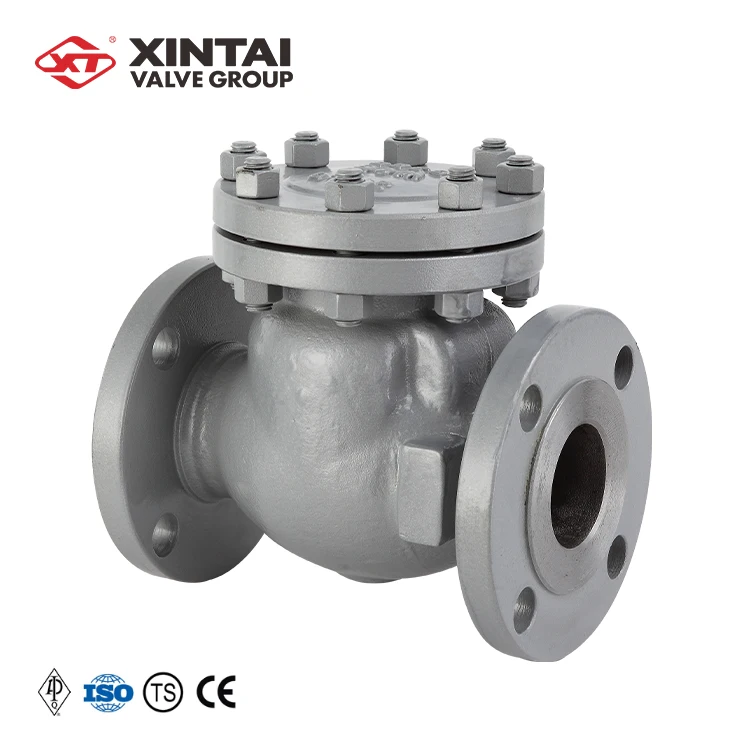

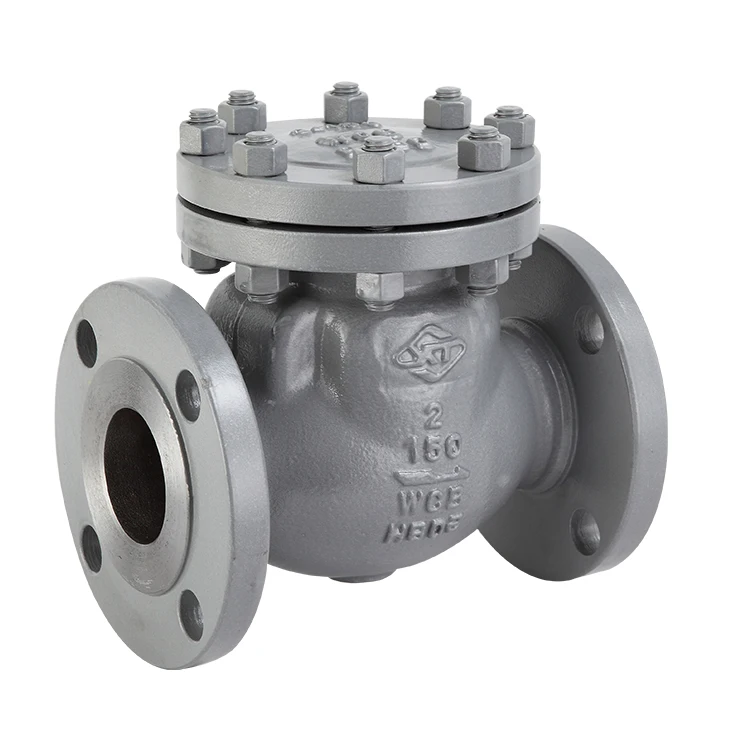

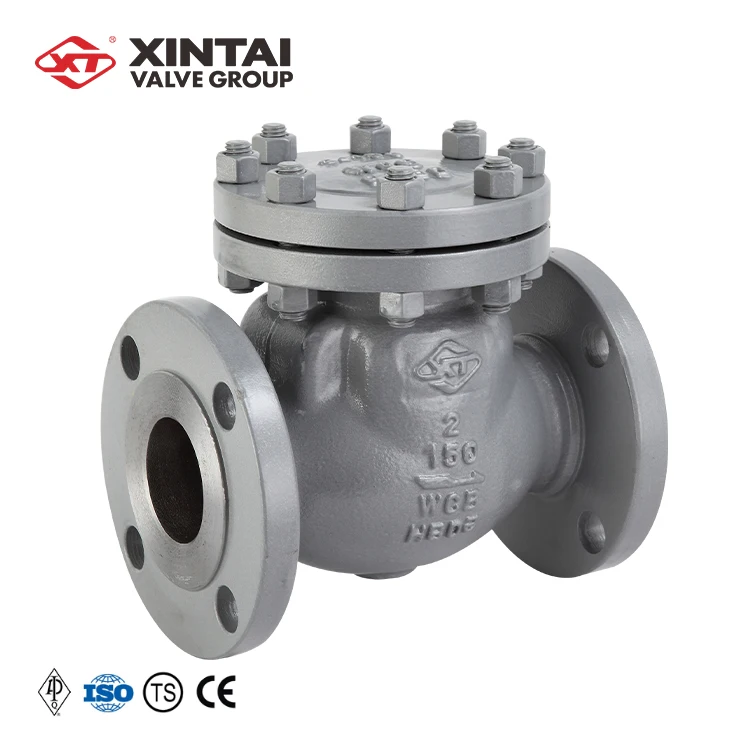

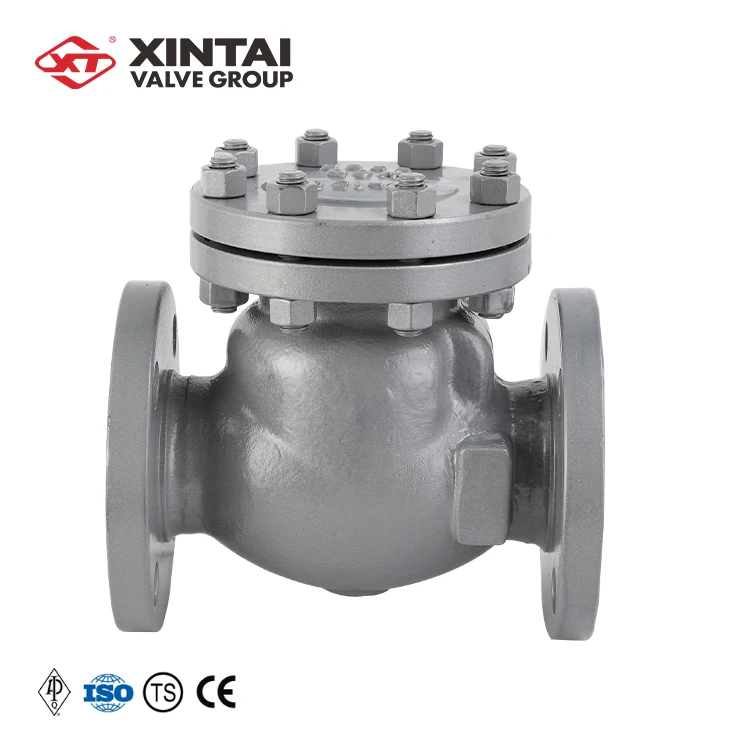

Инфракрасный по индивидуальному заказу 6 дюймов 150LB гидравлической шаровой головкой для тела обратный клапан


Поделиться:


Цена:92,00 $ - 111,00 $*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-15-2025 109.69 $* 114.27 $*
Aug-15-2025 109.3 $* 114.77 $*
Jul-15-2025 91.58 $* 96.61 $*
Jun-15-2025 107.23 $* 112.12 $*
May-15-2025 93.28 $* 98.4 $*
Apr-15-2025 105.99 $* 110.23 $*
Mar-15-2025 104.13 $* 109.45 $*
Feb-15-2025 103.8 $* 108.53 $*
Jan-15-2025 102.99 $* 107.74 $*

Характеристики



VR


banner






product display


Type
API Check Valve
Authentication
ISO9001,CE, API6D
Medium temperature
Minus 29 degrees to 350 degrees
Power
Hydraulic
Flow medium
Water, oil, natural gas
Interface size
1/2in,3/4in,1in,1-1/4in,1-1/2in,2in,2-1/2in,3in,4in,5in,6in,8in,10in,12in,14in,16in,18in,20in,24in
Material
WCB
Pressure
150LB
Application
Check valves belong to the category of automatic valves, which are mainly used in pipelines where the medium flows in one
direction, and only allow the medium to flow in one direction to prevent accidents. This type of valve should generally be
installed horizontally in the pipeline.
Structure
Swing check valve is also called one-way valve or check valve, its function is to prevent the medium in the pipeline from flowing
back. The valve that opens or closes on its own by the flow and force of the medium to prevent the medium from flowing back is
called a check valve.




Valve Comparison


Heavy Weight Type Check Valve




Medium Weight Type Check Valve




Light Weight Type Check Valve




Light Weight Type
Check Valve
Medium Weight Type
Check Valve
Heavy Weight Type
Check Valve

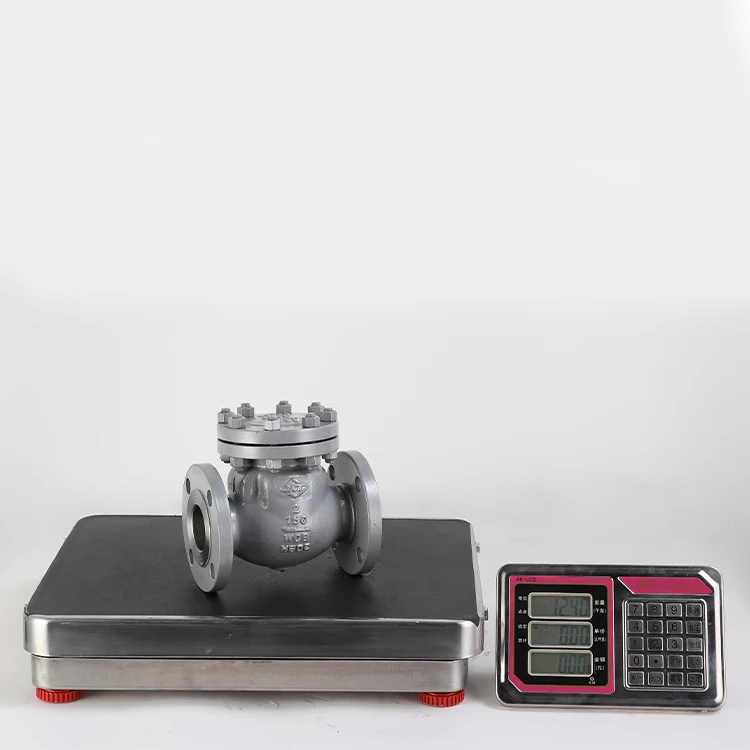

Valve Cover Weight
1.35KGS
1.9KGS
3.2KGS
Valve Body Weight
7.8KGS
9.3KGS
11.7KGS
Valve Body Wall Thickness
7MM
9.3MM
11.5MM

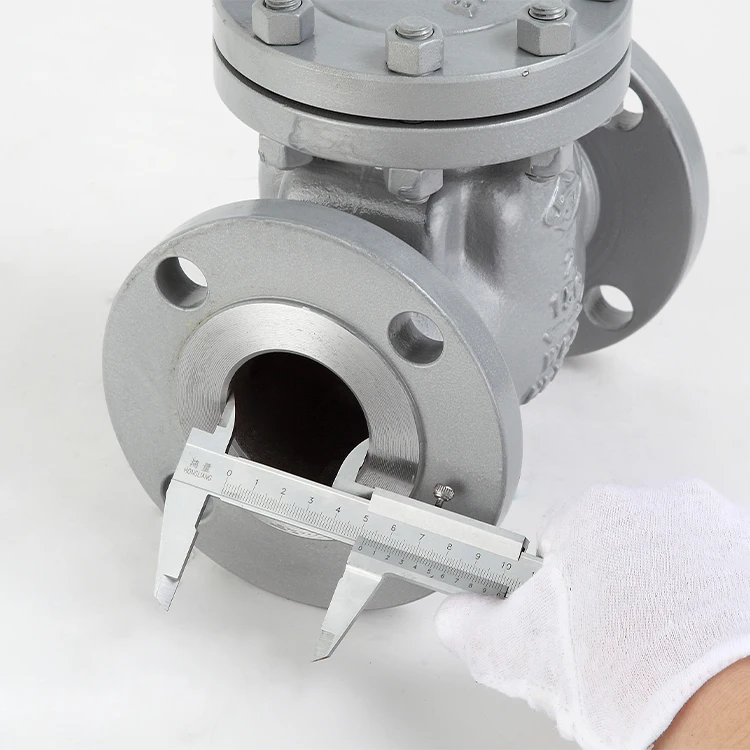

Flange Thickness Without Raised Part
16.3MM
17.1MM
17.9MM
Valve Disc
WCB+13Cr,
The Disc Is Installed Inside, The Disc And The Rocker Are Bolted
WCB+13Cr,
The Disc Is Installed Inside, The Disc And The Rocker Are Bolted
A105+401,
The Disc Is Installed Outside, The Disc And The Rocker Are Bolted
Middle Gasket
Metal Mound Gasket
Composite,Single Side Hemming
Metal Winding, Belt Inner Ring
Bolt and Nut
4PCS, Single Head Nut
8PCS, Double Head Nut
6PCS, Double Head Nut
Inner Wall
Rough Inside, No Treatment
Inner Polished,
Shot Blast Treatment
Inner Polished,
Shot Blast Treatment
Valve Seat Sealing Surface
Body Seal
Sleeve Weld
Sleeve Weld
Sprue Size
Small
Middle
Large


More Specification






product select




Company Profile


XINTAI VALVE GROUP CO., LTD
XINTAI VALVE GROUP CO., LTD. was founded in 1998, is a professional valve maunfacturing company which conjoins R&D, casting, development, production and sale. The Group's headquarters is located in the Longgang Airport New District, Wenzhou, and is centered on research and manufacturing technology. The factory covers an area of approximately 32000 square meters. The two major bases for casting were respectively located in the central industrial zone of Longwan District, Wenzhou, with an area of 9,800 square meters. Longwan Airport New Area Casting Base in Wenzhou, with an area of 28,000 square meters. The existing staff of 578 people, including high and mid-level engineering and technical personnel 58 people, mainly in oil, natural gas, chemical, power stations, metallurgy, national defense, water conservancy projects, pharmaceuticals and other fields.
Over the years, XINTAI bases on the normative management, guided by market demand, ensures the quality of survival, bases on customer satisfaction, innovate product to promote development. Its concept is people first, harmony development, create win-win situation. XINTAI recruits talent person, advocates humanistic management, provides well environment for people's development.






Production Process




Inspection Process








FAQ


FAQ
1. who are we?
We are based in Zhejiang, China, start from 1998,sell to Eastern Europe(40.00%),Mid East(20.00%),Eastern Asia(20.00%),Domestic
Market(20.00%). There are total about 201-300 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Ball Valve,Gate Valve,Globe Valve,Check Valve,Y Strainer

4. why should you buy from us not from other suppliers?
One of the largest casting valves manufacturers in Wenzhou,with 11 production lines planned in 2022. Workshop covers 32,000 square
meters. Annual output is over 270,000 valves.

5. what services can we provide?
Accepted Delivery Terms: FOB;
Accepted Payment Currency:USD,EUR,JPY,HKD,CNY;
Accepted Payment Type: T/T;
Language Spoken:English,Chinese
