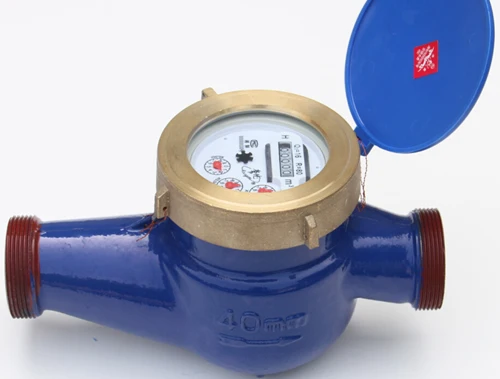

ISO 4064 wet dial, class B for multi-jet  domestic type water meter



water meter(LXS-15-50)



Brief introduction:

The intelligent digital water meter is mainly composed of a meter case, a cover, a counting mechanism, a measuring mechanism, etc. The counting mechanism and impeller are completely isolated by mechnical transmission, and the reading part of the wheel is wet and keeps the reading part clear for a long time by using water.Anti-fog, anti-fouling and other characteristics.



Characteristic:

High accuracy, accurate measurement, convenient maintenance, technical index up to GB/T778.1~3-2007 standard, dry counter and measured water can keep the indication clear for a long time, and water contact parts are made of high quality anti-corrosion and anti-fouling material to make standard pipe thread.Can be installed with wireless and wired remote transmission function, the realization of remote meter reading intelligent metering terminal.



Working condition(s):

Water temperature 0.1~30℃, working pressure≤1MPa.



Figurative diagram:











Shape dimension & weight:

Diameter (DN)	Length (mm)		Width (mm)	Height(mm)	Connection thread		Weight (Kg)
	L	L1	B	H	d	D
15	259	165	96	106	R1/2	G3/4 B	1.26
20	294	190	96	107	R3/4	G1 B	1.5
25	382	225	101	114	R1	G1 1/4 B	2.48
32	385	230	101	114	R1 1/4	G1 1/2 B	2.81
40	430	300					4.89
50	446	300					5.94





Allowable error of indication & error Curve:

From Q1 inclusive up to but excluding Q2 is ± 5%;
From Q2 inclusive up to and including Q4 is ± 2% for T30 and ± 3% for T50 ;
