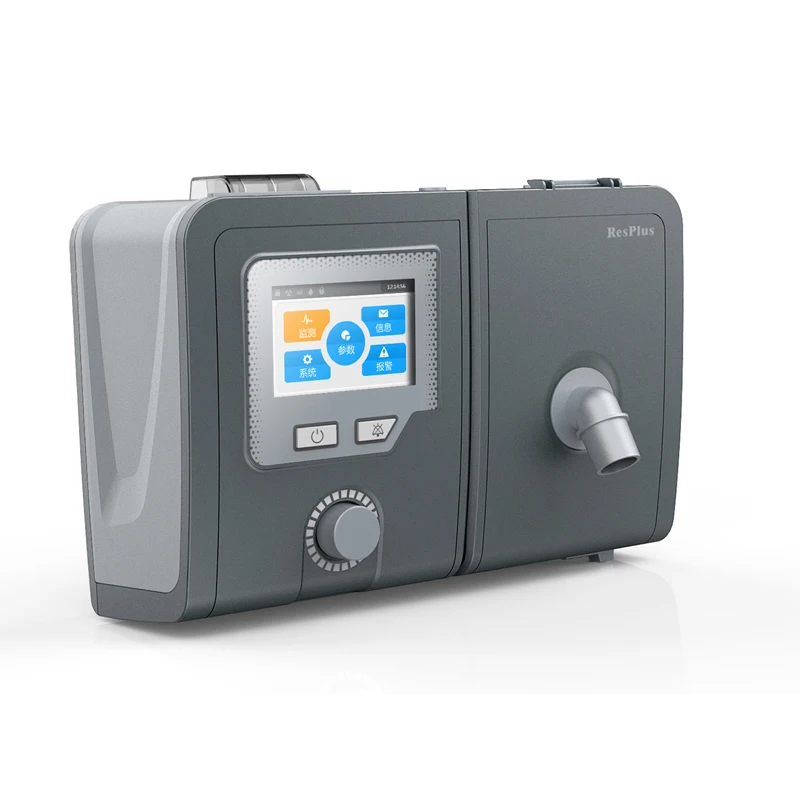

3.5"colorful LCD screen
Provide vivid information in one page and more legibility;
User interface design to enable fast-setup.
Real-time data monitoring
Track the monitering treatment data in real time.
Master core-technology
Imported Swiss pressure sensor
cooperates with innovative algorithm
to fulfill greater sensibility.
Dail Design
Rotate one key to complete
vatious operations.
Lower dBA
Less noise achieved by
high-quality Blower.

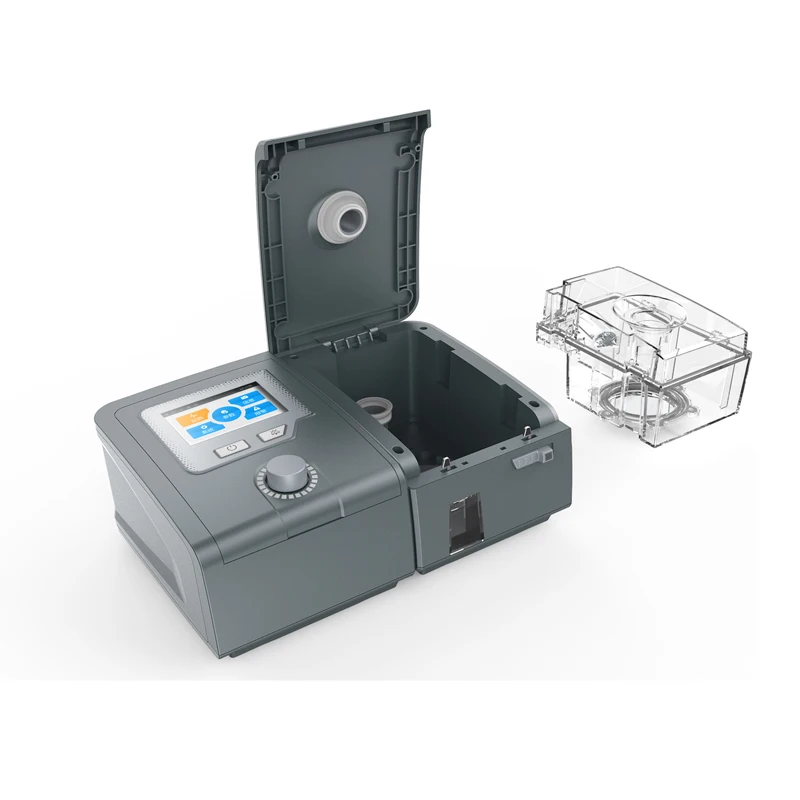

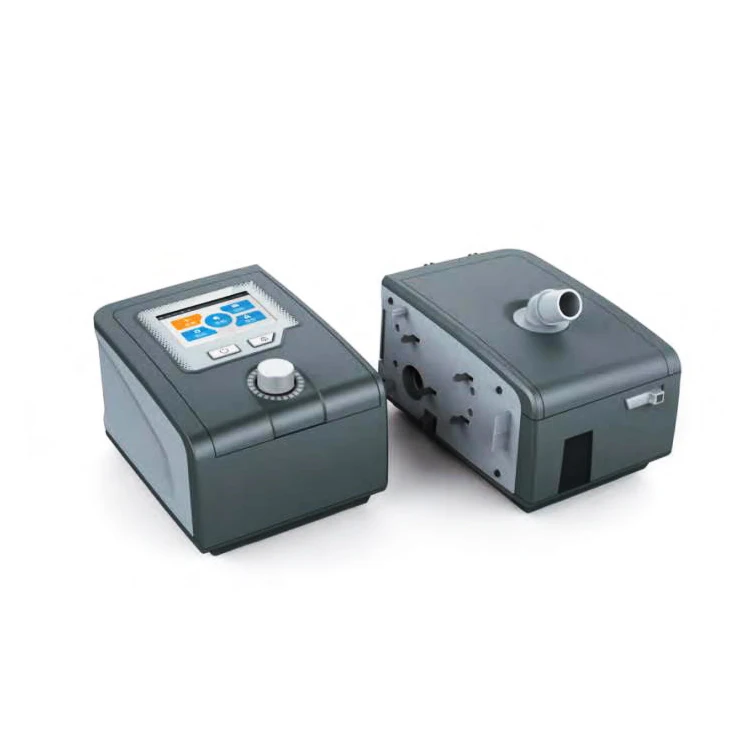

Separable design for host and humidifier
Flexible choices for therapy place are allowed by separable design.
Heating Humidifier
5 temperature levels for humidifier are available;
Designed to prevent back flow and be detachable to clean easily.
Multiple respiratory modes
CPAP、S、T、S\T、APCV suitable for various respriatory insufficient patients.
Auto-sensibility
Isens and Esens are automatically adopted to individual' s treatment.
VAF
Maintain a target tidal volume to meet patients' needs.
A variety of Alerts
Safer use is ensured by alerts, including power down, air leakage, high/low pressure, ect.
limitation InspTime
User can choose a period of time to inhale by setting the max-and min-InspTime , which ensures effective treatments.
Specification
Model
B-25T
B-30T
B-30P
Respiratory mode
CPAP. S/ T. S. T
CPAP、S/T、S、T
CPAP、S/T、S、T、APCV
Parameters
IPAP
4-25cmH2O
4-30cmHzO
4-30cmH2O
EPAP
4-23cmH2O
4-25cmH2O
4-25cmH2O
Isens
Auto 、 1-6 level
Auto、1-6 level
Auto. 1-6 level
Esens
Auto 、 1-6 level
Auto、1-6 level
Auto、1-6 level
Islop
1-6 level
1-6 level
1-6 level
InspTime
0.5-4s
0.5-4s
0.5-4s
Max-InspTime
0.5-4s
0.5-4s
0.5-4s
Min-InspTime
0.5-4s
0.5-4s
0.5-4s
BPM
3-40bpm
3-40bpm
3-40bpm
VAF settings
-
-
Available
Target VT
-
-
50-2000ml
Ramp
0-60min
0-60min
0-60min
Auto-On
On/Off
On/Off
On/Off
Auto-Off
On/Off
On/Off
On/Off
Auto-air compensation
Yes
Available
Available
Auto-adjustment altitude
Yes
Available
Available
Noise Level
≤30dBA
≤30dBA
≤30dBA
Humidifier
0-5 level
0-5 level
0-5 level
Configuration
Screen
3.5"colorful LCD
3.5"colorful LCD
3.5"colorful LCD

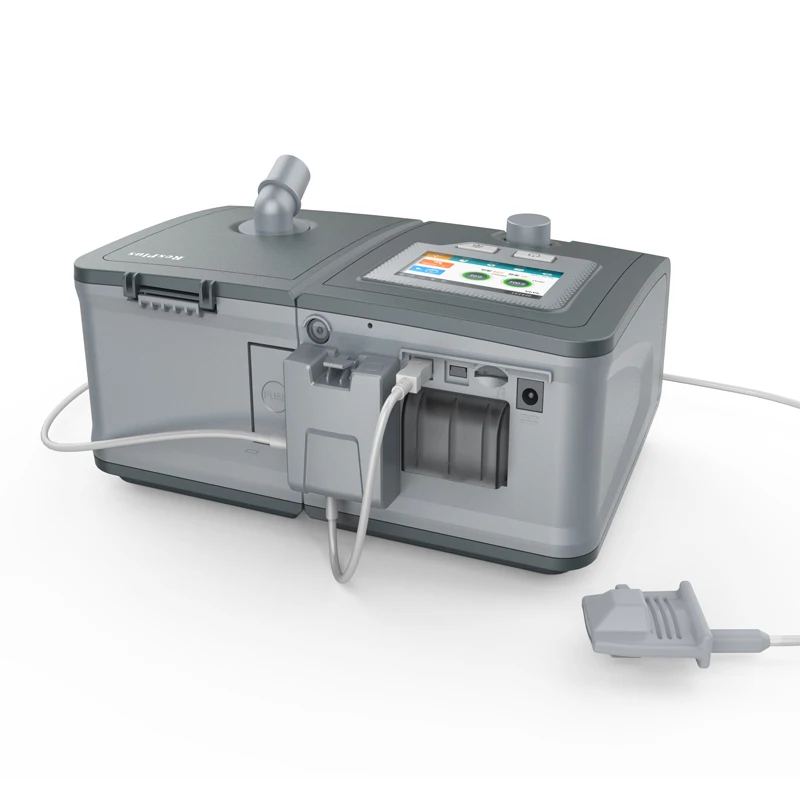

SpO2 Kit
Optional
Optional
Optional
Data storage
TF card
TF card
TF card
Dimension
280*200*112mm
280*200*112mm
280*200*112mm
Weight
2.2Kg
2.2Kg
2.2Kg
Packing & Delivery
Selling Units:
Single item
Single package size:
100X50X50 cm
Single gross weight:
2.000 kg
Package Type:
English version standard export packing (carton packing, strong enough for air/sea shipment)
Light weight: 2.0kg
GW: 4.6kg
38*24.5*31cm
