Product Description
Product Discription

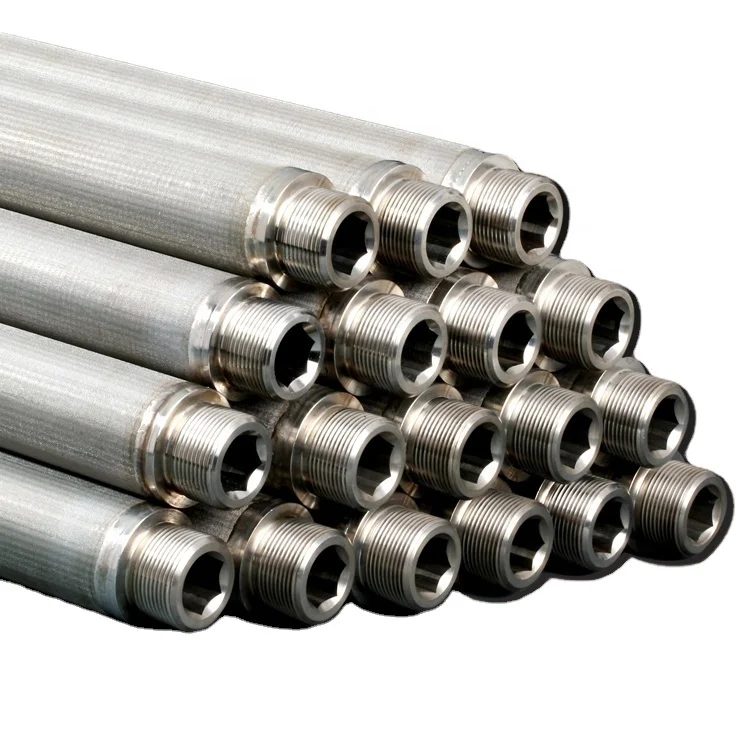

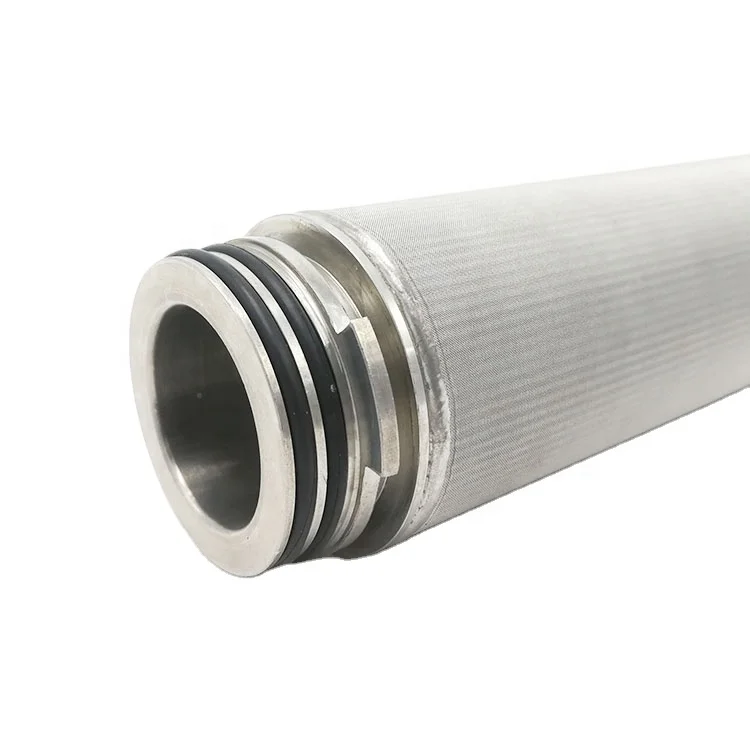

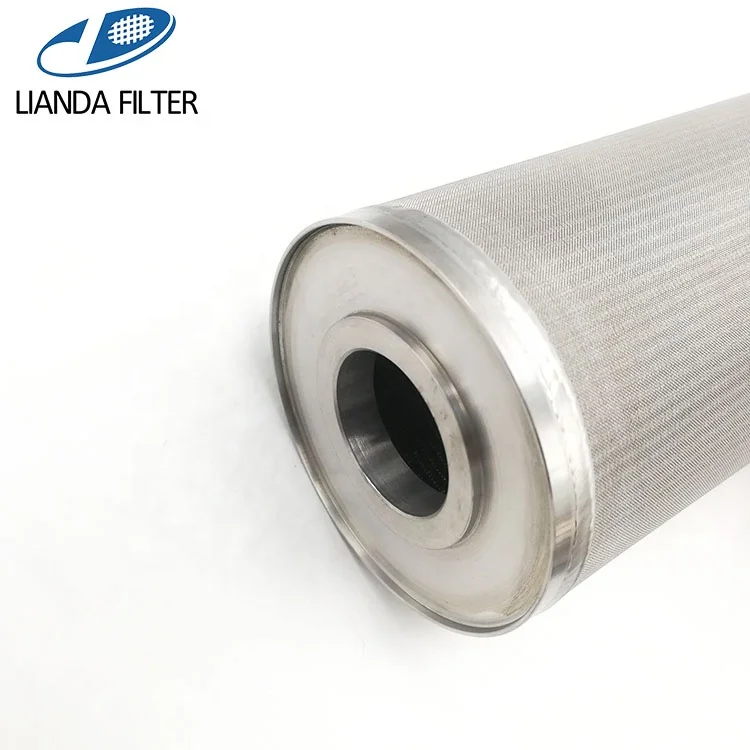

Main filter media of the multi-layer sintered mesh filter cartridge is made of the multi-layer sintered wire mesh.
What is sintered mesh ?
Sintered mesh is manufactured from one layer or multiple layers of woven wire meshes by a "sintering" process. The single layer
woven wire mesh is first roller flattened uniformly, to ensure good contact at the wire cross over points. Then the single layer
or more layers of this calendered mesh are then laminated by special fixtures under mechanical pressure in high temperature
furnace, which is filled with proprietary inset gas and the temperature is raised to a point where sintering (diffusion-bonded)
occurs. After controlled-cooling process, the mesh has become more rigid, for all the contact points of individual wires bonding
to each other. Sintering improves the characteristics of woven wire mesh through the combination of heat and pressure.
woven wire mesh is first roller flattened uniformly, to ensure good contact at the wire cross over points. Then the single layer
or more layers of this calendered mesh are then laminated by special fixtures under mechanical pressure in high temperature
furnace, which is filled with proprietary inset gas and the temperature is raised to a point where sintering (diffusion-bonded)
occurs. After controlled-cooling process, the mesh has become more rigid, for all the contact points of individual wires bonding
to each other. Sintering improves the characteristics of woven wire mesh through the combination of heat and pressure.
Main Technical Index of Sintered Mesh
Nominal Rating | Thickness (mm) | A.p.at1000pa (L/min/cm2) | Mean B.p.p (mmH2O) | Porosity (%) |
1 | 1.7 | 1.81 | 360-600 | 37% |
5 | 1.7 | 2.42 | 260-550 | 37% |
10 | 1.7 | 3.00 | 220-500 | 37% |
15 | 1.7 | 3.41 | 200-480 | 37% |
20 | 1.7 | 4.50 | 170-450 | 37% |
50 | 1.7 | 8.41 | 90-300 | 37% |
75 | 1.7 | 8.70 | 80-250 | 37% |
100 | 1.7 | 9.1 | 70-190 | 37% |
150 | 2.0 | 25.00 | 50-150 | 37% |
200 | 2.0 | 25.00 | 50-150 | 37% |
Feature
* High pressure resistance.
* Good corrosion resistance
* Stable pore shapes, high permeability.
Specification
* Standard material: 316, 304, 316 L, 904 L, 310S, Hastelloy , Monel, inconel, SMO20 other alloys are also available.
* Filter rating:1 micron to 300 microns.
* Length: 10" (254 mm), 20" (508 mm), 30" (762 mm), 40" (1016 mm), 60" (1524 mm).
* Fittings: Double open end, single open end, 222,226, thread, tri-clamp
Application
Sintered filter cartridge is widely used for liquid, gas, solid filtration, gas sample collection, sound attenuation in many
industries such as aerospace, petroleum, food, metallurgy, etc.
* High pressure resistance.
* Good corrosion resistance
* Stable pore shapes, high permeability.
Specification
* Standard material: 316, 304, 316 L, 904 L, 310S, Hastelloy , Monel, inconel, SMO20 other alloys are also available.
* Filter rating:1 micron to 300 microns.
* Length: 10" (254 mm), 20" (508 mm), 30" (762 mm), 40" (1016 mm), 60" (1524 mm).
* Fittings: Double open end, single open end, 222,226, thread, tri-clamp
Application
Sintered filter cartridge is widely used for liquid, gas, solid filtration, gas sample collection, sound attenuation in many
industries such as aerospace, petroleum, food, metallurgy, etc.
