Фотоэлектрический оптический датчик LANBAO M12 10 м с
- Категория: Sensors >>>
- Поставщик: Shanghai,Lanbao,Sensing,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-16-2025 | 24.84 $* | 24.7 $* |
| Jul-16-2025 | 20.94 $* | 20.36 $* |
| Jun-16-2025 | 24.13 $* | 24.89 $* |
| May-16-2025 | 24.43 $* | 24.96 $* |
| Apr-16-2025 | 19.31 $* | 19.53 $* |
| Mar-16-2025 | 23.28 $* | 23.70 $* |
| Feb-16-2025 | 23.97 $* | 23.58 $* |
| Jan-16-2025 | 23.98 $* | 23.69 $* |
Характеристики

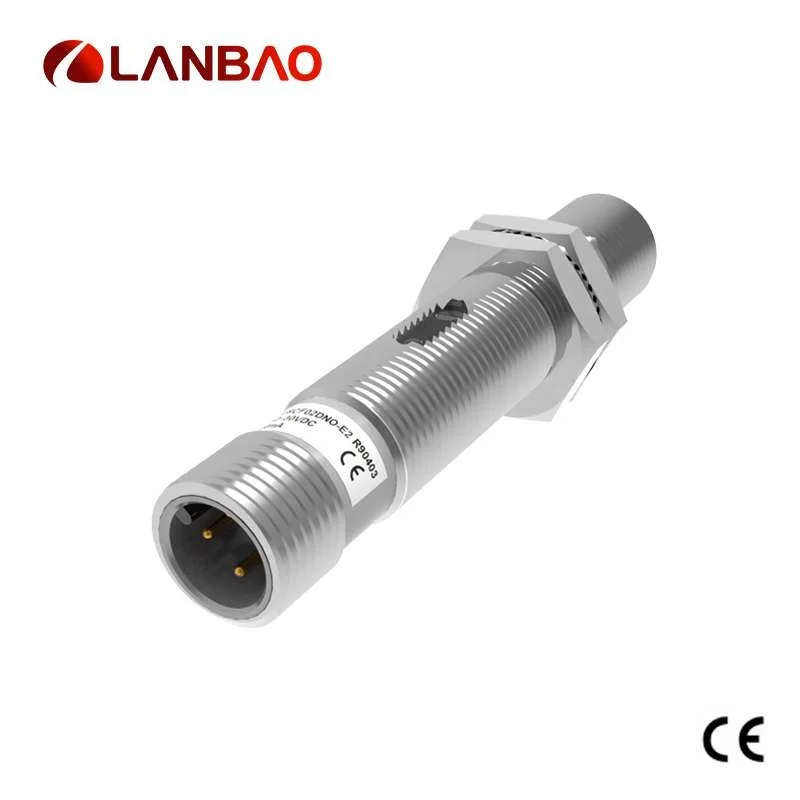

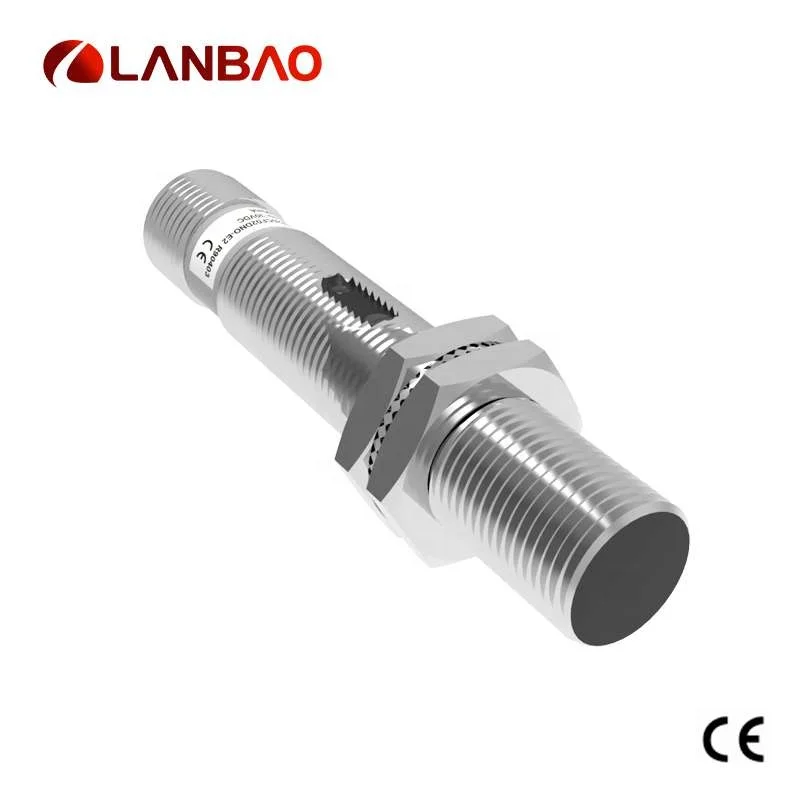

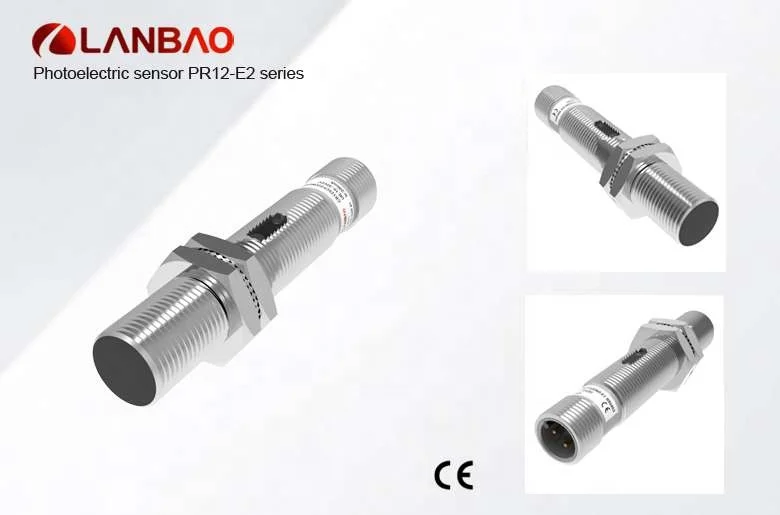

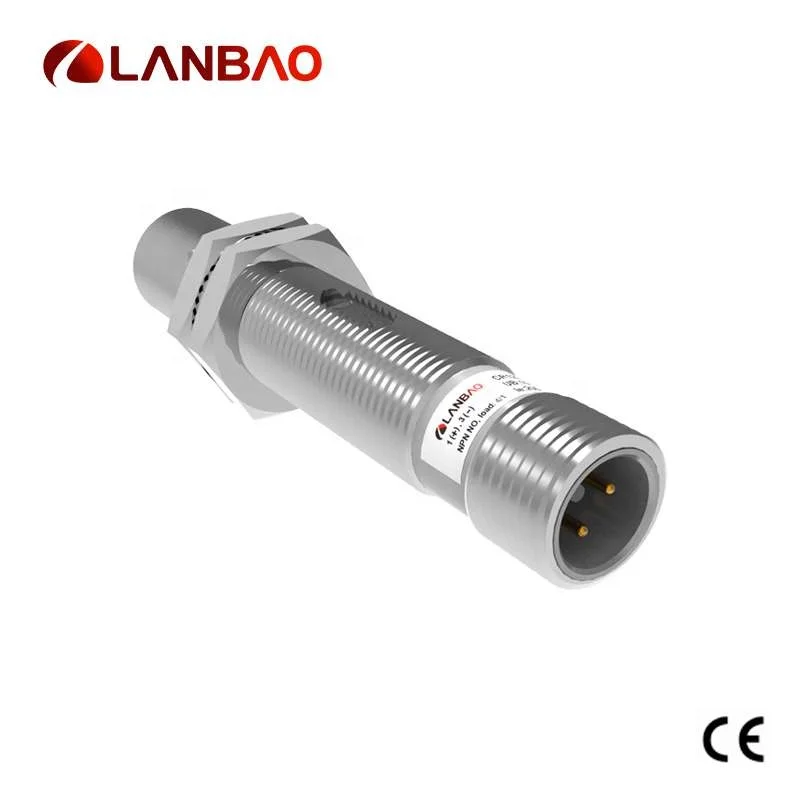

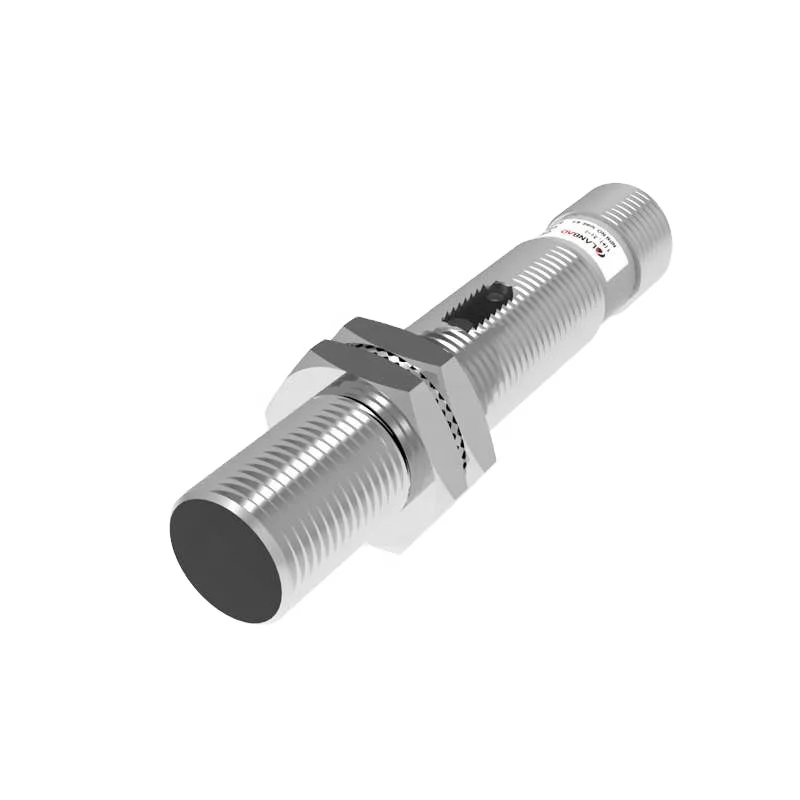

LANBAO M12 10m Through Beam Photoelectric Optical Sensor with Infrared LED
♦Through beam reflection working principle
♦Excellent anti-interference performance
♦High detection accuracy
♦Excellent anti-interference performance
♦High detection accuracy
Product Paramenters
Part Number | Part number | |||||
NPN NO | PR12-TM10DNO-E2 | PNP NO | PR12-TM10DPO-E2 | |||
NPN NC | PR12-TM10DNC-E2 | PNP NC | PR12-TM10DPC-E2 | |||
NPN NO+NC | PR12-TM10DNR-E2 | PNP NO+NC | PR12-TM10DPR-E2 | |||
Technical specifications | ||||||
Detection type | through beam reflection | Consumption current | ≤25mA | |||
Rated distance | 10m(non-adjustable) | Circuit protection | Short-circuit, overload and reverse polarity | |||
Standard target | >φ10mm opaque object | Response time | <8.2ms | |||
Light source | Infrared LED(880nm) | Output indicator | Emitter: Green LED Receiver:Yellow LED | |||
Dimensions | M12*65mm | Ambient temperature | -15°C...+55°C | |||
Output | NO/NC (depends on receiver) | Ambient humidity | 35-85% RH (non-condensing) | |||
Supply voltage | 10...30VDC | Voltage withstand | 1000V/AC 50/60Hz 60s | |||
Main Target | ... | Insulation resistance | ≥50MΩ(500VDC) | |||
Hysteresis range | ... | Vibration resistance | 10...50Hz (0.5mm) | |||
Repeat accuracy | ≤5% | Degree of protection | IP67 | |||
Load current | ≤200mA(receiver) | Housing material | Nickel-copper alloy | |||
Residual voltage | ≤2.5V(receiver) | Connection type | M12 connector | |||
Dimension
Wiring diagram
Certifications
Our standard products already obtained ISO9001, ISO14001, ISO45001, OHSAS18001, CE, UL ,CCC,
ROHS certificates.
ROHS certificates.
