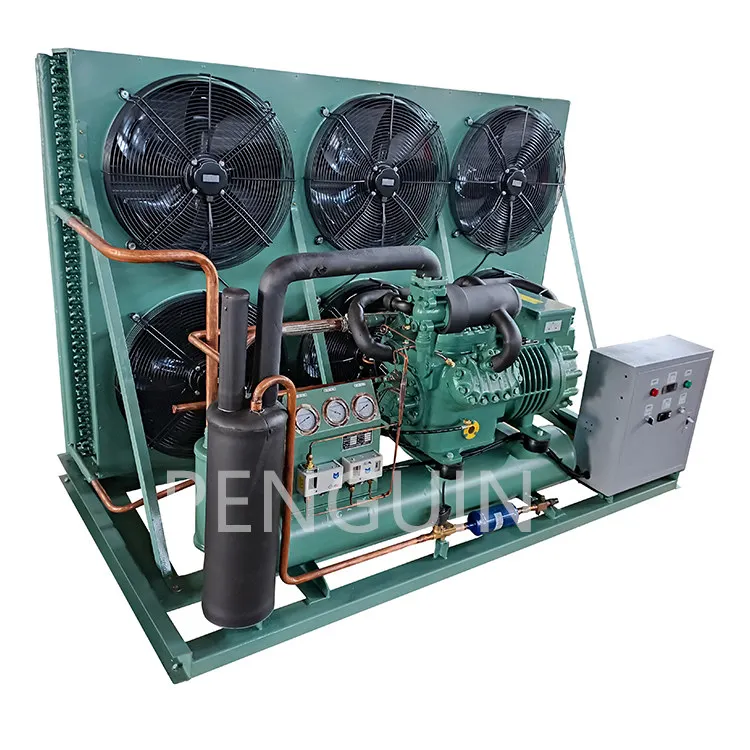

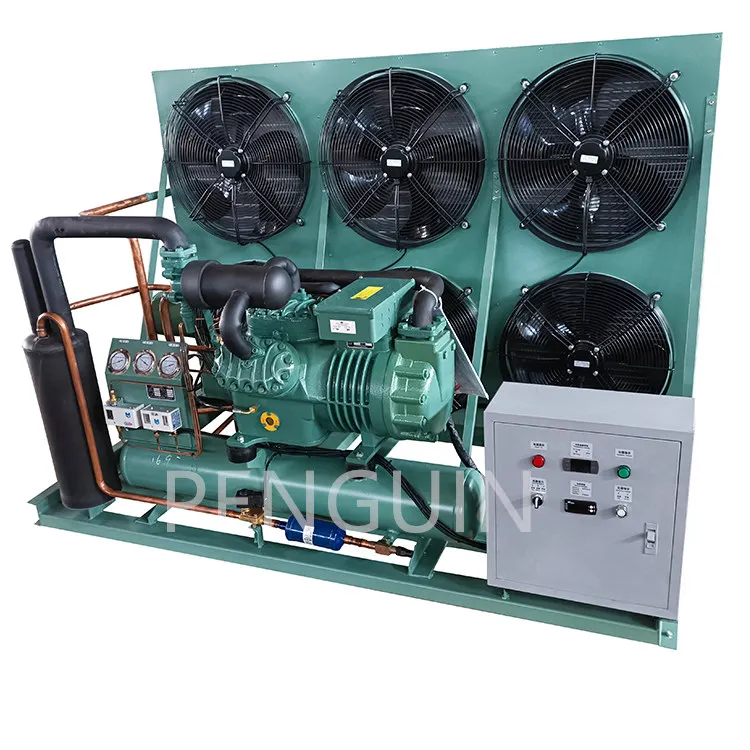

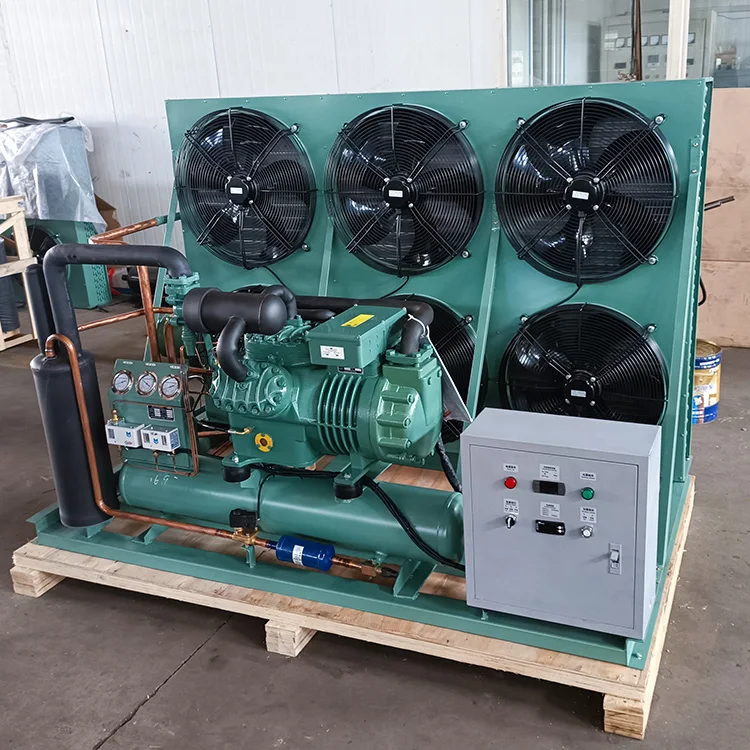

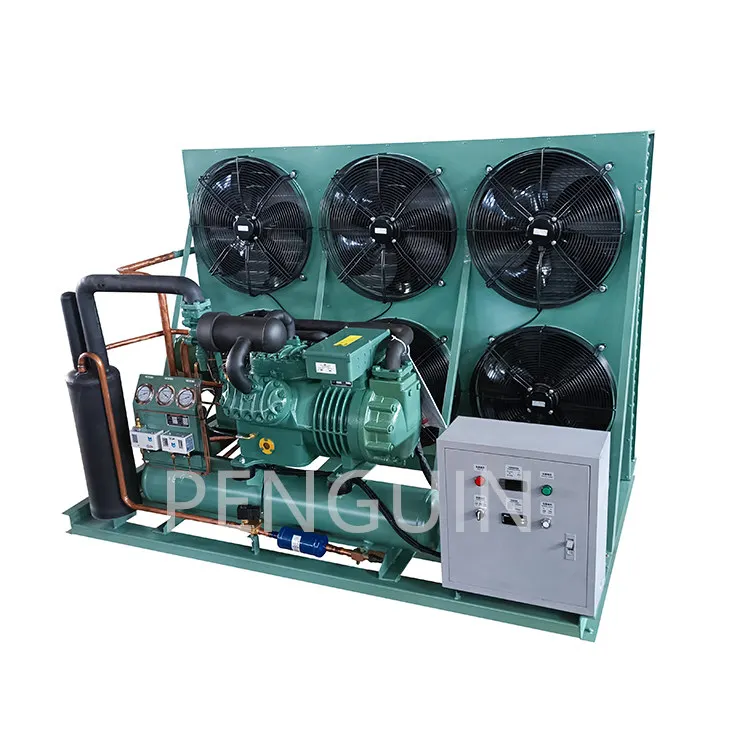

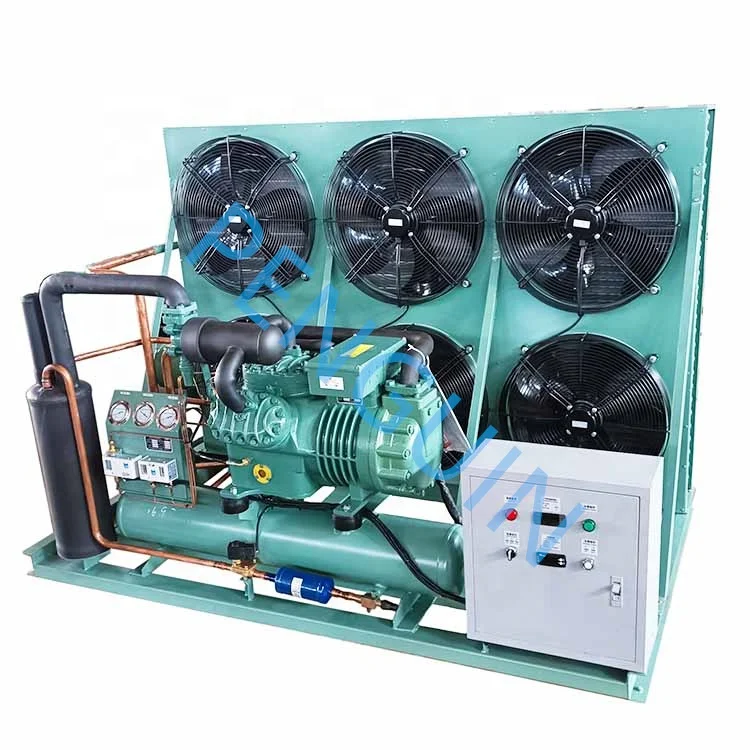

Полугерметичный двухступенчатый компрессор BlTZER морозильная камера конденсаторный блок 20 л.с. 25 30 S6F S6G
- Категория: Other Refrigeration & Heat Exchange Equipment >>>
- Поставщик: Taixing,Penguin,Refrigeration,Equipment,Factory
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 3570.27 $* | 3749.5 $* |
| Aug-19-2025 | 3540.96 $* | 3717.37 $* |
| Jul-19-2025 | 2970.66 $* | 3119.57 $* |
| Jun-19-2025 | 3480.11 $* | 3654.97 $* |
| May-19-2025 | 3030.72 $* | 3182.17 $* |
| Apr-19-2025 | 3420.48 $* | 3591.85 $* |
| Mar-19-2025 | 3390.60 $* | 3560.25 $* |
| Feb-19-2025 | 3360.39 $* | 3528.46 $* |
| Jan-19-2025 | 3330.89 $* | 3497.38 $* |
Характеристики
Product Overview
If you don't know which model is suitable for you, please contact we without hesitation, after tell us your requirements, we shall be glad to give you our professional advise.
And if all this model don't suit for you, we have advanced software and professional team of engineers can design product for you.
We have customized products for many customers, following are some projects we did before.
We can provide designing data and prodcution drawings.
And if all this model don't suit for you, we have advanced software and professional team of engineers can design product for you.
We have customized products for many customers, following are some projects we did before.
We can provide designing data and prodcution drawings.
Advantages for our condensing unit：
1. The accessories for the unit include liquid receiver, pressure gage, pressure controller,
sight glass, filter junction box, etc
sight glass, filter junction box, etc
2. The copper tube of air cooled Condensina units get through the pressure test, meet
the request of normal work.
3.Every part of units is best in corrosion protection.
4. Proper structure, accurate and reliable operating system for the air cooled condensinq unit.
6. Use the high efficiency and large air volume axial fan, with low noise and eneray saving.
Air-cooled Piston Condensing Unit | Weight | Packing Size | ||||||
KG | L(cm) | W(cm) | H(cm) | |||||
NJ-4VB5-F | 5HP/3.7kW | 200kg | 100 | 86 | 100 | |||
NJ-4VB5.2-F | 5HP/3.75KW | 230kg | 135 | 85 | 105 | |||
NJ-4VB6.5-F | 6.5HP/4.7kW | 210kg | 100 | 86 | 100 | |||
NJ-4VB8.5-F | 8.5HP/6.3kW | 240kg | 110 | 86 | 107 | |||
NJ-4VB8.2-F | 8HP/6.3KW | 300kg | 135 | 85 | 105 | |||
NJ-4VB10.2Z-F | 10HP/7.5KW | 300kg | 135 | 85 | 105 | |||
NJ-4VB12.2Z-F | 12HP/8.8KW | 400kg | 135 | 96 | 140 | |||
NJ-4VB20.2Z-F | 20HP/15KW | 500kg | 175 | 106 | 125 | |||
NJ-4VB25.2Z-F | 25HP/18.5KW | 600kg | 230 | 132 | 155 | |||
Our advantages
1、Safety & reliability
Having motor protection consisting of PTC thermistor element embedded in the motor and motor protector that can effectively prevent motor burnout for poor cooling, locked-rotor, power phase unbalance and so forth.
2、Reasonable
Having advanced design, rational structure, spare parts of high generality, light and handsome shape, small size, smooth performance, low noises and slight vibration for compressor.
3、Generality
Having design of compressor conforming to the national standard for environmental protection and applicable to refrigerant such as R22, R134a, R404a, R407C.
Having design of compressor conforming to the national standard for environmental protection and applicable to refrigerant such as R22, R134a, R404a, R407C.
4、Wear Resistance
Having ion nitriding treatment on the surface of primary moving parts to greatly enhance the service life of compressor.
Having sliding bearing with low friction.
Having aluminum piston being equipped with piston ring that has hard chromium plating on its surface.
Having sliding bearing with low friction.
Having aluminum piston being equipped with piston ring that has hard chromium plating on its surface.
5、Salient Performance-To-Price
Having valve plates which material are spring steel and stainless steel with high quality and impact-resistance being designed excellently.
Having minimal dead point clearance.
Having optimized air passage.
Having minimal dead point clearance.
Having optimized air passage.
Application
Successful Project
Product packaging
Why choose us
Jiangsu Taixing PENGUIN Refrigeration Equipment Manufactory is an enterprise specializing in the development and production of refrigerating compressors & units. The main products range from semi-hermetic refrigerating compressors & units to open-type refrigerating compressors & units that have extensively been applied into freezing & cold storage, large refrigerated warehouse in the industry of Chemical, Refinery, Pharmaceutical, Restaurant, Supermarket, Factory workshop and Food.The company has successively certified by ISO9001-2000 quality system certification, product compulsory certification and CQC quality certification. The product of refrigerating compressors & units has acquired the national industrial product manufacturing license and won the title of provincial “Quality Trustworthy Product”.The enterprise possesses advanced processing equipments for compressors such as modernized assembly line, Due to consummate technics, highly skilled production team, austere quality strategy and completely new management, the "PENGUIN"-branded products are in great demand nation-wide and have been exported to many overseas markets as Africa and South-East Asia.We are always transcending, and the "PENGUIN" is willing to be shoulder to shoulder, arm in arm with you to jointly develop splendid refrigeration cause.
FAQ
1. Who are we?
We are based in Jiangsu, China, start from 2008,sell to Domestic .There are total about 101-200 people in our office.
We are based in Jiangsu, China, start from 2008,sell to Domestic .There are total about 101-200 people in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production;Always final Inspection before shipment;
Always a pre-production sample before mass production;Always final Inspection before shipment;
3.What can you buy from us?
Refrigeration Compressor,Condensing Unit,Refrigeration Equipment and Parts
Refrigeration Compressor,Condensing Unit,Refrigeration Equipment and Parts
4. Why should you buy from us not from other suppliers?
(1).The professional manufcturer of compressor and condensing unit (Year1992 until now) ,owns Two factories area about 35000 square meter,more than one hundred workers.
(2).We have Modern assembly line and sophisticated equipment.
(3).We have innovativeness,more professional, with price advantage, and fast delivery, after-sales system perfect.
