Промышленный пылесос DW773P
US $180.00
JS FLOOR SYSTEMS V9 Industrial Vacuum cleaner Dust
- Категория: Industrial Vacuum Cleaner >>>
- Поставщик: Shanghai,Jiansong,Industry,And,Trade,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 5479.48 $* | 5753.37 $* |
| Aug-18-2025 | 5433.13 $* | 5705.19 $* |
| Jul-18-2025 | 4558.32 $* | 4786.45 $* |
| Jun-18-2025 | 5341.27 $* | 5608.57 $* |
| May-18-2025 | 4650.41 $* | 4883.30 $* |
| Apr-18-2025 | 5249.41 $* | 5511.20 $* |
| Mar-18-2025 | 5203.46 $* | 5463.99 $* |
| Feb-18-2025 | 5156.48 $* | 5414.21 $* |
| Jan-18-2025 | 5110.18 $* | 5366.31 $* |
Характеристики
Product Overview

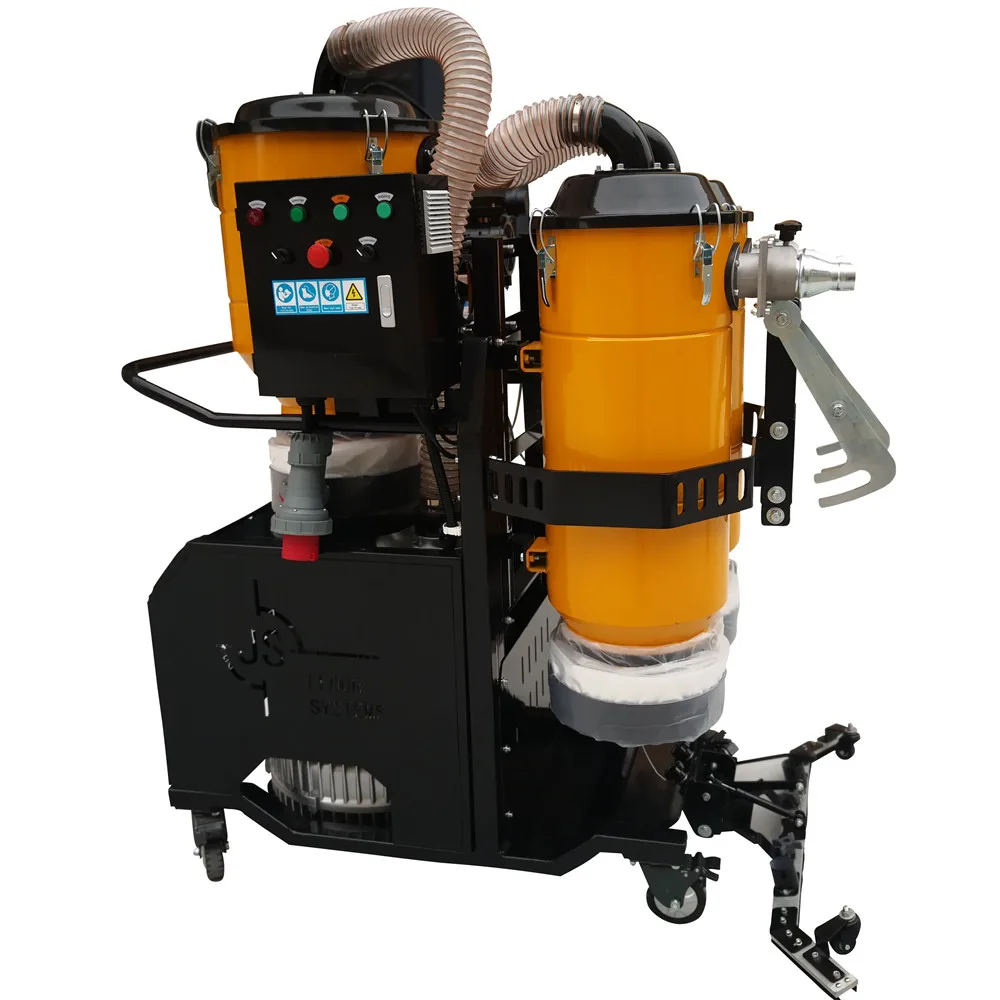

V9 17HP Large HEPA back blow bag type vacuum cleaner
V2 is an industrial vacuum cleaner that is cyclone plus HEPA filter efficient industrial vacuum cleaner, disposable garbage bag, and negative pressure dust removal. It will be better to connect a pre-separator to use when needed.
Key Features:
Advanced technology for integrating the cyclone systems and bag collecting system; Dust collection efficiency reach to 99%;
Dust emission controlled below 30mg/Nm3;
High concentrations dust below 100g/Nm3 can be collected;
Less than 1% air leakage rate;
Equipped air compressor to provide ancillary air pressure;
Apply to floor grinding and polishing, building and construction site.
Dust emission controlled below 30mg/Nm3;
High concentrations dust below 100g/Nm3 can be collected;
Less than 1% air leakage rate;
Equipped air compressor to provide ancillary air pressure;
Apply to floor grinding and polishing, building and construction site.

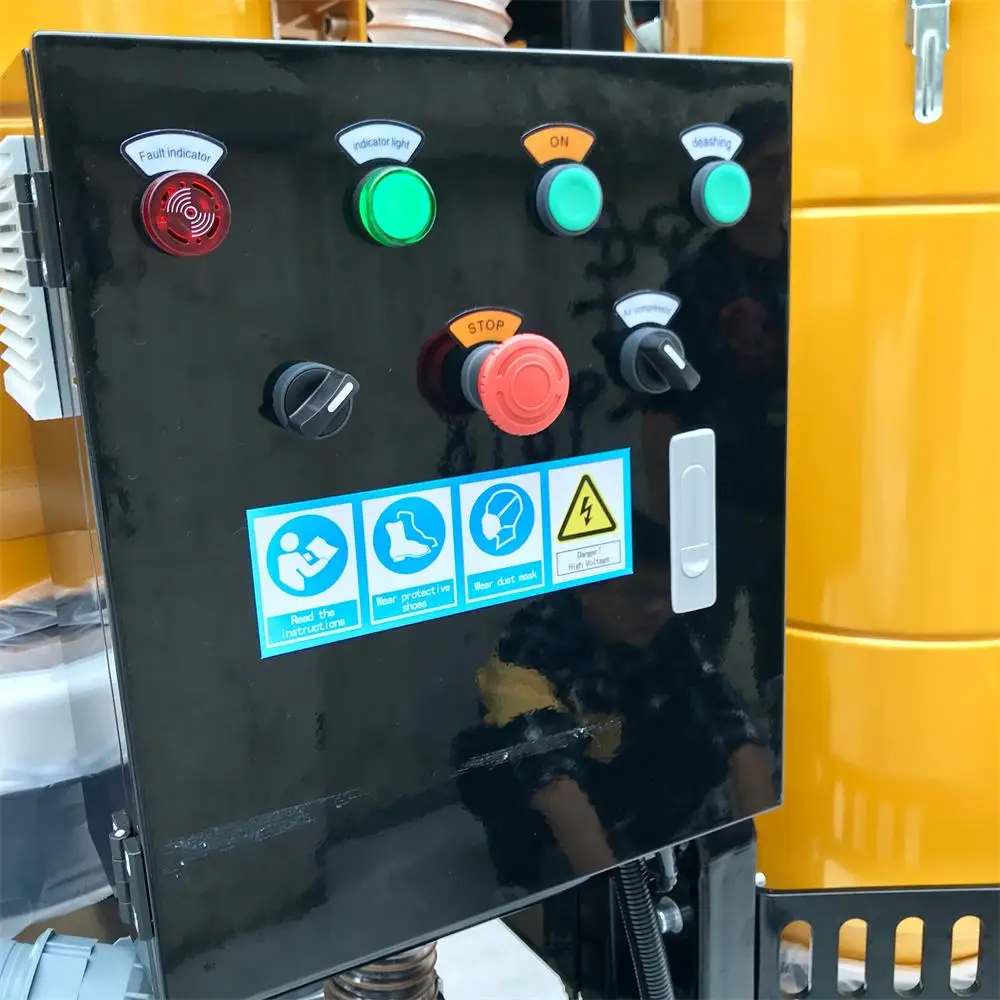

Electric Box

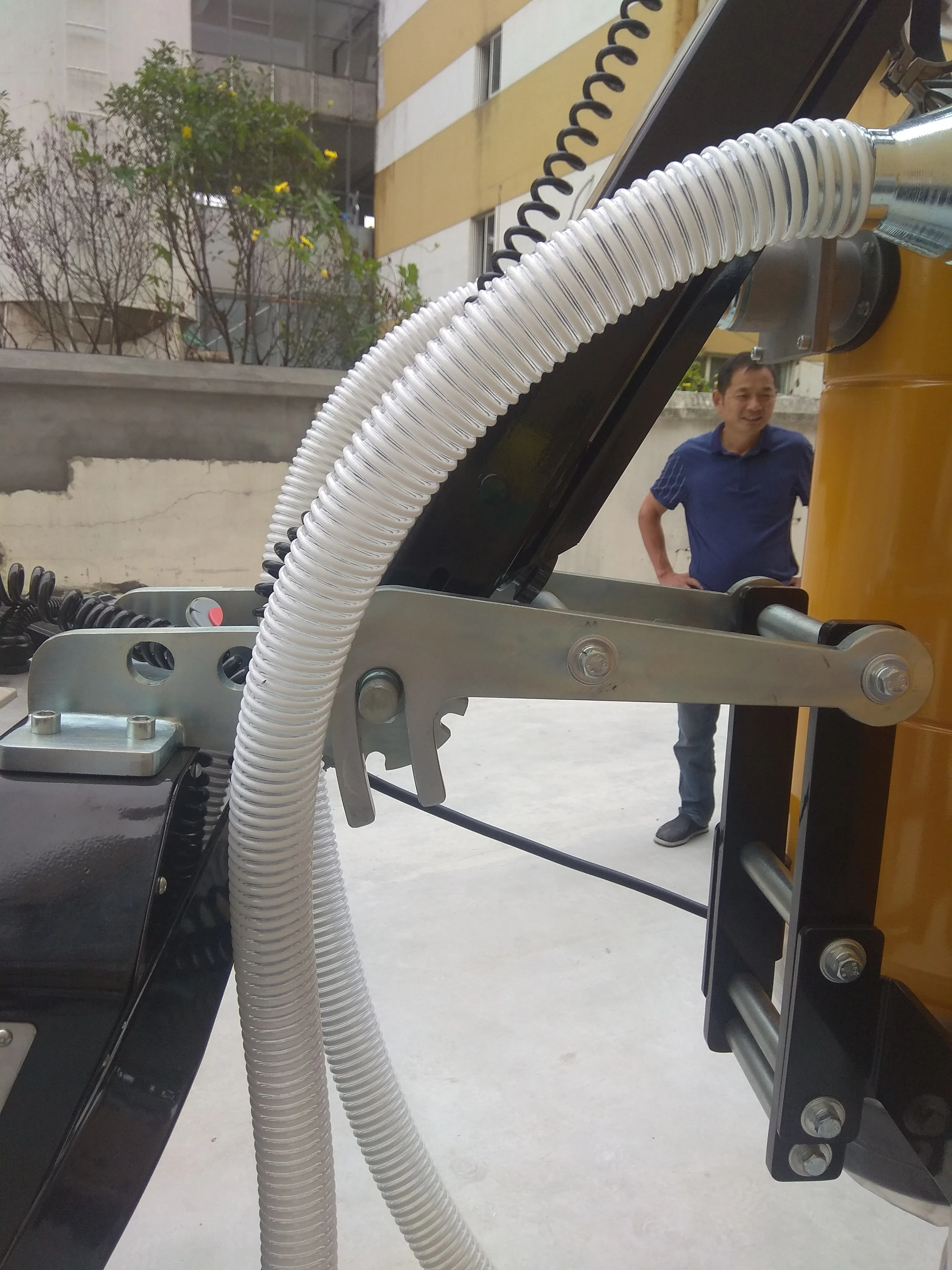

Suction Squeegee
Air Compresspor
Dedusting procedure (as above picture)
Soot cleaning steps: motor in the vacuum state, pull (1) vacuum plate, block dust, at the same time, dust collection plate is pulled , and the small bucket on the pressure gauge pointer is turn to the big direction, PTFE filter is in a contracting state, when the gauge pressure at the set range (filter contraction largest state), stir (2) valve, air goes into the barrel inside, gauge pressure corresponding to the pressure value decreased.Filter is from contracting to normal at this time, Because the filter core vibrates (4) ,dust attached to the filter will fall off(5), so repeatedly for three to five times, soot cleaning effect, soot cleaning is completed, (1) press the vacuum valve down, can continue to dust, when the dust is more, pull down the dust bag, cut and tie it again.
Contact Us
Jamie Huang
E-mail: jamie@jiansongsh.com
Phone/Whatsapp: +86 13248050398
E-mail: jamie@jiansongsh.com
Phone/Whatsapp: +86 13248050398

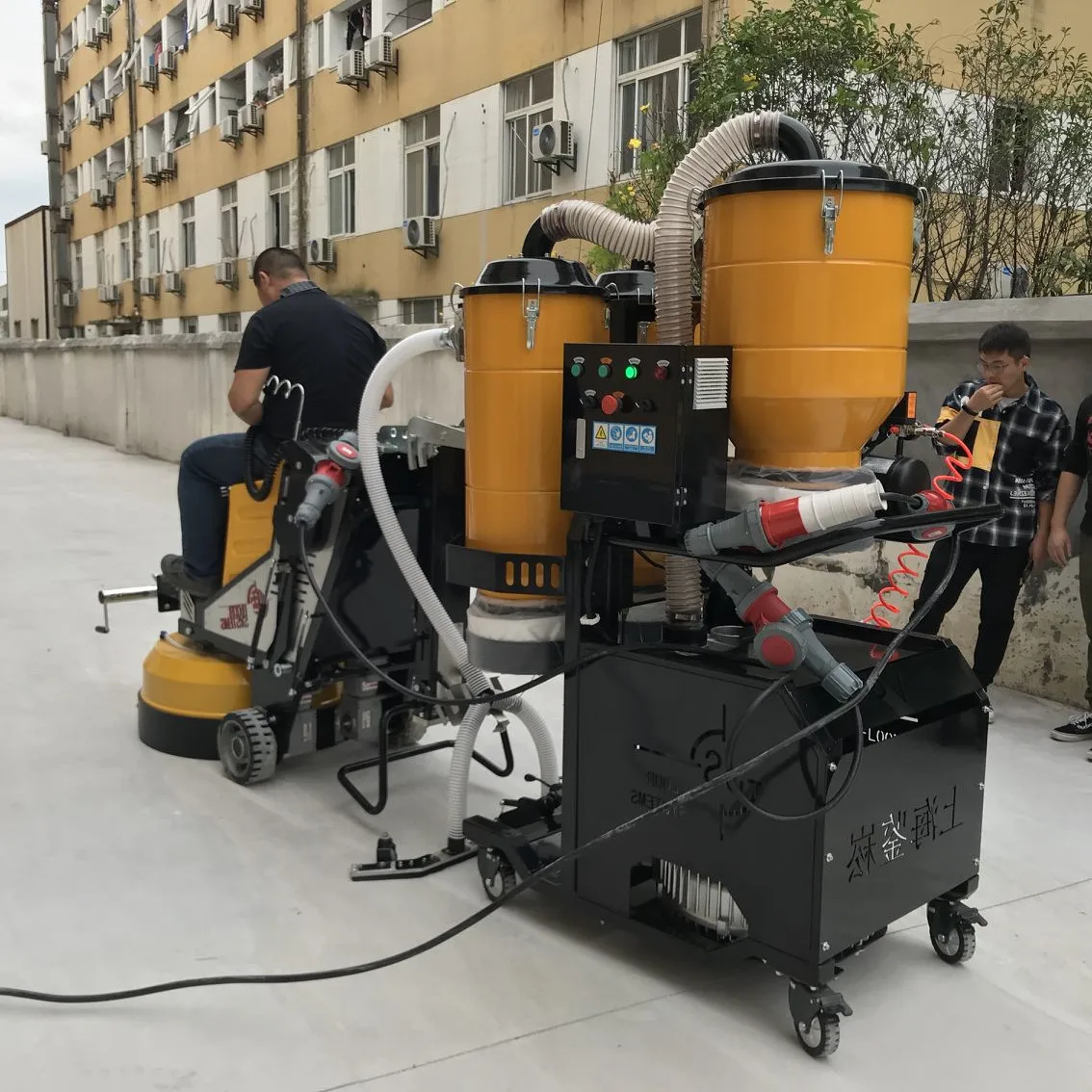

How to work with floor grinder
1. The boot
Before dry grinding starts, connect the vacuum cleaner, connect the vacuum tube to the machine, connect the safe grounding power supply, connect the corresponding power supply of the equipment, the power indicator light is on, stand on the side of the machine, turn the emergency stop switch on, press the start button, the machine starts working.
2. Turn off the machine When the grinding machine stops working, press the emergency stop switch and unplug the vacuum tube. Pull down the main power switch and pull out the power connector.
3. Dust removal during the grinding process Vacuum cleaner after using for a period of time, the suction will abate, this time to remove dust, pull the dust aspirant, pressure gauge to above 8 , form vacuum dust barrel, mesh contraction, then drives rocker, make the air in, the screen to relax, dust fall off, can repeat three to five times to clean up, at this time, the filter is clean, the machine operating, in order to get the best grinding dust collection effect.
Related sponsored items
You May Also Like
PRODUCT SPECIFICATIONS
Model | V7 | V9 |
Power | 10HP | 17HP |
Electricity | 16amps | 28amps |
Weight | 270KG | 415KG |
Filter area | 47000CM2 | 47000CM2 |
Vacuuming caliber | 2 inch | 2 inch |
Air volume | 530m3/h | 1050m3/h |
Cubage | Self drawn dust bag | Self drawn dust bag |
Dedusting system | Manual negative pressure | Manual negative pressure |
Filter system | vortex+ HEPA filter screen | vortex+ HEPA filter screen |
Vacuum tube | 10m | 10m |
Size | 134*84*177cm | 163*100*189cm |
Optional 3 phase voltage | 220V/380V/480V | 220V/380V/480V |
Packing&Shipping
How we pack machines and accessories
All the machines are well installed and packed with accessories in crate.
Wrapped with film internally and packed in wood box outside.
About Us
Shanghai Jiansong Industry And Trade Co., Ltd
JS Floor Systems has been established in 2009. Specializing in floor grinders, polishers, burnishers, scrubbers, vacuum cleaners and diamond tools. Our factory locates in Shanghai & Suzhou, China with professional R&D, technical support, production and sales team. Our Service and Products are appreciated by customers all over the world.
JS Floor Systems have the largest range of floor grinders, covering everything from small edge grinder S320 to giant rider grinder D1400,operation made available in walk behind, ride on, self-propelled and remote control, driven systems in gear construction.
JS brand is recommended by customers as the machines are with superior quality, high efficiency, good service and reasonable price.Combined with JS industrial dust collectors, floor scrubbers and diamond tools, we offer a completed floor preparation system which guarantees that you finish the job with the best result and lower cost.We have got the CE certificates, ISO 9001 and SGS approval. With professional R&D team, high tech Computer Numerical Control Center(CNC) and advantage welding robots, as well as the experienced support and marketing team, we are moving fast in this industry.
Why choose us
Let Professional People Do Professional Things!
1, Experience gathering. We have been specialized in this field over 10 years and have customer worldwide, we also have the largest range of flooring machines to match your different demands.
2, Professionalized factory. We have 2 factories in Shanghai & Suzhou, China, with perfect produce systems. Thanks to modern machinery, our machines production efficiency and quality are high and stable, get high appreciated by customers, many world notable floor preparation operator choose to cooperate with us.
3, Completed inspection system. We have detail quality control systems to ensure every procedure to match world quality standard, all our machines get CE/SGS/ISO9001 approval.
4, Professional sales team. To serve global customers, we build scale sales team. After unified training, we will offer one to one serve for each client. Will offer our professional suggestion according to different customer's requirement.
5, Highly mature logistics transportation. We have cooperated forwarder, can offer you best freight service with lowest price. Of course, we can cooperate to send cargo to your nominated forwarder if you need.
6, High efficiency after-sale service. To ensure all our customers can enjoy a wonderful flooring experience, we will offer spare parts within one year warranty, and 7*24 hours online support forever.
7, Innovative Design Team. Organized by tens of experience engineers, we always follow the newest tendency and clients' request to accomplish and improve our products. To make flooring easier is our mission.
