JQ LASER 1530C машина для резки листового металла волоконный лазер металлических труб
- Категория: Laser Cutting Machines >>>
- Поставщик: Jinan,Jinqiang,Laser,Cnc,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 2618.85 $* | 2749.58 $* |
| Aug-19-2025 | 2596.95 $* | 2726.46 $* |
| Jul-19-2025 | 2178.5 $* | 2287.67 $* |
| Jun-19-2025 | 2552.45 $* | 2680.29 $* |
| May-19-2025 | 2222.74 $* | 2333.28 $* |
| Apr-19-2025 | 2508.70 $* | 2633.89 $* |
| Mar-19-2025 | 2486.12 $* | 2610.28 $* |
| Feb-19-2025 | 2464.41 $* | 2587.54 $* |
| Jan-19-2025 | 2442.64 $* | 2564.49 $* |
Характеристики
Product Description

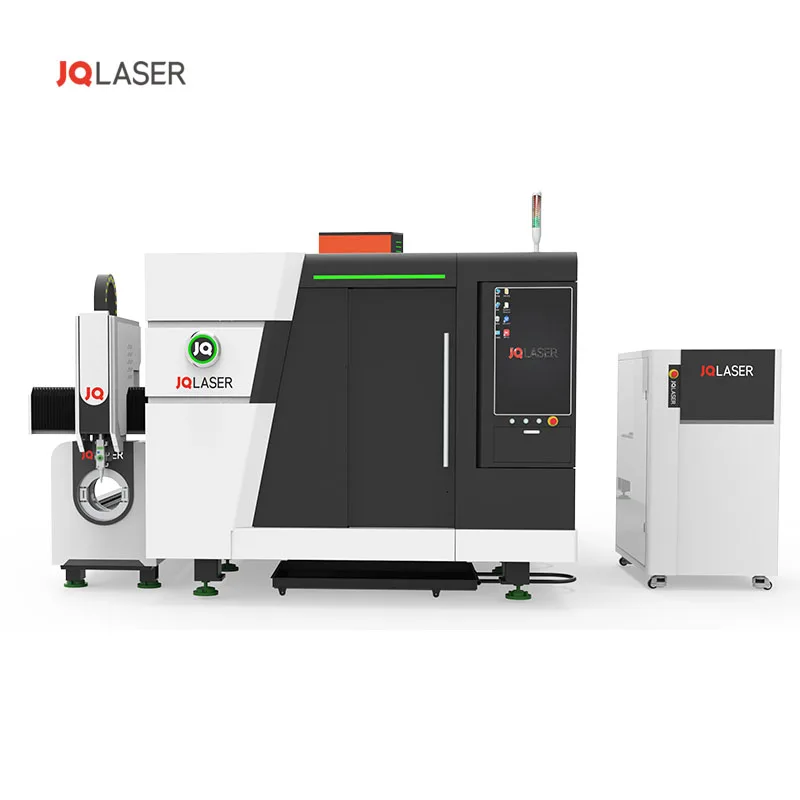

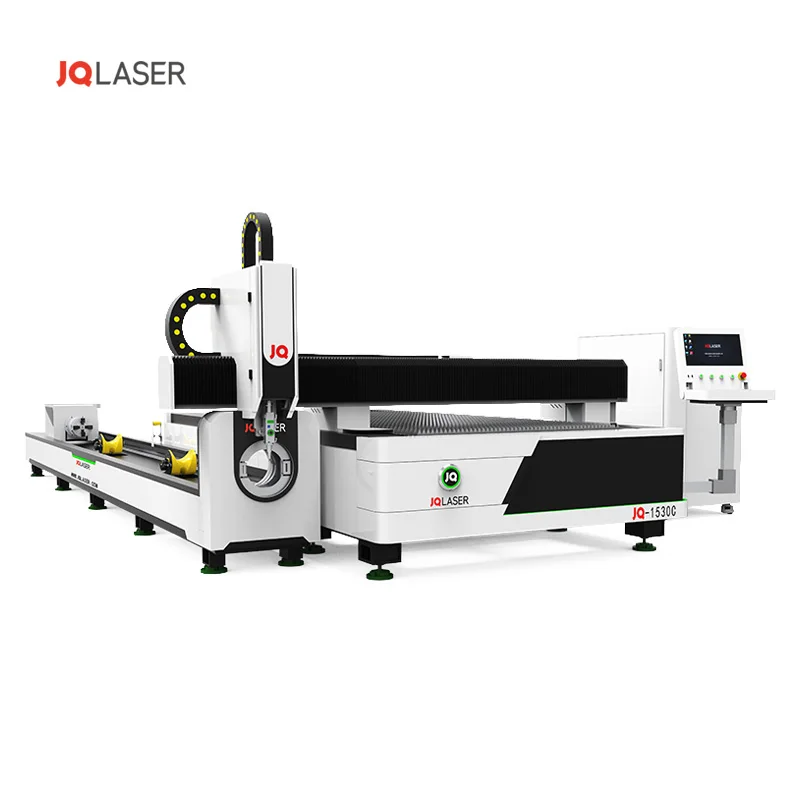

JQ1530C.laser cutting machine for Metal Cut
JQ-1530C is a JQLASER fiber laser cutting machine developed by JQlaser for the sheet metal processing industry, and has obtained national invention patents. Mainly sheet metal processing is supplemented by supervisor processing, or occasionally pipe cutting is required. This machine adopts a pneumatic full-stroke chuck, and the maximum clamping range can reach Φ20—Φ220mm (one circle around the workpiece). The high-precision chuck and the high-precision servo deceleration system provide excellent cutting results.
Our advantage
(1). High-rigidity and heavy-duty chassis to reduce vibration during high-speed cutting.(2). High-performance cast aluminum guide rails, after unlimited analysis, accelerate the arc cutting speed.
(3). High precision, fast speed, narrow cut, small heat-affected zone, smooth cutting surface and no burrs.
(4). The laser cutting head does not touch the surface of the material and does not scratch the workpiece.
(5). The slit is the narrowest, the heat-affected zone is the smallest, the local deformation of the workpiece is small, and there is no mechanical deformation.
(6). It has good processing flexibility, can process any pattern, and can cut pipes and other profiles.
(7). It can cut any hardness materials such as steel plate, stainless steel, aluminum alloy, cemented carbide, etc. without deformation
Parameter
1 | Model | JQ-1530C |
2 | Plane cutting width (length X width) | 3000mmx1500mm |
3 | Pipe cutting specifications | Φ20-φ220，L=6000mm |
4 | X-axis travel | 2350 mm |
5 | Y-axis stroke | 3050 mm |
6 | Z axis travel | 240 mm |
7 | X, Y axis positioning accuracy | ±0.05/1000mm mm |
8 | X, Y axis repeat positioning accuracy | ±0.03/1000mm mm |
9 | Acceleration | 1G m/s² |
10 | Maximum operating speed | 100 m/min |
11 | Maximum platform load | 900 kg |
12 | Host appearance (length, width and height) | 7900×3960×1650 mm |
13 | Laser power | 1000-3000 w |
14 | Control | system |
15 | Power supply requirement | 380v/50Hz |
Product details
high power fiber laser
Using well-known fiber laser tools, whcih photoelectric conversion efficiency is high, power consumption is low.
Bai Chusystem
The display operation unit provides good man-machine interface to display various operation information, and the operation panelwith function keys for machine operation
Power Distribution Cabinet
Independent electric control cabinet, making a easier operating and maintaining.

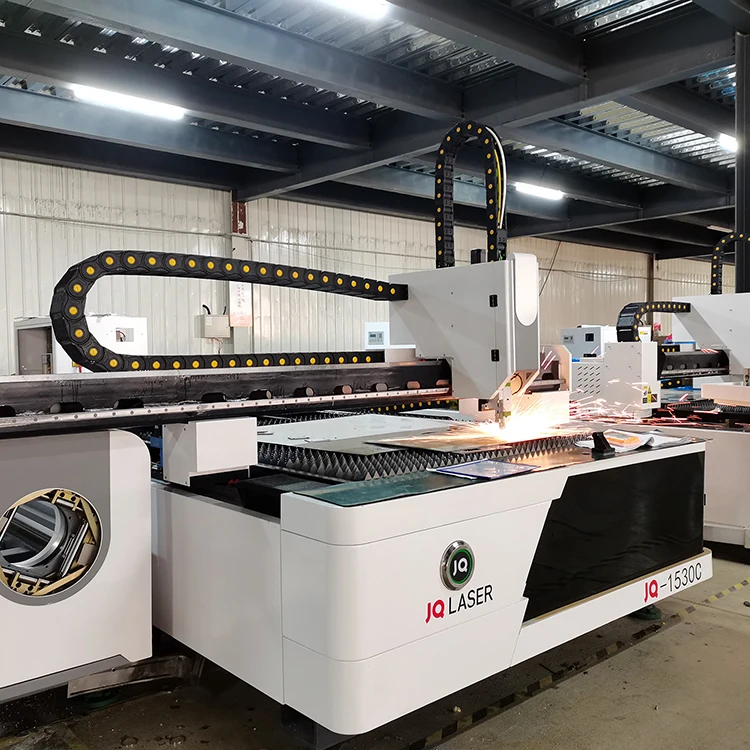

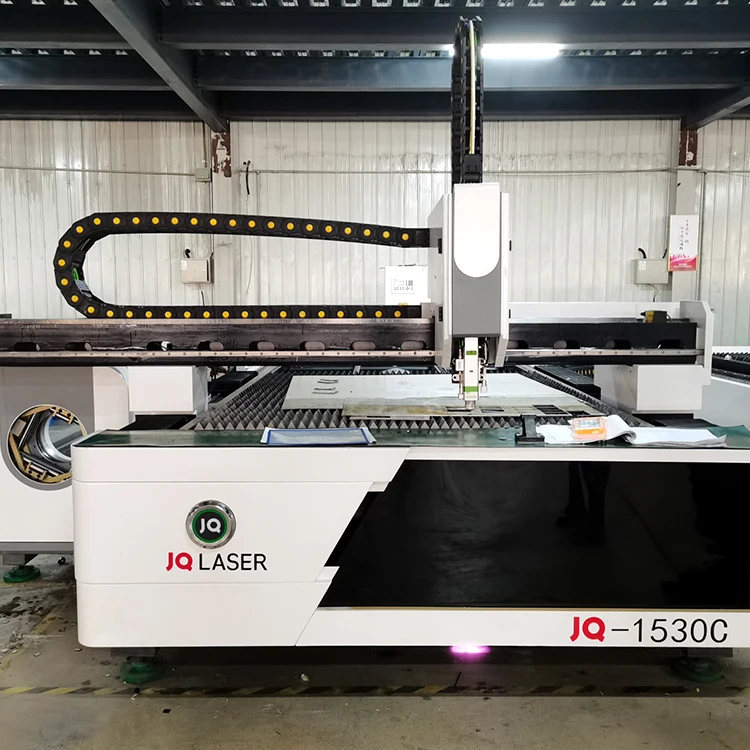

Sample

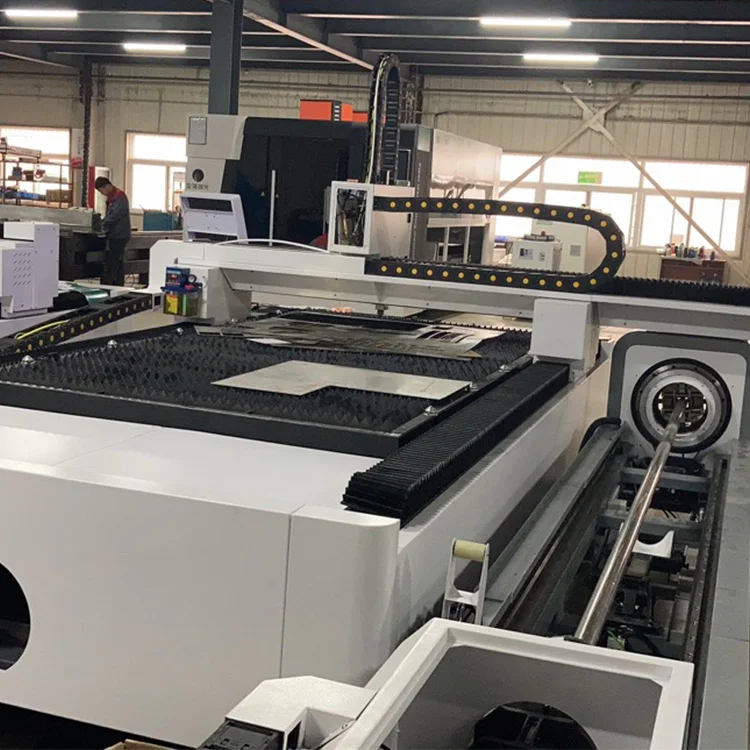

JQ1530C Fiber laser cutting machine The equipment is a tube-sheet integrated machine, which can be used for cutting tube and sheet materials. It can be applied to metal tubes and metal plates of different materials. For example: stainless steel tube plates, copper tubes, copper plates, carbon plates, carbon tubes, etc.
*WE SUPPORT FREE SAMPLES SERVICE！！
YOU CAN TELL US ABOUT METERIAL AND THICKNESS, GET SAMPLES FIRST!
Industry Application
JQlaser Fiber laser cutting machines are used in various industries, such as fitness equipment manufacturing, automobile manufacturing, medical equipment manufacturing, kitchenware and bathroom, steel and wood furniture, sheet metal processing, etc.
Certificate
We have passed CE certification, ISO9001 quality management system certification, Alibaba Jinpincheng Enterprise Certification and design patents and other international certifications.
Strictly control all aspects of incoming materials, processing, assembly, debugging, testing, packaging and transportation to ensure the performance and quality of laser products.
Strictly control all aspects of incoming materials, processing, assembly, debugging, testing, packaging and transportation to ensure the performance and quality of laser products.

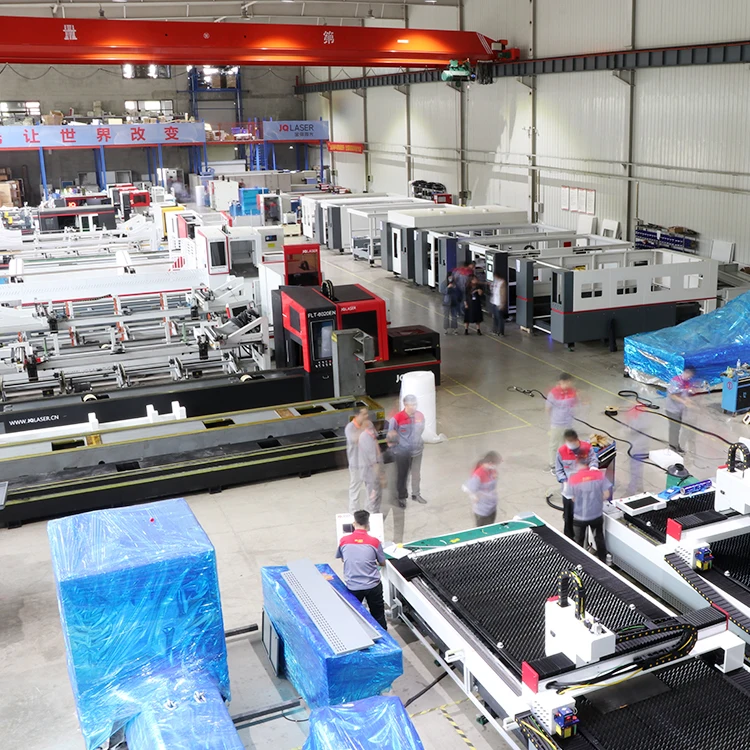

Company Profile
.*11 years of factory production experience
* 24h after-sales quick solution
* 30,000+ cumulative customers nationwide
* 24h after-sales quick solution
* 30,000+ cumulative customers nationwide
Jinan JinQiang Laser CNC Equipment Co.,LTD
Jinan Jinqiang Laser Numerical Control Equipment Co., Ltd. was established in 2006. It is a high-tech industry focusing on the research and development, production and sales of laser application and sheet metal automation complete equipment. The company's products are divided into five series: tube laser cutting machine, sheet laser cutting machine, laser engraving, laser marking, and laser welding. Jinqiang Laser currently has more than 300 employees, and technology research and development and after-sales service account for more than 50%; we have a professional and fast-responding customer service team, providing 24-hour online and offline technical services in 12 languages. With reliable product quality, reasonable prices and perfect after-sales service system, JQ laser is now exported to more than 150 countries and regions around the world.
Exhibition display
Jinqiang Laser has traveled all over the world, participated in more than 300 exhibitions and served more than 20,000 customers。
*About the installation and inspection of the fiber laser cutting machine before leaving the factory
We strictly control the quality of the fiber laser cutting machine, and achieve perfection in every detail. Let our customers rest assured to use our machines safely！
We strictly control the quality of the fiber laser cutting machine, and achieve perfection in every detail. Let our customers rest assured to use our machines safely！
After-sales service & customer visit:
We have a strong after-sales service team, which visits our customers regularly to provide customers with good after-sales service
1. The fiber laser cutting machine is guaranteed for 2 years, except for wearing parts;
2. Provide a large number of online and offline technical support online;
3. Fast spare parts and technical support;
4. Provide "Training Video", "Instruction Manual", "Operation Manual";
We have a strong after-sales service team, which visits our customers regularly to provide customers with good after-sales service
1. The fiber laser cutting machine is guaranteed for 2 years, except for wearing parts;
2. Provide a large number of online and offline technical support online;
3. Fast spare parts and technical support;
4. Provide "Training Video", "Instruction Manual", "Operation Manual";
FAQ
We provide customers with quality services
If you have a need or encounter a problem, please feel free to contact us, we have a 24-hour customer service online to serve you
If you have a need or encounter a problem, please feel free to contact us, we have a 24-hour customer service online to serve you
