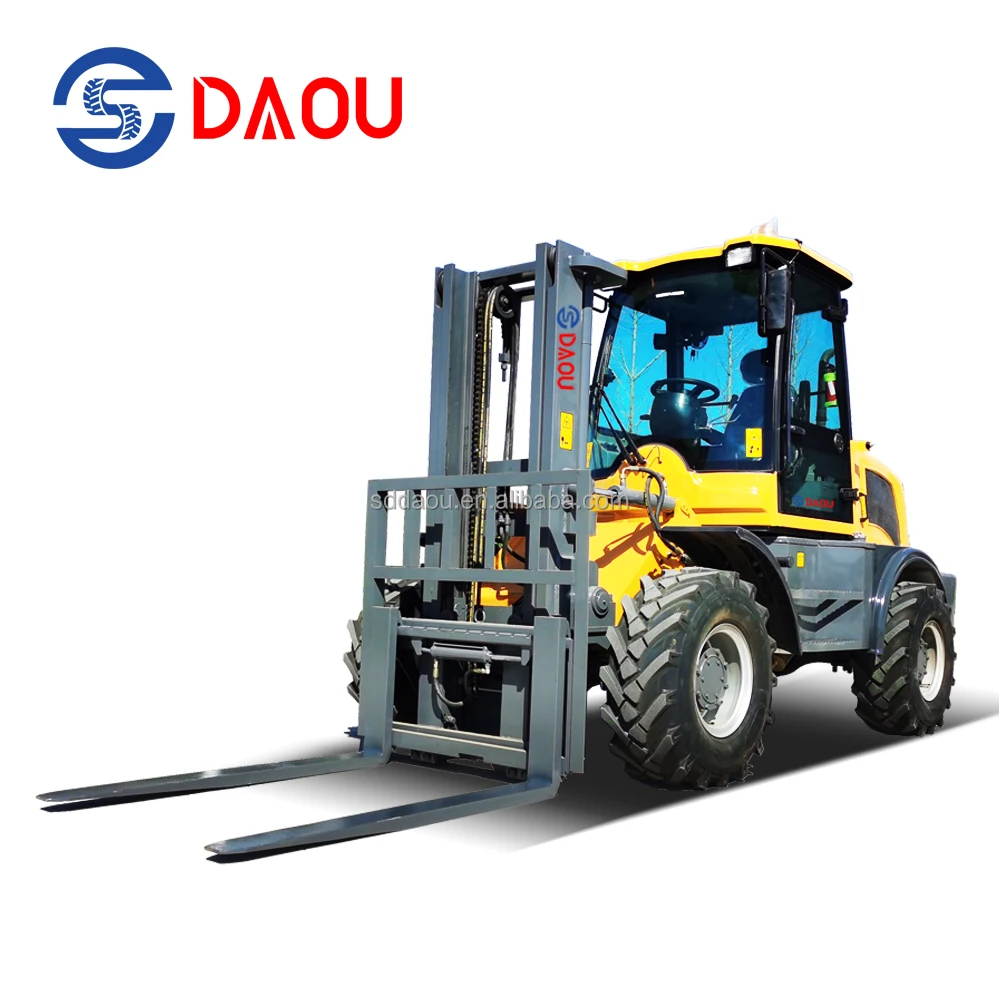

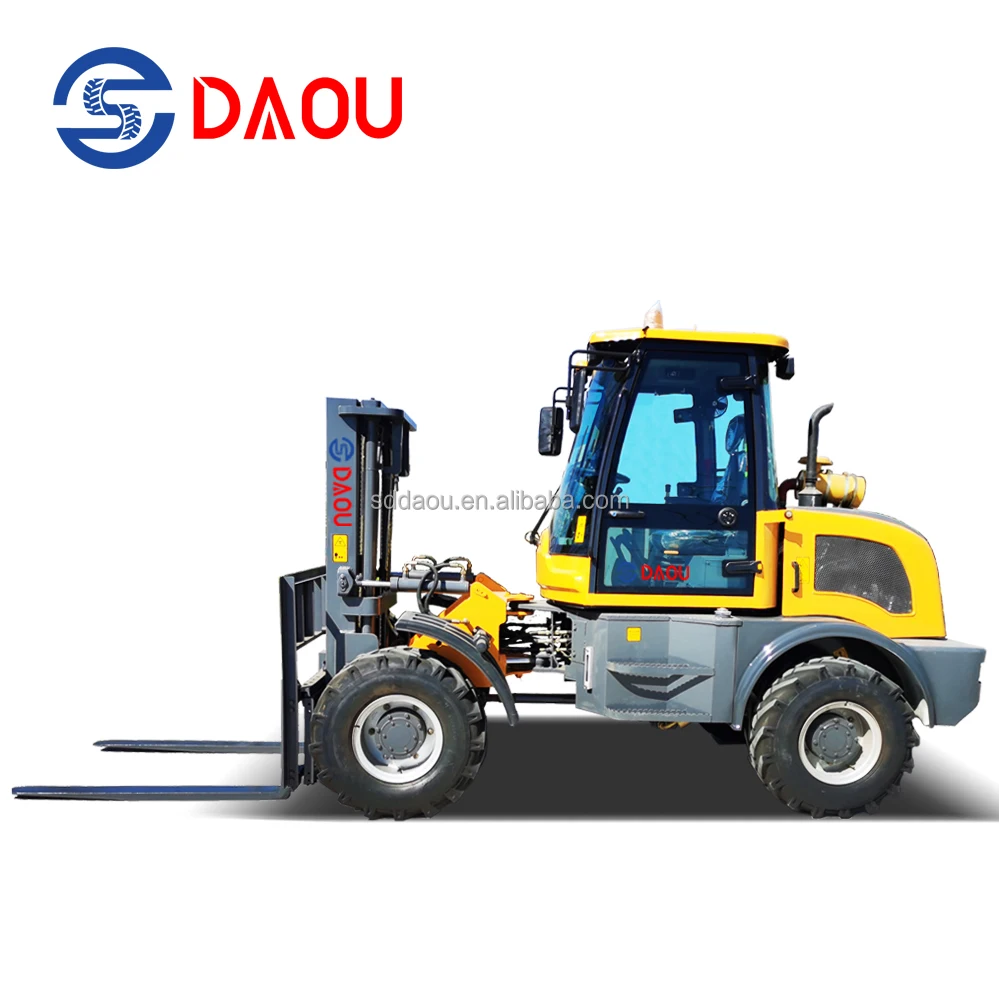

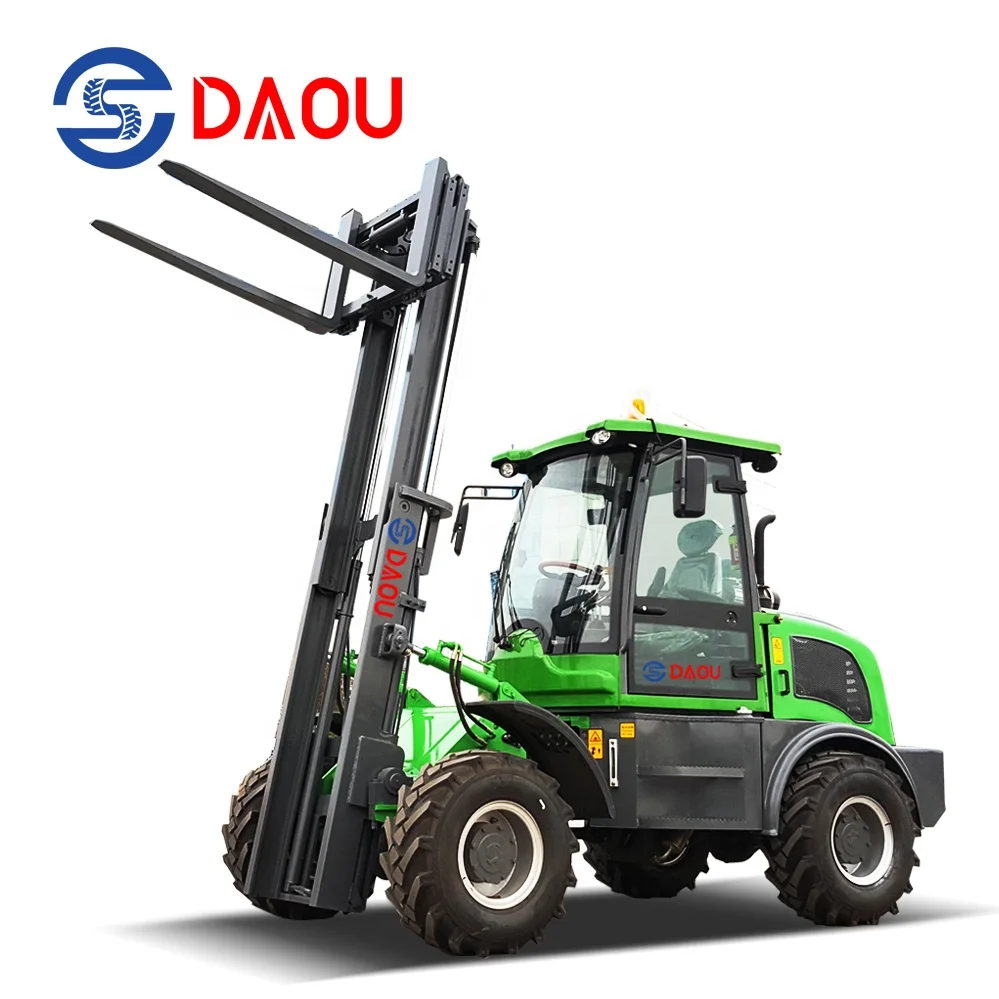

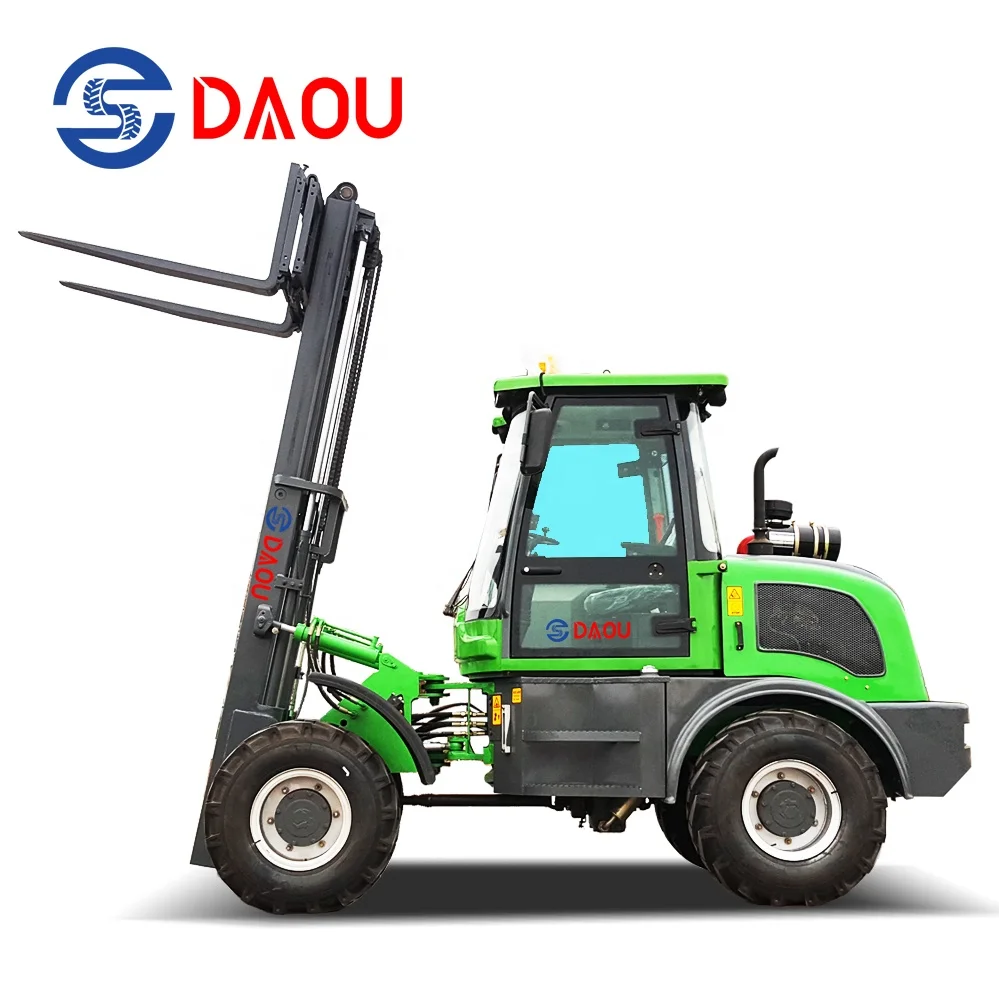

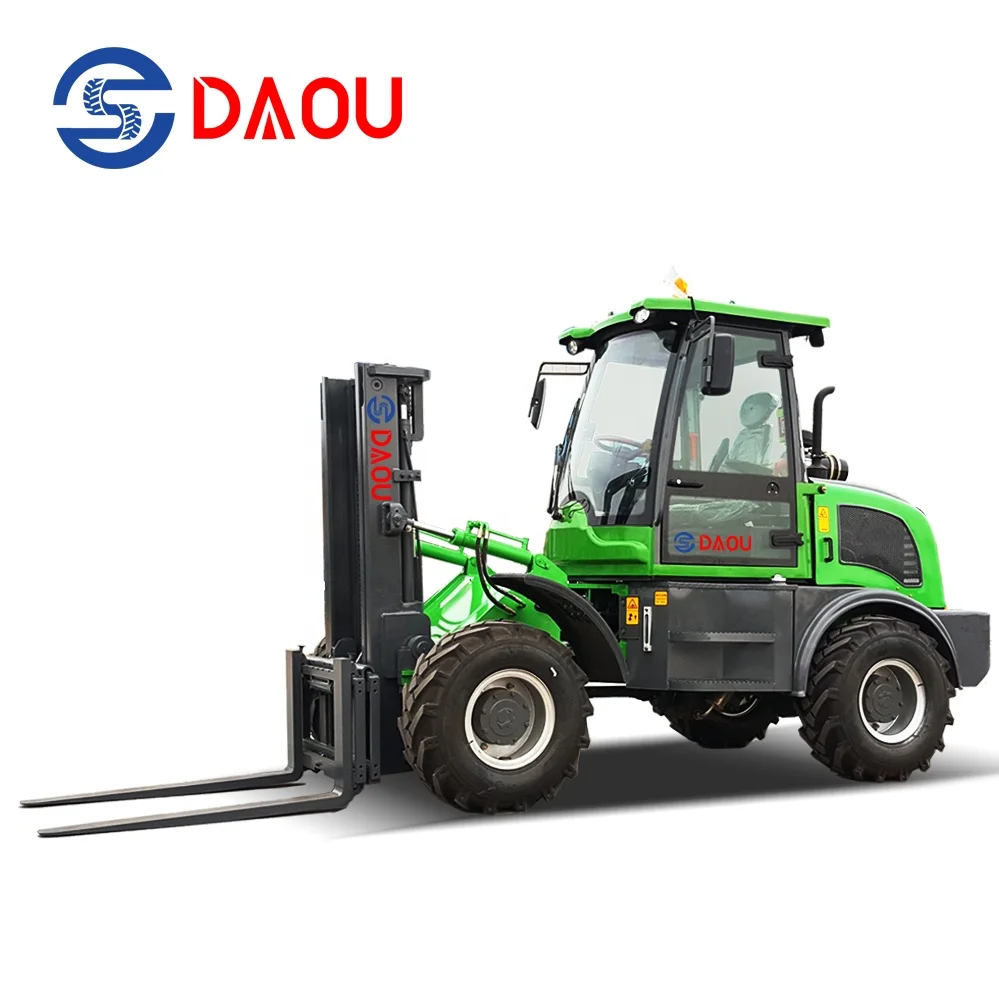

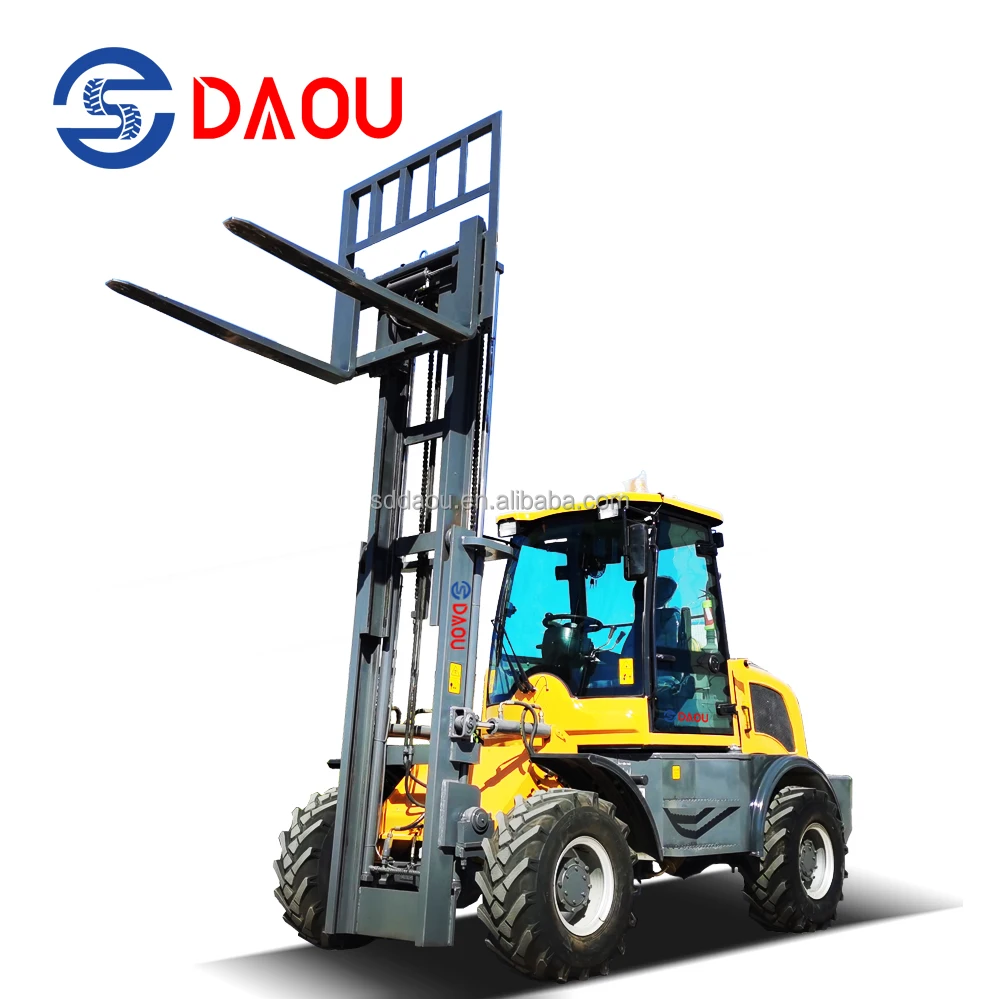

Китай (материк) 3-тонный вилочный погрузчик по бездорожью 4WD 4x4 все для пересеченной местности дизельный
- Категория: Forklifts >>>
- Поставщик: Shandong,Daou,Heavy,Industry,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 12257.50 $* | 12870.77 $* |
| Aug-17-2025 | 12154.50 $* | 12762.98 $* |
| Jul-17-2025 | 10197.1 $* | 10707.10 $* |
| Jun-17-2025 | 11948.5 $* | 12545.29 $* |
| May-17-2025 | 10403.66 $* | 10923.48 $* |
| Apr-17-2025 | 11742.28 $* | 12329.52 $* |
| Mar-17-2025 | 11639.71 $* | 12221.64 $* |
| Feb-17-2025 | 11536.79 $* | 12113.45 $* |
| Jan-17-2025 | 11433.28 $* | 12005.53 $* |
Характеристики
Product Description
Specification
Specification of CPC30 forklift | ||||
Performance | Lifting weight | 3000kg | ||
Overall weight | 3950kg | |||
Fork dimension | 1220 x 40 x 120 mm | |||
Maximum grade ability | 30℃ | |||
lifting height | 3m | |||
Overall dimension (L×W×H) | 4970×1840×2600mm | |||
Minimum turning radius | 4290mm | |||
Front overhang | 570mm | |||
Rear overhang | 900mm | |||
Engine | Model | YN33GBZ turbo engine | ||
Type | ln-line arrangement, water-cooled, 4-cycle diesel engine | |||
No. of cylinder-bore/stroke | 4-100×105mm | |||
Rated power | 65kw--2200r/min | |||
Maximum torque | 265N.m | |||
Min fuel-consume ratio | ≤225g/kw.h | |||
Transmission system | Torque converter | 265 | ||
Gearbox mode | Power shift normally engaged straight gear | |||
Gear shift | 2 forward shift, 2 reverse shift | |||
Drive axles | model | small hub reduction axle | ||
Wheel base (mm) | 2280mm | |||
Wheel tread | 1500mm | |||
Minimum ground clearance | 240mm | |||
hydraulic system | System working pressure | 16MPa | ||
total time for a signle working cycle | 9S | |||
Brake system | Service brake | air over hydraulic disc brake on 4 wheels | ||
Parking brake | manual parking brake | |||
Tyre | Type specification | 20.5/70-16S | ||
Front tyre pressure | 0.4Mpa | |||
Rear tyre pressure | 0.35Mpa | |||
Speed | Maximum travel unladen | 30km/h | ||
Lifting unladen | 630 mm/s | |||
Lowering unladen | 937 mm/s | |||
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
