220v Биг-бэг цыпленка вакуумной камере мясо упаковочная машина для упаковки запайки
- Категория: Vacuum Packing Machines >>>
- Поставщик: Zhejiang,Ruibao,Packaging,Machine,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-17-2025 | 3283.26 $* | 3349.64 $* |
| Jul-17-2025 | 2663.80 $* | 2716.66 $* |
| Jun-17-2025 | 3231.4 $* | 3296.66 $* |
| May-17-2025 | 3205.19 $* | 3269.18 $* |
| Apr-17-2025 | 2559.68 $* | 2610.34 $* |
| Mar-17-2025 | 3154.22 $* | 3217.12 $* |
| Feb-17-2025 | 3128.70 $* | 3191.62 $* |
| Jan-17-2025 | 3102.20 $* | 3164.92 $* |
Характеристики
You may also like
DMP-430 tray sealer MAP-450 tray sealer DZ-1000SD auto vacuum sealer external vacuum sealer
double chamber thermoforming vacuum packing conveyor belt vacuum packer ready meal tray sealer
How to get quotation and process order
Let's make order
Step 1 : Enquiry
Show samples
check size, settle down the model machine (our machine pack different type such as trap,film)
check size, settle down the model machine (our machine pack different type such as trap,film)
Step 2: Place order
checking details like spare parts and optional device then place the order. Customer send 50% deposit and we produce the machines.
Step 3: check machine
We concern production of machines and send pictures or videos to customers.Once the machine is ready, customers send sample tray
or sample film for testing. After test OK and send the video to customers, then customer sending the balance
or sample film for testing. After test OK and send the video to customers, then customer sending the balance
Step 4: delivery
we received the amount Booking shipment and pack with wooden case. Deliver the goods to the customers
Step 5: installment
customer received the machine, kindly read the operation instruction book and contact us for video guide until the machine running
smoothly
smoothly
Step 6 after-sale service
We will be online 24 hours. All the machines guarantee for one year.
Product Description

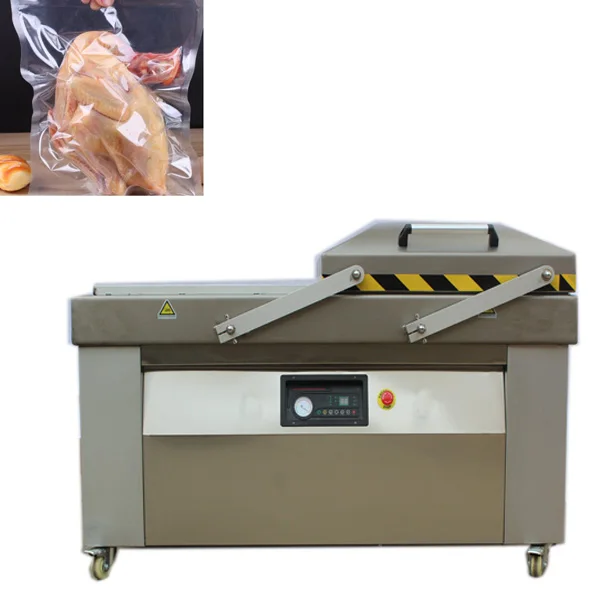

DZ-10002SB is our enlarged type. It can pack the whole chicken and big meat and vegetable
Output calculation:

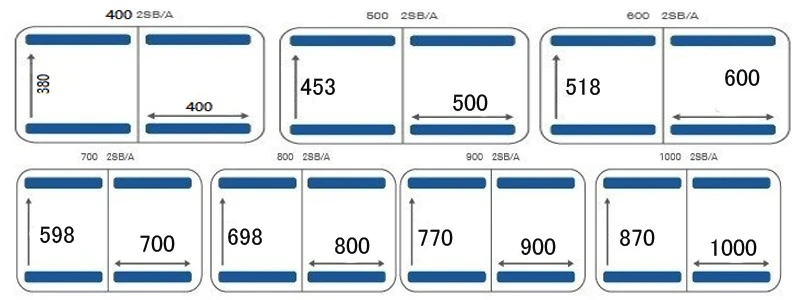

The blue line is the sealing width:The output depends on your bag width, Take DZ-10002SB as a sample,supposing your bag size is w 90mm* L100mm, one line can make 11 bags,so the total bag is 22 bags in a cycle.It can make 2-3 cycles per min. The output is 44-66 bags per min.
If your bag is very short,we also can do two more sealing bars in the middle. So the output can be double.
According to your bag size to choose the model No..
Specification
Model | DZ-7002SC | DZ-8002SC | DZ-9002SC | DZ-10002SC | |||
Machine body | Food grade 304SS for its surface, work table and swing lid (DZ-10002SC suggest with automatic swing lid) | ||||||
Inside frame | Painted iron | ||||||
Work table | Flat work table | ||||||

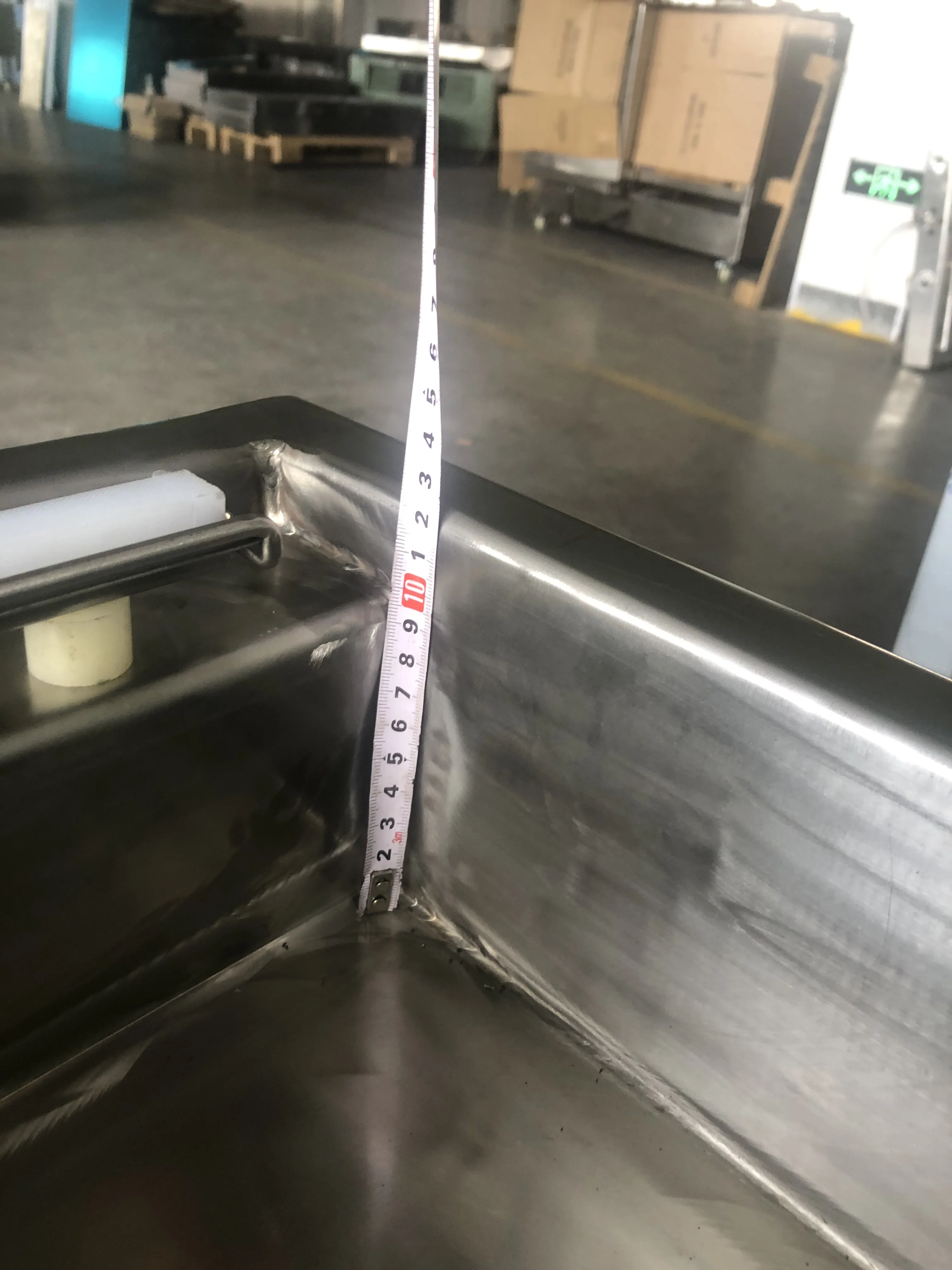

Chamber depth | 120-180 mm (the chamber depth is in the swing lid) | ||||||
Chamber size | 800*720*180mm | 900*820*180mm | 1000*900*180mm | 1100*960*180mm | |||
Sealing length | 700mm | 800mm | 900mm | 1000mm | |||
Sealing width | 10mm | 10mm | 10mm | 10mm | |||
Sealing number | 2pcs | 2pcs | 2pcs | 2pcs | |||
Distance between seal | 598mm | 698mm | 770mm | 870mm | |||

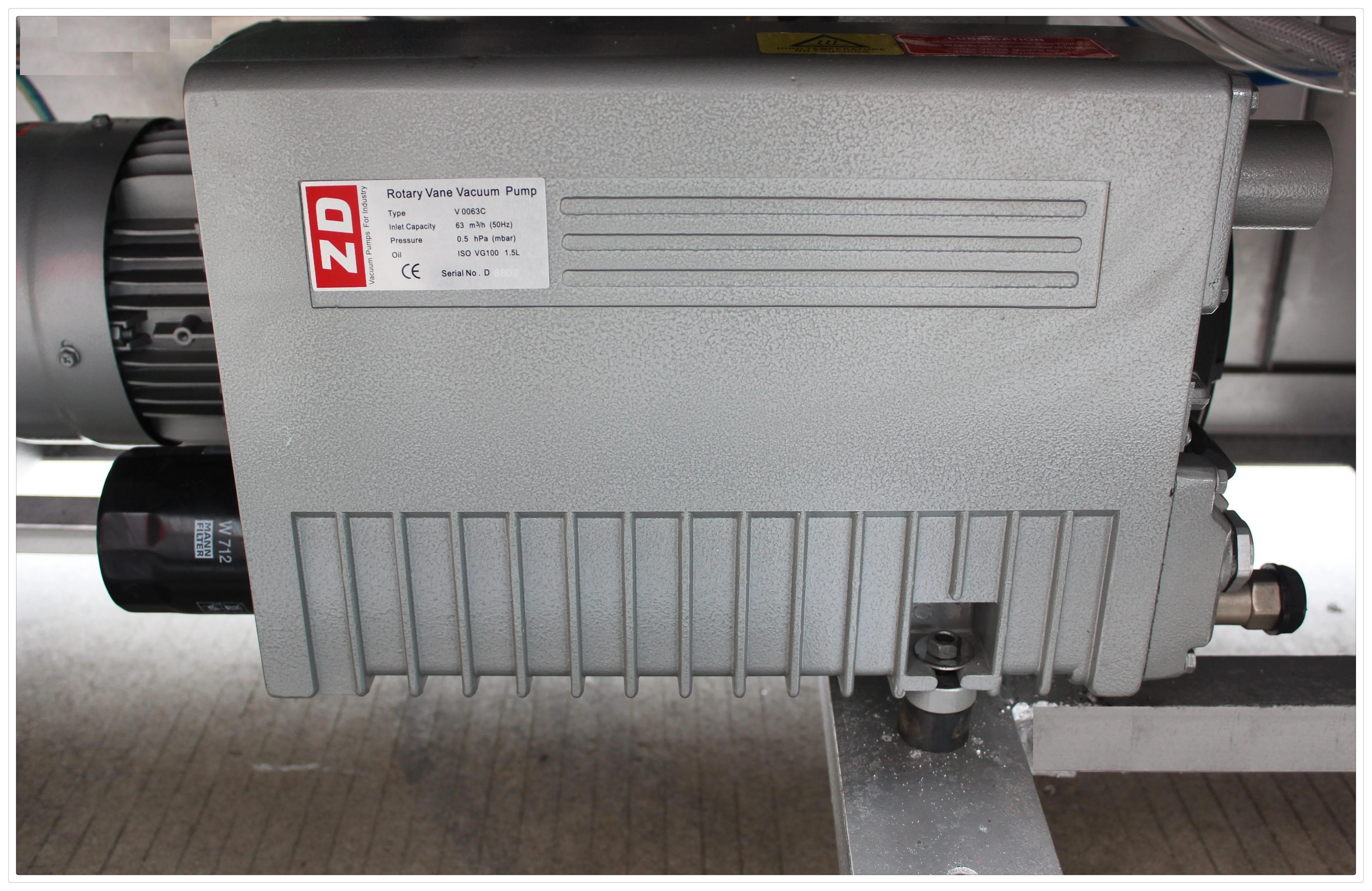

Vacuum pump | ZD brand 63m3/h | ZD brand 63m3/h | ZD brand 100m3/h | ZD brand 200m3/h | |||
Main power | approx 1.5KW | approx 2KW | approx 2.5KW | approx 3KW | |||
Voltage | 380 V/450 V 50 HZ/60 HZ 3 phase (or customized) | ||||||
Pack capacity | 1-2 cycles / min | ||||||

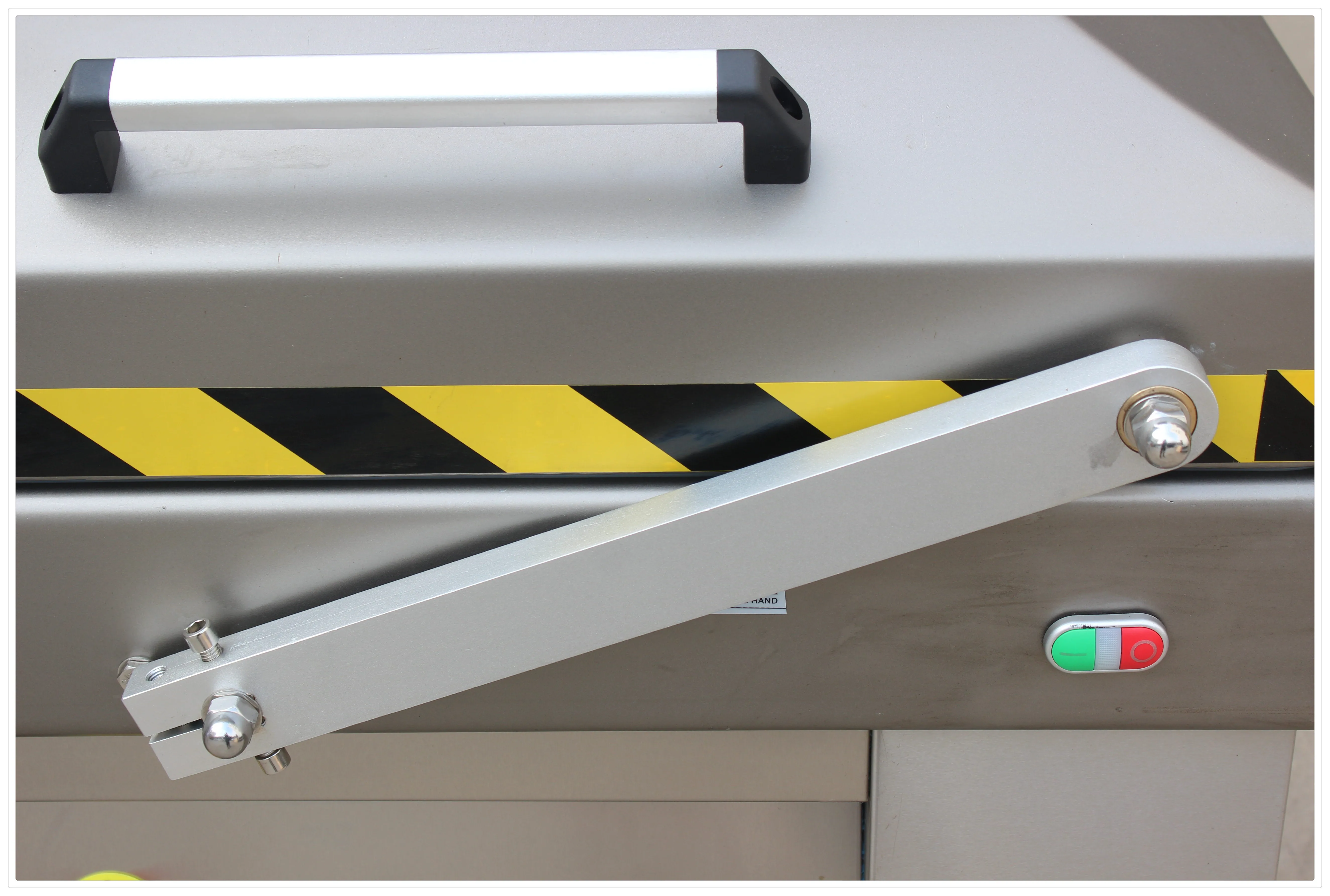

Swing lid | manual swing lid (Automatic swing lid is optional function) | ||||||
Control panel | PCB (Relay / PLC are optional controller ) | ||||||
Weight(w.o pump) | 260KG | 320KG | 385KG | 450KG | |||
Overall size(mm) | 1615*830*1050 | 1815*960*1050 | 2015*1030*1050 | 2215*1130*1050 | |||
Function | vacuum+seal (Gas fill is optional function) | ||||||
Certificate | CE | ||||||
Guarantee | 1 year (for main component, exclude durable spare parts) | ||||||
Language | Control panel and printed manual in English language | ||||||
Lead time | 15days to get machine ready for standard machine. Need negotiate for customized function. | ||||||
price | 2585USD | 3052USD | 3872USD | 5290USD | |||
The dual chamber vacuum packaging machine is the one that the cover works interactively on the two vacuum chambers. The user can place materials on one vacuum chamber while the other one is pumping vacuum. Thus it can improve the productivity.
Optional device：
Auto swing lid 3000USD
Packing & Delivery
export wooden carton
Company Profile
Contact us
Zhejiang Ruibao packaging machine Co., Ltd
April Yang
Wechat/whatsapp: +0086 13566154199
