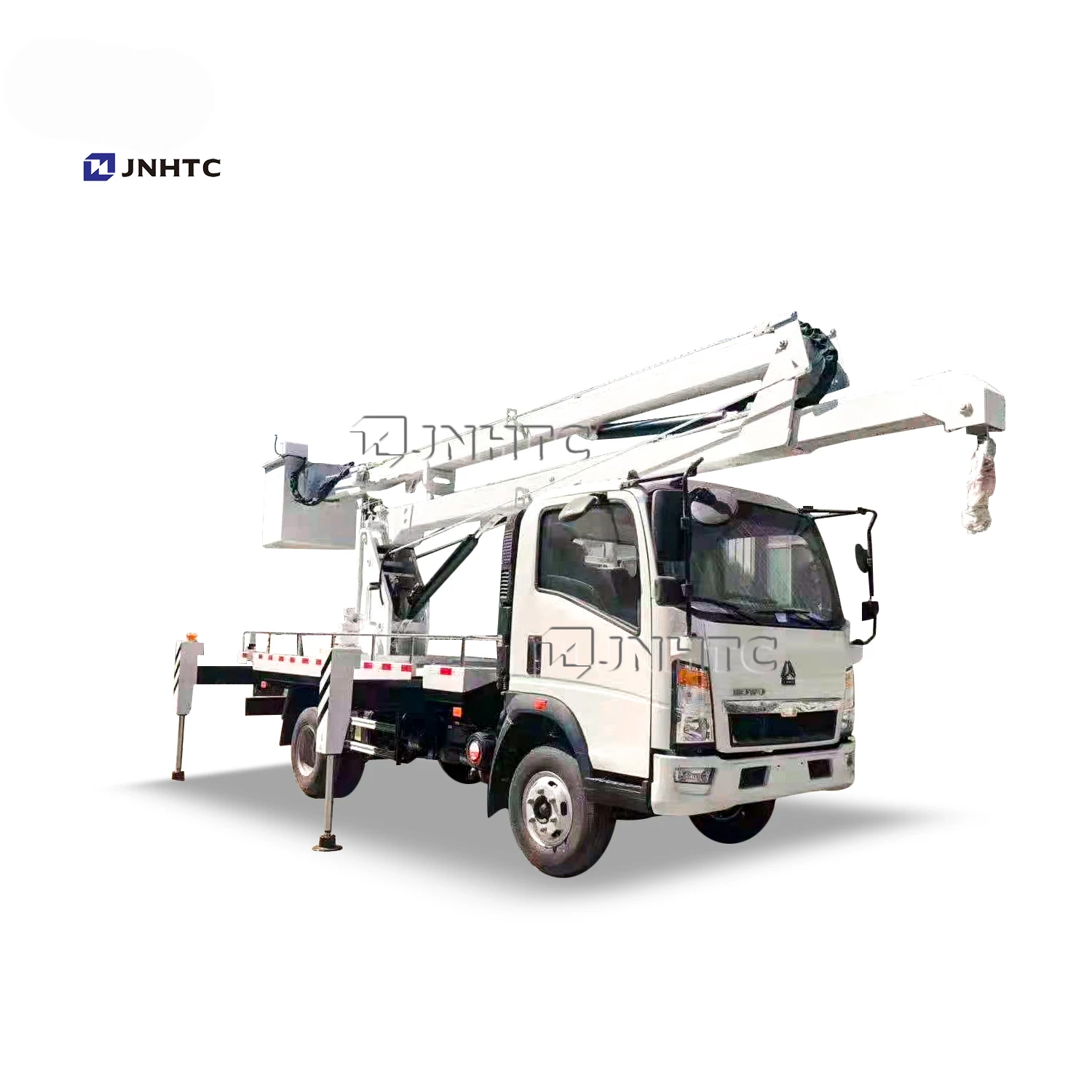

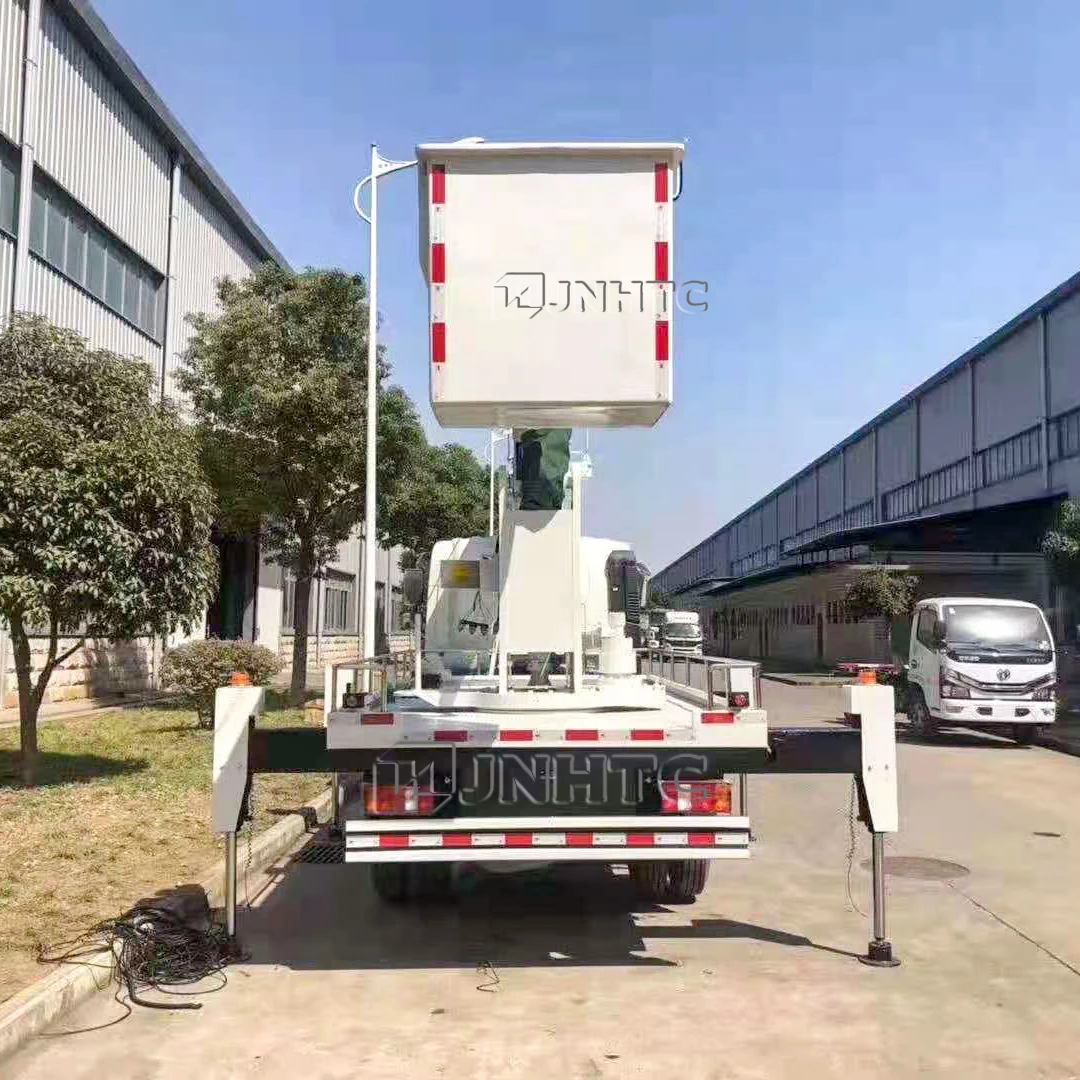

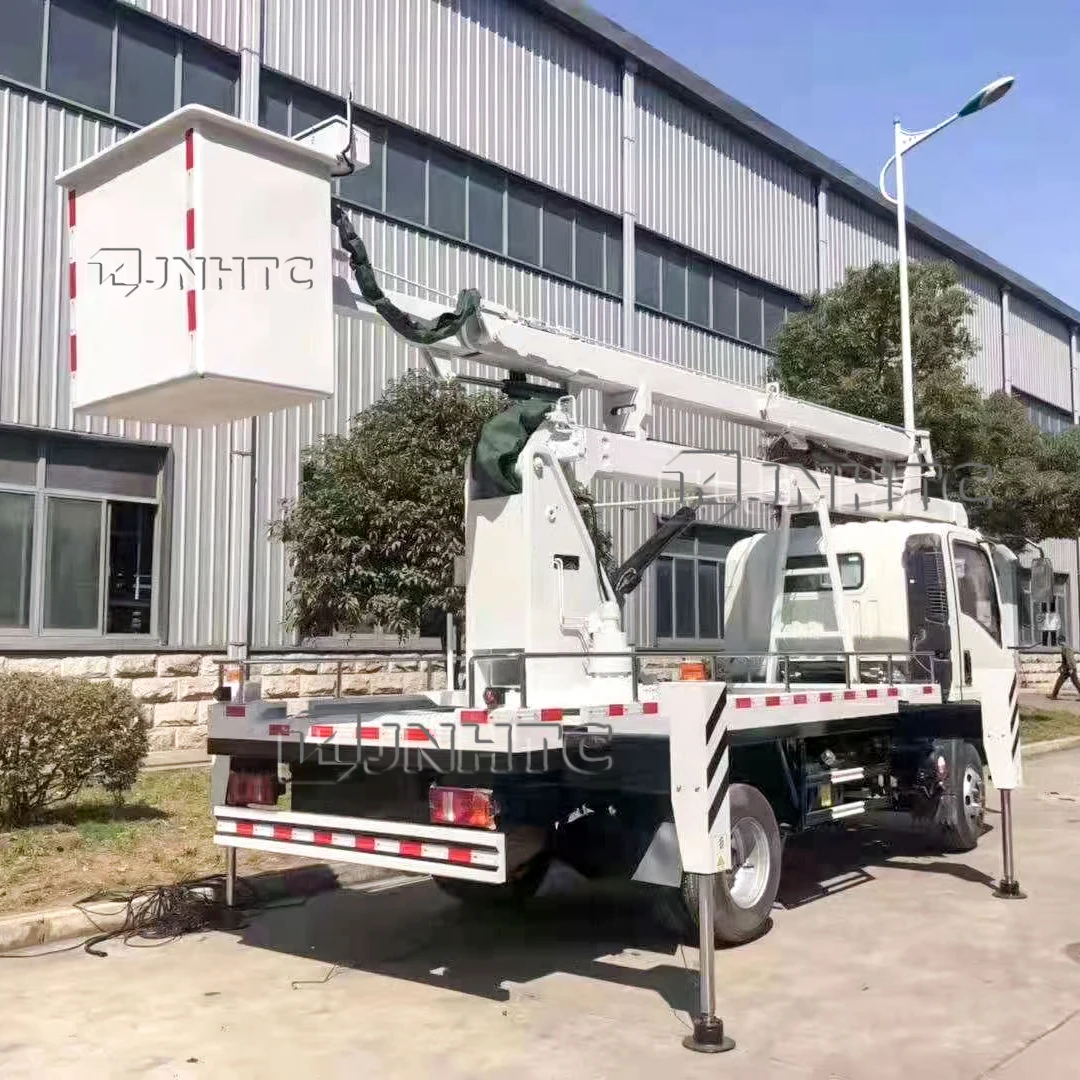

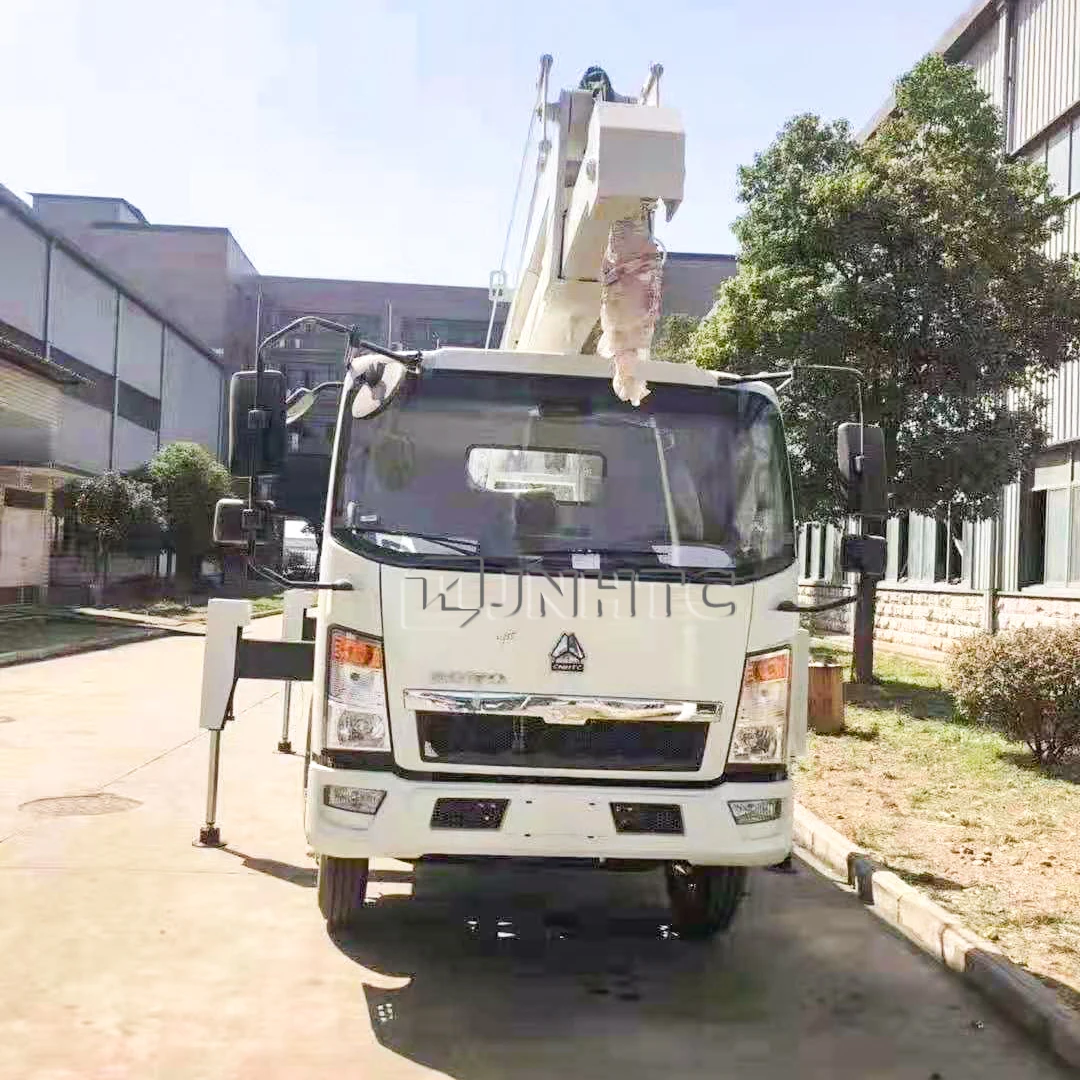

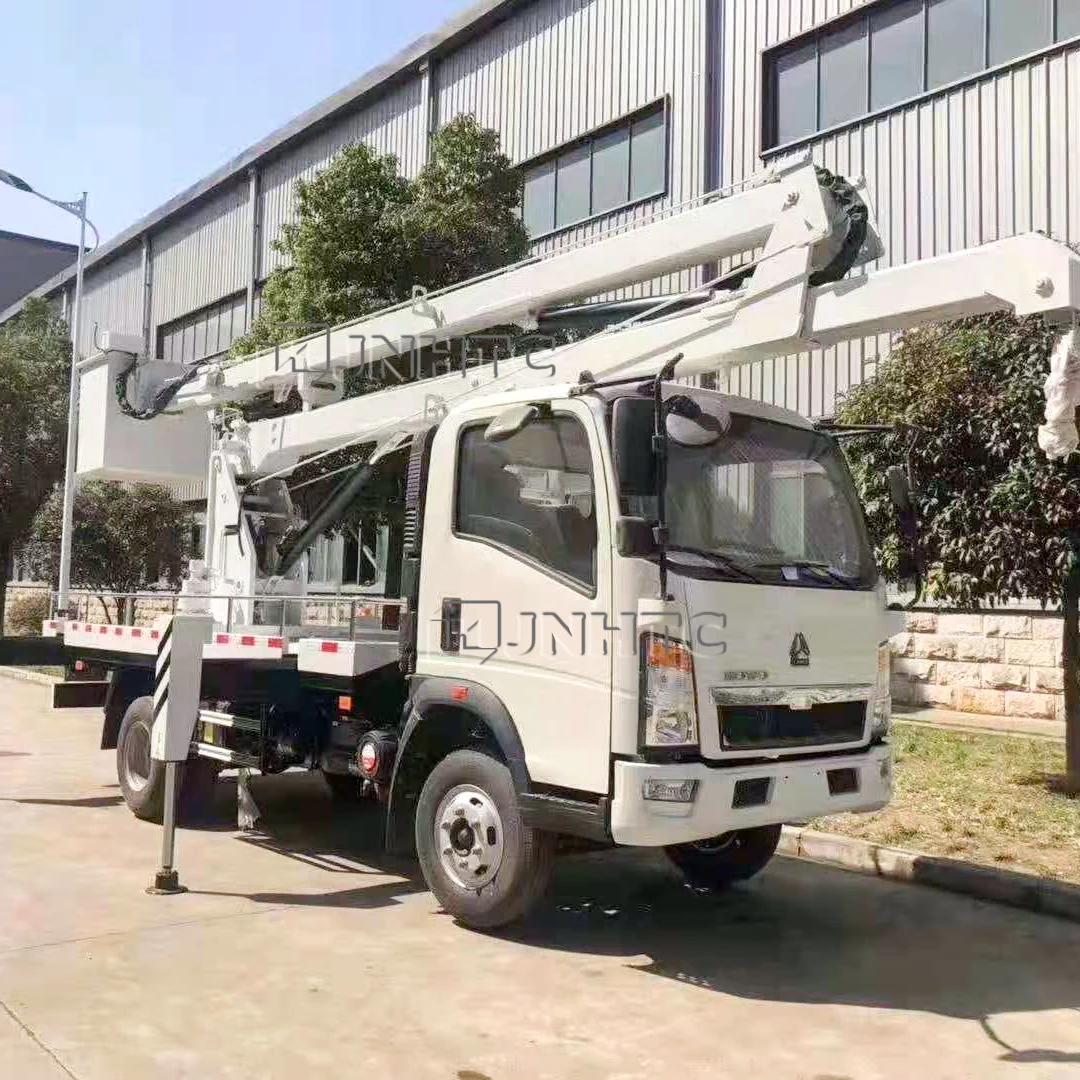

Грузовик с воздушной платформой Marilyn DONGFENG DKL
US $12000-$29900
Грузовик с большой высотой 10-30 м грузовик воздушной тягой гидравлическая воздушная клетка самоходные сочлененные
- Категория: High-altitude Operation Trucks >>>
- Поставщик: Jinan,Heavy,Truck,Import,&,Export,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 33320.95 $* | 34986.19 $* |
| Aug-17-2025 | 33040.76 $* | 34692.31 $* |
| Jul-17-2025 | 27720.85 $* | 29106.16 $* |
| Jun-17-2025 | 32480.15 $* | 34104.87 $* |
| May-17-2025 | 28280.48 $* | 29694.88 $* |
| Apr-17-2025 | 31920.29 $* | 33516.71 $* |
| Mar-17-2025 | 31640.94 $* | 33222.26 $* |
| Feb-17-2025 | 31360.59 $* | 32928.30 $* |
| Jan-17-2025 | 31080.48 $* | 32634.8 $* |
Характеристики
10-30m High Altitude Operation Truck/Aerial Work Truck/Hydraulic Aerial Cage/Self-Propelled Articulated Booms Propelled Articula
Product Description
Condition | New condition/left hand drive/4x2 | |||
Chassis | Curb weight(kg) | 5760 | ||
Wheelbase(mm) | 3800 | |||
Dimensions(mm) | 6770×2180×2620 | |||
Overhang (front/rear) (mm) | 1160/1810 | |||
Axle Load(kg) | 2700/7200 | |||
Max. driving speed(km/h) | 95 | |||
Brand | HOWO | |||
Tire | Number | 6pcs with one spare tire, total 7 pieces | ||
Specifications | 7.50R16 | |||
Clutch | Dry Single Plate with diaphragm spring | |||
Gear box | 6 Forwards & 1 Reverse | |||
Cab | It can accommodate three people | |||
Engine | Model | YN4102QBZL | ||
Displacement(ml) | 3760 | |||
Cylinder quantity(pcs) | 6 | |||
Power(kw) | 88 | |||
Horsepower(HP) | 116 | |||
Emission standard | Euro 2 | |||
Brakes | Type | Air Brake | ||
Dryer | Equipped | |||
| Three section folding arm, maximum working radius | 5.8m |
| Maximum working height | 12m |
| The maximum lifting weight is 1000kg and the maximum lifting height is 6.4m | 360 ° rotation. |
| Outrigger span | longitudinal 2430 |
| transverse | front 1600mm, rear 2780mm |
| Hanging basket size | 1080x610x1100 |
| Mechanical leveling of external pull rod, with cylinder locking function, double position operation of turntable and basket. Electrically controlled hydraulic operation, all four legs extend horizontally, and all balance rods are solid |
