Электрическая ножничная платформа XCMG 10 м XG1012DC
- Категория: Lift Tables >>>
- Поставщик: XCMG,E-Commerce,Inc.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 11900.6 $* | 12495.14 $* |
| Aug-16-2025 | 11800.75 $* | 12390.36 $* |
| Jul-16-2025 | 9900.68 $* | 10395.87 $* |
| Jun-16-2025 | 11600.39 $* | 12180.24 $* |
| May-16-2025 | 10100.65 $* | 10605.7 $* |
| Apr-16-2025 | 11400.54 $* | 11970.0 $* |
| Mar-16-2025 | 11300.70 $* | 11865.4 $* |
| Feb-16-2025 | 11200.7 $* | 11760.7 $* |
| Jan-16-2025 | 11100.82 $* | 11655.48 $* |
Характеристики
Products Description

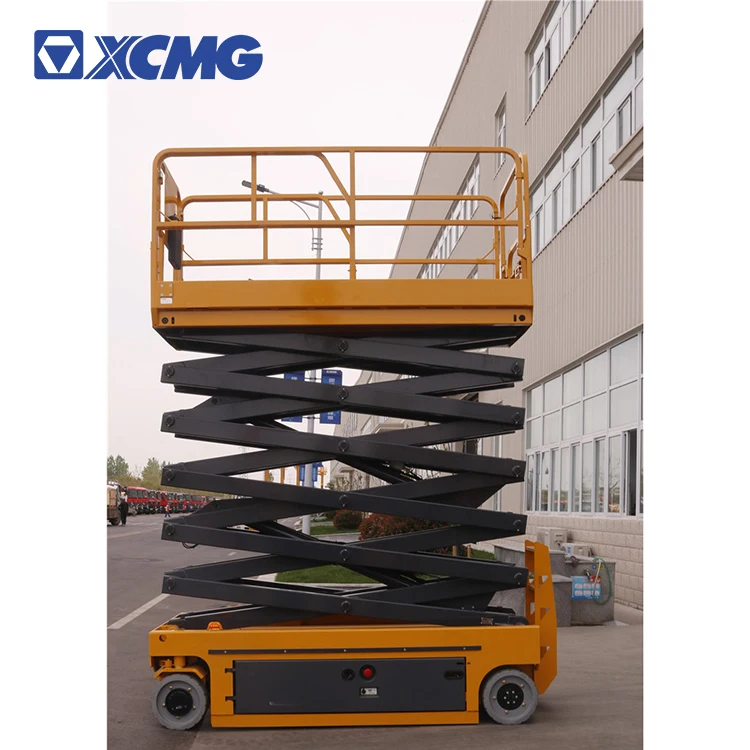

XCMG 10m electric scissor lift platform XG1012DC.
XCMG XG Series Aerial Work Platforms:
XCMG XG series aerial work platform includes scissor lifts, articulated boom lifts, telescopic boom lifts. XG scissors lifts series cover 6m to 16m in height, which are safe, reliable, easy to operate, adaptable, easy to maintain and economical. XCMG scissor lifts are widely used in various indoor and outdoor high-altitude operations.
The Scope of Application of XCMG Scissor Lift Platform XG1012DC:
It can be widely used for indoor and outdoor mechanical installation, equipment maintenance, and building maintenance in stations, airports, bridges, docks, halls, warehouses, etc.
Product highlights of XCMG Scissor Lift Platform XG1012DC:
1. Double U-shaped integrated platform and separate slide to increase rigidity.
2. The boom is made of high-strength materials, fixed through hinge points, and by customized reinforcement plates.
3.Brand-new pit protection mechanism and pressure column design, optimized hinge point arrangement, reliable and durable gas spring.
The XCMG aerial work platform industry has maintained a high-speed and high-quality benign development trend for four consecutive years. XCMG boom lifts have steadily ranked first among domestic brands in China.
XCMG XG series aerial work platform includes scissor lifts, articulated boom lifts, telescopic boom lifts. XG scissors lifts series cover 6m to 16m in height, which are safe, reliable, easy to operate, adaptable, easy to maintain and economical. XCMG scissor lifts are widely used in various indoor and outdoor high-altitude operations.
The Scope of Application of XCMG Scissor Lift Platform XG1012DC:
It can be widely used for indoor and outdoor mechanical installation, equipment maintenance, and building maintenance in stations, airports, bridges, docks, halls, warehouses, etc.
Product highlights of XCMG Scissor Lift Platform XG1012DC:
1. Double U-shaped integrated platform and separate slide to increase rigidity.
2. The boom is made of high-strength materials, fixed through hinge points, and by customized reinforcement plates.
3.Brand-new pit protection mechanism and pressure column design, optimized hinge point arrangement, reliable and durable gas spring.
The XCMG aerial work platform industry has maintained a high-speed and high-quality benign development trend for four consecutive years. XCMG boom lifts have steadily ranked first among domestic brands in China.
Specification
Item | Unit | Parameters |
Dimensions (LxWxH) | mm | 2477x1170x2355 |
Wheel base | mm | 1877 |
Wheel track | mm | 1043 |
Min. Ground clearance (pit protector lifting / decline) | mm | 100/20 |
Platform dimensions(LxWxH) | mm | 2277x1120x1263 |
Platform dimensions Platform extension length | mm | 900 |
Vehicle center of mass position Horizonal distance from front axis | mm | 950 |
Vehicle center of mass position Height of center of mass | mm | 613 |
Total weight | kg | 2620 |
Max. Platform height | m | 8 |
Min. Platform height | m | 1.2 |
Max. Working height | m | 10 |
Min. Turning radius (inner wheel / outer wheel) | m | 0/2.3 |
Platform rated load | kg | 450 |
Extension platform rated load | kg | 115 |
Platform lifting time | s | 29-40 |
Platform decline tine | s | 34-45 |
Max. Walking speed (low position) | km/h | 4.0 |
Max. Walking speed (high position) | km/h | 0.8 |
Max. gradeability | % | 25 |
Tilt warning angle（side / forward and backward） | ° | 1.5/3 |
Lifting /walking motor Rated power | kW | 3.3/0.75 |
Battery Voltage | v | 24 |
Battery Capacity | Ah | 225 |
Battery Manufacturer | — | Trojan/Leoch |

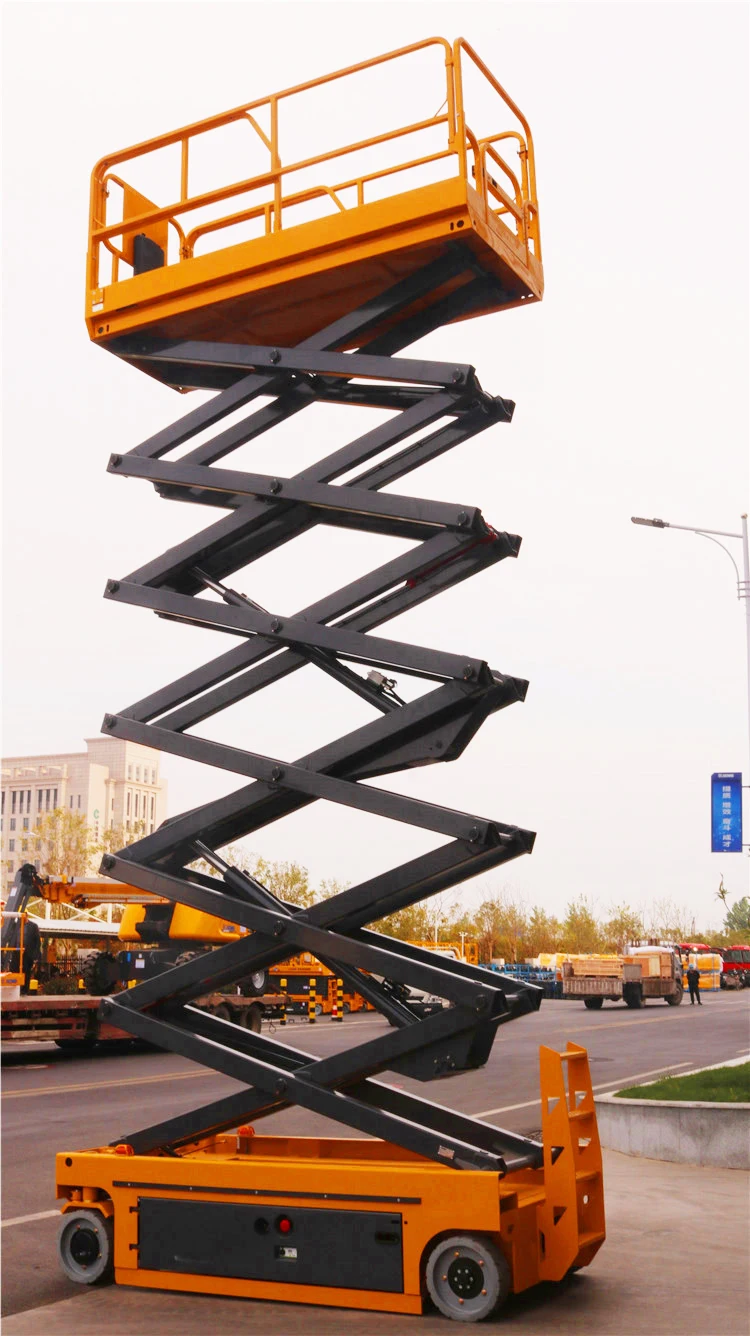

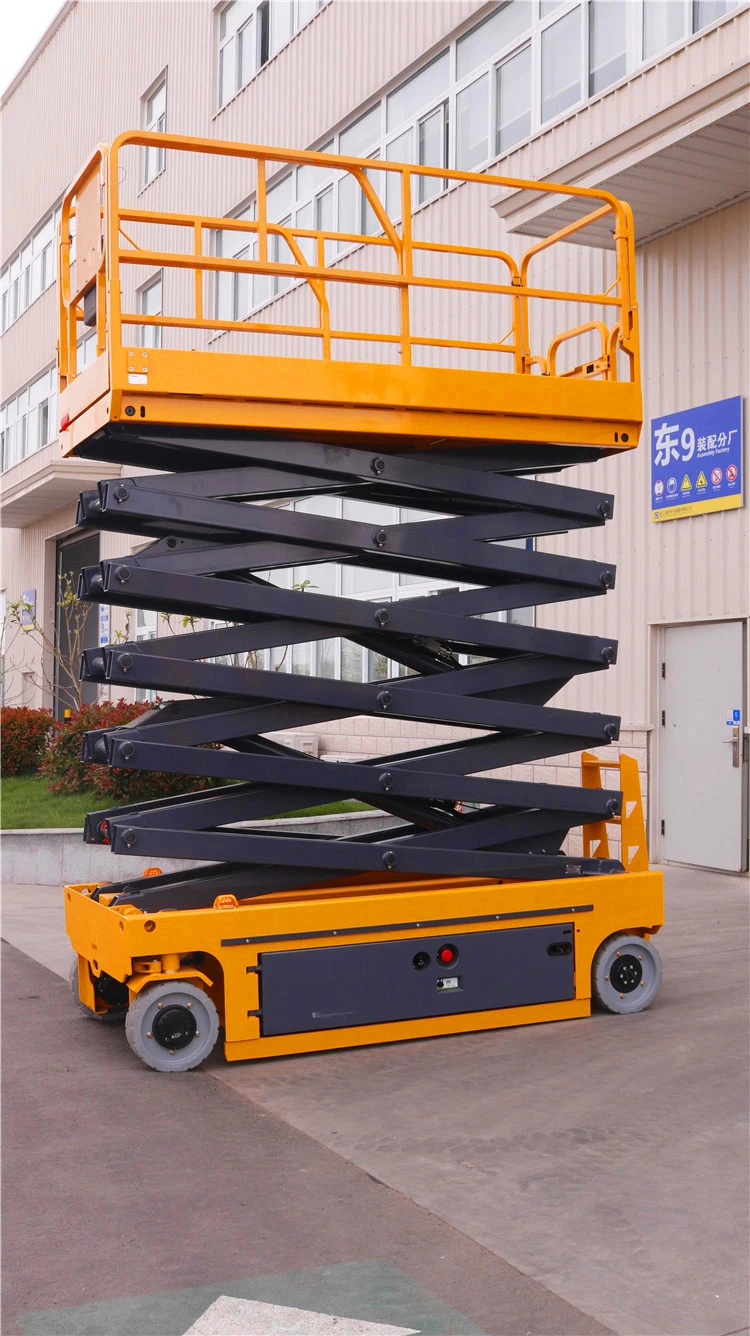

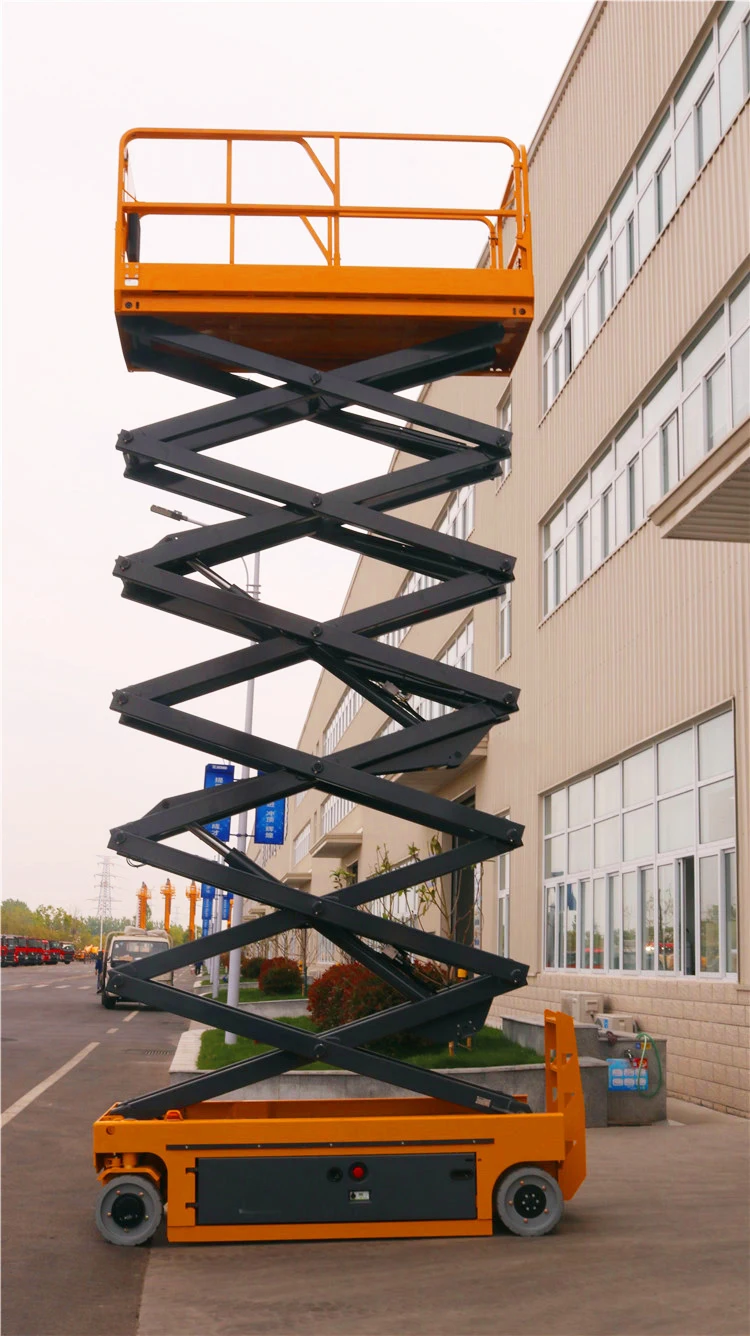

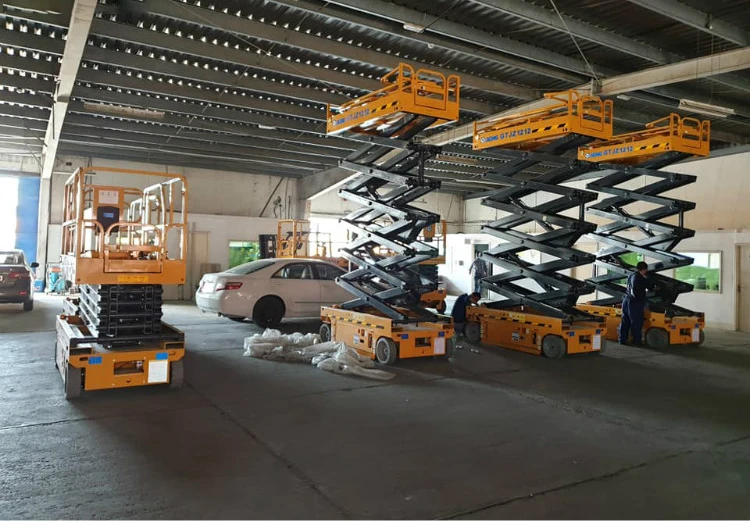

Product Show
Details Images
Online Service Team
Our Advantages

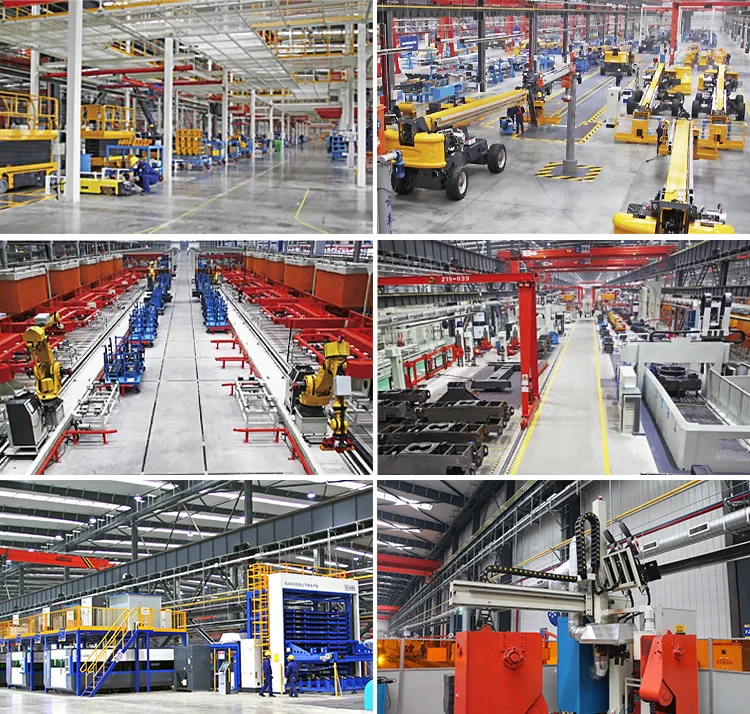

Company Profile
