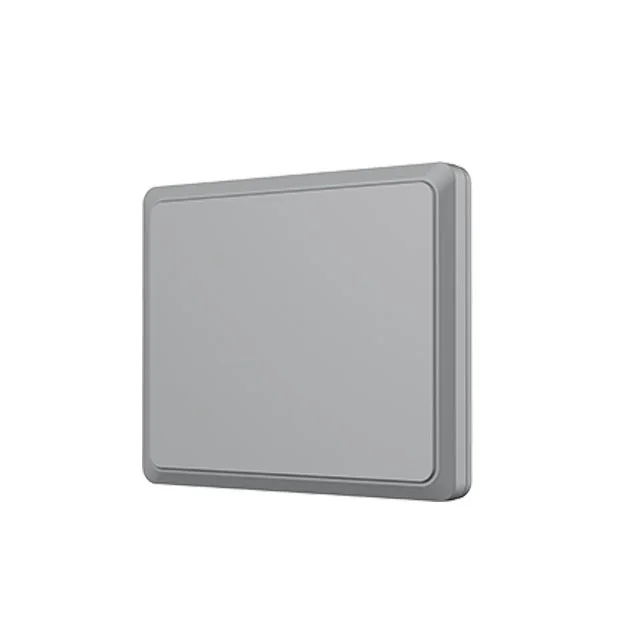

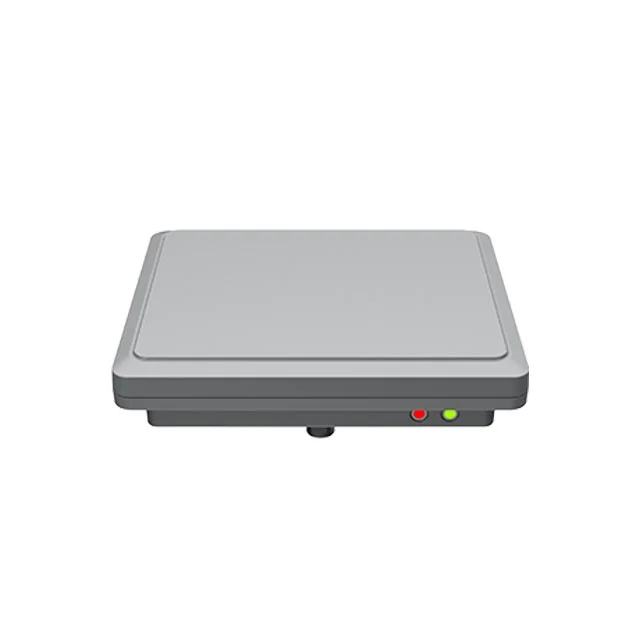

Nanoradar 24 ГГц TSR10 микроволновый радар для контрольно-пропускного пункта движения. Измерение скорости дороги управления освещением станции
- Категория: Other Roadway Products >>>
- Поставщик: Hunan,Nanoradar,Science,And,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 0.51 $* | 0.57 $* |
| Aug-18-2025 | 0.72 $* | 0.89 $* |
| Jul-18-2025 | 0.47 $* | 0.52 $* |
| Jun-18-2025 | 0.83 $* | 0.15 $* |
| May-18-2025 | 0.58 $* | 0.72 $* |
| Apr-18-2025 | 0.37 $* | 0.74 $* |
| Mar-18-2025 | 0.78 $* | 0.7 $* |
| Feb-18-2025 | 0.80 $* | 0.27 $* |
| Jan-18-2025 | 0.23 $* | 0.70 $* |
Характеристики
24GHz Radar Speed Detector for Traffic Monitoring |
With the rapid growth of vehicles on the road, intelligent traffic system has been widely applied and rapidly developed. Vehicle control & detection by radar technology is an important part of the intelligent traffic system. Intelligent traffic management controls traffic information collected like traffic flow, vehicle speed, road occupancy, vehicle spacing, vehicle type and other basic data, thus to realize monitoring, control, analysis, decision making, and scheduling counseling and other means of wisdom.
Application:
Gate speed detection, vehicle/pedestrain recognition
Advantages:
* Advanced AI algorithm technology, which can distinguish vehicle features and avoid target miss & re-catch.
* Distance & speed accuracy enhanced by spectrum zoom.
* Vehicle catching location range in ±0.5m, accuracy up to 99%
* Vehicle driving direction recognizable

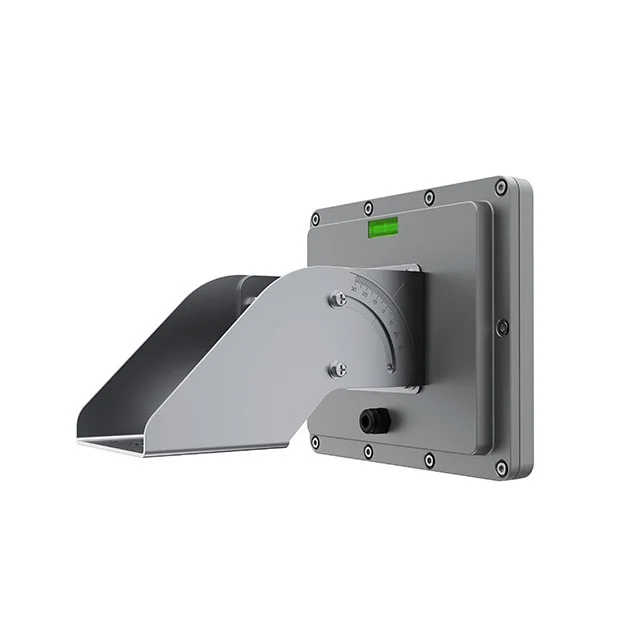

* Comfort installation design, built-in with level instrument
* Strong environmental adaptability, radar performance is not affected by light, dust, rain and snow, haze and other harsh environment
* It comes with interface: RS485, RS232 & Wi-Fi for easy configuration

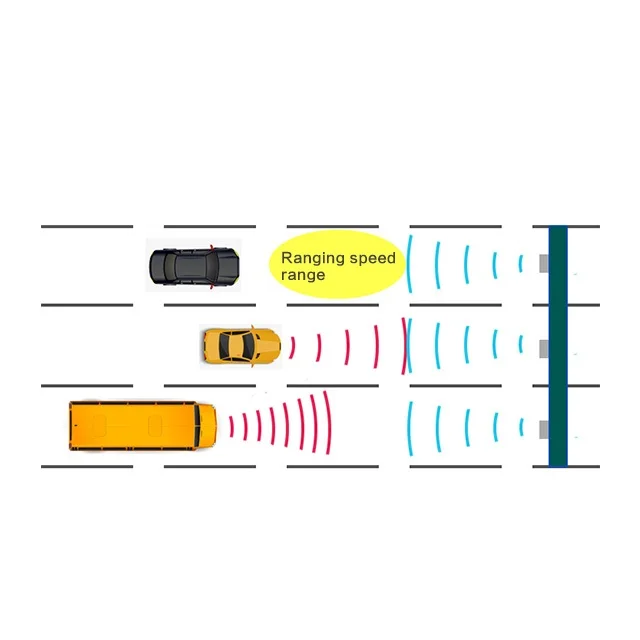

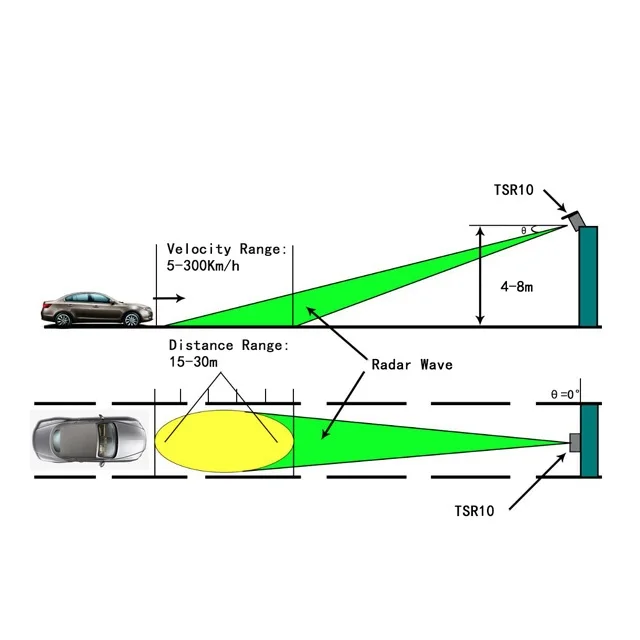

| Traffic Lane Vehicle Speed Measurement |
Speed Measuring Radar for Intelligent Traffic Management
Accidents caused by vehicle speeding is often very serious, intelligent traffic management will be prompted to limit vehicle speed according to real time traffic conditions. In order to avoid accidents, speed measuring radar system is installed at some critical roads. When the radar identify an over-speeding vehicle, the system will immediately coordinates cameras to take records.
The speed measuring system is made up of following:
Speed detection: Microwave Radar
Video Records: Camera, Lights
Front Data Process Unit: Identification on Server
Networking Unit: Switch, Optical Transmitter & Receiver
Multiple installation is controlled at the management center.

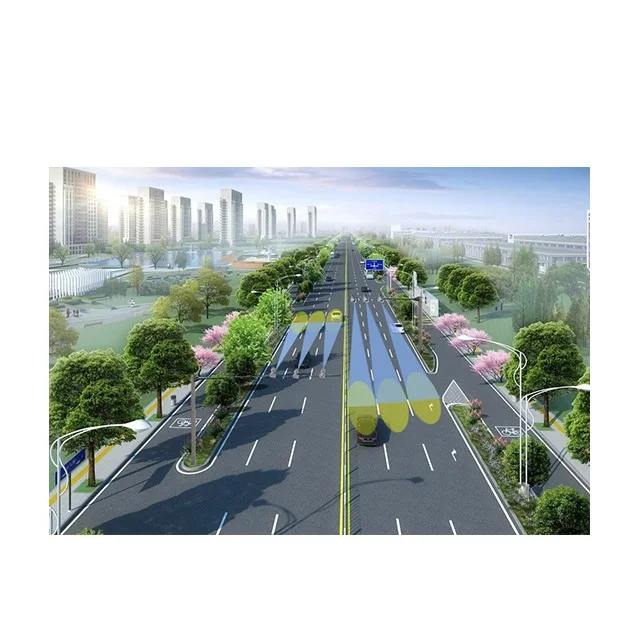

| Installation Cases on Traffic Lane for Enforcement |
About Nanoradar Leading millimeter wave radar provider in China |
About Nanoradar:
Nanoradar, established in 2012, is specialized in developing, producing and selling millimeter wave radar for security, UAV, automotive, smart traffic and other industrial application. Our products covers 24GHz, 77GHz, 79GHz frequency band. We have successfully developed 10+ models MMW radar products. Nanoradar’s radar detection range covers 30-450 meters. The accuracy is up to 85% for security radar to identify pedestrians. As a leading MMW radar manufacture in China, Nanoradar products also well accepted in overseas market like US, Korea, UK, and France etc.
Nanoradar is providing 24GHz / 77GHz Radar Sensors and Systems.
1. NRA24---24GHz 50~200 meters UAV Altimeter Radar.
2. MR72---77GHz 40-80 meters UAV collision avoidance radar
3. CAR28T / 28F---Vehicle BSD/LCA radar Heavy-duty vehicle collision avoidance radar.
4. MR76---77GHz 170 meters Automotive ADAS radar ( ACC/AEB)
5. NSR80W/NSR100W/NSR300W---Security perimeter intrusion detection
