Air Cooled Heat Exchanger, or called Air cooler, is an industrial heat exchanger that uses Ambient air as cooling medium, where the fan forces air cross the Finned pipes to cool the high-temperature processing medium within the pipes. The air cooler is mainly composed of three basic parts: tube bundle, fan and structure, and auxiliary parts like louver and platform handrails. It uses natural air as cooling medium saving precious water, reducing the discharge of industrial waste water and protecting the natural environment.
Product details
Type of Air Cooled Heat Exchanger

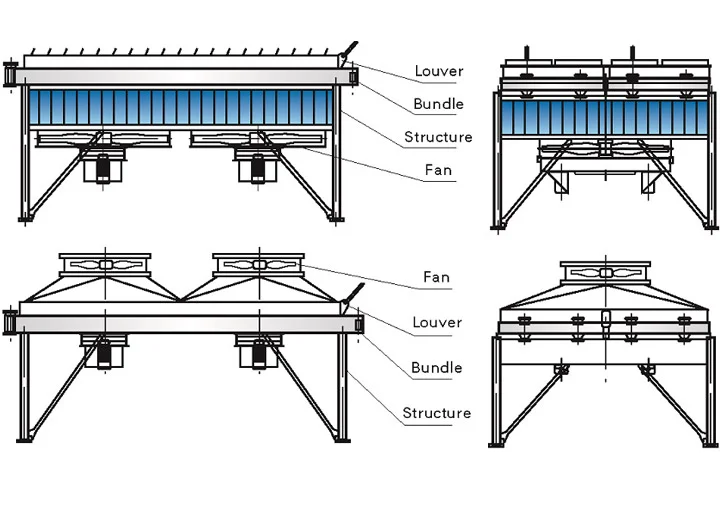

1. Forced-draft Horizontal Air Cooled Heat Exchanger 2. Induced-draft Horizontal Air Cooled Heat Exchanger 3. Sloped-top Air Cooled Heat Exchanger
Specification
Tube Bundle Model and Code
Tube bundle model
Code
Header model
Code
Flange model
Code
Fin model
Code
Forced-draft horizontal
GP

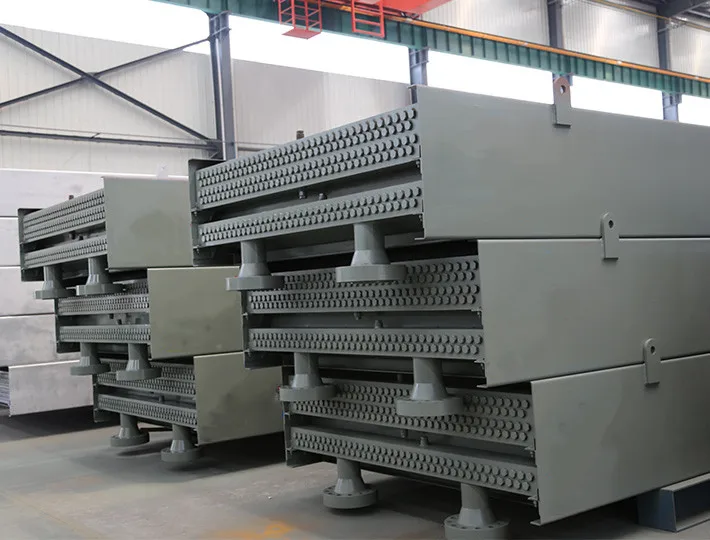

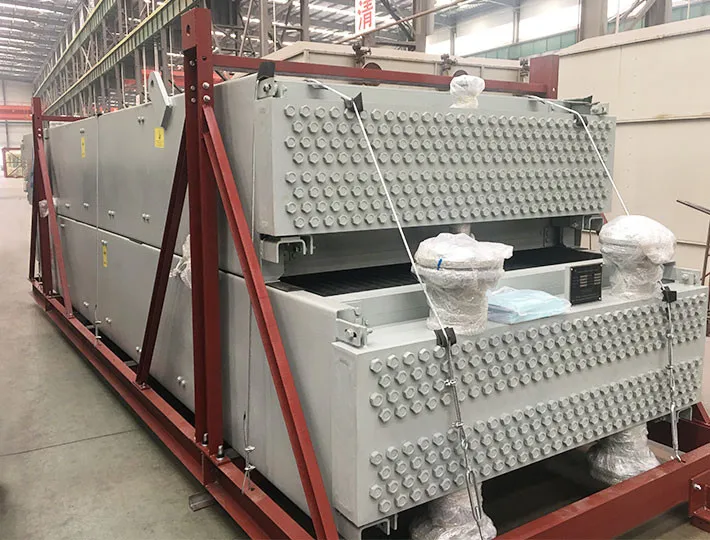

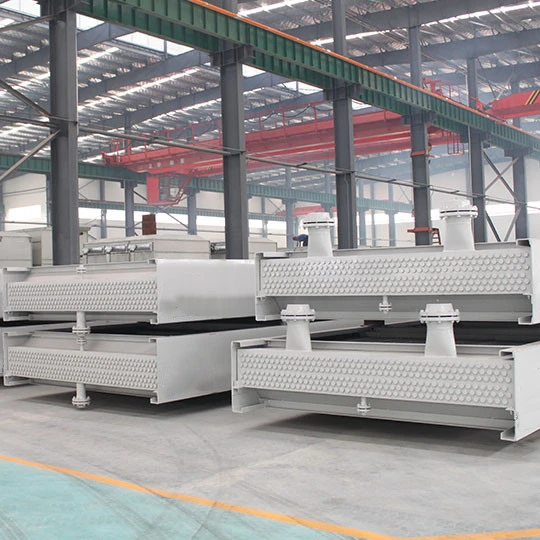

Plug header
S
Raised face (RF)
a
L
L
Slop-top
X

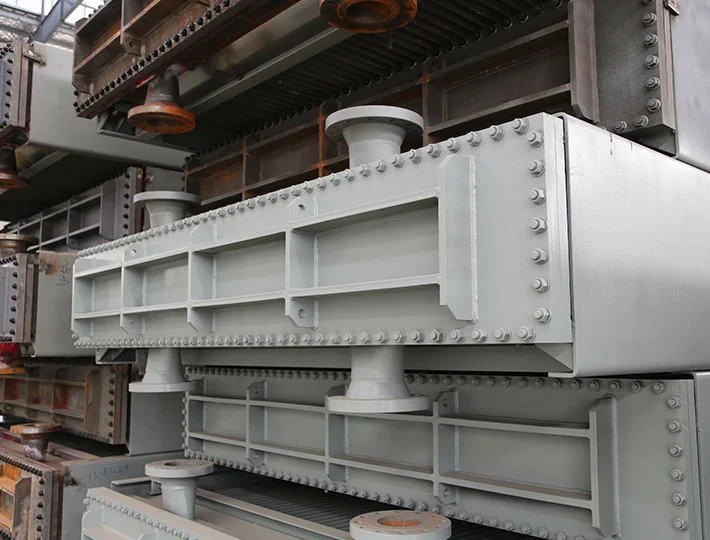

Cover plate header
K1
Male (Female) face (MF)
b
Double L
LL
Induced-draft horizontal
YP
Cover hat header
K2
Groove face
t
Knurled
KL
Wet vertical
SL

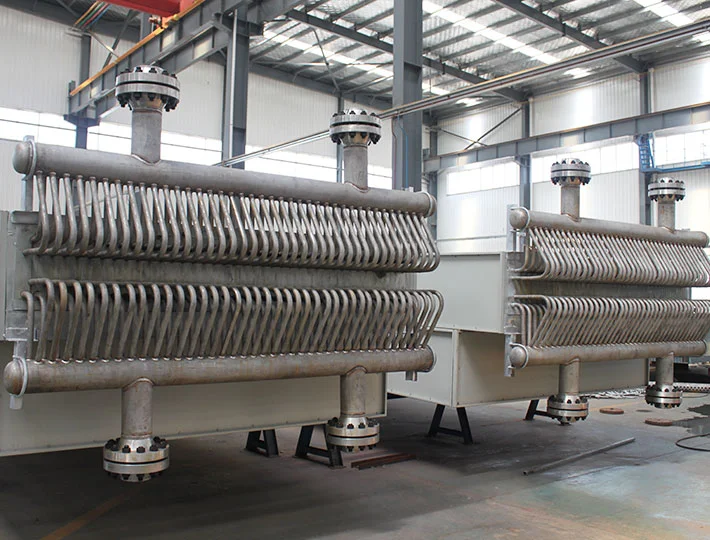

Pipe header
J
Ring joint face
RJ
B-imetal rolling
DR
Dry-wet combined slop
SX
Lens gasket
TJ
Mosaic
G
Air Cooled Heat Exchanger Model
Tube bundle model
Heat exchange tube qty.
Pressure, MPa
Tube row No.
Base tube area /Fin area,m2
L Fin Net weight,kg
DR Fin Net weight, kg
GP12*2.5-6-241-2.5S-23.4/L(DR)-Ia
225
2.5
6
9082214/5008
9082
10324
GP12*2-4-113-1.6S-23.4/L(DR)-Ia
118
1.6
4
113/2644
5423
6075
GP10.5*3-6-226-4.0S-23.4/L(DR)-Ia
273
4
6
226/5288
11127
12445
GP9*3-4-129-1.6S-23.4/L(DR)-Ia
182
1.6
4
229/3019
5098
6661
GP6*3-4-85-1.6S-23.4/L(DR)-Ia
182
1.6
4
85/1989
4405
4908
Feature of Air Cooled Heat Exchanger
1. Longer life;
2. Higher operating pressure ;
3.Operational gains created by 15-20%;
4. Lightweight;
5. Small scaling rate,
Company Profile
Company profile
LY Gaohua is a professional design & manufacturer of Air Cooled Heat Exchanger in China. Our main products are air cooled heat exchanger, evaporative condenser, closed cooling tower, air cooled heat exchanger, "air cooling + evaporative cooling" composite closed cooling system, anti-white mist efficient cooling system, etc. The products are be used in power, chemical, metallurgy, petrochemical, coal chemical, air condition, food refrigeration industries and so on. We covers an area of 13,500m2 and hold certificates of ISO. Our products are popular in domestic and international markets.
