Product Description
1. Introduction

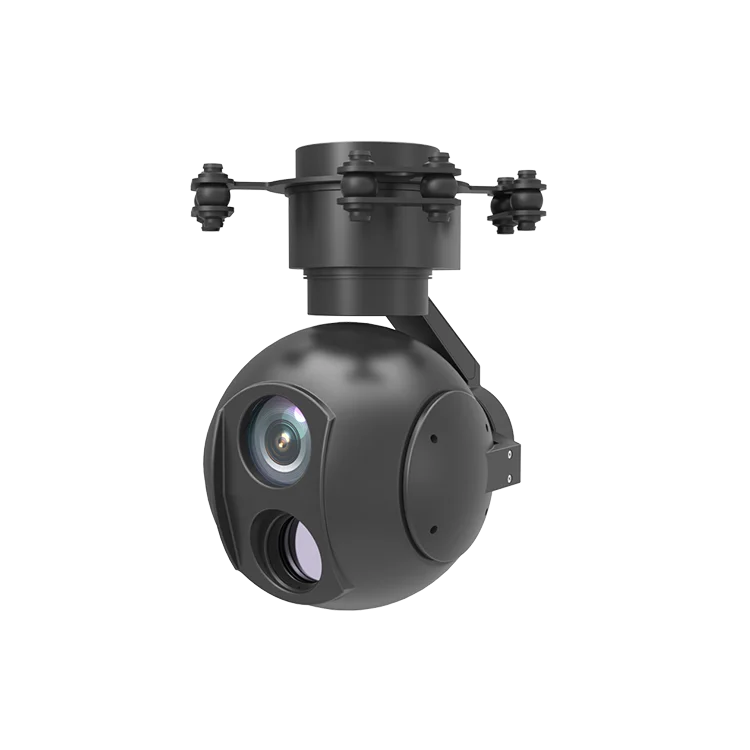

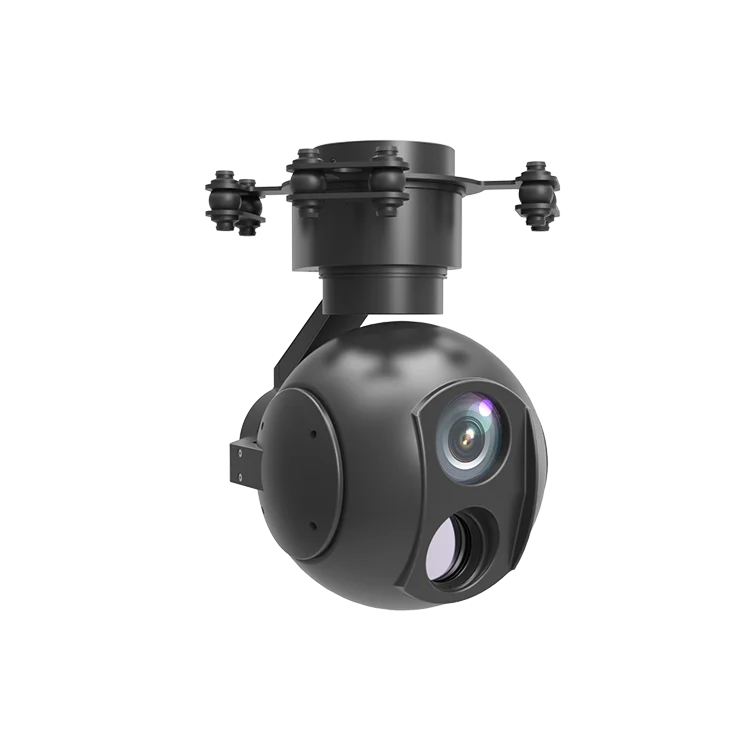

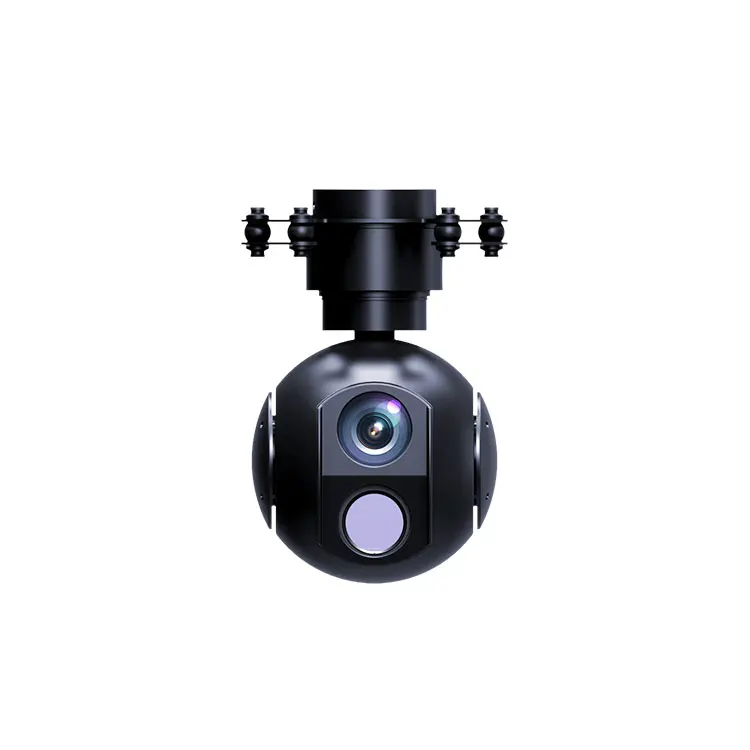

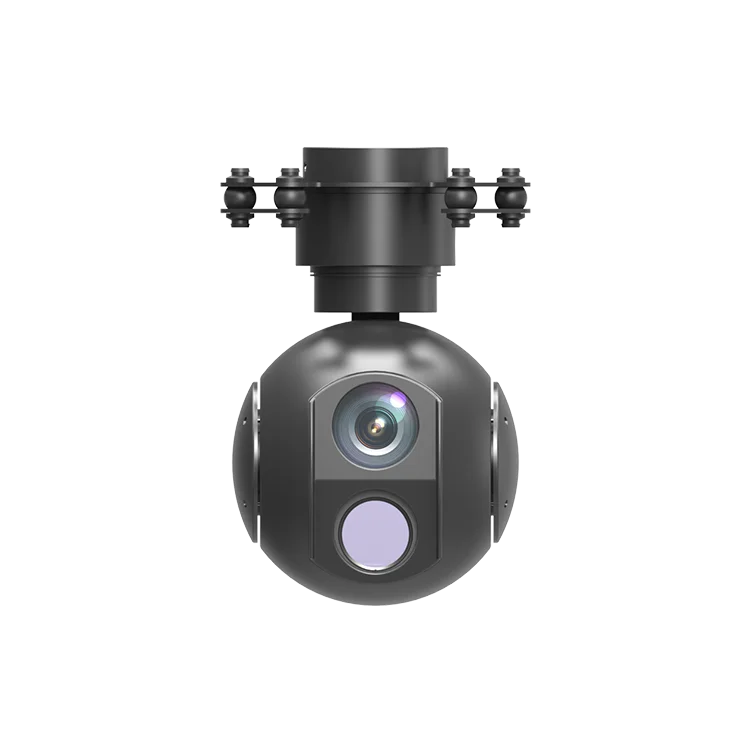

QZ130D is a powerful 3-axis dual-sensor gimbal camera which integrates a 30X optical zoom 1080P HD camera, a 640x512 thermal camera and a 3-axis platform with high stability and accuracy, working in day and night perfectly. QZ130D plays a professional and reliable role along with industrial UAV in activities of patrol and inspection, security, search and rescue, etc.
2. Features
* Get far and near in sight
30X optical zoom camera makes clear and stable images like it’s close at hand.
* Work in dark
Professional high sensitivity infrared thermal imaging, object viewing clearly in night, temperature detect precisely and
directly.
* All directional object tracking
Excellent high-precision inertial stabilized platform, 360° continuous view without blocking, optical and infrared dual object tracking.
* Military class working condition
Military alloy structure and industrial components ensure working in different severe conditions.
* Small and light, but powerful
Precise optical, mechanical and electronic integration design, it’s smaller and lighter compared with same level products, but more powerful.
* High compatibility with multi-interface
RS422, RS232, PWM and S.BUS for communication, HDMI, SDI, synchronized 422 and Ethernet for video.
3.Applications
Police service, electrical power-line inspection, security patrol, search and rescue, fire emergency.
Specification
Outline dimensions
Title goes here.
Thermal imager spec | ||
Detector type | Uncooled focal plane | |
Detector pixel | 640×512 | |
Lens focal length | 25mm（35mm optional） | |
FOV | 17.5°×14°（±5%） | |
Pseudo color | 8 | |
Digital zoom | ×2，×4 | |
Temp. measurement range | -20℃～150℃ (Temp. measurement featured version) | |
Temp. measurement accuracy | ±2K or 2% (Temp. measurement featured version) | |
Image storage | All temperature data (Temp. measurement featured version) | |
Video storage | All temperature data (Temp. measurement featured version) | |
Camera spec | ||
Resolution | 1920×1080 | |
Lens focal length | 4.3mm～129mm | |
Horizontal viewing angle | 63.7°～2.3° | |
Optical zoom | 30X auto-focus | |
Gimbal spec | ||
Yaw/Pan | 360°×n | |
Pitch/Tilt | -120°～+90° | |
Roll | -60°～+60° | |
System parameters | ||
Object tracking | Automatic | |
Working voltage | DC +20V～+36V | |
Power consumption | typical：≤20W | |
Weight | ≤1Kg | |
Dimension | ≤131mm×155mm×208mm | |
Interfaces | ||
Control | RS422/RS232/PWM/S.BUS | |
Video | HDMI/SDI/synchronized 422/100M Ethernet | |
Storage | Mini SD card/32G | |
Environment conditions | ||
Working temperature | -20℃～＋55℃（-40℃ optional） | |
Storage temperature | -40℃～＋60℃ | |
Protection level | Work in light rain | |
Product name | Gimbal Drone |
Usage | Aerial Photography |
Function | Night Light |
Color | Black |
Size | 116mm*115mm*184mm |
Keywords | uav camera Night Vision |
